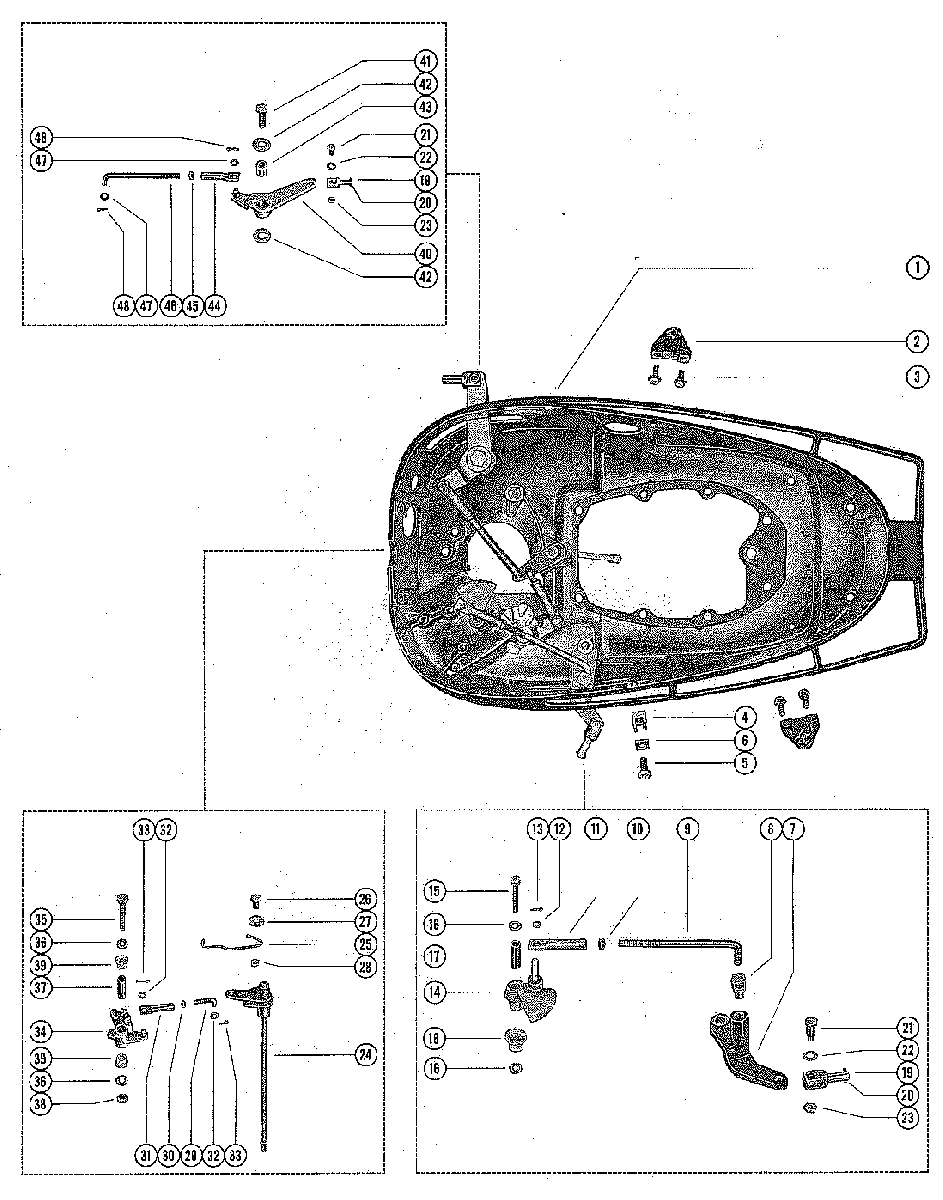

THROTTLE AND SHIFT LINKAGE для Mercury - 350 1571114 THRU 1812753

  • №
    Артикул
    Название
  • 1
    2101-2173A2 BOTTOM COWL ASSEMBLY (SEE PAGE 18 FOR PARTS BREAKDOWN)
    BOTTOM COWL ASSEMBLY (SEE PAGE 18 FOR PARTS BREAKDOWN)
  • 2
    20557 BRACKET, CABLE END ANCHOR
    BRACKET, CABLE END ANCHOR
  • 3
    10-29200 SCREW, CABLE END ANCHOR BRACKET TO BOTTOM COWL
    SCREW, CABLE END ANCHOR BRACKET TO BOTTOM COWL
  • 4
    21968 STOP BLOCK, THROTTLE LEVER
    STOP BLOCK, THROTTLE LEVER
  • 5
    10-28636 SCREW, STOP BLOCK TO BOTTOM COWL
    SCREW, STOP BLOCK TO BOTTOM COWL
  • 6
    12-21967 WASHER, STOP BLOCK TO BOTTOM COWL SCREW
    WASHER, STOP BLOCK TO BOTTOM COWL SCREW
  • 7
    33833 LEVER, THROTTLE ACTUATING - BOTTOM COWL
    LEVER, THROTTLE ACTUATING - BOTTOM COWL
  • 8
    27947 SWIVEL, THROTTLE ACTUATING LEVER
    SWIVEL, THROTTLE ACTUATING LEVER
  • 9
    33898 ROD, THROTTLE CONTROL
    ROD, THROTTLE CONTROL
  • 10
    11-25168 NUT, ADJUSTING - THROTTLE CONTROL ROD
    NUT, ADJUSTING - THROTTLE CONTROL ROD
  • 11
    33953 ROD (SLEEVE), THROTTLE CONTROL ROD TO THROTTLE CONTROL LEVER
    ROD (SLEEVE), THROTTLE CONTROL ROD TO THROTTLE CONTROL LEVER
  • 12
    12-20583 WASHER, THROTTLE CONTROL LEVER
    WASHER, THROTTLE CONTROL LEVER
  • 13
    18-210711 COTTER PIN, THROTTLE CONTROL LEVER
    COTTER PIN, THROTTLE CONTROL LEVER
  • 14
    33835 LEVER, THROTTLE CONTROL
    LEVER, THROTTLE CONTROL
  • 15
    10-29878 SCREW, THROTTLE CONTROL LEVER TO BOTTOM COWL
    SCREW, THROTTLE CONTROL LEVER TO BOTTOM COWL
  • 16
    12-24676 WASHER, THROTTLE CONTROL LEVER FASTENING SCREW
    WASHER, THROTTLE CONTROL LEVER FASTENING SCREW
  • 17
    23-33906 SPACER, THROTTLE CONTROL LEVER FASTENING SCREW
    SPACER, THROTTLE CONTROL LEVER FASTENING SCREW
  • 18
    23-65830 BUSHING, THROTTLE CONTROL LEVER TO BOTTOM COWL
    BUSHING, THROTTLE CONTROL LEVER TO BOTTOM COWL
  • 19
    17-30978A1 PIN ASSEMBLY, CLEVIS YOKE
    PIN ASSEMBLY, CLEVIS YOKE
  • 20
    17-239281 ROLL PIN, CLEVIS YOKE PIN
    ROLL PIN, CLEVIS YOKE PIN
  • 21
    10-20584 SCREW, CLEVIS YOKE PIN FASTENING
    SCREW, CLEVIS YOKE PIN FASTENING
  • 22
    13-29402 WASHER, WAVE - CLEVIS YOKE PIN FASTENING SCREW
    WASHER, WAVE - CLEVIS YOKE PIN FASTENING SCREW
  • 23
    11-826709106 NUT, CLEVIS YOKE PIN FASTENING SCREW
    NUT, CLEVIS YOKE PIN FASTENING SCREW
  • 24
    33901A1 SHIFT SHAFT ASSEMBLY, UPPER
    SHIFT SHAFT ASSEMBLY, UPPER
  • 25
    24-30621 SPRING, DETENT - SHIFT SHAFT
    SPRING, DETENT - SHIFT SHAFT
  • 26
    10-98256 SCREW, DETNET SPRING TO BOTTOM COWL
    SCREW, DETNET SPRING TO BOTTOM COWL
  • 27
    12-69057 WASHER, DETENT SPRING FASTENING SCREW
    WASHER, DETENT SPRING FASTENING SCREW
  • 28
    11-20013 NUT, DETENT SPRING FASTENING SCREW
    NUT, DETENT SPRING FASTENING SCREW
  • 29
    33837 ROD, THROTTLE STOP CONTROL
    ROD, THROTTLE STOP CONTROL
  • 30
    11-25168 NUT, ADJUSTING - THROTTLE STOP CONTROL ROD
    NUT, ADJUSTING - THROTTLE STOP CONTROL ROD
  • 31
    33953 ROD (SLEEVE), THROTTLE STOP CONTROL ROD TO THROTTLE STOP LEV
    ROD (SLEEVE), THROTTLE STOP CONTROL ROD TO THROTTLE STOP LEV
  • 32
    12-20583 WASHER, THROTTLE STOP LEVER
    WASHER, THROTTLE STOP LEVER
  • 33
    18-210711 COTTER PIN, THROTTLE STOP LEVER
    COTTER PIN, THROTTLE STOP LEVER
  • 34
    33834 LEVER, THROTTLE STOP
    LEVER, THROTTLE STOP
  • 35
    10-33993 SCREW, THROTTLE STOP LEVER TO BOTTOM COWL (2 1/4")
    SERIAL 00000000-01584092
    SCREW, THROTTLE STOP LEVER TO BOTTOM COWL (2 1/4")
    SERIAL 00000000-01584092
  • 36
    12-20722 WASHER, THROTTLE SOTP LEVER FASTENING SCREW
    SERIAL 00000000-01584092
    WASHER, THROTTLE SOTP LEVER FASTENING SCREW
    SERIAL 00000000-01584092
  • 37
    23-33905 BUSHING, THROTTLE STOP LEVER FASTENING SCREW
    SERIAL 00000000-01584092
    BUSHING, THROTTLE STOP LEVER FASTENING SCREW
    SERIAL 00000000-01584092
  • 35
    10-34438 SCREW, THROTTLE STOP LEVER TO BOTTOM COWL (2 3/8")
    SERIAL 01584093-09999999
    SCREW, THROTTLE STOP LEVER TO BOTTOM COWL (2 3/8")
    SERIAL 01584093-09999999
  • 36
    12-34437 WASHER, THROTTLE STOP LEVER FASTENING SCREW
    SERIAL 01584093-09999999
    WASHER, THROTTLE STOP LEVER FASTENING SCREW
    SERIAL 01584093-09999999
  • 37
    23-34440 BUSHING, THROTTLE STOP LEVER FASTENING SCREW
    SERIAL 01584093-09999999
    BUSHING, THROTTLE STOP LEVER FASTENING SCREW
    SERIAL 01584093-09999999
  • 38
    11-29250 NUT, THROTTLE STOP LEVER FASTENING SCREW
    SERIAL 01584093-09999999
    NUT, THROTTLE STOP LEVER FASTENING SCREW
    SERIAL 01584093-09999999
  • 39
    23-34103 BUSHING, NYLON - THROTTLE STOP LEVER FASTENING SCREW
    BUSHING, NYLON - THROTTLE STOP LEVER FASTENING SCREW
  • 40
    33841 LEVER, SHIFT CONTROL
    LEVER, SHIFT CONTROL
  • 41
    10-47273 SCREW, SHIFT CONTROL LEVER TO BOTTOM COWL
    SCREW, SHIFT CONTROL LEVER TO BOTTOM COWL
  • 42
    12-8M0042641 WASHER, SHIFT CONTROL LEVER FASTENING SCREW
    WASHER, SHIFT CONTROL LEVER FASTENING SCREW
  • 43
    23-29529 BUSHING, SHIFT CONTROL LEVER FASTENING SCREW
    BUSHING, SHIFT CONTROL LEVER FASTENING SCREW
  • 44
    33953 ROD (SLEEVE), SHIFT CONTROL END
    ROD (SLEEVE), SHIFT CONTROL END
  • 45
    11-25168 NUT, ADJUSTING - SHIFT SHAFT END
    NUT, ADJUSTING - SHIFT SHAFT END
  • 46
    33982 ROD, LINK - SHIFT SHAFT END
    ROD, LINK - SHIFT SHAFT END
  • 47
    12-20583 WASHER, SHIFT CONTROL END ROD
    WASHER, SHIFT CONTROL END ROD
  • 48
    18-210711 COTTER PIN, SHIFT CONTROL END ROD
    COTTER PIN, SHIFT CONTROL END ROD
