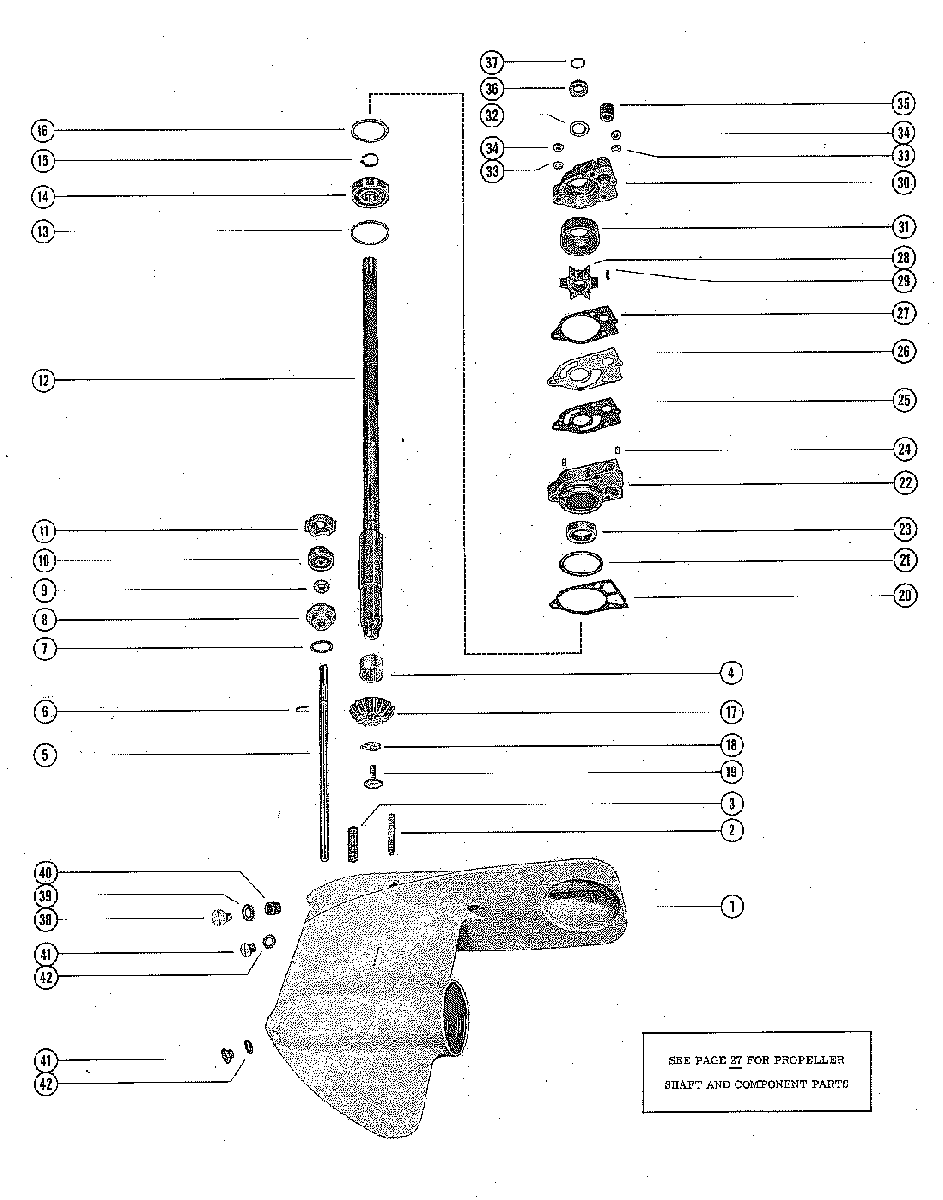

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1) для Mercury - 350 1571114 THRU 1812753

  • №
    Артикул
    Название
  • -
    1626-2040A6 GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD) - SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD) - SEE NOTE BELOW
  • 1
    1626-2040A1 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    16-32027 STUD, WATER PUMP BODY AND BASE TO GEAR HOUSING
    STUD, WATER PUMP BODY AND BASE TO GEAR HOUSING
  • 3
    16-32017 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING
  • 4
    31-62091T BEARING, ROLLER - DRIVE SHAFT
    BEARING, ROLLER - DRIVE SHAFT
  • 5
    56622A1 SHAFT, SHIFT - LOWER
    SHAFT, SHIFT - LOWER
  • 6
    53-29641 CLIP, RETAINING - SHIFT SHAFT
    CLIP, RETAINING - SHIFT SHAFT
  • 7
    25-25439 "O" RING, SHIFT SHAFT BUSHING
    "O" RING, SHIFT SHAFT BUSHING
  • 8
    23-46284A1 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 9
    26-892361 OIL SEAL, SHIFT SHAFT BUSHING
    OIL SEAL, SHIFT SHAFT BUSHING
  • 10
    52918 CAM, LOWER - REVERSE LOCKING
    CAM, LOWER - REVERSE LOCKING
  • 11
    52919 CAM, UPPER - REVERSE LOCKING
    CAM, UPPER - REVERSE LOCKING
  • 12
    45-31996 /DRIVE SHAFT (STANDARD)
    /DRIVE SHAFT (STANDARD)
    Производитель Mercury-Mercruiser
  • 13
    15-20929A1 SHIM, DRIVE SHAFT BEARING TO GEAR HOUSING
    SHIM, DRIVE SHAFT BEARING TO GEAR HOUSING
  • 14
    30-72961 BEARING, BALL - DRIVE SHAFT
    BEARING, BALL - DRIVE SHAFT
  • 15
    53-29116 RING, SNAP - BALL BEARING RETAINING
    RING, SNAP - BALL BEARING RETAINING
  • 16
    15-20929A1 SHIM, DRIVE SHAFT BEARING TO WATER PUMP BASE
    SHIM, DRIVE SHAFT BEARING TO WATER PUMP BASE
  • 17
    43-33843 GEAR, PINION - DRIVE SHAFT
    GEAR, PINION - DRIVE SHAFT
  • 18
    14-29163 TAB WASHER, PINION GEAR FASTENING SCREW
    TAB WASHER, PINION GEAR FASTENING SCREW
  • 19
    10-20925 SCREW, PINION GEAR TO DRIVE SHAFT
    SCREW, PINION GEAR TO DRIVE SHAFT
  • 20
    27-32771 GASKET, WATER PUMP BASE TO GEAR HOUSING
    GASKET, WATER PUMP BASE TO GEAR HOUSING
  • 21
    25-26855 "O" RING, WATER PUMP BASE
    "O" RING, WATER PUMP BASE
  • 22
    46-39531A1 WATER PUMP BASE ASSEMBLY
    WATER PUMP BASE ASSEMBLY
  • 23
    26-90562 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 24
    17-29596T DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
    DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
  • 25
    27-19553 GASKET, LOWER - WATER PUMP BASE TO FACE PLATE
    GASKET, LOWER - WATER PUMP BASE TO FACE PLATE
  • 26
    32768 PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
    PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
  • 27
    27-19551 GASKET, UPPER - FACE PLATE TO WATER PUMP BODY
    GASKET, UPPER - FACE PLATE TO WATER PUMP BODY
  • 28
    47-89983T IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 29
    28-8M0032837 PIN, IMPELLER DRIVE
    PIN, IMPELLER DRIVE
  • 30
    46-60366Q1 WATER PUMP BODY ASSEMBLY
    WATER PUMP BODY ASSEMBLY
  • 31
    32001 INSERT, WATER PUMP BODY
    INSERT, WATER PUMP BODY
  • 32
    26-32121 OIL SEAL, WATER PUMP BODY
    OIL SEAL, WATER PUMP BODY
  • 33
    13-26992 LOCKWASHER, WATER PUMP BODY AND BASE STUDS
    LOCKWASHER, WATER PUMP BODY AND BASE STUDS
  • 34
    11-29598 NUT, WATER PUMP BODY AND BASE FASTENING STUDS
    NUT, WATER PUMP BODY AND BASE FASTENING STUDS
  • 35
    26-25192 SEAL, WATER PUMP BODY TO WATER INLET TUBE
    SEAL, WATER PUMP BODY TO WATER INLET TUBE
  • 36
    25-20273 RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
    RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
  • 37
    25-29619 "O" RING, UPPER - DRIVE SHAFT
    "O" RING, UPPER - DRIVE SHAFT
  • 38
    10-29608 SCREW, GEAR HOUSING FLUSHING HOLE
    SCREW, GEAR HOUSING FLUSHING HOLE
  • 39
    27-29586 GASKET, GEAR HOUSING FLUSHING HOLE SCREW
    GASKET, GEAR HOUSING FLUSHING HOLE SCREW
  • 40
    26-29612 SEAL, GEAR HOUSING FLUSHING HOLE
    SEAL, GEAR HOUSING FLUSHING HOLE
  • 41
    10-79953Q04 SCREW, GREASE FILLER AND VENT HOLE
    SCREW, GREASE FILLER AND VENT HOLE
  • 42
    12-191833 WASHER, GREASE FILLER AND VENT HOLE SCREW
    WASHER, GREASE FILLER AND VENT HOLE SCREW
