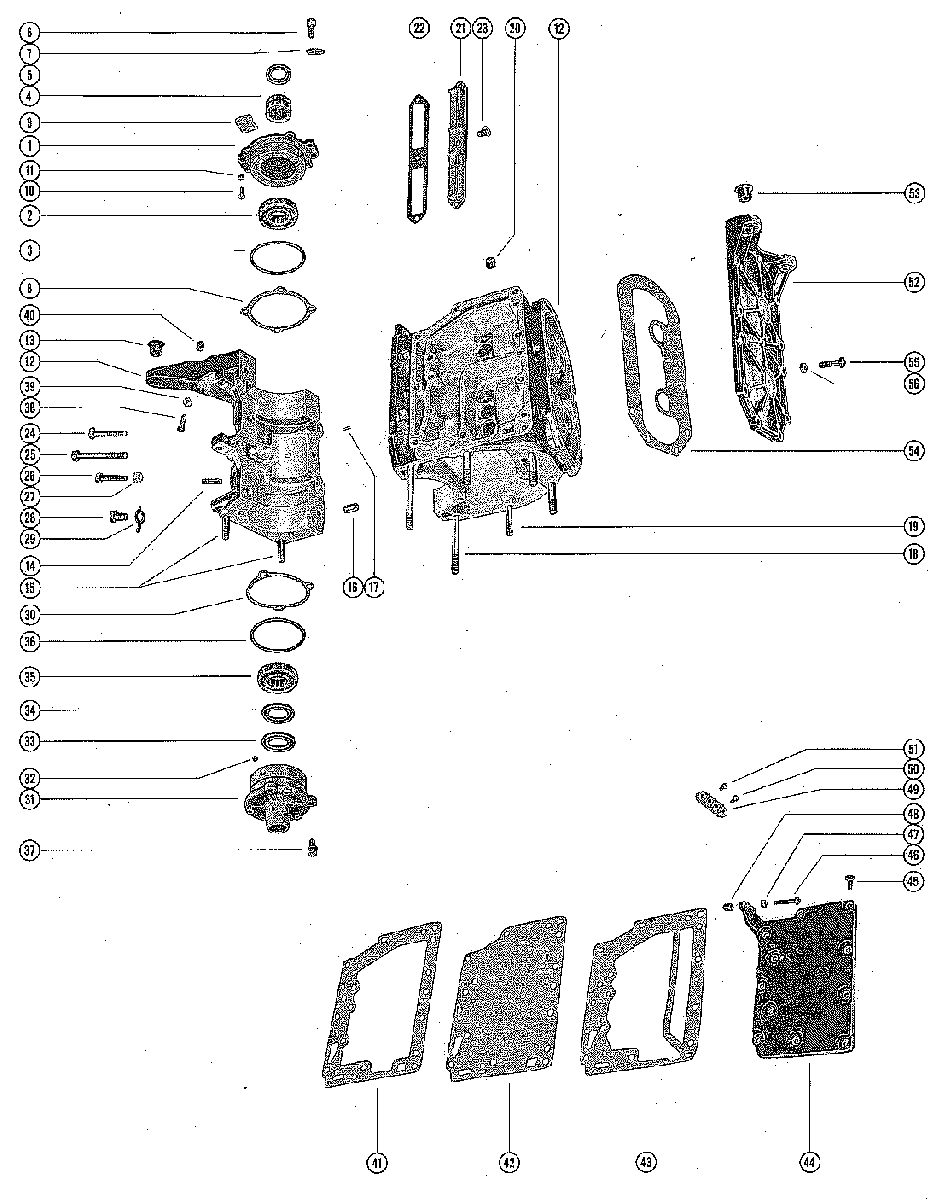

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 350 1571114 THRU 1812753

  • №
    Артикул
    Название
  • 1
    1130-2177A2 END CAP ASSEMBLY, UPPER
    END CAP ASSEMBLY, UPPER
  • 2
    30-63742T BALL BEARING, UPPER END CAP
    BALL BEARING, UPPER END CAP
  • 3
    25-31305 "O" RING, UPPER END CAP
    "O" RING, UPPER END CAP
  • 4
    31-33958 BEARING, ROLLER - UPPER END CAP
    BEARING, ROLLER - UPPER END CAP
  • 5
    26-33995 OIL SEAL
    OIL SEAL
  • 6
    10-29198 SCREW, UPPER END CAP MOUNTING
    SCREW, UPPER END CAP MOUNTING
  • 7
    53-78201 BRACKET, EXTENSION - UPPER END CAP SCREW
    BRACKET, EXTENSION - UPPER END CAP SCREW
  • 8
    15-33903A1 SHIM, UPPER END CAP TO CRANKCASE AND BLOCK (.002-3-5-10)
    SHIM, UPPER END CAP TO CRANKCASE AND BLOCK (.002-3-5-10)
  • 9
    33899 CLAMP, HOLD DOWN RING - STATOR PLATE
    CLAMP, HOLD DOWN RING - STATOR PLATE
  • 10
    10-32228 SCREW, HOLD DOWN RING CLAMP TO UPPER END CAP
    SCREW, HOLD DOWN RING CLAMP TO UPPER END CAP
  • 11
    24-27087 SPRING, HOLD DOWN RING CLAMP SCREW
    SPRING, HOLD DOWN RING CLAMP SCREW
  • 12
    838-2176A2 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    CYLINDER BLOCK AND CRANKCASE ASSEMBLY
  • 13
    23-26348 BUSHING, CRANKCASE
    BUSHING, CRANKCASE
  • 14
    16-64936 STUD, CARBURETOR MOUNTING (1 3/16")
    STUD, CARBURETOR MOUNTING (1 3/16")
  • 15
    16-33111 STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 5/8")
    STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 5/8")
  • 16
    17-23784 DOWEL PIN, CRANKCASE TO CYLINDER BLOCK
    DOWEL PIN, CRANKCASE TO CYLINDER BLOCK
  • 17
    17-20032 DOWEL PIN, CYLINDER BLOCK TO MAIN BEARING
    DOWEL PIN, CYLINDER BLOCK TO MAIN BEARING
  • 18
    16-8M0034463 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (3 7/16")
    STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (3 7/16")
  • 19
    16-29989 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (1 15/16")
    STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (1 15/16")
  • 20
    22-328022 PLUG, PIPE - WATER PRESSURE HOLE
    PLUG, PIPE - WATER PRESSURE HOLE
  • 21
    33758 COVER, TRANSFER PORT
    COVER, TRANSFER PORT
  • 22
    27-33955 GASKET, TRANSFER PORT COVER
    GASKET, TRANSFER PORT COVER
  • 23
    10-20540 SCREW. TRANSFER PORT COVER MOUNTING
    SCREW. TRANSFER PORT COVER MOUNTING
  • 24
    10-78841 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
  • 25
    10-22039 SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")
    SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")
  • 26
    10-26066 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/4")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/4")
  • 27
    11-29250 NUT, CRANKCASE FASTENING SCREW
    NUT, CRANKCASE FASTENING SCREW
  • 28
    10-98260 SCREW, MAIN BEARING LOCKING
    SCREW, MAIN BEARING LOCKING
  • 29
    14-20091 TAB WASHER, BEARING LOCKING SCREW
    TAB WASHER, BEARING LOCKING SCREW
  • 30
    15-20085A1 SHIM, LOWER END CAP TO CRANKCASE AND BLOCK (.002-3-5-10)
    SHIM, LOWER END CAP TO CRANKCASE AND BLOCK (.002-3-5-10)
  • 31
    1126-2187A1 END CAP ASSEMBLY, LOWER
    END CAP ASSEMBLY, LOWER
  • 32
    21-28481A1 CHECK VALVE ASSEMBLY, LOWER END CAP
    CHECK VALVE ASSEMBLY, LOWER END CAP
  • 33
    26-29478 OIL SEAL, LOWER
    OIL SEAL, LOWER
  • 34
    26-41953 OIL SEAL, UPPER
    OIL SEAL, UPPER
  • 35
    30-63742T BALL BEARING, LOWER END CAP
    BALL BEARING, LOWER END CAP
  • 36
    25-20081 "O" RING, LOWER END CAP
    "O" RING, LOWER END CAP
  • 37
    10-30225 SCREW, LOWER END CAP MOUNTING
    SCREW, LOWER END CAP MOUNTING
  • 38
    10-21365 SCREW, IDLE STOP - CRANKCASE
    SCREW, IDLE STOP - CRANKCASE
  • 39
    11-20890 NUT, IDLE STOP SCREW
    NUT, IDLE STOP SCREW
  • 40
    26852 CAP, NYLON - IDLE STOP SCREW
    CAP, NYLON - IDLE STOP SCREW
  • 41
    27-33950 GASKET, CYLINDER BLOCK TO MANIFOLD PLATE
    GASKET, CYLINDER BLOCK TO MANIFOLD PLATE
  • 42
    33948 PLATE, EXHAUST MANIFOLD
    PLATE, EXHAUST MANIFOLD
  • 43
    27-33949 GASKET, MANIFOLD PLATE TO EXHAUST COVER
    GASKET, MANIFOLD PLATE TO EXHAUST COVER
  • 44
    33757 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 45
    10-28636 SCREW, MANIFOLD COVER TO CYLINDER BLOCK
    SCREW, MANIFOLD COVER TO CYLINDER BLOCK
  • 46
    10-21365 SCREW< SPARK ADVANCE - EXHAUST COVER
    SCREW< SPARK ADVANCE - EXHAUST COVER
  • 47
    11-20890 NUT, SPARK ADVANCE SCREW
    NUT, SPARK ADVANCE SCREW
  • 48
    26852 CAP, NYLON - SPARK ADVANCE SCREW
    CAP, NYLON - SPARK ADVANCE SCREW
  • 49
    30212 TERMINAL BLOCK, EXHAUST MANIFOLD COVER
    TERMINAL BLOCK, EXHAUST MANIFOLD COVER
  • 50
    10-72169 SCREW, TERMINAL BLOCK TO EXHAUST MANIFOLD COVER
    SCREW, TERMINAL BLOCK TO EXHAUST MANIFOLD COVER
  • 51
    10-62568 SCREW, HARNESS LEADS TO TERMINAL BLOCK
    SCREW, HARNESS LEADS TO TERMINAL BLOCK
  • 52
    1015-2175A1 CYLINDER BLOCK COVER ASSEMBLY
    CYLINDER BLOCK COVER ASSEMBLY
  • 53
    23-26348 BUSHING, CYLINDER BLOCK COVER
    BUSHING, CYLINDER BLOCK COVER
  • 54
    27-33951 GASKET, CYLINDER BLOCK COVER
    GASKET, CYLINDER BLOCK COVER
  • 55
    10-20653 SCREW, CYLINDER BLOCK COVER MOUNTING
    SCREW, CYLINDER BLOCK COVER MOUNTING
  • 56
    11-24652 NUT, COVER MOUNTING SCREW
    NUT, COVER MOUNTING SCREW
