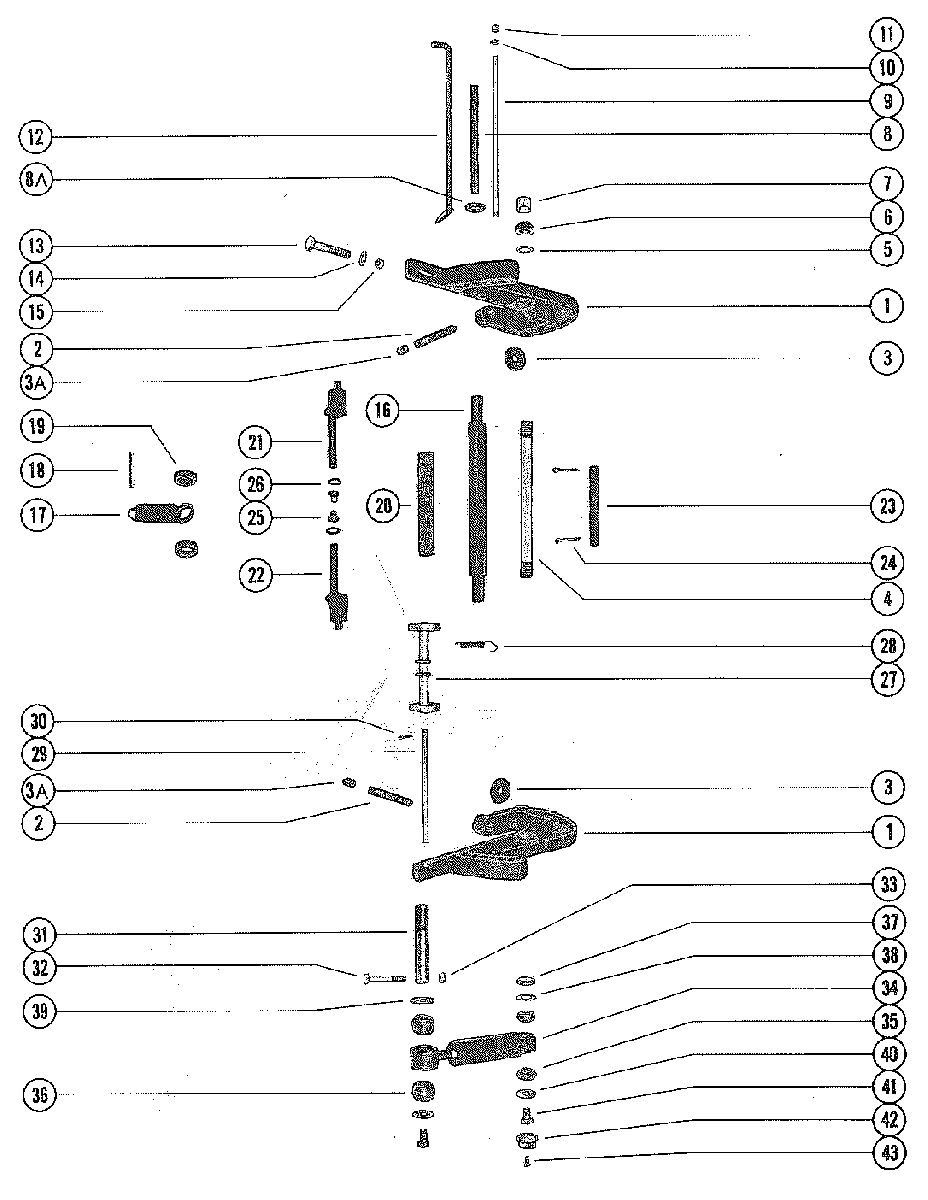

CLAMP BRACKET AND REVERSE LOCK для Mercury - 1500 8005615 THRU 8052649

  • №
    Артикул
    Название
  • 1
    1440-8394A1 CLAMP BRACKET ASSEMBLY
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    CLAMP BRACKET ASSEMBLY
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    0 ₽
  • 2
    28403A3 THUM SCREW ASSEMBLY
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    THUM SCREW ASSEMBLY
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    0 ₽
  • 3
    12-28404 WASHER, THUMB SCREW
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    WASHER, THUMB SCREW
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    0 ₽
  • 1
    1440-8394A1 CLAMP BRACKET ASSEMBLY
    UNITED STATES 4121435 THRU 4319879
    AUSTRALIA 8028040 THRU 8034895
    CANADA 7048783 THRU 7067284
    CLAMP BRACKET ASSEMBLY
    UNITED STATES 4121435 THRU 4319879
    AUSTRALIA 8028040 THRU 8034895
    CANADA 7048783 THRU 7067284
    0 ₽
  • 2
    10-78492A1 THUMB SCREW ASSEMBLY
    UNITED STATES 4121435 THRU 4319879
    AUSTRALIA 8028040 THRU 8034895
    CANADA 7048783 THRU 7067284
    THUMB SCREW ASSEMBLY
    UNITED STATES 4121435 THRU 4319879
    AUSTRALIA 8028040 THRU 8034895
    CANADA 7048783 THRU 7067284
    0 ₽
  • 3
    12-70988 WASHER, THUMB SCREW
    UNITED STATES 4121435 THRU 4319879
    AUSTRALIA 8028040 THRU 8034895
    CANADA 7048783 THRU 7067284
    WASHER, THUMB SCREW
    UNITED STATES 4121435 THRU 4319879
    AUSTRALIA 8028040 THRU 8034895
    CANADA 7048783 THRU 7067284
    0 ₽
  • 1
    1440-8394A1 CLAMP BRACKET ASSEMBLY
    UNITED STATES 4319880 AND UP
    CANADA 7067248 AND UP
    CLAMP BRACKET ASSEMBLY
    UNITED STATES 4319880 AND UP
    CANADA 7067248 AND UP
    0 ₽
  • 2
    10-78492A1 THUM SCREW ASSEMBLY
    UNITED STATES 4319880 AND UP
    CANADA 7067248 AND UP
    THUM SCREW ASSEMBLY
    UNITED STATES 4319880 AND UP
    CANADA 7067248 AND UP
    0 ₽
  • 3
    75043 CAP, THUMB SCREW
    UNITED STATES 4319880 AND UP
    CANADA 7067248 AND UP
    CAP, THUMB SCREW
    UNITED STATES 4319880 AND UP
    CANADA 7067248 AND UP
    0 ₽
  • 4
    8M0041936 TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
    TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
    2 820 ₽
  • 5
    12-52864 WASHER, CLAMP BRACKET TILT TUBE
    WASHER, CLAMP BRACKET TILT TUBE
    0 ₽
  • 6
    11-858869 NUT, TILT TUBE FASTENING
    NUT, TILT TUBE FASTENING
    330 ₽
  • 7
    53078 CAP, PLASTIC - TILT TUBE
    CAP, PLASTIC - TILT TUBE
    0 ₽
  • 8
    23-59624 SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
    0 ₽
  • 8A
    12-36001 WASHER, CLAMP BRACKET STUD
    WASHER, CLAMP BRACKET STUD
    100 ₽
  • 9
    16-59625 STUD, CLAMP BRACKET (NOT USED WITH FULL POWER TRIM)
    STUD, CLAMP BRACKET (NOT USED WITH FULL POWER TRIM)
    0 ₽
  • 10
    13-26993 LOCKWASHER, CLAMP BRACKET STUD
    LOCKWASHER, CLAMP BRACKET STUD
    140 ₽
  • 11
    11-28770 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
    110 ₽
  • 12
    17-8M0026068 TILT LOCK PIN ASSEMBLY (NOT USED WIHT FULL POWER TRIM)
    TILT LOCK PIN ASSEMBLY (NOT USED WIHT FULL POWER TRIM)
    4 970 ₽
  • 13
    10-68298 BOLT, CLAMP BRACKET TO BOAT TRANSON (LOWER)
    BOLT, CLAMP BRACKET TO BOAT TRANSON (LOWER)
    0 ₽
  • 13
    10-68299 BOLT, CLAMP BRACKET TO BOAT TRANSOM (UPPER)
    BOLT, CLAMP BRACKET TO BOAT TRANSOM (UPPER)
    500 ₽
  • 14
    12-46765 WASHER, CLAMP BRACKET BOLT (LOWER)
    WASHER, CLAMP BRACKET BOLT (LOWER)
    570 ₽
  • 14
    12-68300 WASHER, CLMAP BRACKET BOLT (UPPER)
    WASHER, CLMAP BRACKET BOLT (UPPER)
    0 ₽
  • 15
    11-82670912 NUT, CLAMP BRACKET BOLT
    NUT, CLAMP BRACKET BOLT
    410 ₽
  • 16
    55-28416 PIN, UPPER SHOCK MOUNTING
    PIN, UPPER SHOCK MOUNTING
    6 970 ₽
  • 17
    24-94891 SPRING, COIL - SWIVEL BRACKET
    NOT USED WITH FULL POWER TRIM
    SPRING, COIL - SWIVEL BRACKET
    NOT USED WITH FULL POWER TRIM
    0 ₽
  • 18
    17-38311 PIN, COIL SPRING MOUNTING
    NOT USED WITH FULL POWER TRIM
    PIN, COIL SPRING MOUNTING
    NOT USED WITH FULL POWER TRIM
    0 ₽
  • 19
    23-28688 SPACER, RUBBER - COIL SPRING POSITIONING
    NOT USED WITH FULL POWER TRIM
    SPACER, RUBBER - COIL SPRING POSITIONING
    NOT USED WITH FULL POWER TRIM
    0 ₽
  • 20
    63473 TUBE, CUSHION - SHOCK PIN (USED WITH FULL POWER TRIM)
    LONG SHAFT
    TUBE, CUSHION - SHOCK PIN (USED WITH FULL POWER TRIM)
    LONG SHAFT
    0 ₽
  • 21
    76386 TILT LOCK ASSEMBLY, STARBOARD
    UNITED STATES 4602011 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7093097 AND BELOW
    TILT LOCK ASSEMBLY, STARBOARD
    UNITED STATES 4602011 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7093097 AND BELOW
    0 ₽
  • 22
    76385T TILT LOCK ASSEMBLY, PORT
    UNITED STATES 4602011 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7093097 AND BELOW
    TILT LOCK ASSEMBLY, PORT
    UNITED STATES 4602011 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7093097 AND BELOW
    3 480 ₽
  • 23
    47802 TUBE, TILT LOCK
    UNITED STATES 4602011 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7093097 AND BELOW
    TUBE, TILT LOCK
    UNITED STATES 4602011 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7093097 AND BELOW
    0 ₽
  • 24
    23-47803 BUSHING, TILT LOCK
    UNITED STATES 4602011 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7093097 AND BELOW
    BUSHING, TILT LOCK
    UNITED STATES 4602011 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7093097 AND BELOW
    0 ₽
  • 25
    13-69150 WASHER, WAVE - TILT LOCK
    UNITED STATES 4602011 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7093097 AND BELOW
    WASHER, WAVE - TILT LOCK
    UNITED STATES 4602011 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7093097 AND BELOW
    270 ₽
  • 21
    76386 TILT LOCK ASSEMBLY, STARBOARD
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    TILT LOCK ASSEMBLY, STARBOARD
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    0 ₽
  • 22
    76385T TILT LOCK ASSEMBLY, PORT
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    TILT LOCK ASSEMBLY, PORT
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    3 480 ₽
  • 23
    79659 TUBE, TILT LOCK
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    TUBE, TILT LOCK
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    0 ₽
  • 25
    13-69150 WASHER, WAVE - TILT LOCK (STARBOARD SIDE ONLY) SER GROUP #19
    WASHER, WAVE - TILT LOCK (STARBOARD SIDE ONLY) SER GROUP #19
    270 ₽
  • 25A
    26-22734 OIL SEAL, SWIVEL BRACKET (TILT LOCK)
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    OIL SEAL, SWIVEL BRACKET (TILT LOCK)
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    0 ₽
  • 25B
    12-76388 WASHER, TILT LOCK (STARBOAR SIDE ONLY)
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    WASHER, TILT LOCK (STARBOAR SIDE ONLY)
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    0 ₽
  • 25C
    25-627021 "O" RING, TILT LOCK
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    "O" RING, TILT LOCK
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    120 ₽
  • 26
    18-47959 COTTER PIN, TILT LOCK
    COTTER PIN, TILT LOCK
    280 ₽
  • 27
    87431 REVERSE LOCK ASSEMBLY
    NOT USED WITH FULL POWER TRIM
    REVERSE LOCK ASSEMBLY
    NOT USED WITH FULL POWER TRIM
    0 ₽
  • 28
    24-29821 SPRING, REVERSE LOCK TENSION
    NOT USED WITH FULL POWER TRIM
    SPRING, REVERSE LOCK TENSION
    NOT USED WITH FULL POWER TRIM
    0 ₽
  • 29
    56349 SHAFT, REVERSE LCOK PIVOT
    NOT USED WITH FULL POWER TRIM
    SHAFT, REVERSE LCOK PIVOT
    NOT USED WITH FULL POWER TRIM
    0 ₽
  • 30
    18-45882 COTTER PIN, REVERSE LOCK TO SHAFT
    NOT USED WITH FULL POWER TRIM
    COTTER PIN, REVERSE LOCK TO SHAFT
    NOT USED WITH FULL POWER TRIM
    280 ₽
  • 31
    55-696531 PIN, LOWER SHOCK MOUNTING (SHORT SHAFT)
    PIN, LOWER SHOCK MOUNTING (SHORT SHAFT)
    0 ₽
  • 31
    55-28414 PIN, LOWER SHOCK MOUNTING - LONG SHAFT
    PIN, LOWER SHOCK MOUNTING - LONG SHAFT
    0 ₽
  • 32
    10-21937 SCREW, LOWER SHOCK PIN - LONG SHAFT
    SCREW, LOWER SHOCK PIN - LONG SHAFT
    210 ₽
  • 33
    11-20184 NUT, LOWER SHOCK PN SCREW - LONG SHAFT
    NUT, LOWER SHOCK PN SCREW - LONG SHAFT
    120 ₽
  • 34
    55-58780A7 SHOCK ABSORBER
    NOT USED WITH FULL POWER TRIM
    SHOCK ABSORBER
    NOT USED WITH FULL POWER TRIM
    32 410 ₽
  • 35
    23-32171 BUSHIG, RUBBER - SHOCK ABSORBER (UPPER)
    NOT USED WITH FULL POWER TRIM
    BUSHIG, RUBBER - SHOCK ABSORBER (UPPER)
    NOT USED WITH FULL POWER TRIM
    0 ₽
  • 36
    23-28198 BUSHING, RUBBER - SHOCK ABSORBER (LOWER)
    NOT USED WITH FULL POWER TRIM
    BUSHING, RUBBER - SHOCK ABSORBER (LOWER)
    NOT USED WITH FULL POWER TRIM
    0 ₽
  • 37
    23-28199 SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET-SERIAL. GROUP #18
    SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET-SERIAL. GROUP #18
    0 ₽
  • 37
    23-73203 SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET
    UNITED STATES 4319880 AND UP
    CANADA 7067248 AND UP
    SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET
    UNITED STATES 4319880 AND UP
    CANADA 7067248 AND UP
    0 ₽
  • 38
    12-28196 WASHER, UPPER BUSHING RETAINER (INNER)
    WASHER, UPPER BUSHING RETAINER (INNER)
    0 ₽
  • 39
    12-59378 WASHER, LOWER BUSHING RETAINER (INNER)
    WASHER, LOWER BUSHING RETAINER (INNER)
    220 ₽
  • 40
    12-28421 WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)
    UNITED STATES 4602011 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7093097 AND BELOW
    WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)
    UNITED STATES 4602011 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7093097 AND BELOW
    260 ₽
  • 41
    10-69375A1 SCREW, UPPER NAD LOWER SHOCK MOUNTING PIN
    UNITED STATES 4602011 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7093097 AND BELOW
    SCREW, UPPER NAD LOWER SHOCK MOUNTING PIN
    UNITED STATES 4602011 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7093097 AND BELOW
    0 ₽
  • 40
    12-69374 WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    0 ₽
  • 41
    10-69375 SCREW, UPPER AND LOWER SHOCK MOUNTINGH PIN
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    SCREW, UPPER AND LOWER SHOCK MOUNTINGH PIN
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    0 ₽
  • 42
    70679 COVER, UPER AND LOWER SHOCK MOUNTING PIN
    UNITED STATES 4602011 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7093097 AND BELOW
    COVER, UPER AND LOWER SHOCK MOUNTING PIN
    UNITED STATES 4602011 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7093097 AND BELOW
    0 ₽
  • 43
    10-37655 SCREW, COVER TO SHOCK MOUNTING SCREW
    UNITED STATES 4602011 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7093097 AND BELOW
    SCREW, COVER TO SHOCK MOUNTING SCREW
    UNITED STATES 4602011 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7093097 AND BELOW
    150 ₽
