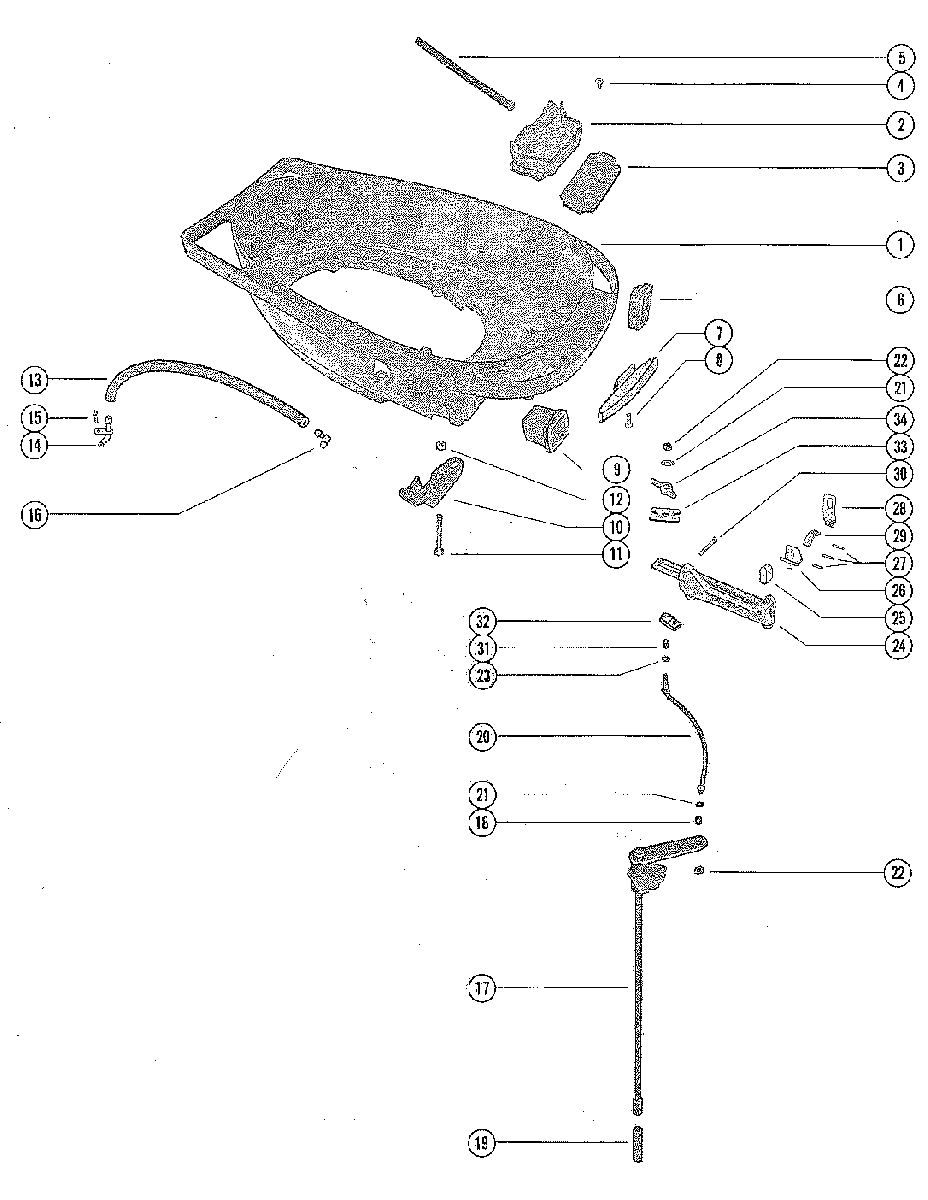

BOTTOM COWL AND SHIFT LINKAGE для Mercury - 1500 8005615 THRU 8052649

  • №
    Артикул
    Название
  • 1
    2115-3919 COWL, BOTTOM
    UNITED STATES 3751849 AND BELOW
    AUSTRALIA 8013389 AND BELOW
    CANADA 7024372 AND BELOW
    COWL, BOTTOM
    UNITED STATES 3751849 AND BELOW
    AUSTRALIA 8013389 AND BELOW
    CANADA 7024372 AND BELOW
  • 1
    2115-8963A1 COWL, BOTTOM
    UNITED STATES 3751850 THRU 4602011
    AUSTRALIA 8013390 THRU 8034895
    CANADA 7024373 THRU 7093097
    COWL, BOTTOM
    UNITED STATES 3751850 THRU 4602011
    AUSTRALIA 8013390 THRU 8034895
    CANADA 7024373 THRU 7093097
  • 1
    2115-8963A1 COWL, BOTTOM
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    COWL, BOTTOM
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
  • 2
    52862A2 DRIP TRAY ASSEMBLY, BOTTOM COWL
    DRIP TRAY ASSEMBLY, BOTTOM COWL
  • 3
    37940 PAD, SOUND - DRIP TRAY
    PAD, SOUND - DRIP TRAY
  • 4
    10-48408 SCREW, DRIP TRAY TO BOTTOM COWL (1/2")
    SCREW, DRIP TRAY TO BOTTOM COWL (1/2")
  • 5
    32-8M0108355 HOSE, DRIP TRAY TO BOTTOM COWL (8")
    HOSE, DRIP TRAY TO BOTTOM COWL (8")
  • 6
    39616 BOOT, CONTROL CABLES - BOTTOM COLW
    BOOT, CONTROL CABLES - BOTTOM COLW
  • 7
    76369 SPACER, BOTTOM COWL (COWL FRONT COVER)
    SPACER, BOTTOM COWL (COWL FRONT COVER)
  • 8
    10-48591 SCREW, SPACER TO BOTTOM COWL (1/2")
    SCREW, SPACER TO BOTTOM COWL (1/2")
  • 9
    37637 BOOT, FUEL CONNECTOR - BOTTOM COWL
    BOOT, FUEL CONNECTOR - BOTTOM COWL
  • 10
    37445 SUPPORT, WIRING HARNESS - BOTTOM COWL
    SUPPORT, WIRING HARNESS - BOTTOM COWL
  • 11
    10-69029 SCREW, SUPPORT TO BOTTOM COWL (1 3/4")
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    SCREW, SUPPORT TO BOTTOM COWL (1 3/4")
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
  • 11
    10-88488 SCREW, SUPPORT TO BOTTOM COWL (3 1/4")
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    SCREW, SUPPORT TO BOTTOM COWL (3 1/4")
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
  • 12
    11-20184 NUT, SUPPORT SCREW
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    NUT, SUPPORT SCREW
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
  • 11
    10-69029 SCREW, SUPPORT TO BOTTOM COWL (1 3/4")
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
    SCREW, SUPPORT TO BOTTOM COWL (1 3/4")
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
  • 13
    32-8M0108355 HOSE, TELL TALE - EXHAUST COVER TO BOTTOM COWL (16")
    HOSE, TELL TALE - EXHAUST COVER TO BOTTOM COWL (16")
  • 14
    52889 NOZZLE, TELL TALE HOSE TO BOTTOM COWL
    NOZZLE, TELL TALE HOSE TO BOTTOM COWL
  • 15
    10-48408 SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")
    SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")
  • 16
    22-996642 ELBOW, TELL TALE HOSE TO EXHAUST COVER
    ELBOW, TELL TALE HOSE TO EXHAUST COVER
  • 17
    60304A55 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
    UNITED STATES 4403387 THRU 4602011
    SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
    UNITED STATES 4403387 THRU 4602011
  • 17
    60304A54 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
    UNITED STATES 4403387 THRU 4602011
    SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
    UNITED STATES 4403387 THRU 4602011
  • 18
    23-26600 BUSHING, SHIFT SHAFT
    UNITED STATES 4403387 THRU 4602011
    BUSHING, SHIFT SHAFT
    UNITED STATES 4403387 THRU 4602011
  • 19
    93960A1 COUPLING, SHIFT SHAFT
    UNITED STATES 4403387 THRU 4602011
    COUPLING, SHIFT SHAFT
    UNITED STATES 4403387 THRU 4602011
  • 17
    60304A55 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
  • 17
    60304A54 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
  • 20
    73402 LINK ROD ASSEMBLY
    LINK ROD ASSEMBLY
  • 21
    12-35462 WASHER, LINK ROD
    WASHER, LINK ROD
  • 22
    11-826709109 NUT, LINK ROD
    NUT, LINK ROD
  • 23
    13-29720 WASHER, WAVE - LINK ROD
    WASHER, WAVE - LINK ROD
  • 24
    52732A6 BRACKET, ANCHOR - CONTROL CABLES
    BRACKET, ANCHOR - CONTROL CABLES
  • 25
    39519 CAP, BARREL RETAINER - ANCHOR BRACKET
    CAP, BARREL RETAINER - ANCHOR BRACKET
  • 26
    87609A1 LEVER, NYLON - SHIFT CABLE LOCKING
    LEVER, NYLON - SHIFT CABLE LOCKING
  • 27
    17-47175 PIN, LOCKING LEVER AND COVER FASTENING
    PIN, LOCKING LEVER AND COVER FASTENING
  • 28
    39667 COVER, NYLON - SHIFT CABLE
    COVER, NYLON - SHIFT CABLE
  • 29
    87609A1 LINK, LOCKING LEVER TO COVER
    LINK, LOCKING LEVER TO COVER
  • 30
    10-35386 SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")
    SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")
  • 31
    24-20099 SPRING, LINK ROD TO GUIDE BLOCK
    SPRING, LINK ROD TO GUIDE BLOCK
  • 32
    37896 GUIDE BLOCK, LINK ROD
    GUIDE BLOCK, LINK ROD
  • 33
    52100 WEAR PLATE, LINK ROD
    WEAR PLATE, LINK ROD
  • 34
    8M0036768 LATCH, CONTROL CABLE FASTENING - ANCHOR BRACKET
    LATCH, CONTROL CABLE FASTENING - ANCHOR BRACKET
