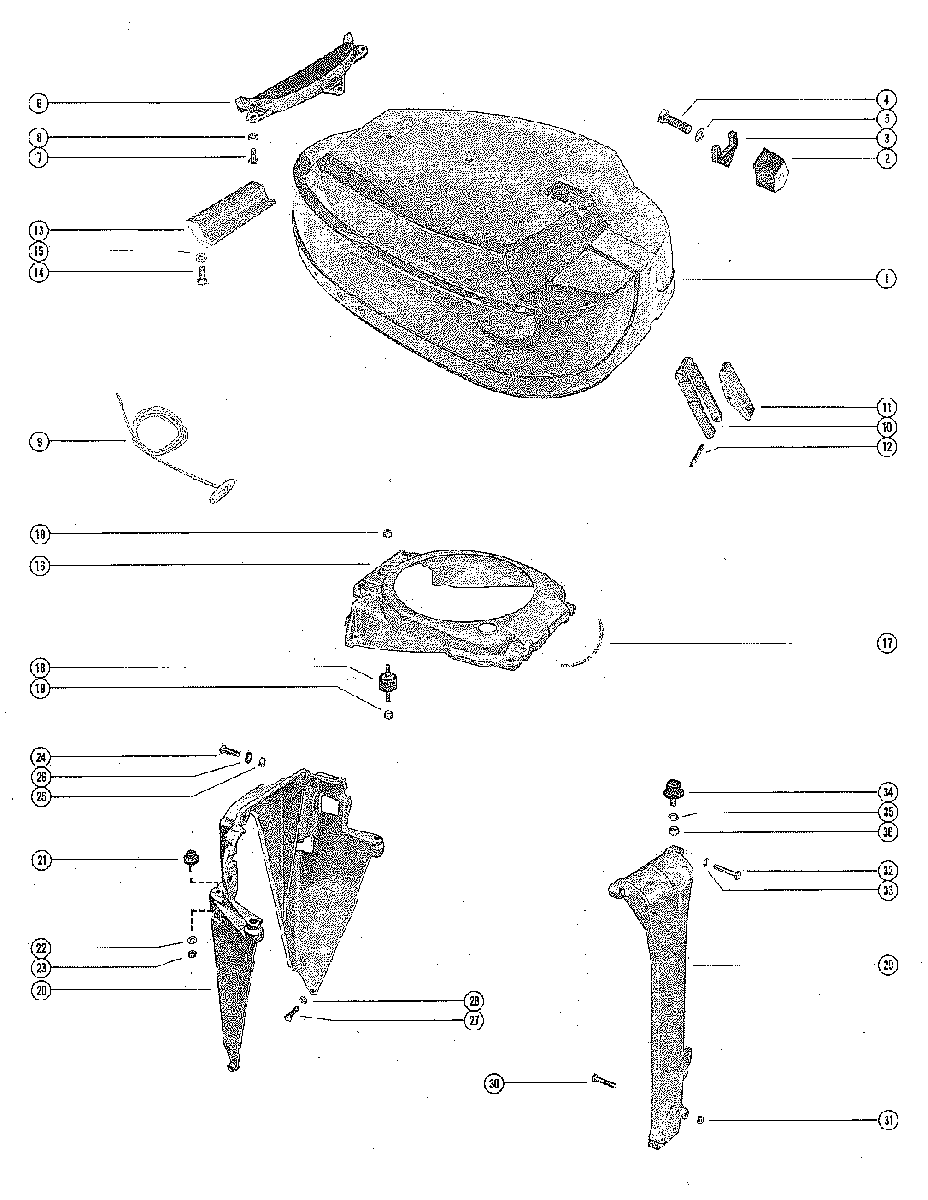

TOP COWL AND SUPPORT BRACKETS для Mercury - 1500 8005615 THRU 8052649

  • №
    Артикул
    Название
  • 1
    2114-3806 COWL, TOP
    UNITED STATES 4403386 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7067847 AND BELOW
    COWL, TOP
    UNITED STATES 4403386 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7067847 AND BELOW
    0 ₽
  • 1
    2114-7934T COWL, TOP
    UNITED STATES 4403387 AND UP
    COWL, TOP
    UNITED STATES 4403387 AND UP
    0 ₽
  • 2
    52733A9 RETAINER ASSEBMLY, TOP COWL
    RETAINER ASSEBMLY, TOP COWL
    0 ₽
  • 3
    35496 PAD, BUMPER - TOP COWL RETAINER
    PAD, BUMPER - TOP COWL RETAINER
    0 ₽
  • 4
    10-74824 SCREW, RETAINER TO TOP COWL (1 1/4")
    SCREW, RETAINER TO TOP COWL (1 1/4")
    140 ₽
  • 5
    13-39107 LOCKWASHER, RETAINER TO TOP COWL SCREW
    LOCKWASHER, RETAINER TO TOP COWL SCREW
    120 ₽
  • 6
    76370 SHIELD,TOP COWL - REAR
    SHIELD,TOP COWL - REAR
    0 ₽
  • 7
    10-37370 SCREW, SHIELD TO TOP COWL (5/8")
    SCREW, SHIELD TO TOP COWL (5/8")
    100 ₽
  • 8
    13-37371 LOCKWASHER, SHIELD SCREW
    LOCKWASHER, SHIELD SCREW
    0 ₽
  • 9
    47341A11 ROPE, STARTER (FOR MANUAL STARTING ONLY)
    ROPE, STARTER (FOR MANUAL STARTING ONLY)
    1 350 ₽
  • 10
    52739 HINGE, COWL LATCH - TOP COWL
    HINGE, COWL LATCH - TOP COWL
    2 110 ₽
  • 11
    94918F1 LEVER, COWL LATCH HINGE
    LEVER, COWL LATCH HINGE
    2 780 ₽
  • 12
    17-58998 PIN, TOLL - COWL LATCH LEVER TO HINGE
    PIN, TOLL - COWL LATCH LEVER TO HINGE
    350 ₽
  • 13
    55455 HOOK, TOP COWL LATCH - REAR
    HOOK, TOP COWL LATCH - REAR
    0 ₽
  • 14
    10-22956 SCREW, REAR HOOK TO TOP COWL (7/8")
    SCREW, REAR HOOK TO TOP COWL (7/8")
    0 ₽
  • 15
    13-26992 LOCKWASHER, REAR HOOK MOUNTING SCREW
    LOCKWASHER, REAR HOOK MOUNTING SCREW
    70 ₽
  • 16
    79897A4 FRAME ASSEMBLY, TOP COWL SUPPORT
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    FRAME ASSEMBLY, TOP COWL SUPPORT
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    0 ₽
  • 16
    79897A4 FRAME ASSEMBLY, TOP COWL SUPPORT
    UNITED STATES 4121435 THRU 4403386
    AUSTRALIA 8028040 THRU 8034895
    CANADA 7048783 THRU 7067847
    FRAME ASSEMBLY, TOP COWL SUPPORT
    UNITED STATES 4121435 THRU 4403386
    AUSTRALIA 8028040 THRU 8034895
    CANADA 7048783 THRU 7067847
    0 ₽
  • 16
    79897A4 FRAME ASSEMBLY, TOP COWL SUPPORT
    UNITED STATES 4403387 AND UP
    FRAME ASSEMBLY, TOP COWL SUPPORT
    UNITED STATES 4403387 AND UP
    0 ₽
  • 17
    37-60204 DECAL, TIMING
    UNITED STATES 3628317 AND BELOW
    AUSTRALIA 8008489 AND BELOW
    CANADA 7018152 AND BELOW
    DECAL, TIMING
    UNITED STATES 3628317 AND BELOW
    AUSTRALIA 8008489 AND BELOW
    CANADA 7018152 AND BELOW
    0 ₽
  • 17
    37-65601 DECAL, TIMING - FLYWHEEL
    UNITED STATES 3628318 THRU 4319879
    AUSTRALIA 8008490 THRU 8034895
    CANADA 7018153 THRU 7067247
    DECAL, TIMING - FLYWHEEL
    UNITED STATES 3628318 THRU 4319879
    AUSTRALIA 8008490 THRU 8034895
    CANADA 7018153 THRU 7067247
    0 ₽
  • 17
    37-73291 DECAL, TIMING - FLYWHEEL
    UNITED STATES 4319880 AND UP
    CANADA 7067248 AND UP
    DECAL, TIMING - FLYWHEEL
    UNITED STATES 4319880 AND UP
    CANADA 7067248 AND UP
    0 ₽
  • 18
    90435 MOUNT, RUBBER - TOP COWL FRAME
    MOUNT, RUBBER - TOP COWL FRAME
    2 830 ₽
  • 18
    46096 MOUNT, RUBBER - TOP COWL FRAME (HEAVY DUTY)
    MOUNT, RUBBER - TOP COWL FRAME (HEAVY DUTY)
    0 ₽
  • 19
    11-35888 NUT, RUBBER MOUNT TO TOP COWL FRAME
    NUT, RUBBER MOUNT TO TOP COWL FRAME
    490 ₽
  • 20
    86472 BRACKET, TOP COWL SUPPORT - REAR
    BRACKET, TOP COWL SUPPORT - REAR
    0 ₽
  • 21
    31014 MOUNT, RUBBER - REAR SUPPORT BRACKET
    MOUNT, RUBBER - REAR SUPPORT BRACKET
    260 ₽
  • 22
    13-26992 LOCKWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET
    LOCKWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET
    70 ₽
  • 23
    11-29598 NUT, RUBBER MOUNT TO REAR SUPPORT BRACKET
    NUT, RUBBER MOUNT TO REAR SUPPORT BRACKET
    150 ₽
  • 24
    10-65263 SCREW, REAR BRACKET TO FRAME (1")
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    SCREW, REAR BRACKET TO FRAME (1")
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    0 ₽
  • 25
    11-60049 NUT, REAR BRACKET SCREW
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    NUT, REAR BRACKET SCREW
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    0 ₽
  • 24
    10-37562 SCREW, REAR BRACKET TO FRAME
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
    SCREW, REAR BRACKET TO FRAME
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
    220 ₽
  • 26
    13-26993 LOCKWASHER, REAR BRACKET SCREW
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
    LOCKWASHER, REAR BRACKET SCREW
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
    140 ₽
  • 27
    10-37562 SCREW, REAR BRACKET TO BOTTOM COWL (1")
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
    SCREW, REAR BRACKET TO BOTTOM COWL (1")
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
    220 ₽
  • 28
    13-26993 LOCKWASHER, REAR SUPPORT BRACKET SCREW
    LOCKWASHER, REAR SUPPORT BRACKET SCREW
    140 ₽
  • 29
    77116A1 BRACKET ASSEBMLY, TOP COWL - FRONT
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    BRACKET ASSEBMLY, TOP COWL - FRONT
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    0 ₽
  • 29
    77116A1 BRACKET ASSEMBLY, TOP COWL - FRONT
    UNITED STATES 4121435 THRU 4602011
    AUSTRALIA 8028040 THRU 8034895
    CANADA 7048783 THRU 7093097
    BRACKET ASSEMBLY, TOP COWL - FRONT
    UNITED STATES 4121435 THRU 4602011
    AUSTRALIA 8028040 THRU 8034895
    CANADA 7048783 THRU 7093097
    0 ₽
  • 29
    42706A1 BRACKET ASSEMBLY, TOP COWL - FRONT
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    BRACKET ASSEMBLY, TOP COWL - FRONT
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    0 ₽
  • 30
    10-71908 SCREW. BRACKET TO BOTTOM COWL (1 1/2")
    UNITED STATES 4602011 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7093097 AND BELOW
    SCREW. BRACKET TO BOTTOM COWL (1 1/2")
    UNITED STATES 4602011 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7093097 AND BELOW
    0 ₽
  • 31
    11-60049 NUT, SUPPORT BRACKET SCREW
    UNITED STATES 4602011 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7093097 AND BELOW
    NUT, SUPPORT BRACKET SCREW
    UNITED STATES 4602011 AND BELOW
    AUSTRALIA 8034895 AND BELOW
    CANADA 7093097 AND BELOW
    0 ₽
  • 30
    10-60411 SCREW, BRACKET TO BOTTOM COWL (1 1/4")
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    SCREW, BRACKET TO BOTTOM COWL (1 1/4")
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    130 ₽
  • 31
    13-26993 LOCKWASHER, BRACKET SCREW
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    LOCKWASHER, BRACKET SCREW
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    140 ₽
  • 32
    10-55511 SCRW, BRACKET TO TOP COWL FRAME (1 1/2")
    SCRW, BRACKET TO TOP COWL FRAME (1 1/2")
    0 ₽
  • 33
    13-26993 LOCKWASHER, SUPPORT BRACKET SCREW
    LOCKWASHER, SUPPORT BRACKET SCREW
    140 ₽
  • 34
    37640 MOUNT, RUBBER - SUPPORT BRACKET
    MOUNT, RUBBER - SUPPORT BRACKET
    0 ₽
  • 35
    13-26993 LOCKWASHER, RUBBER MOUNT
    LOCKWASHER, RUBBER MOUNT
    140 ₽
  • 36
    11-28770 NUT, RUBBER MOUNT
    NUT, RUBBER MOUNT
    110 ₽
