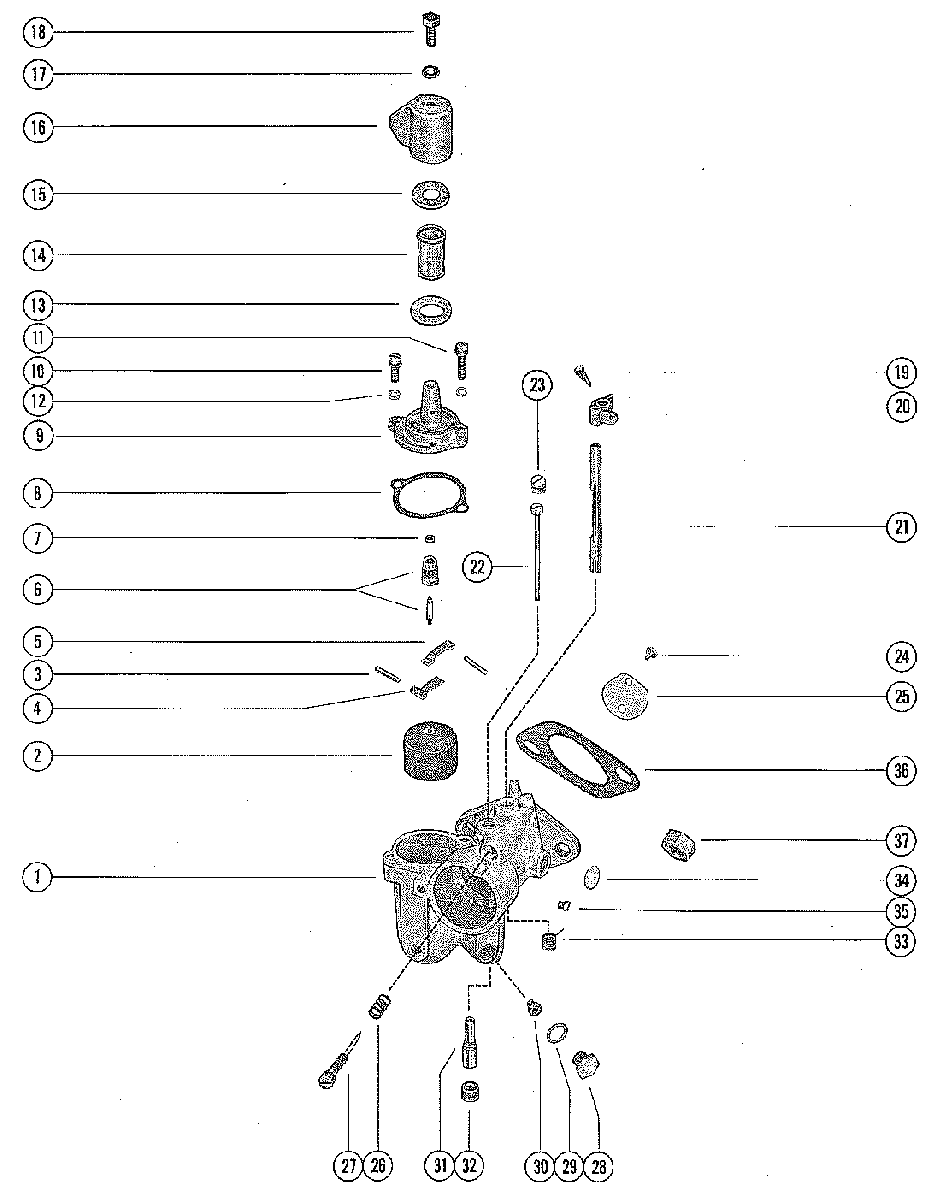

CARBURETOR ASSEMBLY для Mercury - 1500 8005615 THRU 8052649
-
№АртикулНазвание
-
11368-5038A1 CARURETOR ASSEMBLY (WMK-11)CARURETOR ASSEMBLY (WMK-11)
-
21395-8673 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
390-8M0143356 PIN, FLOAT LEVER PINIONPIN, FLOAT LEVER PINION
-
490-8M0143356 LEVER, FLOAT (LOWER)LEVER, FLOAT (LOWER)
-
590-8M0143356 LEVER, FLOAT (UPPER)LEVER, FLOAT (UPPER)
-
61395-83181 INLET NEEDLE, SEAT AND GASKETINLET NEEDLE, SEAT AND GASKET
-
790-8M0143356 GASKET, INLET SEATGASKET, INLET SEAT
-
890-8M0143356 GASKET, FLOAT BOWL COVERGASKET, FLOAT BOWL COVER
-
91399-4559 COVER, FLOAT BOWLCOVER, FLOAT BOWL
-
1010-52195 SCREW, FLOAT BOWL COVER (SHORT)SCREW, FLOAT BOWL COVER (SHORT)
-
1110-52196 SCREW, FLOAT BOWL COVER (LONG)SCREW, FLOAT BOWL COVER (LONG)
-
1213-26995 LOCKWASHER, FLOAT BOWL COVER SCREWLOCKWASHER, FLOAT BOWL COVER SCREW
-
1390-8M0143356 GASKET, STRAINER COVER (LARGE)GASKET, STRAINER COVER (LARGE)
-
141399-3938 SCREEN, FILTERSCREEN, FILTER
-
1590-8M0143356 GASKET, STRAINER COVER (SMALL)GASKET, STRAINER COVER (SMALL)
-
161399-4791A1 COVER, STRAINERCOVER, STRAINER
-
1790-8M0143356 GASKET, STRAINER COVER SCREWGASKET, STRAINER COVER SCREW
-
1810-25822 SCREW, STRAINER COVER FASTENINGSCREW, STRAINER COVER FASTENING
-
191395-6027 SCREW, THROTTLE STOP LEVERSCREW, THROTTLE STOP LEVER
-
208146791 LEVER, THROTTLE STOP
USED ON CENTER AND LOWER CARBURETOR ONLY--REPLACED WITH A-52518 CLUSTER ON UPPER CARBURETORLEVER, THROTTLE STOP
USED ON CENTER AND LOWER CARBURETOR ONLY--REPLACED WITH A-52518 CLUSTER ON UPPER CARBURETOR -
211395-7942 SHAFT, THROTTLESHAFT, THROTTLE
-
2290-8M0143356 TUBE, IDLETUBE, IDLE
-
231395-4540 SCREW, BODY (IDLE TUBE)SCREW, BODY (IDLE TUBE)
-
2490-8M0143356 SCREW AND LOCKWASHER, THROTTLE SHUTTERSCREW AND LOCKWASHER, THROTTLE SHUTTER
-
251395-5108 SHUTTER, THROTTLESHUTTER, THROTTLE
-
2690-8M0143356 SPRING, IDLE ADJUSTMENT SCREWSPRING, IDLE ADJUSTMENT SCREW
-
271399-3515 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
281395-4541 SCREW, PLUG - MAIN FUEL JET CHANNELSCREW, PLUG - MAIN FUEL JET CHANNEL
-
2990-8M0143356 GASKET, JET CHANNEL PLUG SCREWGASKET, JET CHANNEL PLUG SCREW
-
301399-3518 JET, MAIN FUEL (.082)JET, MAIN FUEL (.082)
-
301395-6201 JET, MAIN FUEL (.080) - STANDARDJET, MAIN FUEL (.080) - STANDARD
-
301399-3520 JET, MAIN FUEL (.0785)JET, MAIN FUEL (.0785)
-
301399-3796 JET, MAIN FUEL (.076)JET, MAIN FUEL (.076)
-
3190-8M0143356 NOZZLE, MAINNOZZLE, MAIN
-
321395-4542 SCREW, PLUG - MAIN NOZZLESCREW, PLUG - MAIN NOZZLE
-
3390-8M0143356 SPRING, THROTTLE SHAFT RETURNSPRING, THROTTLE SHAFT RETURN
-
3490-8M0143356 WELCH PLUG, BODY CHANNELWELCH PLUG, BODY CHANNEL
-
351395-4543 SCREW, BODY CHANNELSCREW, BODY CHANNEL
-
--1395-879194024 GASKET AND PACKAGING SET (1 PER CARBURETOR)GASKET AND PACKAGING SET (1 PER CARBURETOR)
-
--1395-51091 REPAIR PARTS KIT (1 PER CARBURETOR)REPAIR PARTS KIT (1 PER CARBURETOR)
-
3627-481641 GASKET, CARBURETOR FLANGEGASKET, CARBURETOR FLANGE
-
3711-29250 NUT, CARBURETOR MOUNTING STUDNUT, CARBURETOR MOUNTING STUD
