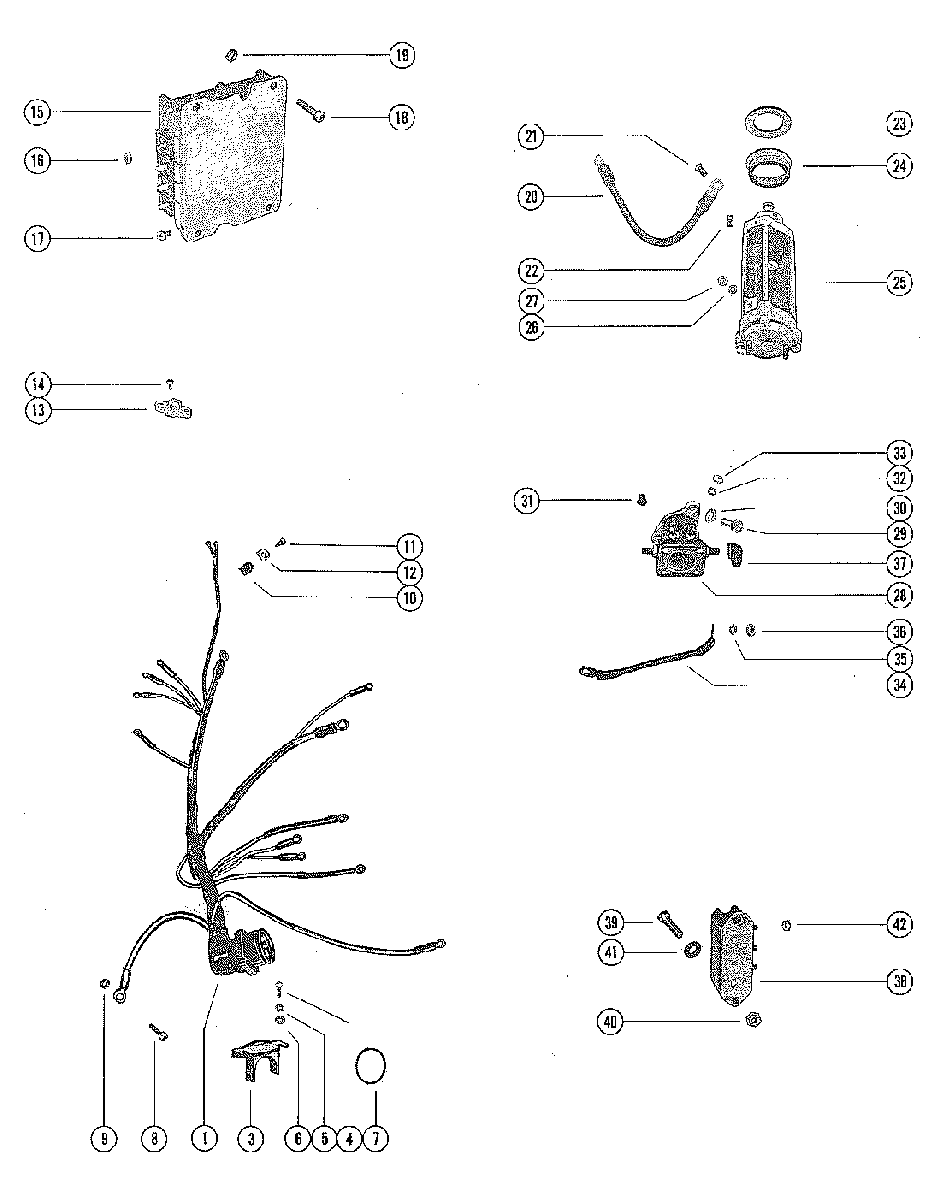

STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES для Mercury - 1500 8005615 THRU 8052649

  • №
    Артикул
    Название
  • 1
    84-69236A1 WIRING HARNESS, INTERNAL
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    WIRING HARNESS, INTERNAL
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
  • 1
    84-69236A1 WIRING HARNESS, INTERNAL
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
    WIRING HARNESS, INTERNAL
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
  • 3
    54-76368 CLAMP, WIRING HARNESS TO BOTTOM COWL
    CLAMP, WIRING HARNESS TO BOTTOM COWL
  • 4
    10-690201 SCRW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")
    SCRW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")
  • 5
    13-26996 LOCKWAHSER, WIRING HARNESS CLAMP SCREW
    LOCKWAHSER, WIRING HARNESS CLAMP SCREW
  • 6
    12-30164 WASHER, WIRING HARNESS CLAMP SCREW
    WASHER, WIRING HARNESS CLAMP SCREW
  • 7
    24-28975 SPRING, GARTER - INTERNAL WIRING HARNESS
    SPRING, GARTER - INTERNAL WIRING HARNESS
  • 8
    10-98256 SCREW, GROUND WIRE TO BOTTOM COWL (1/2")
    SCREW, GROUND WIRE TO BOTTOM COWL (1/2")
  • 9
    13-26992 LOCKWASHER, GROUND WIRE SCREW
    LOCKWASHER, GROUND WIRE SCREW
  • 10
    54-22875 CLIP, WIRING HARNESS TO FRONT BRACKET (5/8")
    CLIP, WIRING HARNESS TO FRONT BRACKET (5/8")
  • 11
    10-62568 SCREW, WIRING HARNESS TO FRONT BRACKET (3/8")
    SCREW, WIRING HARNESS TO FRONT BRACKET (3/8")
  • 12
    8M0084613 "D" WASHER, WIRING HARNESS CLIP SCREW
    "D" WASHER, WIRING HARNESS CLIP SCREW
  • 13
    45559 TERMINAL BLOCK, STATOR LEADS
    TERMINAL BLOCK, STATOR LEADS
  • 14
    10-62568 SCREW, STATOR LEADS TO TERMINAL BLOCK (3/8")
    SCREW, STATOR LEADS TO TERMINAL BLOCK (3/8")
  • 15
    332-2986A25 SWITCH BOX ASSEMBLY(MERC1500XS)
    SWITCH BOX ASSEMBLY(MERC1500XS)
  • 15
    332-2986A21 SWITCH BOX ASSEMBLY(MERC 1500 LONG)
    SWITCH BOX ASSEMBLY(MERC 1500 LONG)
  • 16
    11-45076 NUT, SWITCH BOX TERMINAL
    NUT, SWITCH BOX TERMINAL
  • 17
    10-29794 SCRWE, SWITCH BOX (3/8")
    SCRWE, SWITCH BOX (3/8")
  • 18
    10-64279 SCREW, SWITCH BOX TO FRONT MOUNTING BRACKET (1")
    SCREW, SWITCH BOX TO FRONT MOUNTING BRACKET (1")
  • 19
    11-20184 NUT, SWITCH BOX SCREW
    NUT, SWITCH BOX SCREW
  • 20
    84-93389A12 CABLE, WIRE - STARTER MOTOR TO FRONT SUPPORT BRACKET
    CABLE, WIRE - STARTER MOTOR TO FRONT SUPPORT BRACKET
  • 21
    10-69035 SCRW, WIRE CABLE TO STARTER MOTOR (5/8")
    SCRW, WIRE CABLE TO STARTER MOTOR (5/8")
  • 22
    8M0043376 STOP, RUBBER - STARTER MOTOR
    STOP, RUBBER - STARTER MOTOR
  • 23
    23-56774 SPACER, COLLAR TO TOP MOUNTING CAP
    SPACER, COLLAR TO TOP MOUNTING CAP
  • 24
    23-8M0034918 COLLAR, RUBBER - STARTER MOTOR MOUNT
    COLLAR, RUBBER - STARTER MOTOR MOUNT
  • 25
    50-898265010 STARTER MOTOR ASSEMBLY
    UNITED STATES 3752619 AND BELOW
    AUSTRALIA 8013419 AND BELOW
    CANADA 7024372 AND BELOW
    STARTER MOTOR ASSEMBLY
    UNITED STATES 3752619 AND BELOW
    AUSTRALIA 8013419 AND BELOW
    CANADA 7024372 AND BELOW
  • 25
    50-898265010 STARTER MOTOR ASSEMBLY(PRESTOLITE)
    STARTER MOTOR ASSEMBLY(PRESTOLITE)
  • 25
    50-898265010 ATARTER MOTOR ASSEMBLY(BOSCH)
    ATARTER MOTOR ASSEMBLY(BOSCH)
  • 26
    13-26992 LOCKWASHER, STARTER MOTOR TERMINAL
    LOCKWASHER, STARTER MOTOR TERMINAL
  • 27
    11-20890 NUT, STARTER MOTOR TERMINAL
    NUT, STARTER MOTOR TERMINAL
  • 28
    25661T1 SOLENOID, STARTER
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    SOLENOID, STARTER
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
  • 29
    10-69028 SCREW, SOLENOID TO COIL BRACKET (3/4")
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    SCREW, SOLENOID TO COIL BRACKET (3/4")
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
  • 28
    89-853654A1 SOLENOID, STARTER
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
    SOLENOID, STARTER
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
  • 29
    10-38601 SCREW, SOLENOID TO COIL BRACKET (3/4")
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
    SCREW, SOLENOID TO COIL BRACKET (3/4")
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
  • 30
    13-26992 LOCKWASHER, STARTER SOLENOID FASTENING SCREW
    LOCKWASHER, STARTER SOLENOID FASTENING SCREW
  • 31
    269011 BUMPER, RUBBER - STARTER SOLENOID
    BUMPER, RUBBER - STARTER SOLENOID
  • 32
    13-26996 LOCKWASHER, SOLENOID TERMINAL (#10)
    LOCKWASHER, SOLENOID TERMINAL (#10)
  • 33
    11-68219 NUT, SOLENOID TERMINAL (#10)
    NUT, SOLENOID TERMINAL (#10)
  • 34
    48396 CABLE, WIRE - STARTER MOTOR TO SOLENOID
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    CABLE, WIRE - STARTER MOTOR TO SOLENOID
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
  • 34
    84-93388A8 CABLE, WERIE - STARTER MOTOR TO SOLENOID
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
    CABLE, WERIE - STARTER MOTOR TO SOLENOID
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
  • 35
    13-26993 LOCKWASHER, SOLENOID TERMINAL (5/16")
    LOCKWASHER, SOLENOID TERMINAL (5/16")
  • 36
    11-68292 NUT, WOLENOID TERMINAL (5/16")
    NUT, WOLENOID TERMINAL (5/16")
  • 37
    46265 BOOT, SOLENOID TERMINAL
    BOOT, SOLENOID TERMINAL
  • 38
    78614A1 RECTIFIER ASSEMBLY
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    RECTIFIER ASSEMBLY
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
  • 39
    10-64278 SCREW, RECTIFIER TO MOUNTING BRACKET (1")
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    SCREW, RECTIFIER TO MOUNTING BRACKET (1")
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
  • 39
    10-64278 SCRW, RECTIFIER TO MOUNTING BRACKET (1")
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    SCRW, RECTIFIER TO MOUNTING BRACKET (1")
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
  • 40
    11-20184 NUT, RECTIFIER MOUNTING SCREW
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    NUT, RECTIFIER MOUNTING SCREW
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
  • 42
    11-45076 NUT, FASTENING - RECTIFIER STATOR LEADS
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    NUT, FASTENING - RECTIFIER STATOR LEADS
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
  • 38
    8M0058226 RECTIFIER ASSEMBLY
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
    RECTIFIER ASSEMBLY
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
  • 39
    10-37656 SCREW, RECTIFIER TO FRONT BRACKET (5/8")
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
    SCREW, RECTIFIER TO FRONT BRACKET (5/8")
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
  • 41
    12-30164 WASHER, RECTIFIER SCREW
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
    WASHER, RECTIFIER SCREW
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
  • 42
    11-45076 NUT, STATOR LEADS TO RECTIFIER
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
    NUT, STATOR LEADS TO RECTIFIER
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
