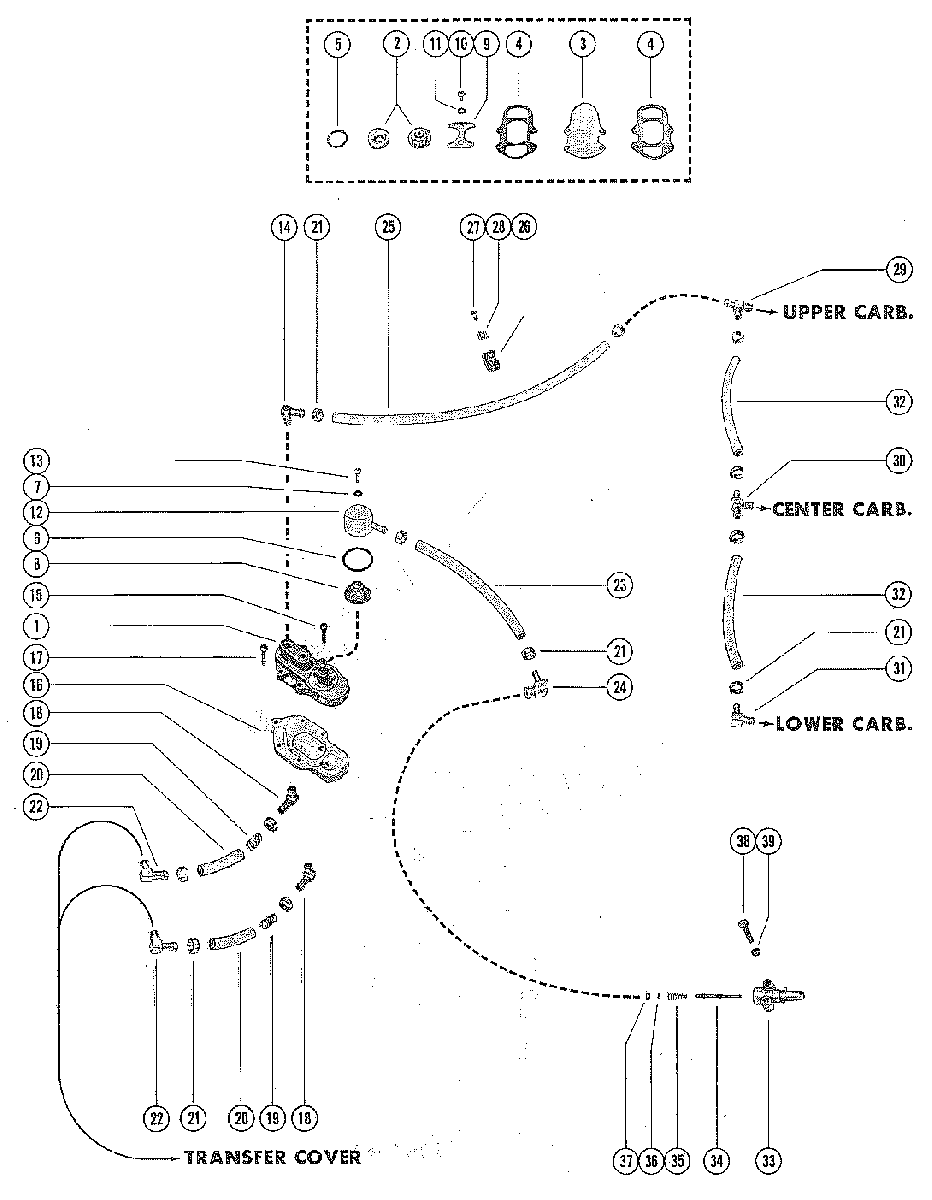

FUEL PUMP AND FUEL LINE ASSEMBLY (SERIAL GROUP #2) для Mercury - 1500 8005615 THRU 8052649
-
№АртикулНазвание
-
166530A2 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
221-30430A7 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
389031A1 DIAPHRAGM ASSEMBLYDIAPHRAGM ASSEMBLY
-
490-8M0143356 GASEKT, DIAPHRAGMGASEKT, DIAPHRAGM
-
590-8M0143356 GASKET, CHECK VALVEGASKET, CHECK VALVE
-
690-8M0143356 "O" RING, COVER TO HOUSING"O" RING, COVER TO HOUSING
-
790-8M0143356 GASKET, NYLON - FILTER COVER SCREWGASKET, NYLON - FILTER COVER SCREW
-
835-59072 SCREEN, FILTER - INLETSCREEN, FILTER - INLET
-
923004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
1010-43725 SCREW, RETAINER TO FUEL PUMP (1/4")SCREW, RETAINER TO FUEL PUMP (1/4")
-
1113-26994 LOCKWASHER, RETAINER SCREWLOCKWASHER, RETAINER SCREW
-
1235-91078A1 COVER, FUEL INLETCOVER, FUEL INLET
-
1310-37370 SCREW, COVER TO FUEL PUMP (5/8")SCREW, COVER TO FUEL PUMP (5/8")
-
1422-19688 FITTING, FUEL OUTLETFITTING, FUEL OUTLET
-
1510-66686 SCREW, FUEL PUMP TO BASE (1")SCREW, FUEL PUMP TO BASE (1")
-
1666575 BASE, FUEL PUMPBASE, FUEL PUMP
-
1710-66687 SCREW, FUEL PUMP TO BOTTOM COWL (1 1/5")SCREW, FUEL PUMP TO BOTTOM COWL (1 1/5")
-
1822-19688 FITTING, PULSE LINE (90)FITTING, PULSE LINE (90)
-
1924-68434 SPRING, PULSE LINESPRING, PULSE LINE
-
2032-8M0108355 PULSE LINE (3 1/4")PULSE LINE (3 1/4")
-
2154-68424 CLAMP, FUEL LINE ATTACHINGCLAMP, FUEL LINE ATTACHING
-
2222-19688 FITTING, PULSE LINE TO TRANSFER COVER (90)FITTING, PULSE LINE TO TRANSFER COVER (90)
-
2332-8M0108355 FUEL LINE, ADAPTOR TO FUEL PUMP (6 3/4")FUEL LINE, ADAPTOR TO FUEL PUMP (6 3/4")
-
2422-63981 ELBOW, FUEL LINE TO ADAPTORELBOW, FUEL LINE TO ADAPTOR
-
2532-8M0108355 FUEL LINE, FULE PUMP TO UPPER CARBURETOR (15 3/4")FUEL LINE, FULE PUMP TO UPPER CARBURETOR (15 3/4")
-
2654-22627 CLIP, FUEL LINE ATTACHINGCLIP, FUEL LINE ATTACHING
-
2710-62568 SCREW, FUEL LINE CLIP (3/8")SCREW, FUEL LINE CLIP (3/8")
-
288M0084613 "D" WASHER, FUEL LINE CLIP SCREW"D" WASHER, FUEL LINE CLIP SCREW
-
2922-66328 FITTING, TEE - UPPER CARBURETORFITTING, TEE - UPPER CARBURETOR
-
3022-64706001 FITTING, TEE - CENTER CARBURETORFITTING, TEE - CENTER CARBURETOR
-
3122-19688 FITTING, ELBOW - LOWER CARBURETORFITTING, ELBOW - LOWER CARBURETOR
-
3232-8M0108355 FUEL LINE, CARBURETOR TO CARBURETOR (6 1/4")FUEL LINE, CARBURETOR TO CARBURETOR (6 1/4")
-
3330186 ADAPTOR, CHECK UNIT (FUEL LINE)
UNITED STATES 3751850 THRU 4121434
AUSTRALIA 8013390 THRU 8028039
CANADA 7024373 THRU 7048782ADAPTOR, CHECK UNIT (FUEL LINE)
UNITED STATES 3751850 THRU 4121434
AUSTRALIA 8013390 THRU 8028039
CANADA 7024373 THRU 7048782 -
3430185Q3 STEM, CHECK UNIT ADAPTOR
UNITED STATES 3751850 THRU 4121434
AUSTRALIA 8013390 THRU 8028039
CANADA 7024373 THRU 7048782STEM, CHECK UNIT ADAPTOR
UNITED STATES 3751850 THRU 4121434
AUSTRALIA 8013390 THRU 8028039
CANADA 7024373 THRU 7048782 -
3524-30189 SPRING, ADAPTOR STEM
UNITED STATES 3751850 THRU 4121434
AUSTRALIA 8013390 THRU 8028039
CANADA 7024373 THRU 7048782SPRING, ADAPTOR STEM
UNITED STATES 3751850 THRU 4121434
AUSTRALIA 8013390 THRU 8028039
CANADA 7024373 THRU 7048782 -
3322833 ADAPTOR, CHECK UNIT (FUEL LINE)
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UPADAPTOR, CHECK UNIT (FUEL LINE)
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UP -
3423069 STEM, CHECK UNIT
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UPSTEM, CHECK UNIT
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UP -
3524-23067T SPRING, ADAPTOR STEM
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UPSPRING, ADAPTOR STEM
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UP -
3625-16524 "O" RING, ADAPTOR STEM"O" RING, ADAPTOR STEM
-
3730188 CUP WASHER, ADAPTORCUP WASHER, ADAPTOR
-
3810-69029 SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")
UNITED STATES 3751850 THRU 4121434
AUSTRALIA 8013390 THRU 8028039
CANADA 7024373 THRU 7048782SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")
UNITED STATES 3751850 THRU 4121434
AUSTRALIA 8013390 THRU 8028039
CANADA 7024373 THRU 7048782 -
3810-88488 SCREW, ADAPTOR TO BOTTOM COWL (3 1/4")
UNITED STATES 3751850 THRU 4121434
AUSTRALIA 8013390 THRU 8028039
CANADA 7024373 THRU 7048782SCREW, ADAPTOR TO BOTTOM COWL (3 1/4")
UNITED STATES 3751850 THRU 4121434
AUSTRALIA 8013390 THRU 8028039
CANADA 7024373 THRU 7048782 -
3911-20184 NUT, ADAPTOR FASTENING SCREW
UNITED STATES 3751850 THRU 4121434
AUSTRALIA 8013390 THRU 8028039
CANADA 7024373 THRU 7048782NUT, ADAPTOR FASTENING SCREW
UNITED STATES 3751850 THRU 4121434
AUSTRALIA 8013390 THRU 8028039
CANADA 7024373 THRU 7048782 -
3810-69029 SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UPSCREW, ADAPTOR TO BOTTOM COWL (1 3/4")
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UP
