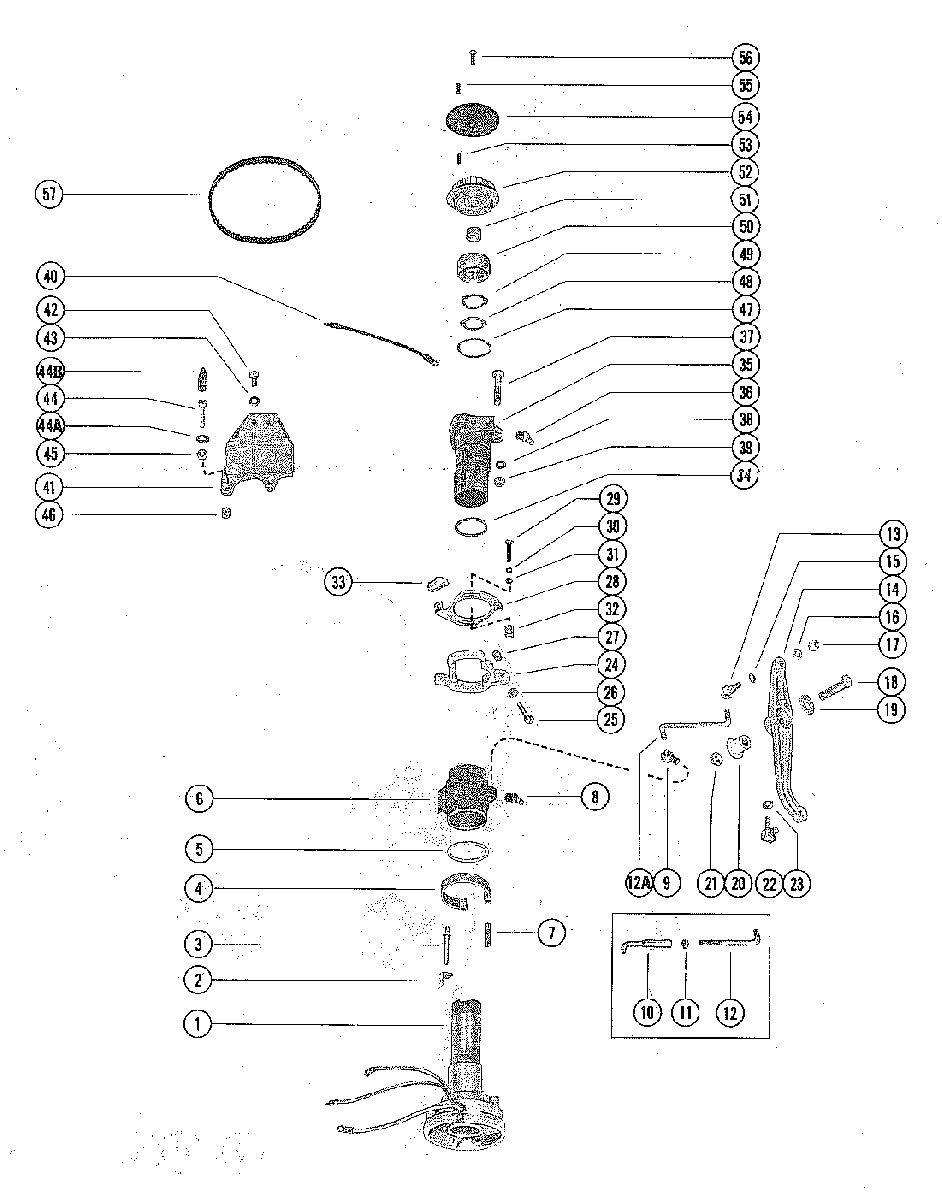

DISTRIBUTOR ADAPTOR AND VERTICAL LINKAGE для Mercury - 1500 8005615 THRU 8052649

  • №
    Артикул
    Название
  • 1
    393-3736A79 HOUSING ASSEMBLY, DISTRIBUTOR
    HOUSING ASSEMBLY, DISTRIBUTOR
  • 2
    32197 STOP, SPARK ADVANCE - DISTRIBUTOR HOUSING
    STOP, SPARK ADVANCE - DISTRIBUTOR HOUSING
  • 3
    17-27962 PIN, ANCHOR SPRING - DISTRIBUTOR HOUSING
    PIN, ANCHOR SPRING - DISTRIBUTOR HOUSING
  • 4
    24-27944 SPRING, HORSESHOE - DISTRIBUTOR HOUSING
    SPRING, HORSESHOE - DISTRIBUTOR HOUSING
  • 5
    12-53540 WASHER, ECONOMIZER COLLAR - DISTRIBUTOR HOUSING
    WASHER, ECONOMIZER COLLAR - DISTRIBUTOR HOUSING
  • 6
    55804A1 ECONOMIZER COLLAR ASSEMBLY
    ECONOMIZER COLLAR ASSEMBLY
  • 7
    17-27961 PIN, ECONOMIZER COLLAR - SPRING RETAINER
    PIN, ECONOMIZER COLLAR - SPRING RETAINER
  • 8
    22-25094 FITTING, GREASE - ECONOMIZER COLLAR
    FITTING, GREASE - ECONOMIZER COLLAR
  • 9
    27947 SWIVEL, LINKAGE - ECONOMIZER COLLAR
    SWIVEL, LINKAGE - ECONOMIZER COLLAR
  • 10
    25996A1 SWIVEL ADN LINK ROD ASSEMBLY - 3 PIECE (SEE PHOTO)
    SWIVEL ADN LINK ROD ASSEMBLY - 3 PIECE (SEE PHOTO)
  • 11
    11-29598 NUT, UPPER LINK ROD ADJUSTING - 3 PIECE (SEE PHOTO)
    NUT, UPPER LINK ROD ADJUSTING - 3 PIECE (SEE PHOTO)
  • 12
    37700 ROD, LINK - UPPER - 3 PIECE (SEE PHOTO)
    ROD, LINK - UPPER - 3 PIECE (SEE PHOTO)
  • 12A
    67469 ROD LINK - UPPER(1 PIECE)-SEE PHOTO
    ROD LINK - UPPER(1 PIECE)-SEE PHOTO
  • 13
    27948 SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER
    SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER
  • 14
    78992 LEVER, THROTTLE CONTROL
    LEVER, THROTTLE CONTROL
  • 15
    13-39954 WASHER, WAVE - THROTTLE CONTROL LEVER SWIVEL
    WASHER, WAVE - THROTTLE CONTROL LEVER SWIVEL
  • 16
    12-29245 WASHER, THROTTLE CONTROL LEVER SWIVEL
    WASHER, THROTTLE CONTROL LEVER SWIVEL
  • 17
    11-35888 NUT, UPPER LOINK ROD TO THROTTLE CONTROL LEVER
    NUT, UPPER LOINK ROD TO THROTTLE CONTROL LEVER
  • 18
    10-31830 SCREW, THROTTLE LEVER TO EXHAUST COVER (1 3/4"0)
    SCREW, THROTTLE LEVER TO EXHAUST COVER (1 3/4"0)
  • 19
    12-8M0042641 WASHER, THROTTLE CONTROL LEVER SCREW
    WASHER, THROTTLE CONTROL LEVER SCREW
  • 20
    23-45818 BUSHING, THROTTLE CONTROL LEVER SCREW
    BUSHING, THROTTLE CONTROL LEVER SCREW
  • 21
    11-8M0042636 NUT, THROTTLE CONTROL LEVER SCREW
    NUT, THROTTLE CONTROL LEVER SCREW
  • 22
    37587 SWIVEL, LOWER - THROTTLE CONTROL LEVER TO THROTTLE CABLE
    SWIVEL, LOWER - THROTTLE CONTROL LEVER TO THROTTLE CABLE
  • 23
    11-35888 NUT, THROTTLE CABLE TO LOWER SWIVEL
    NUT, THROTTLE CABLE TO LOWER SWIVEL
  • 24
    48692 COLLAR, THROTTLE ACTUATOR
    COLLAR, THROTTLE ACTUATOR
  • 25
    10-48675 SCREW, ADJUSTING - THROTTLE ACTUATOR COLLAR (1 1/2")
    SCREW, ADJUSTING - THROTTLE ACTUATOR COLLAR (1 1/2")
  • 26
    11-64015 NUT, THROTTLE ACTUATOR COLLAR ADJUSTING SCREW
    NUT, THROTTLE ACTUATOR COLLAR ADJUSTING SCREW
  • 27
    52023 CAP, NYLON - ACTUATOR COLLAR ADJUSING SCRW
    CAP, NYLON - ACTUATOR COLLAR ADJUSING SCRW
  • 28
    48671 PLATE, THROTTLE ACTUATOR
    PLATE, THROTTLE ACTUATOR
  • 29
    10-37892 SCREW, THROTTLE ACTUATOR PLATE TO ECONOMIZER COLLAR (1")
    SCREW, THROTTLE ACTUATOR PLATE TO ECONOMIZER COLLAR (1")
  • 30
    12-30164 WASHER, THROTTLE ACTUALTOR PLATE FASTENING SCREW
    WASHER, THROTTLE ACTUALTOR PLATE FASTENING SCREW
  • 31
    13-26996 LOCKWASHER, THROTTLE ACTUATOR PLATE FASTENING SCREW
    LOCKWASHER, THROTTLE ACTUATOR PLATE FASTENING SCREW
  • 32
    23-48674 SPACER, THROTTLE ACTUATOR PLATE SCREW
    SPACER, THROTTLE ACTUATOR PLATE SCREW
  • 33
    58454 CAM, THROTTLE ACTUATOR PLATE
    CAM, THROTTLE ACTUATOR PLATE
  • 34
    12-46246 WASHER, ADAPTOR - DISTRIBUTOR HOUSING
    WASHER, ADAPTOR - DISTRIBUTOR HOUSING
  • 35
    66165A2 ADAPTOR ASSEMBLY, DISTRIBUTOR
    UNITED STATES 3751849 AND BELOW
    AUSTRALIA 8013389 AND BELOW
    CANADA 7024372 AND BELOW
    ADAPTOR ASSEMBLY, DISTRIBUTOR
    UNITED STATES 3751849 AND BELOW
    AUSTRALIA 8013389 AND BELOW
    CANADA 7024372 AND BELOW
  • 35
    66165A2 ADAPTOR ASSEMBLY, DISTRIBUTOR
    UNITED STATES 3751850 AND UP
    AUSTRALIA 8013390 AND UP
    CANADA 7024373 AND UP
    ADAPTOR ASSEMBLY, DISTRIBUTOR
    UNITED STATES 3751850 AND UP
    AUSTRALIA 8013390 AND UP
    CANADA 7024373 AND UP
  • 36
    22-25094 FITTING, GREASE - DISTRIBUTOR ADAPTOR
    FITTING, GREASE - DISTRIBUTOR ADAPTOR
  • 37
    10-78841 SCREW, DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2")
    UNITED STATES 3751849 AND BELOW
    AUSTRALIA 8013389 AND BELOW
    CANADA 7024372 AND BELOW
    SCREW, DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2")
    UNITED STATES 3751849 AND BELOW
    AUSTRALIA 8013389 AND BELOW
    CANADA 7024372 AND BELOW
  • 37
    10-73657 SCREW, DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2")
    UNITED STATES 3751850 AND UP
    AUSTRALIA 8013390 AND UP
    CANADA 7024373 AND UP
    SCREW, DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2")
    UNITED STATES 3751850 AND UP
    AUSTRALIA 8013390 AND UP
    CANADA 7024373 AND UP
  • 38
    12-20084 WASHER, DISTRIBUTOR HOUSING SCREW
    WASHER, DISTRIBUTOR HOUSING SCREW
  • 39
    11-22053 NUT, DISTRIBUTOR HOUSING SCREW
    UNITED STATES 3751849 AND BELOW
    AUSTRALIA 8013389 AND BELOW
    CANADA 7024372 AND BELOW
    NUT, DISTRIBUTOR HOUSING SCREW
    UNITED STATES 3751849 AND BELOW
    AUSTRALIA 8013389 AND BELOW
    CANADA 7024372 AND BELOW
  • 40
    84-93388A1 WIRE, GROUND - DIST. ADAPTOR TO FRONT BRACKET
    UNITED STATES 3751849 AND BELOW
    AUSTRALIA 8013389 AND BELOW
    CANADA 7024372 AND BELOW
    WIRE, GROUND - DIST. ADAPTOR TO FRONT BRACKET
    UNITED STATES 3751849 AND BELOW
    AUSTRALIA 8013389 AND BELOW
    CANADA 7024372 AND BELOW
  • 40
    84-93388A1 WIRE, GROUND - DIST. ADAPTOR TO FRONT BRACKET
    UNITED STATES 3751850 AND UP
    AUSTRALIA 8013390 AND UP
    CANADA 7024373 AND UP
    WIRE, GROUND - DIST. ADAPTOR TO FRONT BRACKET
    UNITED STATES 3751850 AND UP
    AUSTRALIA 8013390 AND UP
    CANADA 7024373 AND UP
  • 41
    55805 BRACKET, STOP
    BRACKET, STOP
  • 42
    10-28636 SCREW, DISTRIBUTOR ADAPTOR TO STOP BRACKET (3/4")
    SCREW, DISTRIBUTOR ADAPTOR TO STOP BRACKET (3/4")
  • 43
    12-35462 WASHER, STOP BRACKET FASTENING SCREW
    WASHER, STOP BRACKET FASTENING SCREW
  • 44
    10-64022 SCREW, STOP BRACKET ADJUSTING (2 1/8")
    SCREW, STOP BRACKET ADJUSTING (2 1/8")
  • 44A
    12-24391 WASHER, STOP BRACKET ADJUSTING SCREW
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    WASHER, STOP BRACKET ADJUSTING SCREW
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
  • 44B
    85-76199 INSULATOR, STOP BRACKET ADJUSTING SCREW
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    INSULATOR, STOP BRACKET ADJUSTING SCREW
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
  • 45
    11-64015 NUT, STOP BRACKET ADJUSTING SCREW
    NUT, STOP BRACKET ADJUSTING SCREW
  • 46
    52023 NYLON - STOP BRACKET ADJUSTING SCREW
    NYLON - STOP BRACKET ADJUSTING SCREW
  • 47
    12-27939 WASHER, DISTRIBUTOR HOUSING
    WASHER, DISTRIBUTOR HOUSING
  • 48
    14-27960 TAB WASHER, ADAPTOR CAP FASENING
    TAB WASHER, ADAPTOR CAP FASENING
  • 49
    13-27959 WASHER, WAVE - DISTRIBUTOR BALL BEARING BEARING TENSION
    WASHER, WAVE - DISTRIBUTOR BALL BEARING BEARING TENSION
  • 50
    54567 DISTRIBUTOR HOUSING
    DISTRIBUTOR HOUSING
  • 51
    23-47250 SPACER, DRIVE PULLEY
    SPACER, DRIVE PULLEY
  • 52
    29906A1 DRIVEN PULLEY ASSEMBLY
    DRIVEN PULLEY ASSEMBLY
  • 53
    17-29908 PIN, ROLL - FLANGE LOCATING
    PIN, ROLL - FLANGE LOCATING
  • 54
    29907 FLANGE, DRIVEN PULLEY
    FLANGE, DRIVEN PULLEY
  • 55
    28-29910 KEY, DISTRIBUTOR DRIVER
    KEY, DISTRIBUTOR DRIVER
  • 56
    10-68554 SCREW, PULLEY CLAMPING (1/2")
    SCREW, PULLEY CLAMPING (1/2")
  • 57
    20140 BELT, TIMING
    BELT, TIMING
