TRIM CYLINDERS AND HYDRAULIC HOSES для Mercury - 1500 8005615 THRU 8052649

  • №
    Артикул
    Название

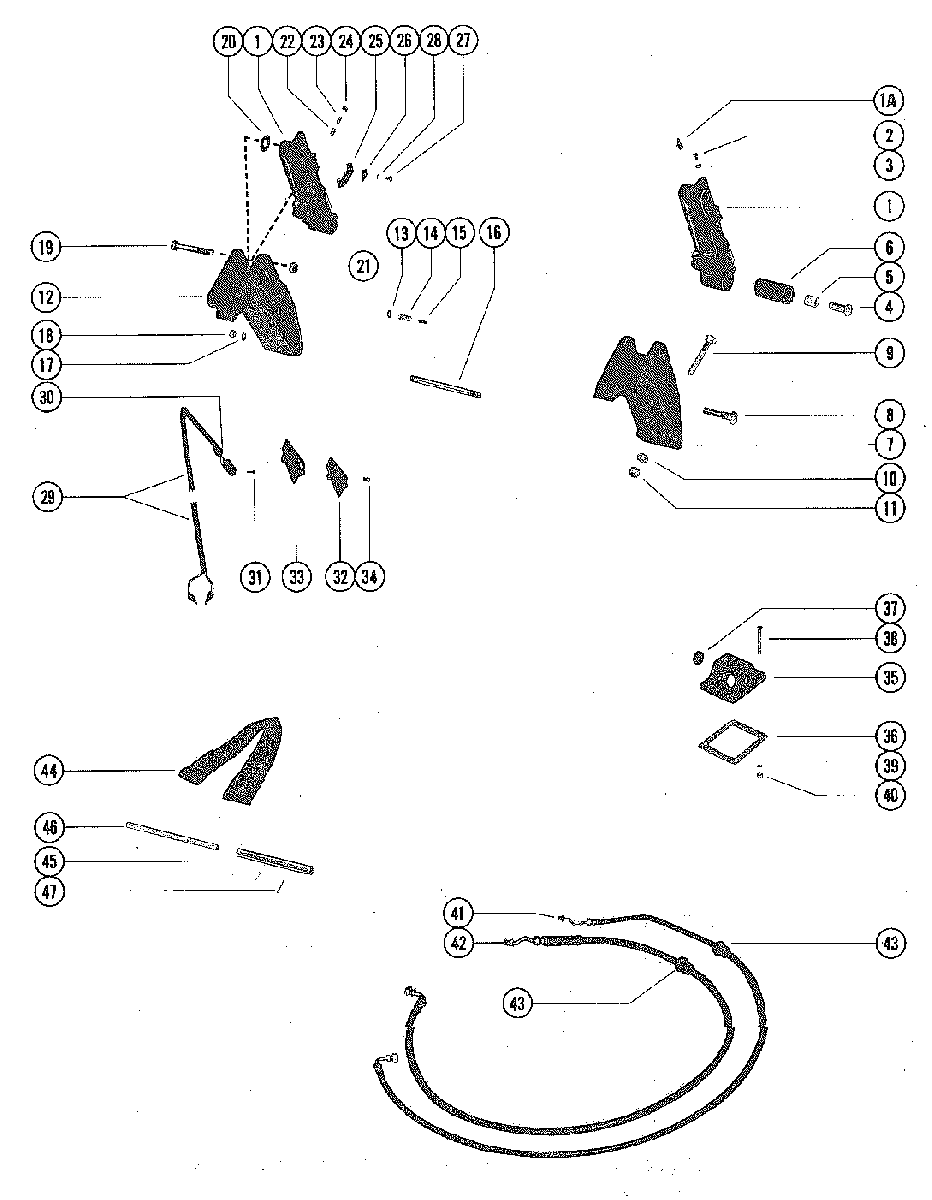

  • 1
    92194A14 TRIM CYLINDER ASSEMBLY
    SEE PAGE 49 FOR REPAIR KIT BREAKDOWN UNITED STATES 4403387 THRU 4602011
    TRIM CYLINDER ASSEMBLY
    SEE PAGE 49 FOR REPAIR KIT BREAKDOWN UNITED STATES 4403387 THRU 4602011
  • 1
    92194A14 TRIM CYLINDER ASSEMBLY
    SEE PAGE 49 FOR REPAIR KIT BREAKDOWN UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    TRIM CYLINDER ASSEMBLY
    SEE PAGE 49 FOR REPAIR KIT BREAKDOWN UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
  • 1A
    22-74036 FITTING, GREASE
    SEE PAGE 49 FOR REPAIR KIT BREAKDOWN UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    FITTING, GREASE
    SEE PAGE 49 FOR REPAIR KIT BREAKDOWN UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
  • 2
    10-45265 SCREW, BLEED - SHOCK CYLINDER
    SCREW, BLEED - SHOCK CYLINDER
  • 3
    25-45016 "O" RING, SHOCK CYLINDER BLEED SCREW
    "O" RING, SHOCK CYLINDER BLEED SCREW
  • 4
    10-45264 SCREW, SHOCK CYLINDER TO LOWER SHOCK PIN (1 9/16")
    SCREW, SHOCK CYLINDER TO LOWER SHOCK PIN (1 9/16")
  • 5
    23-45280 SPACER, SHOCK CYLINDER - LOWER
    SPACER, SHOCK CYLINDER - LOWER
  • 6
    23-94907A1 BUSHING, RUBBER - SHOCK CYLINDER
    BUSHING, RUBBER - SHOCK CYLINDER
  • 7
    89108A3 BRACKET, MOUNTING - SHOCK CYLINDER (PORT)
    BRACKET, MOUNTING - SHOCK CYLINDER (PORT)
  • 8
    10-45263 SCREW, MOUNTING BRACKET TO UPPER SHOCK PIN (2 1/4")
    SCREW, MOUNTING BRACKET TO UPPER SHOCK PIN (2 1/4")
  • 9
    10-68298 BOLT, MOUNTING BRACKET TO BOAT TRANSOM (3 1/4")
    BOLT, MOUNTING BRACKET TO BOAT TRANSOM (3 1/4")
  • 10
    12-46765 WASHER, MOUNTING BRACKET BOLT
    WASHER, MOUNTING BRACKET BOLT
  • 11
    11-82670912 NUT, MOUNTING BRACKET BOLT
    NUT, MOUNTING BRACKET BOLT
  • 12
    89807A1 BRACKET ASSEMBLY, MOUNTING - SHOCK CYLINDER (STARBOARD)
    BRACKET ASSEMBLY, MOUNTING - SHOCK CYLINDER (STARBOARD)
  • 13
    26-70608 OIL SEAL, STARBOARD MOUNTING BRACKET
    OIL SEAL, STARBOARD MOUNTING BRACKET
  • 14
    89290 PLUNGER, LIMIT SWITCH ACTUATING
    PLUNGER, LIMIT SWITCH ACTUATING
  • 15
    24-95881 SPRING, TENSION - LIMIT SWITCH PLUNGER
    SPRING, TENSION - LIMIT SWITCH PLUNGER
  • 16
    16-45282 STUD, MOUNTING BRACKET AND CLAMP BRACKET
    STUD, MOUNTING BRACKET AND CLAMP BRACKET
  • 17
    13-26993 LOCKWASHER, MOUNTING BRACKET TO CLAMP BRACKET STUD
    LOCKWASHER, MOUNTING BRACKET TO CLAMP BRACKET STUD
  • 18
    11-28770 NUT, MOUNTING BRACKET TO CLAMP BRACKET STUD
    NUT, MOUNTING BRACKET TO CLAMP BRACKET STUD
  • 19
    10-45328 SCREW, SHOCK CYLINDER TO MOUNTING BRACKET (3 9/16")
    SCREW, SHOCK CYLINDER TO MOUNTING BRACKET (3 9/16")
  • 20
    12-37807 WASHER, SHOCK CYLINDER SCREW (STARBOARD ONLY)
    WASHER, SHOCK CYLINDER SCREW (STARBOARD ONLY)
  • 21
    11-20696 NUT, SHOCK CYLINDER SCREW
    NUT, SHOCK CYLINDER SCREW
  • 22
    24-24390 SPRING, TENSION - ADJUSTING STUD
    SPRING, TENSION - ADJUSTING STUD
  • 23
    16-8M0034461 STUD, ADJUSTING - CUT-OUT LIMIT SWITCH (15/16")
    STUD, ADJUSTING - CUT-OUT LIMIT SWITCH (15/16")
  • 24
    11-859124 NUT, JAM - LIMIT SWITCH ADJUSTING STUD
    NUT, JAM - LIMIT SWITCH ADJUSTING STUD
  • 25
    99897 CAM, LIMIT SWITCH ADJUSTING STUD
    CAM, LIMIT SWITCH ADJUSTING STUD
  • 26
    86967 PLATE, RETAINING - LIMIT SWITCH CAM
    PLATE, RETAINING - LIMIT SWITCH CAM
  • 27
    10-68513 SCREW, RETAINING PLATE AND CAM TO SHOCK CYLINDER (3/8")
    SCREW, RETAINING PLATE AND CAM TO SHOCK CYLINDER (3/8")
  • 28
    13-26996 LOCKWASHER, RETAINING PLATE AND CAM SCREW
    LOCKWASHER, RETAINING PLATE AND CAM SCREW
  • 29
    45326A2 SWITCH ASSEMBLY, CUT-OUT LIMIT
    SWITCH ASSEMBLY, CUT-OUT LIMIT
  • 30
    23-45354 BUSHING, RUBBER - CUT-OUT LIMIT SWITCH
    BUSHING, RUBBER - CUT-OUT LIMIT SWITCH
  • 31
    10-47255 SCREW, CUT-OUT LIMIT SWITCH TO MOUNTING BRACKET (9/16")
    SCREW, CUT-OUT LIMIT SWITCH TO MOUNTING BRACKET (9/16")
  • 32
    45287 COVER, LIMIT SWITCH
    COVER, LIMIT SWITCH
  • 33
    27-45275 GASKET, LIMIT SWITCH COVER
    GASKET, LIMIT SWITCH COVER
  • 34
    10-24942 SCREW, LIMIT SWITCH COVER TO MOUNTING BRACKET (7/16")
    SCREW, LIMIT SWITCH COVER TO MOUNTING BRACKET (7/16")
  • 35
    87774A1 COVER, INLET - TRANSOM
    COVER, INLET - TRANSOM
  • 36
    27-45274 GASKET, INLET COVER
    GASKET, INLET COVER
  • 37
    25-45507 GROMMET, RUBBER - INLET COVER
    GROMMET, RUBBER - INLET COVER
  • 38
    10-32866 SCREW, INLET COVER TO BOAT (2")
    SCREW, INLET COVER TO BOAT (2")
  • 39
    12-20878 WASHER, INLET COVER SCREW
    WASHER, INLET COVER SCREW
  • 40
    11-826709106 NUT, INLET COVER SCREW
    NUT, INLET COVER SCREW
  • 41
    32-88005 HOSE
    TRIM - CYLINDER TO CONTROL VALVE (5') - 13/32" O.D.
    HOSE
    TRIM - CYLINDER TO CONTROL VALVE (5') - 13/32" O.D.
  • 42
    32-88006 HOSE, LIFT - CYLINDER TO CONTROL VALVE (5') - 17/32" O.D. (#32-88006)
    HOSE, LIFT - CYLINDER TO CONTROL VALVE (5') - 17/32" O.D. (#32-88006)
  • 43
    23-35977 GROMMET, RUBBER - LIFT HOSE AND TRIM HOSE
    GROMMET, RUBBER - LIFT HOSE AND TRIM HOSE
  • 44
    73519A1 TILT STOP
    TILT STOP
  • 45
    63441 TUBE, MOUNTING-TILT STOP
    UNITED STATES 3752619 AND BELOW
    AUSTRALIA 8013419 AND BELOW
    CANADA 7024372 AND BELOW
    TUBE, MOUNTING-TILT STOP
    UNITED STATES 3752619 AND BELOW
    AUSTRALIA 8013419 AND BELOW
    CANADA 7024372 AND BELOW
  • 46
    17-63442 PIN, MOUNTING TUBE
    UNITED STATES 3752619 AND BELOW
    AUSTRALIA 8013419 AND BELOW
    CANADA 7024372 AND BELOW
    PIN, MOUNTING TUBE
    UNITED STATES 3752619 AND BELOW
    AUSTRALIA 8013419 AND BELOW
    CANADA 7024372 AND BELOW
  • 45
    69259 TUBE, MOUNTING - TILT STOP
    UNITED STATES 4121435 THRU 4319879
    AUSTRALIA 8028040 THRU 8034895
    CANADA 7048783 THRU 7067284
    TUBE, MOUNTING - TILT STOP
    UNITED STATES 4121435 THRU 4319879
    AUSTRALIA 8028040 THRU 8034895
    CANADA 7048783 THRU 7067284
  • 46
    69258 PIN, MOUNTING TUBE
    UNITED STATES 4121435 THRU 4319879
    AUSTRALIA 8028040 THRU 8034895
    CANADA 7048783 THRU 7067284
    PIN, MOUNTING TUBE
    UNITED STATES 4121435 THRU 4319879
    AUSTRALIA 8028040 THRU 8034895
    CANADA 7048783 THRU 7067284
  • 47
    18-36002 COTTER PIN, MOUNTING TUBE PIN
    UNITED STATES 4121435 THRU 4319879
    AUSTRALIA 8028040 THRU 8034895
    CANADA 7048783 THRU 7067284
    COTTER PIN, MOUNTING TUBE PIN
    UNITED STATES 4121435 THRU 4319879
    AUSTRALIA 8028040 THRU 8034895
    CANADA 7048783 THRU 7067284
  • -
    48664A1 REPAIR KIT (SEE NOTE A ABOVE)
    REPAIR KIT (SEE NOTE A ABOVE)
