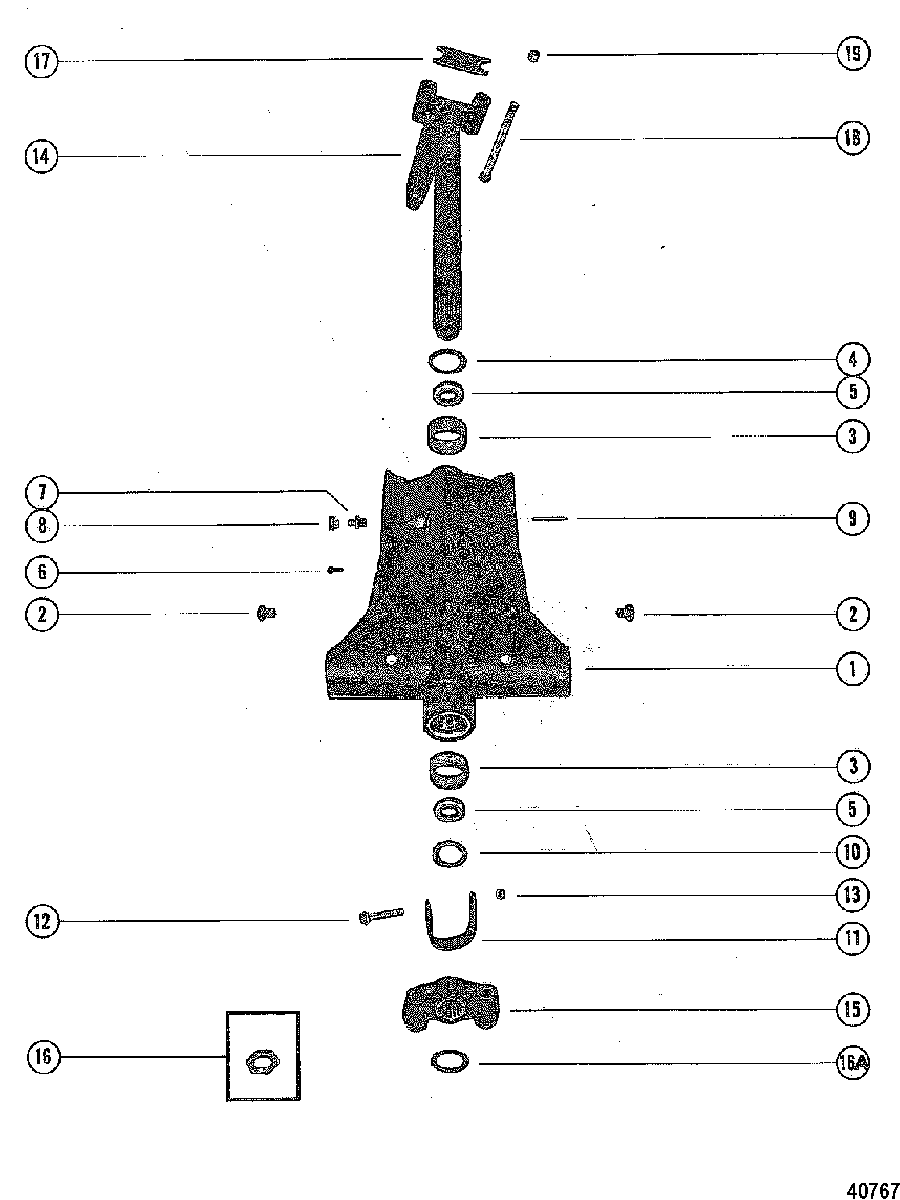

SWIVEL BRACKET ASSEMBLY для Mercury - 1150 3525441 THRU 4855152
-
№АртикулНазвание
-
11490-7256A2 SWIVEL BRACKET ASSEMBLY
(SHORT SHAFT) SN# USA-4310784/Australia-8027439/Canada-7075522 & BelowSWIVEL BRACKET ASSEMBLY
(SHORT SHAFT) SN# USA-4310784/Australia-8027439/Canada-7075522 & Below -
11490-7256A2 SWIVEL BRACKET ASSEMBLY
(SHORT SHAFT) SN# USA-4310785/Canada-7075523 THRU USA-4567951/Canada-7087422SWIVEL BRACKET ASSEMBLY
(SHORT SHAFT) SN# USA-4310785/Canada-7075523 THRU USA-4567951/Canada-7087422 -
11482-6386A4 SWIVEL BRACKET ASSEMBLY
(LONG SHAFT) SN# USA-4310784/Australia-8027439/Canada-7075522 & BelowSWIVEL BRACKET ASSEMBLY
(LONG SHAFT) SN# USA-4310784/Australia-8027439/Canada-7075522 & Below -
11482-6386A4 SWIVEL BRACKET ASSEMBLY
(LONG SHAFT) SN# USA-4310785/Canada-7075523 THRU USA-4567951/Canada-7087422SWIVEL BRACKET ASSEMBLY
(LONG SHAFT) SN# USA-4310785/Canada-7075523 THRU USA-4567951/Canada-7087422 -
11482-6386A4 SWIVEL BRACKET ASSEMBLY
(LONG SHAFT) SN# USA-4567952/Canada-7087423 & UpSWIVEL BRACKET ASSEMBLY
(LONG SHAFT) SN# USA-4567952/Canada-7087423 & Up -
223-69132 BUSHING
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpBUSHING
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
323-69341 BUSHING
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpBUSHING
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
412-69342 WASHER
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpWASHER
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
526-37448 SEAL, Oil, SWIVEL BRACKETSEAL, Oil, SWIVEL BRACKET
-
610-47828 SCREW, DRIVESCREW, DRIVE
-
722-69059 FITTING, GREASE
SN# USA-4310784/Australia-8027439/Canada-7075522 & BelowFITTING, GREASE
SN# USA-4310784/Australia-8027439/Canada-7075522 & Below -
722-74036 FITTING, Grease
SN# USA-4310785/Canada-7075523 THRU USA-4567951/Canada-7087422FITTING, Grease
SN# USA-4310785/Canada-7075523 THRU USA-4567951/Canada-7087422 -
722-74036 FITTING, Grease
SN# USA-4567952/Canada-7087423 & UpFITTING, Grease
SN# USA-4567952/Canada-7087423 & Up -
819-77633Q LUBRICAP
SN# USA-4310784/Australia-8027439/Canada-7075522 & BelowLUBRICAP
SN# USA-4310784/Australia-8027439/Canada-7075522 & Below -
917-25598 PIN, REVERSE LOCK SPRING(NOT USED WITH FULL POWER TRIM)PIN, REVERSE LOCK SPRING(NOT USED WITH FULL POWER TRIM)
-
1012-37429 WASHER, SWIVEL PIN - LOWERWASHER, SWIVEL PIN - LOWER
-
1128205T STRAP, Stop, DRIVESHAFT HOUSING TO SWIVEL BRACKETSTRAP, Stop, DRIVESHAFT HOUSING TO SWIVEL BRACKET
-
1210-28200 SCREW, (.375-24 x 2.875)SCREW, (.375-24 x 2.875)
-
1311-25269 NUT, (.375-24)NUT, (.375-24)
-
1417-49841A1 SWIVEL PIN ASSEMBLY, Steering Arm (SHORT SHAFT)
YOKE IS ATTACHED WITH A NUTSWIVEL PIN ASSEMBLY, Steering Arm (SHORT SHAFT)
YOKE IS ATTACHED WITH A NUT -
1417-49840A1 SWIVEL PIN ASSEMBLY, Steering Arm (LONG SHAFT)
YOKE IS ATTACHED WITH A NUTSWIVEL PIN ASSEMBLY, Steering Arm (LONG SHAFT)
YOKE IS ATTACHED WITH A NUT -
1417-73594A2 SWIVEL PIN ASSEMBLY, Steering Arm (SHORT SHAFT)
YOKE IS ATTACHED WITH A RETAINING RINGSWIVEL PIN ASSEMBLY, Steering Arm (SHORT SHAFT)
YOKE IS ATTACHED WITH A RETAINING RING -
1417-73593A2 SWIVEL PIN ASSEMBLY, Steering Arm (LONG SHAFT)
YOKE IS ATTACHED WITH A RETAINING RINGSWIVEL PIN ASSEMBLY, Steering Arm (LONG SHAFT)
YOKE IS ATTACHED WITH A RETAINING RING -
1573984T YOKE, BOTTOM
YOKE IS ATTACHED WITH A NUTYOKE, BOTTOM
YOKE IS ATTACHED WITH A NUT -
1573984T YOKE, BOTTOM
YOKE IS ATTACHED WITH A RETAINING RINGYOKE, BOTTOM
YOKE IS ATTACHED WITH A RETAINING RING -
1611-37424 NUT, BOTTOM YOKE ATTACHING
YOKE IS ATTACHED WITH A NUTNUT, BOTTOM YOKE ATTACHING
YOKE IS ATTACHED WITH A NUT -
16A53-73591 RING, Retaining
YOKE IS ATTACHED WITH A RETAINING RINGRING, Retaining
YOKE IS ATTACHED WITH A RETAINING RING -
1728203 BUMPER, STEERING ARMBUMPER, STEERING ARM
-
1810-49554 BOLT, (.437-20 x 5.875)BOLT, (.437-20 x 5.875)
-
1911-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
