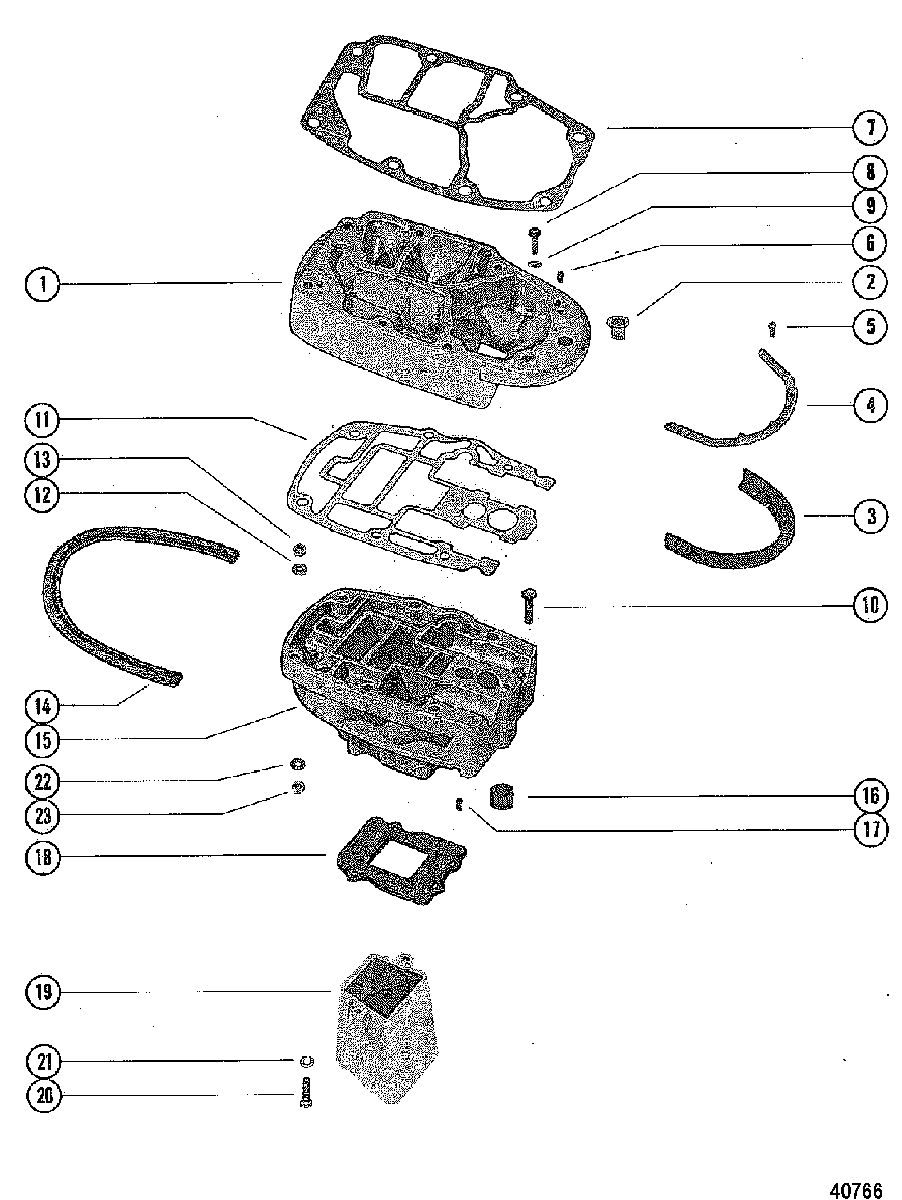

EXHAUST EXTENSION PLATE для Mercury - 1150 3525441 THRU 4855152

  • №
    Артикул
    Название
  • 1
    43289A2 PLATE ASSEMBLY, EXHAUST EXTENSION
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
    PLATE ASSEMBLY, EXHAUST EXTENSION
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
  • 1
    43289A2 PLATE ASSEMBLY, EXHAUST EXTENION
    SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
    PLATE ASSEMBLY, EXHAUST EXTENION
    SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
  • 2
    23-27132 BUSHING, NYLON
    SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
    BUSHING, NYLON
    SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
  • 3
    37918 SEAL, EXHAUST EXTENSION PLATE
    SEAL, EXHAUST EXTENSION PLATE
  • 4
    99358 STRIP, RETAINING - EXHAUST EXTENSION PLATE SEAL
    STRIP, RETAINING - EXHAUST EXTENSION PLATE SEAL
  • 5
    10-37571 SCREW, (.190-32 x .500), SEAL AND RETAINING STRIP TO EXT. PLATE (1/2")
    SCREW, (.190-32 x .500), SEAL AND RETAINING STRIP TO EXT. PLATE (1/2")
  • 6
    17-23784 PIN, Dowel, EXHAUST EXTENSION PLATE
    PIN, Dowel, EXHAUST EXTENSION PLATE
  • 7
    27-692381 GASKET
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
    GASKET
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
  • 7
    27-692381 GASKET
    SN# USA-3761035/Australia-8014005/Canada-7025598 THRU USA-4112634/Australia-8027114/Canada-7047257
    GASKET
    SN# USA-3761035/Australia-8014005/Canada-7025598 THRU USA-4112634/Australia-8027114/Canada-7047257
  • 7
    27-692381 GASKET
    SN# USA-4112635/Australia-8027115/Canada-7047258 & Up
    GASKET
    SN# USA-4112635/Australia-8027115/Canada-7047258 & Up
  • 8
    10-62644 SCREW (5/16")
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
    SCREW (5/16")
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
  • 8
    10-66023 SCREW, (.312-18 x 2.00) Flange Head
    SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
    SCREW, (.312-18 x 2.00) Flange Head
    SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
  • 9
    13-26993 LOCKWASHER, (.312)
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
    LOCKWASHER, (.312)
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
  • 10
    10-66023 SCREW, (.312-18 x 2.00) Flange Head
    SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
    SCREW, (.312-18 x 2.00) Flange Head
    SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
  • 11
    27-661021 GASKET
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
    GASKET
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
  • 11
    27-661021 GASKET
    SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
    GASKET
    SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
  • 12
    12-34437 WASHER
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
    WASHER
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
  • 13
    11-64809 NUT
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
    NUT
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
  • 14
    26-60898 SEAL, DRIVESHAFT HOUSING PLATE
    SEAL, DRIVESHAFT HOUSING PLATE
  • 15
    43543A1 PLATE ASSEMBLY
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
    PLATE ASSEMBLY
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
  • 15
    43290A4 PLATE ASSEMBLY
    SN# USA-3761035/Australia-8014005/Canada-7025598 THRU USA-4394236/Australia-8027439/Canada-7075522
    PLATE ASSEMBLY
    SN# USA-3761035/Australia-8014005/Canada-7025598 THRU USA-4394236/Australia-8027439/Canada-7075522
  • 15
    43290A4 PLATE ASSEMBLY
    SN# USA-4394237/Canada-7075523 & Up
    PLATE ASSEMBLY
    SN# USA-4394237/Canada-7075523 & Up
  • 16
    26-38970 SEAL, RUBBER
    SEAL, RUBBER
  • 17
    17-23784 PIN, Dowel, DRIVESHAFT HOUSING PLATE
    PIN, Dowel, DRIVESHAFT HOUSING PLATE
  • 18
    27-62362 GASKET, MEGAPHONE TO DRIVESHAFT HOUSING PLATE
    GASKET, MEGAPHONE TO DRIVESHAFT HOUSING PLATE
  • 19
    99699 MEGAPHONE, EXHAUST
    MEGAPHONE, EXHAUST
  • 20
    10-60480 SCREW, MEGAPHONE TO DRIVESHAFT HOUSING PLATE (1 1/8")
    SCREW, MEGAPHONE TO DRIVESHAFT HOUSING PLATE (1 1/8")
  • 21
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 22
    12-20553 WASHER, POWERHEAD STUD
    WASHER, POWERHEAD STUD
  • 23
    11-82671013 NUT, (.375-24), POWERHEAD STUD
    NUT, (.375-24), POWERHEAD STUD
  • -
    27-85653A87 GASKET SET
    GASKET SET
