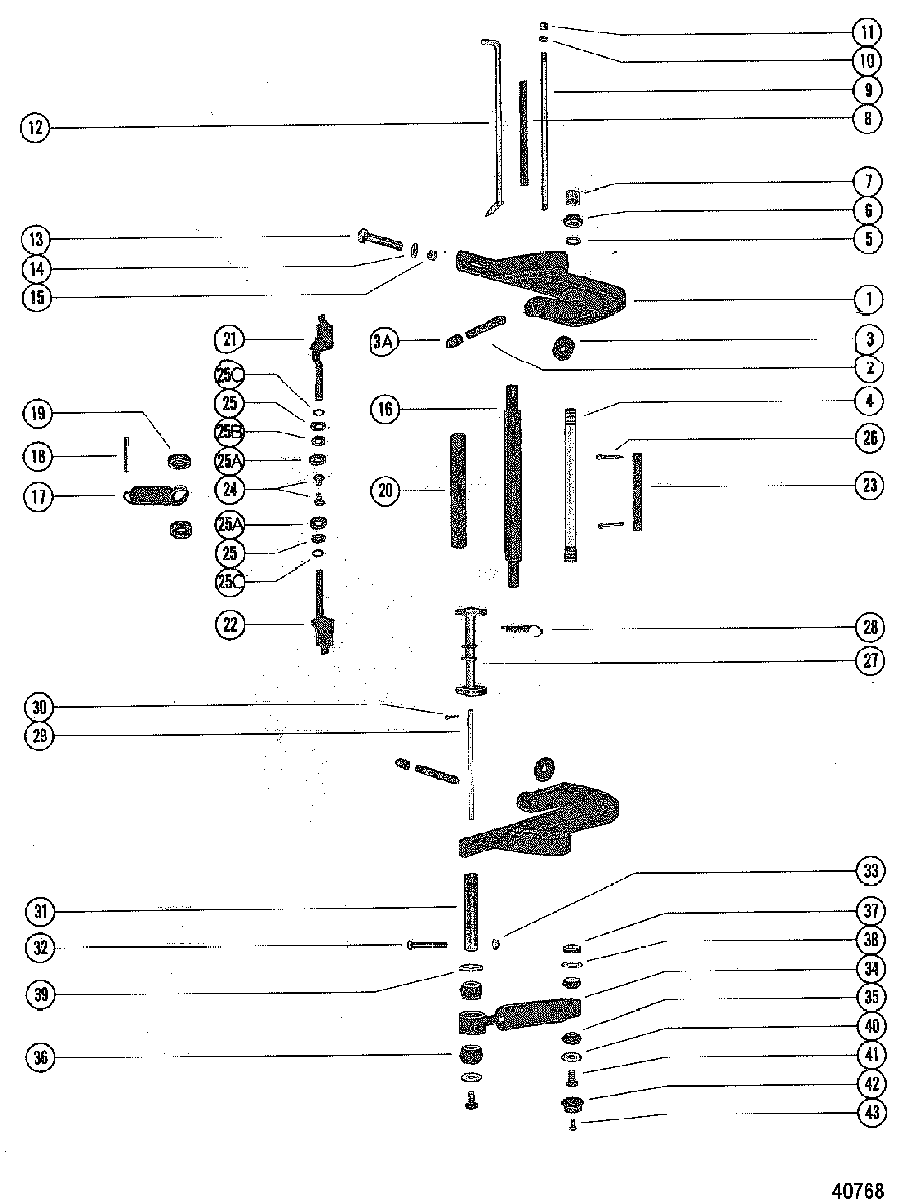

CLAMP BRACKET AND REVERSE LOCK для Mercury - 1150 3525441 THRU 4855152
-
№АртикулНазвание
-
11440-8394A1 CLAMP BRACKET ASSEMBLY
SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowCLAMP BRACKET ASSEMBLY
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
11440-8394A1 CLAMP BRACKET ASSEMBLY
SN# USA-4112635/Australia-8027115/Canada-7047258 THRU USA-4310784/Australia-8027439/Canada-7075522CLAMP BRACKET ASSEMBLY
SN# USA-4112635/Australia-8027115/Canada-7047258 THRU USA-4310784/Australia-8027439/Canada-7075522 -
11440-8394A1 CLAMP BRACKET ASSEMBLY
SN# USA-4310785/Canada-7075523 & UpCLAMP BRACKET ASSEMBLY
SN# USA-4310785/Canada-7075523 & Up -
228403A3 THUMB SCREW ASSEMBLY
SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowTHUMB SCREW ASSEMBLY
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
210-78492A1 THUMB SCREW ASSEMBLY
SN# USA-4112635/Australia-8027115/Canada-7047258 THRU USA-4310784/Australia-8027439/Canada-7075522THUMB SCREW ASSEMBLY
SN# USA-4112635/Australia-8027115/Canada-7047258 THRU USA-4310784/Australia-8027439/Canada-7075522 -
210-78492A1 THUMB SCREW ASSEMBLY
SN# USA-4310785/Canada-7075523 & UpTHUMB SCREW ASSEMBLY
SN# USA-4310785/Canada-7075523 & Up -
312-28404 WASHER, THUMB SCREW
SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowWASHER, THUMB SCREW
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
312-70988 WASHER, THUMB SCREW
SN# USA-4112635/Australia-8027115/Canada-7047258 THRU USA-4310784/Australia-8027439/Canada-7075522WASHER, THUMB SCREW
SN# USA-4112635/Australia-8027115/Canada-7047258 THRU USA-4310784/Australia-8027439/Canada-7075522 -
3A75043 CAP, THUMB SCREW
SN# USA-4310785/Canada-7075523 & UpCAP, THUMB SCREW
SN# USA-4310785/Canada-7075523 & Up -
48M0041936 TUBE, TILTTUBE, TILT
-
512-52864 WASHERWASHER
-
611-858869 NUT, (.875-14)NUT, (.875-14)
-
753078 CAP, PLASTICCAP, PLASTIC
-
823-59624 SPACER, CLAMP BRACKET STUDSPACER, CLAMP BRACKET STUD
-
916-59625 STUD (NOT USED WITH FULL POWER TRIM)STUD (NOT USED WITH FULL POWER TRIM)
-
1013-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
1111-28770 NUT, (.312-24) Stainless SteelNUT, (.312-24) Stainless Steel
-
1217-8M0026068 PIN ASSEMBLY, Tilt Lock (NOT USED WITH FULL POWER TRIM)PIN ASSEMBLY, Tilt Lock (NOT USED WITH FULL POWER TRIM)
-
1310-68298 BOLT, (.375-16 x 3.250), CLAMP BRACKET TO BOAT TRANSOM (LOWER)BOLT, (.375-16 x 3.250), CLAMP BRACKET TO BOAT TRANSOM (LOWER)
-
1310-68299 SCREW, (.375-16 x 3.00) Stainless Steel, CLAMP BRACKET TO BOAT TRANSOM (UPPER)SCREW, (.375-16 x 3.00) Stainless Steel, CLAMP BRACKET TO BOAT TRANSOM (UPPER)
-
1412-46765 WASHER (LOWER)WASHER (LOWER)
-
1412-68300 WASHER, (..88 x .39 x .06) (UPPER)WASHER, (..88 x .39 x .06) (UPPER)
-
1511-82670912 NUT, (.375-16)NUT, (.375-16)
-
1655-28416 PIN, UPPER SHOCK MOUNTINGPIN, UPPER SHOCK MOUNTING
-
1724-94891 SPRING (NOT USED WITH FULL POWER TRIM)SPRING (NOT USED WITH FULL POWER TRIM)
-
1817-38311 PIN (NOT USED WITH FULL POWER TRIM)PIN (NOT USED WITH FULL POWER TRIM)
-
1923-28688 SPACER, RUBBER (NOT USED WITH FULL POWER TRIM)SPACER, RUBBER (NOT USED WITH FULL POWER TRIM)
-
2063473 TUBE (USED WITH FULL POWER TRIM)-LONG SH
(LONG SHAFT)TUBE (USED WITH FULL POWER TRIM)-LONG SH
(LONG SHAFT) -
2176386 TILT LOCK ASSEMBLY, STARBOARD
SN# USA-4567951/Australia-8027439/Canada-7087422 & BelowTILT LOCK ASSEMBLY, STARBOARD
SN# USA-4567951/Australia-8027439/Canada-7087422 & Below -
2176386 TILT LOCK ASSEMBLY (STARBOARD)
SN# USA-4567952/Canada-7087423 & UpTILT LOCK ASSEMBLY (STARBOARD)
SN# USA-4567952/Canada-7087423 & Up -
2276385T TILT LOCK ASSEMBLY, PORT
SN# USA-4567951/Australia-8027439/Canada-7087422 & BelowTILT LOCK ASSEMBLY, PORT
SN# USA-4567951/Australia-8027439/Canada-7087422 & Below -
2276385T TILT LOCK ASSEMBLY (PORT)
SN# USA-4567952/Canada-7087423 & UpTILT LOCK ASSEMBLY (PORT)
SN# USA-4567952/Canada-7087423 & Up -
2347802 TUBE, TILT LOCK
SN# USA-4567951/Australia-8027439/Canada-7087422 & BelowTUBE, TILT LOCK
SN# USA-4567951/Australia-8027439/Canada-7087422 & Below -
2379659 TUBE, TILT LOCK
SN# USA-4567952/Canada-7087423 & UpTUBE, TILT LOCK
SN# USA-4567952/Canada-7087423 & Up -
2423-47803 BUSHING
SN# USA-4567951/Australia-8027439/Canada-7087422 & BelowBUSHING
SN# USA-4567951/Australia-8027439/Canada-7087422 & Below -
2513-69150 WAVE WASHER
SN# USA-4567951/Australia-8027439/Canada-7087422 & BelowWAVE WASHER
SN# USA-4567951/Australia-8027439/Canada-7087422 & Below -
2513-69150 WAVE WASHER (STARBOARD SIDE ONLY)
SN# USA-4567952/Canada-7087423 & UpWAVE WASHER (STARBOARD SIDE ONLY)
SN# USA-4567952/Canada-7087423 & Up -
25A26-22734 SEAL, Oil
SN# USA-4567952/Canada-7087423 & UpSEAL, Oil
SN# USA-4567952/Canada-7087423 & Up -
25B12-76388 WASHER (STARBOARD SIDE ONLY)
SN# USA-4567952/Canada-7087423 & UpWASHER (STARBOARD SIDE ONLY)
SN# USA-4567952/Canada-7087423 & Up -
25C25-627021 O-RING, (.301 x .070)
SN# USA-4567952/Canada-7087423 & UpO-RING, (.301 x .070)
SN# USA-4567952/Canada-7087423 & Up -
2618-47959 COTTER PIN, TILT LOCKCOTTER PIN, TILT LOCK
-
2787431 LOCK ASSEMBLY, Reverse (NOT USED WITH FULL POWER TRIM)LOCK ASSEMBLY, Reverse (NOT USED WITH FULL POWER TRIM)
-
2824-29821 SPRING (NOT USED WITH FULL POWER TRIM)SPRING (NOT USED WITH FULL POWER TRIM)
-
2956349 SHAFT (NOT USED WITH FULL POWER TRIM)SHAFT (NOT USED WITH FULL POWER TRIM)
-
3018-45882 COTTER PIN (NOT USED WITH FULL POWER TRIM)COTTER PIN (NOT USED WITH FULL POWER TRIM)
-
3155-696531 PIN, LOWER SHOCK MOUNTING
(SHORT SHAFT)PIN, LOWER SHOCK MOUNTING
(SHORT SHAFT) -
3155-28414 PIN, LOWER SHOCK MOUNTING
(LONG SHAFT)PIN, LOWER SHOCK MOUNTING
(LONG SHAFT) -
3210-21937 SCREW, LOWER SHOCK PIN
(LONG SHAFT)SCREW, LOWER SHOCK PIN
(LONG SHAFT) -
3311-20184 NUT, (1/4-28)
(LONG SHAFT)NUT, (1/4-28)
(LONG SHAFT) -
3455-58780A7 SHOCK ABSORBER (NOT USED WITH FULL POWER TRIM)SHOCK ABSORBER (NOT USED WITH FULL POWER TRIM)
-
3523-32171 BUSHING, RUBBER (UPPER)(NOT USED WITH FULL POWER TRIM)BUSHING, RUBBER (UPPER)(NOT USED WITH FULL POWER TRIM)
-
3623-28198 BUSHING, RUBBER (LOWER)(NOT USED WITH FULL POWER TRIM)BUSHING, RUBBER (LOWER)(NOT USED WITH FULL POWER TRIM)
-
3723-28199 SPACER
SN# USA-4394236/Australia-8027439/Canada-7075522 & BelowSPACER
SN# USA-4394236/Australia-8027439/Canada-7075522 & Below -
3723-73203 BUSHING
SN# USA-4394237/Canada-7075523 & UpBUSHING
SN# USA-4394237/Canada-7075523 & Up -
3812-28196 WASHER, UPPER BUSHING RETAINER (INNER)WASHER, UPPER BUSHING RETAINER (INNER)
-
3912-59378 WASHER, LOWER BUSHING RETAINER (INNER)WASHER, LOWER BUSHING RETAINER (INNER)
-
4012-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
SN# USA-4567951/Australia-8027439/Canada-7087422 & BelowWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
SN# USA-4567951/Australia-8027439/Canada-7087422 & Below -
4012-69374 WASHER
SN# USA-4567952/Canada-7087423 & UpWASHER
SN# USA-4567952/Canada-7087423 & Up -
4110-69375A1 SCREW
SN# USA-4567951/Australia-8027439/Canada-7087422 & BelowSCREW
SN# USA-4567951/Australia-8027439/Canada-7087422 & Below -
4110-69375 SCREW
SN# USA-4567952/Canada-7087423 & UpSCREW
SN# USA-4567952/Canada-7087423 & Up -
4270679 COVER
SN# USA-4567951/Australia-8027439/Canada-7087422 & BelowCOVER
SN# USA-4567951/Australia-8027439/Canada-7087422 & Below -
4310-37655 SCREW, (#10-32 x .500)
SN# USA-4567951/Australia-8027439/Canada-7087422 & BelowSCREW, (#10-32 x .500)
SN# USA-4567951/Australia-8027439/Canada-7087422 & Below -
-27-85653A87 GASKET SETGASKET SET
