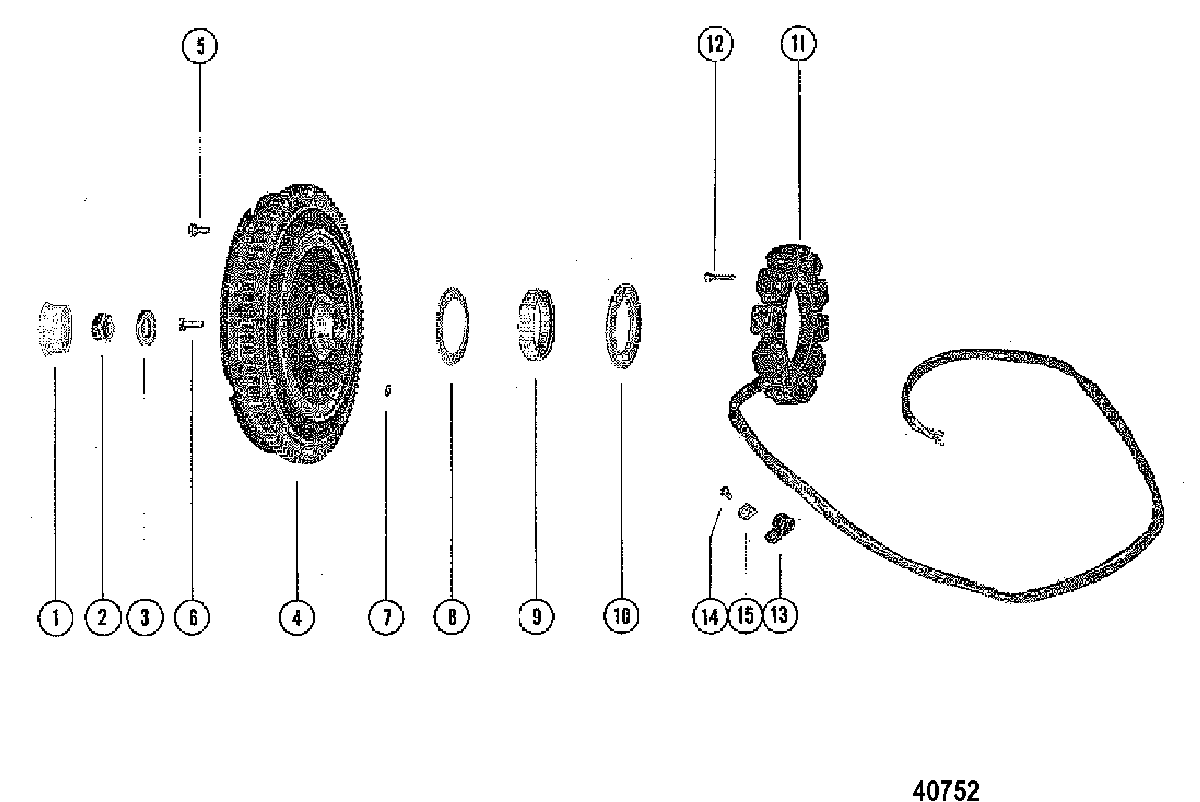

FLYWHEEL ASSEMBLY AND STATOR для Mercury - 1150 3525441 THRU 4855152

  • №
    Артикул
    Название
  • 1
    19-45907 PLUG, Yellow, FLYWHEEL PULLER THREADS
    PLUG, Yellow, FLYWHEEL PULLER THREADS
  • 2
    11-52901 NUT, (.625-18), FLYWHEEL (PART OF A-436-4842A3 CRANKSHAFT ASSEMBLY)
    NUT, (.625-18), FLYWHEEL (PART OF A-436-4842A3 CRANKSHAFT ASSEMBLY)
  • 3
    12-33001 WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 4
    225-2494A37 FLYWHEEL ASSEMBLY, COMPLETE
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
    FLYWHEEL ASSEMBLY, COMPLETE
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
  • 4
    225-2494A37 FLYWHEEL ASSEMBLY, COMPLETE
    SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
    FLYWHEEL ASSEMBLY, COMPLETE
    SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
  • 5
    10-32417 SCREW, (.250-28 x .625)
    SCREW, (.250-28 x .625)
  • 6
    10-68997 SCREW, PLATE/HUB TO FLEX. PLATE
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
    SCREW, PLATE/HUB TO FLEX. PLATE
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
  • 6
    10-69088 SCREW, PLATE/HUB TO FLEX. PLATE
    SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
    SCREW, PLATE/HUB TO FLEX. PLATE
    SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
  • 7
    17-26618 PIN, DOWEL - PULLEY TO FLYWHEEL
    PIN, DOWEL - PULLEY TO FLYWHEEL
  • 8
    29788 FLANGE, FLYWHEEL PULLEY
    FLANGE, FLYWHEEL PULLEY
  • 9
    30306 PULLEY, FLYWHEEL
    PULLEY, FLYWHEEL
  • 10
    29787 HUB, FLYWHEEL PULLEY
    HUB, FLYWHEEL PULLEY
  • 11
    398-4793 STATOR, ALTERNATOR (NOT AS SHOWN)
    STATOR, ALTERNATOR (NOT AS SHOWN)
  • 12
    10-63136 SCREW, (#10-24 x .880), STATOR TO UPPER END CAP
    SCREW, (#10-24 x .880), STATOR TO UPPER END CAP
  • 13
    54-22875 CLIP, STATOR LEAD FASTENING
    (7/16")
    CLIP, STATOR LEAD FASTENING
    (7/16")
  • 13
    54-24871 CLAMP, STATOR LEAD FASTENING
    (5/8")
    CLAMP, STATOR LEAD FASTENING
    (5/8")
  • 13
    54-22627 CLIP, STATOR/WIRING HARNESS LEADS FASTENING
    (1/2")
    CLIP, STATOR/WIRING HARNESS LEADS FASTENING
    (1/2")
  • 14
    10-62568 SCREW, (#10-16 x .375), STATOR LEAD CLIP FASTENING
    SCREW, (#10-16 x .375), STATOR LEAD CLIP FASTENING
  • 15
    8M0084613 C WASHER, CLIP FASTENING SCREW
    C WASHER, CLIP FASTENING SCREW
