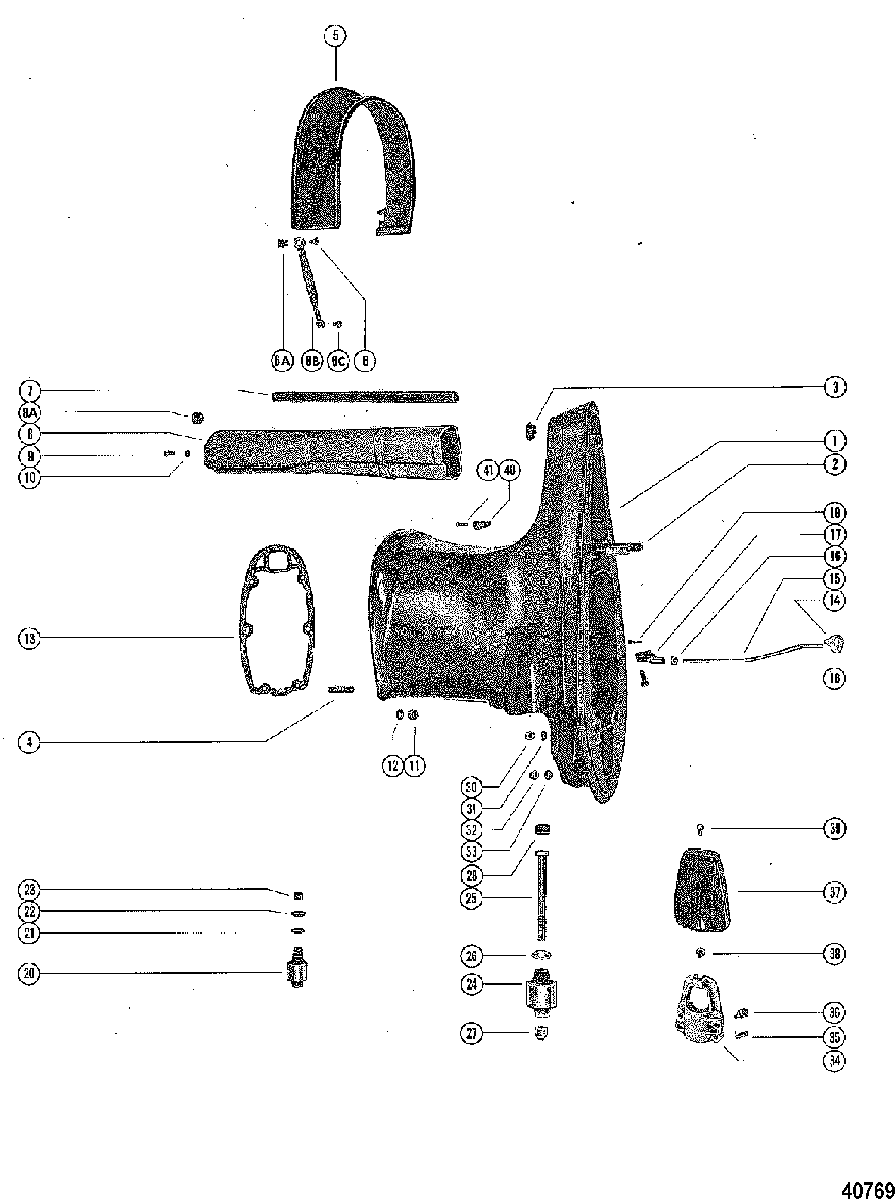

DRIVESHAFT HOUSING ASSEMBLY для Mercury - 1150 3525441 THRU 4855152

№

Артикул

Название
1

1575-5240A4 HOUSING ASSEMBLY, Driveshaft (SHORT SHAFT)
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below

HOUSING ASSEMBLY, Driveshaft (SHORT SHAFT)
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
1

1575-5240A4 HOUSING ASSEMBLY, Driveshaft (SHORT SHAFT)
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up

HOUSING ASSEMBLY, Driveshaft (SHORT SHAFT)
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
1

1573-5239A4 HOUSING ASSEMBLY, Driveshaft (LONG SHAFT)
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below

HOUSING ASSEMBLY, Driveshaft (LONG SHAFT)
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
1

1573-5239A4 HOUSING ASSEMBLY, Driveshaft - Mercury (LONG SHAFT)
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up

HOUSING ASSEMBLY, Driveshaft - Mercury (LONG SHAFT)
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
2

16-56295 STUD, (.437 x 2.69)

STUD, (.437 x 2.69)
3

19-64649 PLUG, PLASTIC
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below

PLUG, PLASTIC
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
4

16-34378 STUD (2-5/16")
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below

STUD (2-5/16")
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
5

37417 COVER, TRIM

COVER, TRIM
6

10-57807 SCREW, (#10-16 x .750) Stainless Steel

SCREW, (#10-16 x .750) Stainless Steel
6A

25-8M0079730 GROMMET, PLASTIC

GROMMET, PLASTIC
6B

46933A2 STRAP ASSEMBLY, Ground

STRAP ASSEMBLY, Ground
6C

10-62568 SCREW, (#10-16 x .375)

SCREW, (#10-16 x .375)
7

32-62864 TUBE, WATER INLET
(SHORT SHAFT)

TUBE, WATER INLET
(SHORT SHAFT)
7

32-60897 TUBE, WATER INLET
(LONG SHAFT)

TUBE, WATER INLET
(LONG SHAFT)
8

66345A1 TUBE, EXHAUST- (SHORT SHAFT)
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below

TUBE, EXHAUST- (SHORT SHAFT)
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
8

65370 TUBE, EXHAUST- (SHORT SHAFT)
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up

TUBE, EXHAUST- (SHORT SHAFT)
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
8

66344A1 TUBE, EXHAUST- (LONG SHAFT)
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below

TUBE, EXHAUST- (LONG SHAFT)
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
8

78184T TUBE, EXHAUST- (LONG SHAFT)
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up

TUBE, EXHAUST- (LONG SHAFT)
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
8A

65638 BOOT, TUBE MOUNT
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up

BOOT, TUBE MOUNT
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
9

10-28636 SCREW, (.250-20 x .750)
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below

SCREW, (.250-20 x .750)
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
10

13-26992 LOCKWASHER, (.250) Stainless Steel
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below

LOCKWASHER, (.250) Stainless Steel
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
11

11-69254 NUT, POWERHEAD STUDS (3/8-24)

NUT, POWERHEAD STUDS (3/8-24)
12

12-20553 WASHER, POWERHEAD STUDS

WASHER, POWERHEAD STUDS
13

27-66335 GASKET
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below

GASKET
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
13

27-66335 GASKET
SN# USA-3761035/Australia-8014005/Canada-7025598 THRU USA-4112634/Australia-8027114/Canada-7047257

GASKET
SN# USA-3761035/Australia-8014005/Canada-7025598 THRU USA-4112634/Australia-8027114/Canada-7047257
14

52887 GUIDE
NOT USED WITH FULL POWER TRIM

GUIDE
NOT USED WITH FULL POWER TRIM
15

47591 ROD, PUSH (SHORT SHAFT)
NOT USED WITH FULL POWER TRIM

ROD, PUSH (SHORT SHAFT)
NOT USED WITH FULL POWER TRIM
15

47558 ROD, PUSH (LONG SHAFT)
NOT USED WITH FULL POWER TRIM

ROD, PUSH (LONG SHAFT)
NOT USED WITH FULL POWER TRIM
16

11-69254 NUT, JAM
NOT USED WITH FULL POWER TRIM

NUT, JAM
NOT USED WITH FULL POWER TRIM
17

47559 YOKE
NOT USED WITH FULL POWER TRIM

YOKE
NOT USED WITH FULL POWER TRIM
18

24-78203A2 PIN
NOT USED WITH FULL POWER TRIM

PIN
NOT USED WITH FULL POWER TRIM
19

18-25191 COTTER PIN
NOT USED WITH FULL POWER TRIM

COTTER PIN
NOT USED WITH FULL POWER TRIM
20

75296 MOUNT, RUBBER - UPPER

MOUNT, RUBBER - UPPER
21

12-47840 WASHER, RUBBER

WASHER, RUBBER
22

12-31263 WASHER

WASHER
23

11-34933 NUT, (.437-20) Stainless Steel

NUT, (.437-20) Stainless Steel
24

49455 MOUNT, RUBBER - LOWER (SHORT SHAFT)

MOUNT, RUBBER - LOWER (SHORT SHAFT)
24

75299 MOUNT, RUBBER - LOWER (LONG SHAFT)

MOUNT, RUBBER - LOWER (LONG SHAFT)
25

10-75284 SCREW, LOWER MOUNT (5-1/2")

SCREW, LOWER MOUNT (5-1/2")
26

12-49339 WASHER, (.8125)

WASHER, (.8125)
27

11-25096 NUT

NUT
28

25067 BUMPER, RUBBER

BUMPER, RUBBER
30

11-34933 NUT, (.437-20) Stainless Steel

NUT, (.437-20) Stainless Steel
31

12-45176 WASHER, (.453 x .812 x .105) Stainless Steel

WASHER, (.453 x .812 x .105) Stainless Steel
32

11-29489 NUT

NUT
33

12-45176 WASHER, (.453 x .812 x .105) Stainless Steel

WASHER, (.453 x .812 x .105) Stainless Steel
34

35608 CLAMP

CLAMP
35

24-35522 SPRING, TENSION

SPRING, TENSION
36

10-29256 SCREW, (.312-18 x .875)

SCREW, (.312-18 x .875)
37

35474T COVER, LOWER MOUNT CLAMP

COVER, LOWER MOUNT CLAMP
38

11-35521 NUT

NUT
39

10-29722 SCREW, (#12-24 x .625)

SCREW, (#12-24 x .625)
40

62497 BRACKET, SUPPORT - DRIVESHAFT
(LONG SHAFT)

BRACKET, SUPPORT - DRIVESHAFT
(LONG SHAFT)
41

10-48409 SCREW, (#10-16 x .625) Stainless Steel
(LONG SHAFT)

SCREW, (#10-16 x .625) Stainless Steel
(LONG SHAFT)
-

27-85653A87 GASKET SET

GASKET SET
