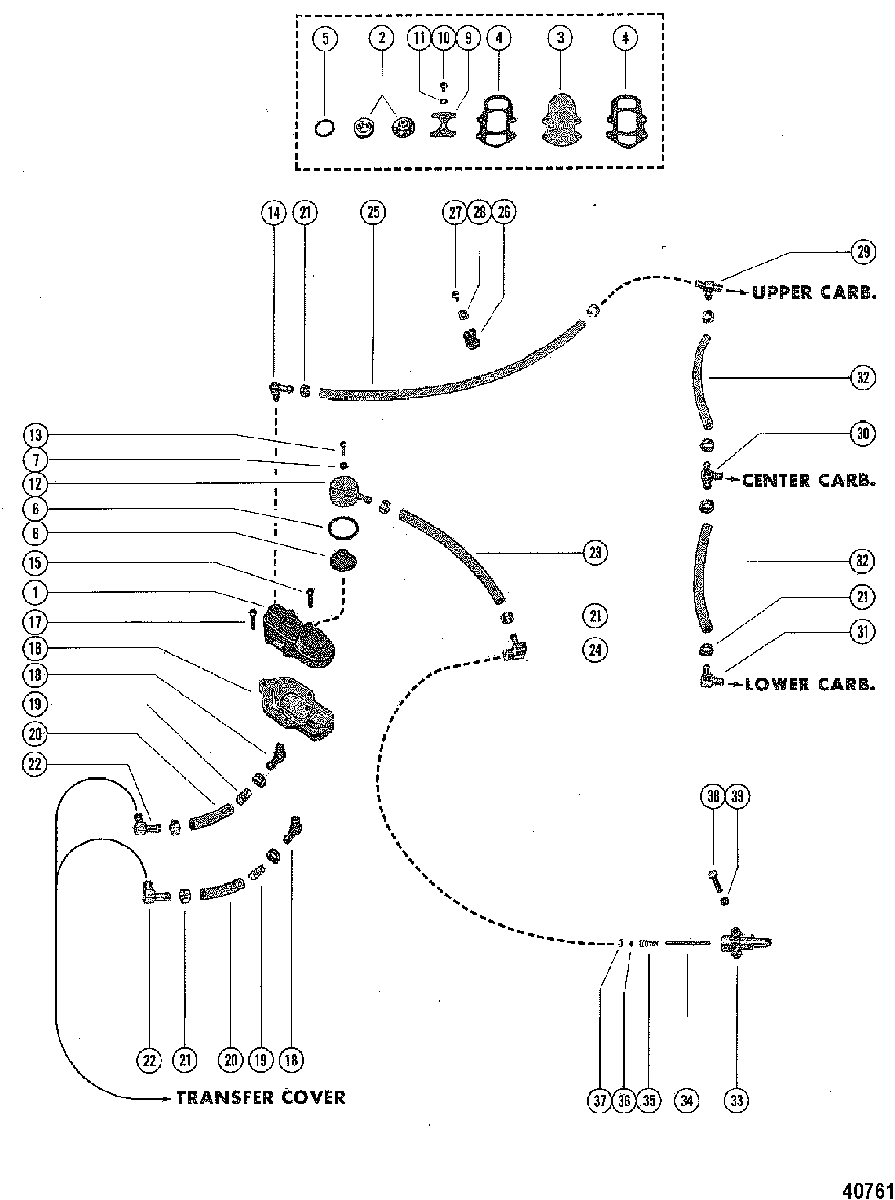

FUEL PUMP, USA-3761035/Aus.-8014005/Canada-7025598 and Up для Mercury - 1150 3525441 THRU 4855152
-
№АртикулНазвание
-
166530A2 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
221-30430A7 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
389031A1 DIAPHRAGM ASSEMBLYDIAPHRAGM ASSEMBLY
-
4NSS NOT SOLD SEPARATE, GASKET, DIAPHRAGMNOT SOLD SEPARATE, GASKET, DIAPHRAGM
-
5NSS NOT SOLD SEPARATE, GASKET, CHECK VALVENOT SOLD SEPARATE, GASKET, CHECK VALVE
-
625-35480 O-RING, COVER TO HOUSINGO-RING, COVER TO HOUSING
-
7NSS NOT SOLD SEPARATE, GASKET, NYLON - FILTER COVER SCREWNOT SOLD SEPARATE, GASKET, NYLON - FILTER COVER SCREW
-
835-59072 SCREEN, FILTER - INLETSCREEN, FILTER - INLET
-
923004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
1010-43725 SCREW, RETAINER TO FUEL PUMP (1/4")SCREW, RETAINER TO FUEL PUMP (1/4")
-
1113-26994 LOCKWASHER, RETAINER SCREWLOCKWASHER, RETAINER SCREW
-
1235-91078A1 COVER, FUEL INLETCOVER, FUEL INLET
-
1310-37370 SCREW, (#10-32 x .580), COVER TO FUEL PUMPSCREW, (#10-32 x .580), COVER TO FUEL PUMP
-
1422-19688 FITTING, FUEL OUTLETFITTING, FUEL OUTLET
-
1510-66686 SCREW, (#10-32 x 1.00), FUEL PUMP TO BASESCREW, (#10-32 x 1.00), FUEL PUMP TO BASE
-
1666575 BASE, FUEL PUMPBASE, FUEL PUMP
-
1710-66687 SCREW, (#10-32 x 1.50)SCREW, (#10-32 x 1.50)
-
1822-19688 FITTING, PULSE LINEFITTING, PULSE LINE
-
1924-68434 SPRING, PULSE LINESPRING, PULSE LINE
-
2032-8M0108355 LINE, Fuel (3-1/4")LINE, Fuel (3-1/4")
-
2154-68424 CLAMP, FUEL LINE ATTACHINGCLAMP, FUEL LINE ATTACHING
-
2222-19688 FITTING, PULSE LINE TO TRANSFER COVERFITTING, PULSE LINE TO TRANSFER COVER
-
2332-8M0108355 LINE, Fuel, ADAPTOR TO FUEL PUMP (6-3/4")LINE, Fuel, ADAPTOR TO FUEL PUMP (6-3/4")
-
2422-63981 FITTING, FUEL LINE TO ADAPTORFITTING, FUEL LINE TO ADAPTOR
-
2532-8M0108355 LINE, Fuel, FUEL PUMP TO UPPER CARBURETOR (15-3/4")LINE, Fuel, FUEL PUMP TO UPPER CARBURETOR (15-3/4")
-
2654-22627 CLIP, FUEL LINE ATTACHINGCLIP, FUEL LINE ATTACHING
-
2710-62568 SCREW, (#10-16 x .375), FUEL LINE CLIPSCREW, (#10-16 x .375), FUEL LINE CLIP
-
288M0084613 C WASHER, FUEL LINE CLIP SCREWC WASHER, FUEL LINE CLIP SCREW
-
2922-66328 FITTING, TEE - UPPER CARBURETORFITTING, TEE - UPPER CARBURETOR
-
3022-64706001 TEE, TEE - CENTER CARBURETORTEE, TEE - CENTER CARBURETOR
-
3122-19688 FITTING, ELBOW - LOWER CARBURETORFITTING, ELBOW - LOWER CARBURETOR
-
3232-8M0108355 LINE, Fuel, CARBURETOR TO CARBURETOR (6-1/4")LINE, Fuel, CARBURETOR TO CARBURETOR (6-1/4")
-
3330186 ADAPTOR, CHECK UNIT (FUEL LINE)
SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowADAPTOR, CHECK UNIT (FUEL LINE)
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
3322833 ADAPTOR, CHECK UNIT (FUEL LINE)
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpADAPTOR, CHECK UNIT (FUEL LINE)
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
3430185Q3 STEM, CHECK UNIT ADAPTOR
SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowSTEM, CHECK UNIT ADAPTOR
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
3423069 STEM, CHECK UNIT ADAPTOR
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpSTEM, CHECK UNIT ADAPTOR
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
3524-30189 SPRING, ADAPTOR STEM
SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowSPRING, ADAPTOR STEM
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
3524-23067T SPRING, ADAPTOR STEM
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpSPRING, ADAPTOR STEM
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
3625-16524 O-RING, ADAPTOR STEMO-RING, ADAPTOR STEM
-
3730188 WASHER, ADAPTORWASHER, ADAPTOR
-
3810-69029 SCREW, ADAPTOR TO BOTTOM COWL
(1-3/4") SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowSCREW, ADAPTOR TO BOTTOM COWL
(1-3/4") SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
3810-88488 SCREW, ADAPTOR TO BOTTOM COWL
(3-1/4") SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowSCREW, ADAPTOR TO BOTTOM COWL
(3-1/4") SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
3810-69029 SCREW, (.250-28 x 1.750), ADAPTOR TO BOTTOM COWL
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpSCREW, (.250-28 x 1.750), ADAPTOR TO BOTTOM COWL
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
3911-20184 NUT, (1/4-28)
SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowNUT, (1/4-28)
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
-27-85653A87 GASKET SETGASKET SET
