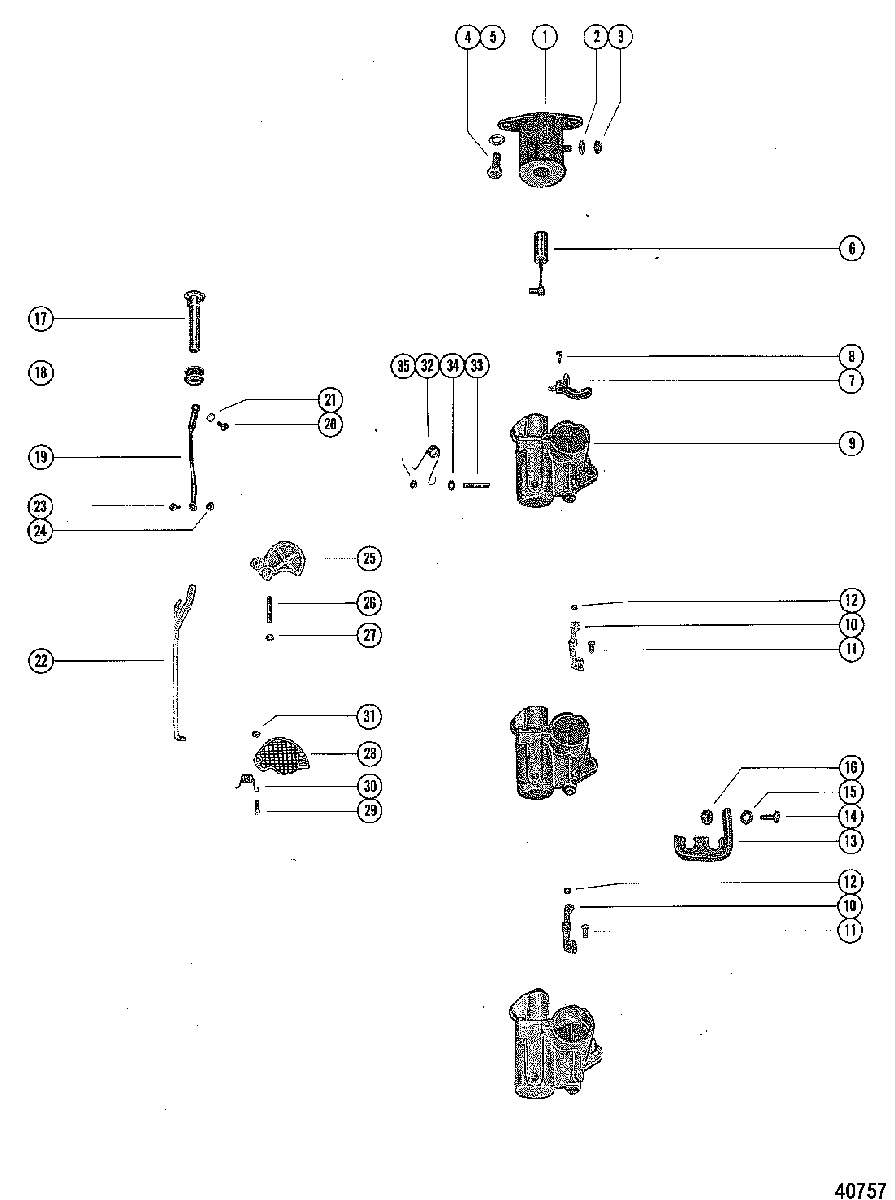

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 1150 3525441 THRU 4855152
-
№АртикулНазвание
-
154293A10 SOLENOID ASSEMBLY, ChokeSOLENOID ASSEMBLY, Choke
-
213-26996 LOCKWASHER, (#10) Stainless Steel, SOLENOID TERMINALLOCKWASHER, (#10) Stainless Steel, SOLENOID TERMINAL
-
311-68219 NUT, (#10), SOLENOID TERMINALNUT, (#10), SOLENOID TERMINAL
-
410-25299 SCREW, (.312-18 x .75), CHOKE SOLENOIDSCREW, (.312-18 x .75), CHOKE SOLENOID
-
513-26993 LOCKWASHER, (.312), CHOKE SOLENOID SCREWLOCKWASHER, (.312), CHOKE SOLENOID SCREW
-
690548A1 PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOIDPLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID
-
752518 CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)
-
81395-6027 SCREW, CLUSTER TO THROTTLE LEVERSCREW, CLUSTER TO THROTTLE LEVER
-
91352-4510A24 CARBURETOR ASSEMBLY, COMPLETE
SN# USA-3761034/Australia-8014004/Canada-7025597 & BelowCARBURETOR ASSEMBLY, COMPLETE
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below -
91368-5290A6 CARBURETOR ASSEMBLY, COMPLETE
SN# USA-3761035/Australia-8014005/Canada-7025598 THRU USA-4112634/Australia-8027114/Canada-7047257CARBURETOR ASSEMBLY, COMPLETE
SN# USA-3761035/Australia-8014005/Canada-7025598 THRU USA-4112634/Australia-8027114/Canada-7047257 -
91368-5702A19 CARBURETOR ASSEMBLY, COMPLETE
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpCARBURETOR ASSEMBLY, COMPLETE
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
1053720A2 COUPLING ASSEMBLYCOUPLING ASSEMBLY
-
1110-66104 SCREW, (#8-32 x .790)SCREW, (#8-32 x .790)
-
1228-89694 INSERT, THROTTLE COUPLINGINSERT, THROTTLE COUPLING
-
1359757 BRACKET, COIL LEAD RETAINER
SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowBRACKET, COIL LEAD RETAINER
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
1410-64278 SCREW, (.250-28 x 1.00)
SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowSCREW, (.250-28 x 1.00)
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
1512-29245 WASHER, (.281 x .500 x .060) Stainless Steel
SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowWASHER, (.281 x .500 x .060) Stainless Steel
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
1611-20184 NUT, (1/4-28)
SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowNUT, (1/4-28)
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
1790242A1 KNOB, CHOKE RODKNOB, CHOKE ROD
-
1825-20116 GROMMET, CHOKE RODGROMMET, CHOKE ROD
-
1949589 STRAP, CHOKE KNOB TO CHOKE RODSTRAP, CHOKE KNOB TO CHOKE ROD
-
2010-48591 SCREW, (#10-32 x .500)
SN# USA-4394236/Australia-8027439/Canada-7075522 & BelowSCREW, (#10-32 x .500)
SN# USA-4394236/Australia-8027439/Canada-7075522 & Below -
2010-69570 SCREW (5/8")
SN# USA-4394237/Canada-7075523 & UpSCREW (5/8")
SN# USA-4394237/Canada-7075523 & Up -
2113-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
2248203 ROD, CHOKEROD, CHOKE
-
2310-48591 SCREW, (#10-32 x .500)SCREW, (#10-32 x .500)
-
2411-46438 NUT, (#10-32)NUT, (#10-32)
-
2548152 SHUTTER, CHOKE - CARBURETORSHUTTER, CHOKE - CARBURETOR
-
2616-69037 STUD, CARBURETOR - CHOKE SHUTTER PIVOTSTUD, CARBURETOR - CHOKE SHUTTER PIVOT
-
2711-20110 NUT, (#10-32)NUT, (#10-32)
-
2835-57819 SCREEN, FILTER - CARBURETORSCREEN, FILTER - CARBURETOR
-
2910-22523 SCREW, (.190-32 x .75)
(LOWER CARBURETOR)SCREW, (.190-32 x .75)
(LOWER CARBURETOR) -
2916-23051 SCREW (1")
(UPPER CARBURETOR)SCREW (1")
(UPPER CARBURETOR) -
3024-57818 SPRING, UPPER FILTER SCREEN SCREWSPRING, UPPER FILTER SCREEN SCREW
-
3111-20110 NUT, (#10-32)NUT, (#10-32)
-
3224-48230 SPRING, CHOKE ROD TENSIONSPRING, CHOKE ROD TENSION
-
3310-657461 STUD, CHOKE ROD SPRING TO CARBURETORSTUD, CHOKE ROD SPRING TO CARBURETOR
-
3423-32427 SPACER, CHOKE ROD SPRING STUDSPACER, CHOKE ROD SPRING STUD
-
3511-20184 NUT, (1/4-28)NUT, (1/4-28)
