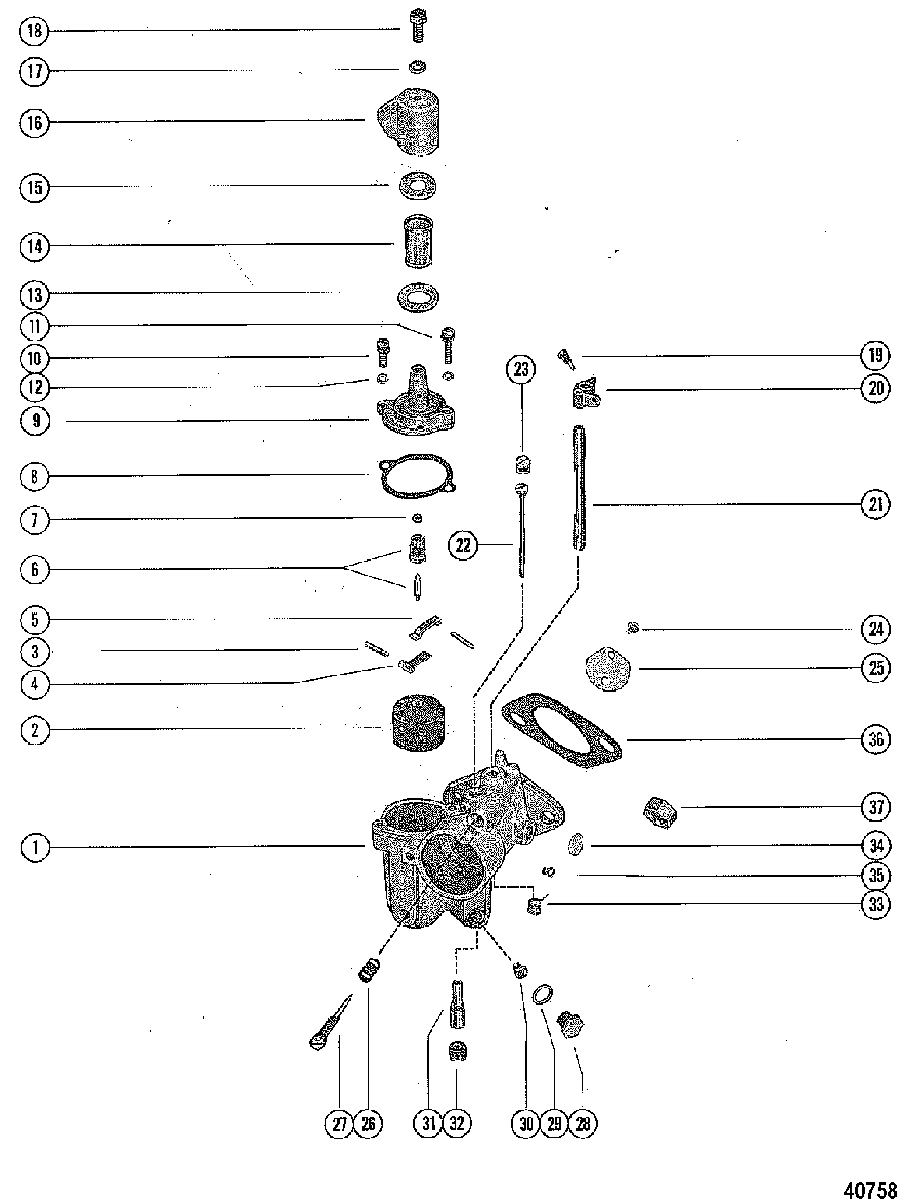

CARB, USA-3761034/Aus.-8014004/Canada-7025597 and Below для Mercury - 1150 3525441 THRU 4855152

  • №
    Артикул
    Название
  • 1
    1352-4510A24 CARBURETOR ASSEMBLY (WMK-10)
    CARBURETOR ASSEMBLY (WMK-10)
  • 2
    1395-8673 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 3
    NSS NOT SOLD SEPARATE, PIN, FLOAT LEVER PINION
    NOT SOLD SEPARATE, PIN, FLOAT LEVER PINION
  • 4
    NSS NOT SOLD SEPARATE, LEVER, FLOAT (LOWER)
    NOT SOLD SEPARATE, LEVER, FLOAT (LOWER)
  • 5
    NSS NOT SOLD SEPARATE, LEVER, FLOAT (UPPER)
    NOT SOLD SEPARATE, LEVER, FLOAT (UPPER)
  • 6
    1395-83181 NEEDLE, Inlet, SEAT AND GASKET
    NEEDLE, Inlet, SEAT AND GASKET
  • 7
    NSS NOT SOLD SEPARATE, GASKET, INLET SEAT
    NOT SOLD SEPARATE, GASKET, INLET SEAT
  • 8
    NSS NOT SOLD SEPARATE, GASKET, FLOAT BOWL COVER
    NOT SOLD SEPARATE, GASKET, FLOAT BOWL COVER
  • 9
    1399-4559 COVER, FLOAT BOWL
    COVER, FLOAT BOWL
  • 10
    10-52195 SCREW, FLOAT BOWL COVER (SHORT)
    SCREW, FLOAT BOWL COVER (SHORT)
  • 11
    10-52196 SCREW, FLOAT BOWL COVER (LONG)
    SCREW, FLOAT BOWL COVER (LONG)
  • 12
    13-26995 LOCKWASHER, (#8) Stainless Steel, FLOAT BOWL COVER SCREW
    LOCKWASHER, (#8) Stainless Steel, FLOAT BOWL COVER SCREW
  • 13
    27-25851 GASKET, STRAINGER COVER (LARGE)
    GASKET, STRAINGER COVER (LARGE)
  • 14
    1399-3938 SCREEN, FILTER
    SCREEN, FILTER
  • 15
    27-25849 GASKET, STRAINER COVER (SMALL)
    GASKET, STRAINER COVER (SMALL)
  • 16
    1399-4791A1 COVER, STRAINTER
    COVER, STRAINTER
  • 17
    NSS NOT SOLD SEPARATE, GASKET, STRAINER COVER SCREW
    NOT SOLD SEPARATE, GASKET, STRAINER COVER SCREW
  • 18
    10-25822 SCREW, STRAINER COVER FASTENING
    SCREW, STRAINER COVER FASTENING
  • 19
    1395-6027 SCREW, THROTTLE STOP LEVER
    SCREW, THROTTLE STOP LEVER
  • 20
    8146791 LEVER, THROTTLE STOP
    USED ON CENTER AND LOWER CARBURETOR ONLY -- REPLACED WITH A-52518 CLUSTER ON UPPER CARBURETOR
    LEVER, THROTTLE STOP
    USED ON CENTER AND LOWER CARBURETOR ONLY -- REPLACED WITH A-52518 CLUSTER ON UPPER CARBURETOR
  • 20
    52518 CLUSTER
    Upper CARBURETOR
    CLUSTER
    Upper CARBURETOR
  • 21
    1395-7942 SHAFT, THROTTLE
    SHAFT, THROTTLE
  • 22
    NSS NOT SOLD SEPARATE, TUBE, IDLE
    NOT SOLD SEPARATE, TUBE, IDLE
  • 23
    1395-4540 SCREW, BODY (IDLE TUBE)
    SCREW, BODY (IDLE TUBE)
  • 24
    NSS NOT SOLD SEPARATE, SCREW, THROTTLE SHUTTER
    NOT SOLD SEPARATE, SCREW, THROTTLE SHUTTER
  • 25
    1395-5108 SHUTTER, THROTTLE
    SHUTTER, THROTTLE
  • 26
    NSS NOT SOLD SEPARATE, SPRING, IDLE ADJUSTMENT SCREW
    NOT SOLD SEPARATE, SPRING, IDLE ADJUSTMENT SCREW
  • 27
    1399-3515 SCREW, IDLE ADJUSTMENT
    SCREW, IDLE ADJUSTMENT
  • 28
    1395-4541 SCREW, PLUG - MAIN FUEL JET CHANNEL
    SCREW, PLUG - MAIN FUEL JET CHANNEL
  • 29
    NSS NOT SOLD SEPARATE, GASKET, JET CHANNEL PLUG SCREW
    NOT SOLD SEPARATE, GASKET, JET CHANNEL PLUG SCREW
  • 30
    1399-3794 JET, (.074), MAIN FUEL
    JET, (.074), MAIN FUEL
  • 30
    1395-6207 JET, MAIN FUEL (.072) - STANDARD
    JET, MAIN FUEL (.072) - STANDARD
  • 30
    1395-6030 JET, MAIN FUEL (.070)
    JET, MAIN FUEL (.070)
  • 30
    1395-6029 JET, Main Fuel (.068)
    JET, Main Fuel (.068)
  • 31
    NSS NOT SOLD SEPARATE, NOZZLE, MAIN
    NOT SOLD SEPARATE, NOZZLE, MAIN
  • 32
    1395-4542 SCREW, PLUG - MAIN NOZZLE
    SCREW, PLUG - MAIN NOZZLE
  • 33
    NSS NOT SOLD SEPARATE, SPRING, THROTTLE SHAFT RETURN
    NOT SOLD SEPARATE, SPRING, THROTTLE SHAFT RETURN
  • 34
    NSS NOT SOLD SEPARATE, PLUG, BODY CHANNEL
    NOT SOLD SEPARATE, PLUG, BODY CHANNEL
  • 35
    1395-4543 SCREW
    SCREW
  • 36
    27-481641 GASKET, CARBURETOR FLANGE
    GASKET, CARBURETOR FLANGE
  • 37
    11-29250 NUT, (5/16-24)
    NUT, (5/16-24)
  • -
    52106A1 VENTURI, Plastic
    VENTURI, Plastic
  • -
    1395-879194024 GASKET SET (1 PER CARBURETOR)
    GASKET SET (1 PER CARBURETOR)
  • -
    1395-51091 REPAIR PARTS KIT (1 PER CARB.)
    REPAIR PARTS KIT (1 PER CARB.)
  • -
    27-85653A87 GASKET SET
    GASKET SET
