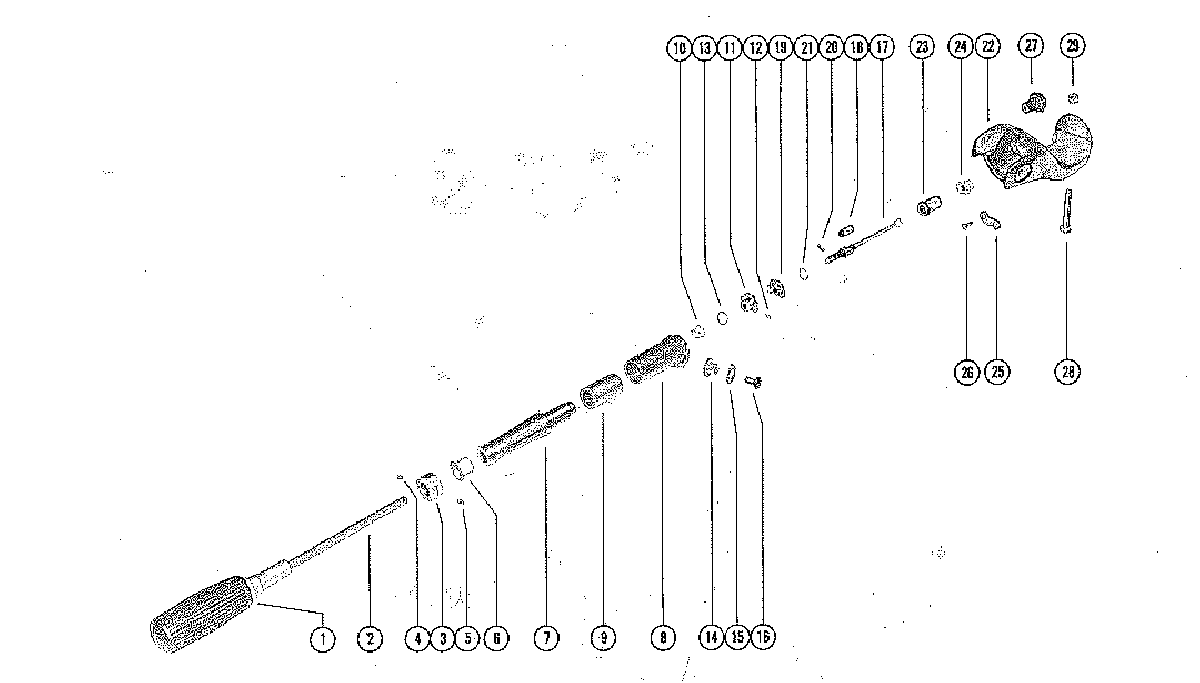

STEERING HANDLE ASSEMBLY для Mercury - 110 2798057 THRU 3263262

  • №
    Артикул
    Название
  • -
    60850A6 STEERING HANDLE ASSEMBLY, COMPLETE
    STEERING HANDLE ASSEMBLY, COMPLETE
  • 1
    27763 GRIP, RUBBER - STEERING HANDLE BODY
    GRIP, RUBBER - STEERING HANDLE BODY
  • 2
    35909 BODY ADN SHAFT, STEERING HANDLE BODY
    BODY ADN SHAFT, STEERING HANDLE BODY
  • 3
    31001 INDICATOR, SPEED AND LIMIT - STEERING HANDLE
    INDICATOR, SPEED AND LIMIT - STEERING HANDLE
  • 4
    10-31002 SCREW, SET - SPEED AND SHIFT INDICATOR
    SCREW, SET - SPEED AND SHIFT INDICATOR
  • 5
    10-22290 SCREW, DRIVE - INDICATOR TO STEERING HANDLE BODY
    SCREW, DRIVE - INDICATOR TO STEERING HANDLE BODY
  • 6
    23-30677 BUSHING, NYLON - STEERING HANDLE TO BODY
    BUSHING, NYLON - STEERING HANDLE TO BODY
  • 7
    49556 HANDLE, STEERING
    HANDLE, STEERING
  • 8
    49558 KNCUKLE, STEERING HANDLE
    KNCUKLE, STEERING HANDLE
  • 9
    23-49555 BUSHING, RUBBER - STEERING HANDLE
    BUSHING, RUBBER - STEERING HANDLE
  • 10
    23-28100 BUSHING, NYLON - STEERING HANDLE
    BUSHING, NYLON - STEERING HANDLE
  • 11
    43-53205 GEAR, BALL - STEERING HANDLE SHAFT
    GEAR, BALL - STEERING HANDLE SHAFT
  • 12
    17-26862 PIN, BALL GEAR TO STEERING HANDLE SHAFT
    PIN, BALL GEAR TO STEERING HANDLE SHAFT
  • 13
    53-53204 RING, RETAINING - BALL GEAR
    RING, RETAINING - BALL GEAR
  • 14
    48003 PIVOT, STEERING HANDLE TO BRACKET
    PIVOT, STEERING HANDLE TO BRACKET
  • 15
    15-48002015 SHIM, STEERING HANDLE PIVOT TO BRACKER (.015)
    SHIM, STEERING HANDLE PIVOT TO BRACKER (.015)
  • 16
    10-64074 SCREW, STEERING HANDLE TO ARM BRACKER (5/8")
    SCREW, STEERING HANDLE TO ARM BRACKER (5/8")
  • 17
    47742A1 UNIVERSAL JOINT ASSEMBLY
    UNIVERSAL JOINT ASSEMBLY
  • 18
    23-48005 SLEEVE, UNIVERSAL JOINT
    SLEEVE, UNIVERSAL JOINT
  • 19
    43-53205 GEAR, BALL - UNIVERSAL JOINT
    GEAR, BALL - UNIVERSAL JOINT
  • 20
    17-26862 PIN, BALL GEAR TO UNIVERSAL JOINT
    PIN, BALL GEAR TO UNIVERSAL JOINT
  • 21
    53-53204 RING, RETAINING - BALL GEAR
    RING, RETAINING - BALL GEAR
  • 22
    61629A1 BRACKET, STEERING ARM
    BRACKET, STEERING ARM
  • 23
    47743 BOOT, UNIVERSAL JOINT
    BOOT, UNIVERSAL JOINT
  • 24
    23-47818 BUSHING, STEERING ARM BRACKET
    BUSHING, STEERING ARM BRACKET
  • 25
    24-72847 SPRING, DETENT - STEERING HANDLE
    SPRING, DETENT - STEERING HANDLE
  • 26
    10-37655 SCREW, DETENT SPRING TO STEERING HANDLE
    SCREW, DETENT SPRING TO STEERING HANDLE
  • 27
    39070 BOOT, RUBBER - THROTTLE CONTROL SHAFT
    BOOT, RUBBER - THROTTLE CONTROL SHAFT
  • 28
    10-30679 SCREW, STEERING ARM BRACKET TO SADDLE
    SCREW, STEERING ARM BRACKET TO SADDLE
  • 29
    11-20184 NUT, STEERING ARM BRACKET FASTENING SCREW
    NUT, STEERING ARM BRACKET FASTENING SCREW
