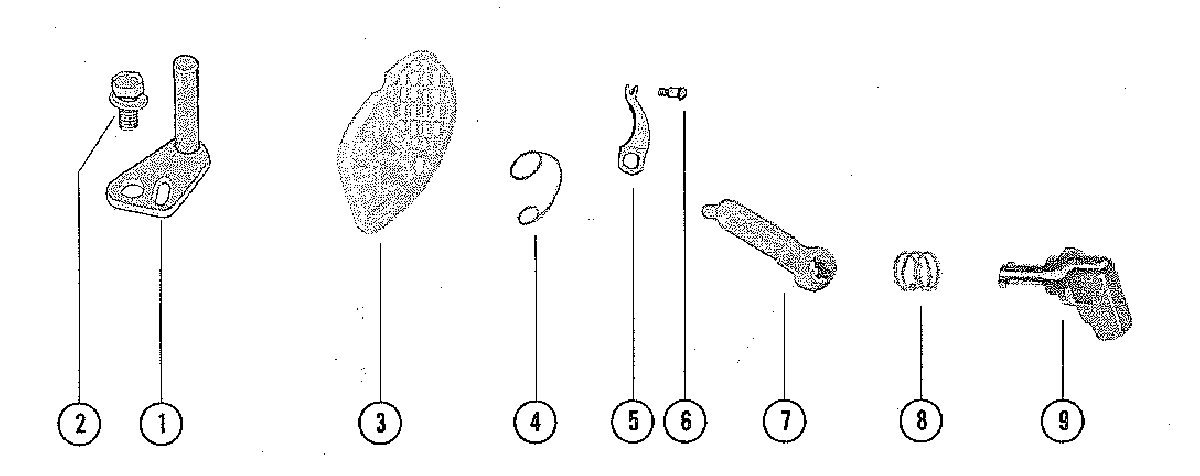

CARBURETOR CHOKE LINKAGE для Mercury - 110 2798057 THRU 3263262
-
№АртикулНазвание
-
159000 THROTTLE LEVER ASSEMBLY
SERIAL #2798057-02938830THROTTLE LEVER ASSEMBLY
SERIAL #2798057-02938830 -
210-29239 SCREW, THROTTLE LEVER CARBURETOR (1/2")
SERIAL #2798057-02938830SCREW, THROTTLE LEVER CARBURETOR (1/2")
SERIAL #2798057-02938830 -
159000 THROTTLE LEVER
SERIAL #3002814-09999999THROTTLE LEVER
SERIAL #3002814-09999999 -
210-20597 SCREW, THROTTLE LEVER TO CARBURETOR (3/8")
SERIAL #3002814-09999999SCREW, THROTTLE LEVER TO CARBURETOR (3/8")
SERIAL #3002814-09999999 -
379092 SHUTTER AND SCREEN - CARBURETORSHUTTER AND SCREEN - CARBURETOR
-
424-53310 SPRING, CHOKE SHUTTER TO LEVERSPRING, CHOKE SHUTTER TO LEVER
-
524-55299A1 SPRING ASSEMBLY, CHOKE SHUTTERSPRING ASSEMBLY, CHOKE SHUTTER
-
610-55298 SCREW, SPRING TO CARBURETORSCREW, SPRING TO CARBURETOR
-
753188 LEVER, CHOKE SHUTTERLEVER, CHOKE SHUTTER
-
824-53190 SPRING, TENSION - CHOKE LEVER SHAFTSPRING, TENSION - CHOKE LEVER SHAFT
-
953200 KNOB AND SHAFT - CHOKEKNOB AND SHAFT - CHOKE
