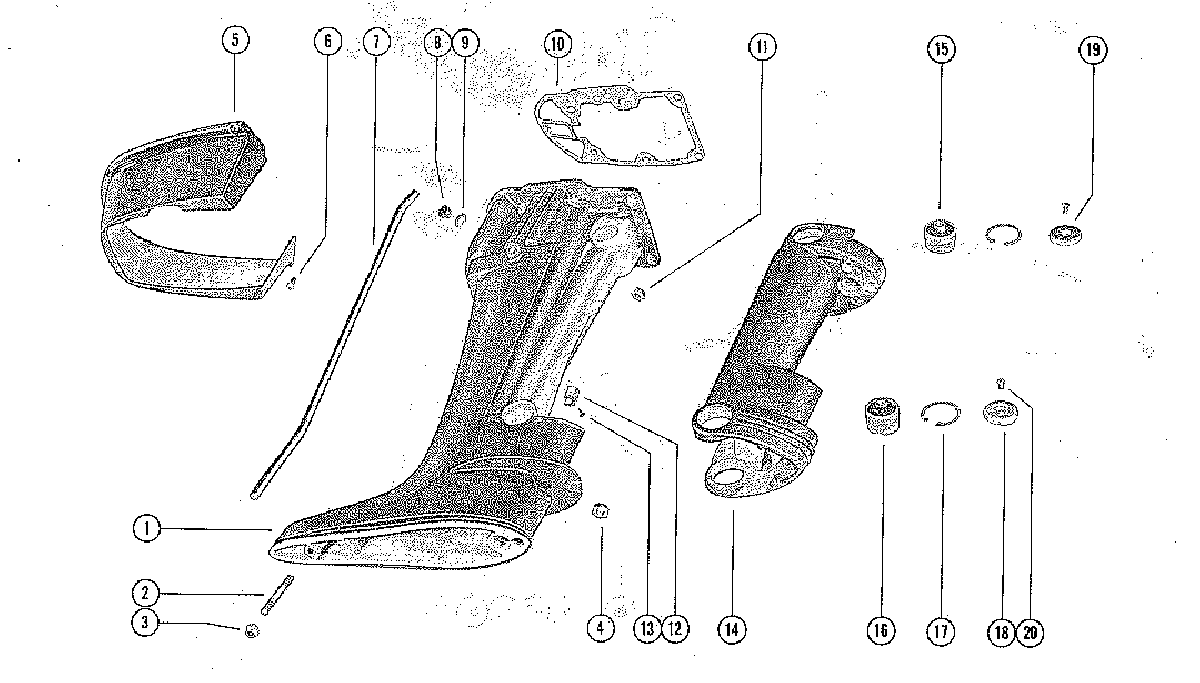

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 110 2798057 THRU 3263262

  • №
    Артикул
    Название
  • 1
    1556-4030A1 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT )
    DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT )
  • 1
    1558-4031A1 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
    DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
  • 2
    16-66373 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
  • 3
    11-8M0042636 NUT, DRIVE SHAFT HOUSING STUDE (3/8 - 24)
    NUT, DRIVE SHAFT HOUSING STUDE (3/8 - 24)
  • 4
    11-82670911 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD (5/16 - 24)
    NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD (5/16 - 24)
  • 5
    39025 COVER, TRIM - DRIVE SHAFT HOUSING
    COVER, TRIM - DRIVE SHAFT HOUSING
  • 6
    10-25764 SCREW, TRIM COVER TO BOTTOM COWL (7/16")
    SCREW, TRIM COVER TO BOTTOM COWL (7/16")
  • 7
    32-39061 TUBE, WATER OUTLET (SHORT SHAFT)
    TUBE, WATER OUTLET (SHORT SHAFT)
  • 7
    32-39062 TUBE, WATER OUTLET (LONG SHAFT)
    TUBE, WATER OUTLET (LONG SHAFT)
  • 8
    10-79953Q04 SCREW, FLUSH - DRIVE SHAFT HOUSING
    SCREW, FLUSH - DRIVE SHAFT HOUSING
  • 9
    12-191833 WASHER, SEALING - FLUSH SCREW
    WASHER, SEALING - FLUSH SCREW
  • 10
    27-39050 GASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSING
    GASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSING
  • 11
    11-20184 NUT, POWERHEAD TO DRIVE SHAFT HOUSING STUDS
    NUT, POWERHEAD TO DRIVE SHAFT HOUSING STUDS
  • 11
    11-24652 NUT, POWERHEAD TO DRIVE SHAFT HOUSING STUDS
    NUT, POWERHEAD TO DRIVE SHAFT HOUSING STUDS
  • 12
    47259A1 BLOCK ASSEMBLY, DRIVE SHAFT LONG SHAFT
    BLOCK ASSEMBLY, DRIVE SHAFT LONG SHAFT
  • 13
    10-47225 SCREW, BLOCK ASSEMBLY TO DRIVE SHAFT HOUSING LONG SHAFT
    SCREW, BLOCK ASSEMBLY TO DRIVE SHAFT HOUSING LONG SHAFT
  • 14
    1559-8448A2 SADDLE
    SADDLE
  • 15
    32021 BUMPER, LOWER THRUST - SADDLE
    BUMPER, LOWER THRUST - SADDLE
  • 16
    79896A1 MOUNT ASSEMBLY, UPPER AND LOWER
    FOR LONG-SHAFT ENGINES, REPLACE 2 UPPER MOUNT ASSEMBLIES (A-30646A2) WITH 2 A-30646A3 MOUNT ASSEMBLIES.
    MOUNT ASSEMBLY, UPPER AND LOWER
    FOR LONG-SHAFT ENGINES, REPLACE 2 UPPER MOUNT ASSEMBLIES (A-30646A2) WITH 2 A-30646A3 MOUNT ASSEMBLIES.
  • 17
    53-26406 RING, RETAINING - UPPER AND LOWER MOUNT
    RING, RETAINING - UPPER AND LOWER MOUNT
  • 18
    71490 COVER, LOWER MOUNT
    COVER, LOWER MOUNT
  • 19
    71490 COVER, UPPER MOUNT
    COVER, UPPER MOUNT
  • 20
    10-30675 SCREW, UPPER AND LOWER MOUNT COVER TO MOUNT (3/8")
    SCREW, UPPER AND LOWER MOUNT COVER TO MOUNT (3/8")
  • 20
    10-45817 SCREW, LOWER MOUNT COVER TO MOUNT (7/16")
    SCREW, LOWER MOUNT COVER TO MOUNT (7/16")
