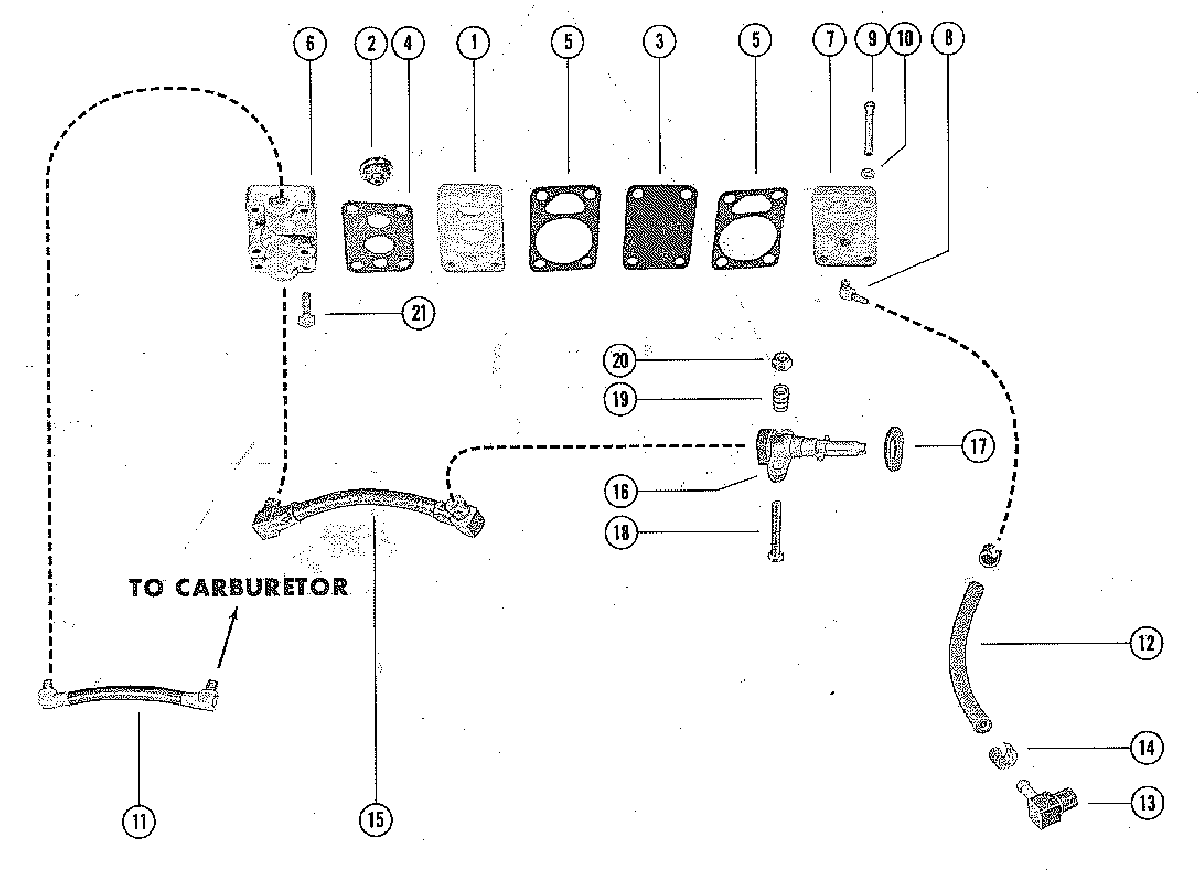

FUEL PUMP ASSEMBLY для Mercury - 110 2798057 THRU 3263262

  • №
    Артикул
    Название
  • 1
    89977A1 FUEL PUMP ASSEMBLY
    FUEL PUMP ASSEMBLY
  • 2
    21-30430A2 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 3
    53245A1 DIAPHRAGM KIT, FUEL PUMP
    DIAPHRAGM KIT, FUEL PUMP
  • 4
    90-8M0143356 GASKET, FUEL PUMP TO BASE
    GASKET, FUEL PUMP TO BASE
  • 5
    90-8M0143356 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 6
    53241 BASE, FUEL PUMP
    BASE, FUEL PUMP
  • 7
    54066 COVER, FUEL PUMP
    COVER, FUEL PUMP
  • 8
    22-54090 ELBOW, FUEL PUMP OUTLET
    ELBOW, FUEL PUMP OUTLET
  • 9
    10-32627 SCREW, FUEL PUMP TO BASE
    SCREW, FUEL PUMP TO BASE
  • 10
    12-847883 WASHER, FUEL PUMP SCREW
    WASHER, FUEL PUMP SCREW
  • 11
    32-64055 FUEL LINE, FUEL PUMP TO CARBURETOR (5")
    FUEL LINE, FUEL PUMP TO CARBURETOR (5")
  • 12
    32-9912688 HOSE, PRESSURE - FUEL PUMP (7 1/8")
    HOSE, PRESSURE - FUEL PUMP (7 1/8")
  • 13
    22-53553 ELBOW, CYLINDER LBOCK TO PRESSURE HOSE (45)
    ELBOW, CYLINDER LBOCK TO PRESSURE HOSE (45)
  • 14
    54-20387 CLAMP, PRESURE HOSE FASTENING
    CLAMP, PRESURE HOSE FASTENING
  • 15
    32-39485 FUEL LINE, FUEL PUMP TO ADAPTOR (5 1/4")
    FUEL LINE, FUEL PUMP TO ADAPTOR (5 1/4")
  • 16
    32454 ADAPTOR, CHEKC UNIT (FUEL LINE)
    ADAPTOR, CHEKC UNIT (FUEL LINE)
  • 17
    39052 SEAL, ADAPTOR TO BOTTOM COWL
    SEAL, ADAPTOR TO BOTTOM COWL
  • 18
    10-73656 SCREW, ADAPTOR TO COWL (1 3/8")
    SERIAL #2798057-00029388
    SCREW, ADAPTOR TO COWL (1 3/8")
    SERIAL #2798057-00029388
  • 18
    10-98509 SCREW, ADAPTOR TO COWL (1 1/8")
    SERIAL #3002814-09999999
    SCREW, ADAPTOR TO COWL (1 1/8")
    SERIAL #3002814-09999999
  • 19
    24-28357 SPRING, ADAPTOR SCREW
    SPRING, ADAPTOR SCREW
  • 20
    11-20110 NUT, ADAPTOR SCREW
    SERIAL #2798057-02938830
    NUT, ADAPTOR SCREW
    SERIAL #2798057-02938830
  • 21
    10-29200 SCREW, FUEL PUMP TO ANCHOR (5/8")
    SCREW, FUEL PUMP TO ANCHOR (5/8")
