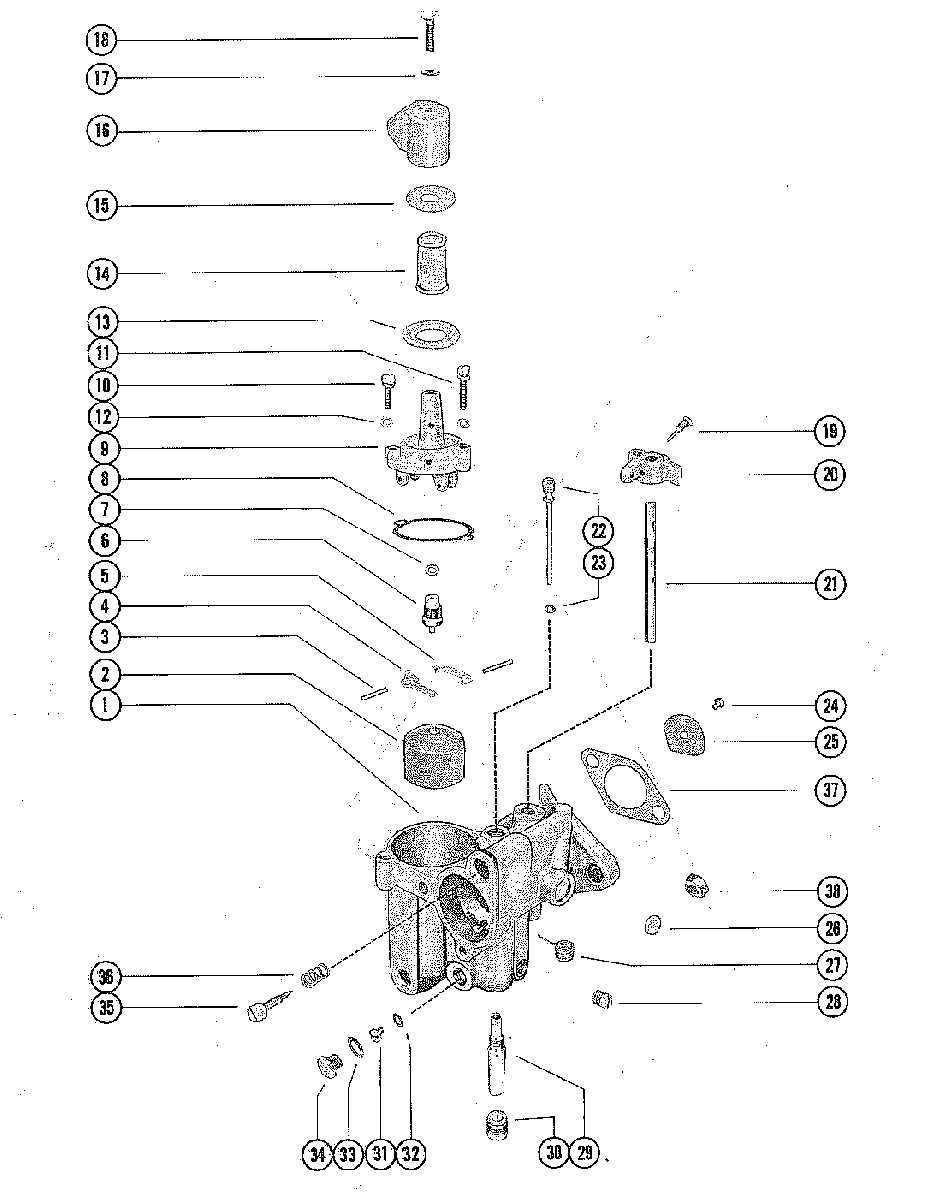

CARBURETOR ASSEMBLY для Mercury - 110 2798057 THRU 3263262

  • №
    Артикул
    Название
  • 1
    1334-4106 CARBURETOR ASSEMBLY, COMPLETE (KB-11A)
    CARBURETOR ASSEMBLY, COMPLETE (KB-11A)
  • 2
    1395-8673 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 3
    90-8M0143356 PIN, FLOAT LEVER PINION
    PIN, FLOAT LEVER PINION
  • 4
    90-8M0143356 LEVER, FLOAT (LOWER)
    LEVER, FLOAT (LOWER)
  • 5
    90-8M0143356 LEVER, FLOAT (UPPER)
    LEVER, FLOAT (UPPER)
  • 6
    1395-92581 INLET NEEDLE, SEAT AND GASKET
    INLET NEEDLE, SEAT AND GASKET
  • 7
    90-8M0143356 GASKET, INLET SEAT
    GASKET, INLET SEAT
  • 8
    90-8M0143356 GASKET, FLOAT BOWL COVER
    GASKET, FLOAT BOWL COVER
  • 9
    1399-1133 COVER, FLOAT BOWL
    COVER, FLOAT BOWL
  • 10
    10-52195 SCREW, FLOAT BOWL COVER (SHORT)
    SCREW, FLOAT BOWL COVER (SHORT)
  • 11
    10-52196 SCREW FLOAT BOWL COVER (LONG)
    SCREW FLOAT BOWL COVER (LONG)
  • 12
    13-26995 LOCKWASHER, FLOAT BOWL COVER SCREW
    LOCKWASHER, FLOAT BOWL COVER SCREW
  • 13
    90-8M0143356 GASKET, STRAINER COVER (LARGE)
    GASKET, STRAINER COVER (LARGE)
  • 14
    1399-3938 SCREEN, FILTER
    SCREEN, FILTER
  • 15
    90-8M0143356 GASKET, STRAINER COVER (SMALL)
    GASKET, STRAINER COVER (SMALL)
  • 16
    1399-4791A1 COVER, STRAINER
    COVER, STRAINER
  • 17
    90-8M0143356 GASKET, STRAINER COVER SCREW
    GASKET, STRAINER COVER SCREW
  • 18
    10-25822 SCREW, STRAINER COVER
    SCREW, STRAINER COVER
  • 19
    1395-6027 SCREW, THROTTLE STOP LEVER
    SCREW, THROTTLE STOP LEVER
  • 20
    8146791 LEVER, THROTTLE STOP
    LEVER, THROTTLE STOP
  • 21
    1399-1716 SHAFT, THROTTLE
    SHAFT, THROTTLE
  • 22
    90-8M0143356 TUBE, IDLE
    TUBE, IDLE
  • 23
    90-8M0143356 GASKET, IDLE TUBE
    GASKET, IDLE TUBE
  • 24
    90-8M0143356 SCREW/LOCKWASHER, THROTTLE SHUTTER
    SCREW/LOCKWASHER, THROTTLE SHUTTER
  • 25
    1399-3763 SHUTTER, THROTTLE
    SHUTTER, THROTTLE
  • 26
    90-8M0143356 WELCH PLUG, BODY CHANNEL
    WELCH PLUG, BODY CHANNEL
  • 27
    90-8M0143356 SPRING, TROTTLE SHAFT RETURN
    SPRING, TROTTLE SHAFT RETURN
  • 28
    10-28845 SCREW, PLUG - BODY CHANNEL
    SCREW, PLUG - BODY CHANNEL
  • 29
    90-8M0143356 MAIN NOZZLE
    MAIN NOZZLE
  • 30
    10-23178 SCREW, PLUG - MAIN NOZZLE
    SCREW, PLUG - MAIN NOZZLE
  • 31
    1399-1767 JET, MAIN FUEL (.047) - STANDARD
    JET, MAIN FUEL (.047) - STANDARD
  • 31
    1399-1765 JET MAIN FUEL (.045)
    JET MAIN FUEL (.045)
  • 31
    1399-1864 JET, MAIN FUEL (.043)
    JET, MAIN FUEL (.043)
  • 32
    90-8M0143356 GASKET, MAIN FULE JET
    GASKET, MAIN FULE JET
  • 33
    90-8M0143356 GASKET, JET CHANNEL PLUG SCREW
    GASKET, JET CHANNEL PLUG SCREW
  • 34
    10-28405 SCREW, PLUG - MAIN FUEL JET CHANNEL
    SCREW, PLUG - MAIN FUEL JET CHANNEL
  • 35
    1399-3740 SCREW, IDLE ADJUSTMENT
    SCREW, IDLE ADJUSTMENT
  • 36
    90-8M0143356 SPRING IDLE ADJUSTMENT SCREW
    SPRING IDLE ADJUSTMENT SCREW
  • --
    1399-1717 GASKET AND PACKING SET
    GASKET AND PACKING SET
  • --
    1399-4206 REPAIR PARTS KIT
    REPAIR PARTS KIT
  • 37
    27-63309 GASKET, CARBURETOR FLANGE
    GASKET, CARBURETOR FLANGE
  • 38
    11-20184 NUT, CARBURETOR MOUNTING STUDS
    NUT, CARBURETOR MOUNTING STUDS
