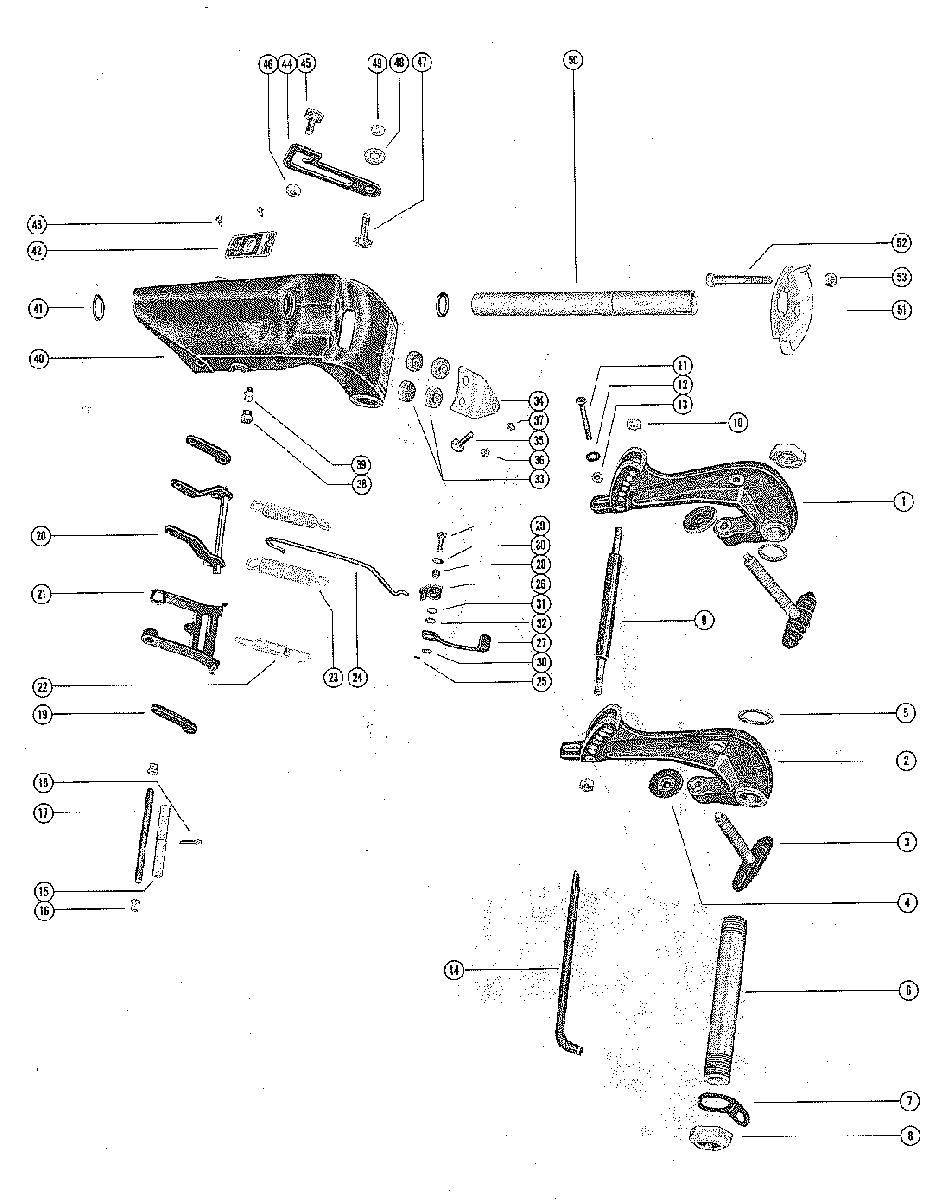

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 110 2798057 THRU 3263262

  • №
    Артикул
    Название
  • 1
    1467-5406A2 CLAMP BRACKET ASSEMBLY (PORT)
    SERIAL #2798057-02938830
    CLAMP BRACKET ASSEMBLY (PORT)
    SERIAL #2798057-02938830
  • 2
    1467-5406A2 CLAMP BRACKET ASSEBMLY (STARBOARD)
    SERIAL #2798057-02938830
    CLAMP BRACKET ASSEBMLY (STARBOARD)
    SERIAL #2798057-02938830
  • 3
    59170A3 THUMB SCREW ASSEMBLY
    SERIAL #2798057-02938830
    THUMB SCREW ASSEMBLY
    SERIAL #2798057-02938830
  • 4
    12-26227 WASHER THUMB SCREW
    SERIAL #2798057-02938830
    WASHER THUMB SCREW
    SERIAL #2798057-02938830
  • 1
    1467-5406A2 CLAMP BRACKET ASSEBMLY (PORT)
    SERIAL #3002814-09999999
    CLAMP BRACKET ASSEBMLY (PORT)
    SERIAL #3002814-09999999
  • 2
    1467-5571A3 CLAMP BRACKET ASSEBMLY (STABOARD)
    SERIAL #3002814-09999999
    CLAMP BRACKET ASSEBMLY (STABOARD)
    SERIAL #3002814-09999999
  • 3
    59170A3 THUMB SCREW ASSEMBLY
    SERIAL #3002814-09999999
    THUMB SCREW ASSEMBLY
    SERIAL #3002814-09999999
  • 4
    12-26227 WASHER, THUMB SCREW
    SERIAL #3002814-09999999
    WASHER, THUMB SCREW
    SERIAL #3002814-09999999
  • 5
    12-52864 WASHER, TILT TUBE - CLAMP TO SWIVEL BRACKER
    WASHER, TILT TUBE - CLAMP TO SWIVEL BRACKER
  • 6
    45757 TILT TUBE, CLAMP BRACKET TO SWIVEL BRACKER
    TILT TUBE, CLAMP BRACKET TO SWIVEL BRACKER
  • 7
    54-8M0085928 CLAMP, SAFETY CHAIN - TILT TUBE
    CLAMP, SAFETY CHAIN - TILT TUBE
  • 8
    11-858869 NUT, TILT TUBE FASTENING
    NUT, TILT TUBE FASTENING
  • 9
    16-59622 STUD, CLAMP BRACKET SPACER
    STUD, CLAMP BRACKET SPACER
  • 10
    11-29598 NUT, CLAMP BRACKET STUDE FASTENING
    NUT, CLAMP BRACKET STUDE FASTENING
  • 11
    10-67982 SCREW, CLAMP BRACKET TO BOAT TRANSOM (2 3/4")
    SCREW, CLAMP BRACKET TO BOAT TRANSOM (2 3/4")
  • 12
    12-67983 WASHER, CLAMP BRACKET SCREW
    WASHER, CLAMP BRACKET SCREW
  • 13
    11-8267098 NUT, CLAMP BRACKET SCREW
    NUT, CLAMP BRACKET SCREW
  • 14
    17-55952A1 TILT LOCK PIN ASSEMBLY
    TILT LOCK PIN ASSEMBLY
  • 15
    23-30813 SPACER, TUBE - REVERSE LOCK LEVER ROD
    SPACER, TUBE - REVERSE LOCK LEVER ROD
  • 16
    23-26856 BUSHING, NYLON - REVERSE LOCK LEVER ROD
    BUSHING, NYLON - REVERSE LOCK LEVER ROD
  • 17
    56663 ROD, REVERSE LOCK TO SWIVEL BRACKET
    ROD, REVERSE LOCK TO SWIVEL BRACKET
  • 18
    18-56206 COTTERR PIN, REVERSE LOCK LEVER TO ROD
    COTTERR PIN, REVERSE LOCK LEVER TO ROD
  • 19
    30815 LINK, REVERSE LOCK LEVER
    LINK, REVERSE LOCK LEVER
  • 20
    53267A1 REVERSE LOCK LEVER ASSEMBLY
    REVERSE LOCK LEVER ASSEMBLY
  • 21
    53435 BRACKET, STOP
    BRACKET, STOP
  • 22
    24-53456 SPRING, EXTENSION - STOP BRACKET
    SPRING, EXTENSION - STOP BRACKET
  • 23
    24-31918 SPRING, TENSION - REVERSE LOCK LEVER
    SPRING, TENSION - REVERSE LOCK LEVER
  • 24
    38318 ROD, LINK - REVERSE LOCK LEVER SERIAL
    SERIAL 02798057-02938830
    ROD, LINK - REVERSE LOCK LEVER SERIAL
    SERIAL 02798057-02938830
  • 25
    17-25905 PIN, ROLL - SWIVEL BRACKET CONTROL LEVER
    SERIAL 02798057-02938830
    PIN, ROLL - SWIVEL BRACKET CONTROL LEVER
    SERIAL 02798057-02938830
  • 26
    56636A1 LINK ASSEMBLY, REVERSE LOCK CONTROL LEVER
    SERIAL 02798057-02938830
    LINK ASSEMBLY, REVERSE LOCK CONTROL LEVER
    SERIAL 02798057-02938830
  • 27
    56637T LEVER, CONTROL - REVERSE LOCK
    SERIAL 02798057-02938830
    LEVER, CONTROL - REVERSE LOCK
    SERIAL 02798057-02938830
  • 28
    23-56639 SPACER, CONTROL ELVER SCREW
    SERIAL 02798057-02938830
    SPACER, CONTROL ELVER SCREW
    SERIAL 02798057-02938830
  • 24
    62257A2 ROD, LINK - REVERSE LOCK LEVER
    SERIAL #3002814-09999999
    ROD, LINK - REVERSE LOCK LEVER
    SERIAL #3002814-09999999
  • 25
    17-25905 PIN, ROLL -SWIVEL BRACKET CONTROL ELVER
    SERIAL #3002814-09999999
    PIN, ROLL -SWIVEL BRACKET CONTROL ELVER
    SERIAL #3002814-09999999
  • 26
    62257A2 LINK ASSEMBLY, REVERSE LOCK CONTROL LEVER
    SERIAL #3002814-09999999
    LINK ASSEMBLY, REVERSE LOCK CONTROL LEVER
    SERIAL #3002814-09999999
  • 27
    62024T LEVER, CONTROL - REVERSE LOCK
    SERIAL #3002814-09999999
    LEVER, CONTROL - REVERSE LOCK
    SERIAL #3002814-09999999
  • 28
    23-31309 SPACER, CONTROL ELVER SCREW
    SPACER, CONTROL ELVER SCREW
  • 29
    10-852368 SCREW, CONTROL ELVER TO LINK
    SCREW, CONTROL ELVER TO LINK
  • 30
    12-56681 WASHER, CONTROL ELVER FASTENING SCREW
    WASHER, CONTROL ELVER FASTENING SCREW
  • 31
    13-34632 WASHER, WAVE - CONTROL LEVER SCREW
    WASHER, WAVE - CONTROL LEVER SCREW
  • 32
    12-24812 WASHER, CONTROL LEVER SCREW
    WASHER, CONTROL LEVER SCREW
  • 33
    20203 DISC, FRICTION - CLAMP PLATE AND SWIVEL BRACKET
    DISC, FRICTION - CLAMP PLATE AND SWIVEL BRACKET
  • 34
    61296 PLATE, CLAMP - CO-PILOT
    PLATE, CLAMP - CO-PILOT
  • 35
    10-56649 SCREW, CLAMP PLATE ADJUSTING
    SCREW, CLAMP PLATE ADJUSTING
  • 36
    23-59573 SPACER, CLAMP PLATE ADJUSTING SCREW
    SERIAL #3002814-09999999
    SPACER, CLAMP PLATE ADJUSTING SCREW
    SERIAL #3002814-09999999
  • 37
    13-48239 WASHER, WAVE - CLAMP PLATE ADJUSTING SCREW
    WASHER, WAVE - CLAMP PLATE ADJUSTING SCREW
  • 38
    19-77633Q LUBRICAP, GREASE FITTING
    LUBRICAP, GREASE FITTING
  • 39
    22-74036 FITTING, GREASE - SWIVEL BRACKET
    FITTING, GREASE - SWIVEL BRACKET
  • 40
    1451-1788 SWIVEL BRACKET
    SWIVEL BRACKET
  • 41
    25-25439 "O" RING, SWIVEL BRACKET
    "O" RING, SWIVEL BRACKET
  • 42
    38-31042 SERIAL PLATE
    SERIAL PLATE
  • 43
    10-28642 SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
    SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
  • 44
    63310A1 LEVER, TILT STOP
    LEVER, TILT STOP
  • 45
    10-29237 SCREW, RETAINING - TILT STOP LVER
    SCREW, RETAINING - TILT STOP LVER
  • 46
    11-20184 NUT, TILT STOP LEVER RETAINING SCREW
    NUT, TILT STOP LEVER RETAINING SCREW
  • 47
    10-27791 SCREW, ANCHOR - TILT STOP LEVER
    SCREW, ANCHOR - TILT STOP LEVER
  • 48
    13-20846 WASHER, WAVE - LEVER ANCHOR SCREW
    WASHER, WAVE - LEVER ANCHOR SCREW
  • 49
    11-20184 NUT, TILT STOP LEVER ANCHOR SCREW
    NUT, TILT STOP LEVER ANCHOR SCREW
  • 50
    17-30688 SWIVEL PIN, SWIVEL BRACKET TO SADDLE
    SWIVEL PIN, SWIVEL BRACKET TO SADDLE
  • 51
    77334 CO-PILOT DISC
    CO-PILOT DISC
  • 52
    10-30679 SCREW, CO-PILOT DISC TO SADDLE
    SCREW, CO-PILOT DISC TO SADDLE
  • 53
    11-20184 NUT, CO-PILOT DISC FASTENING SCREW
    NUT, CO-PILOT DISC FASTENING SCREW
