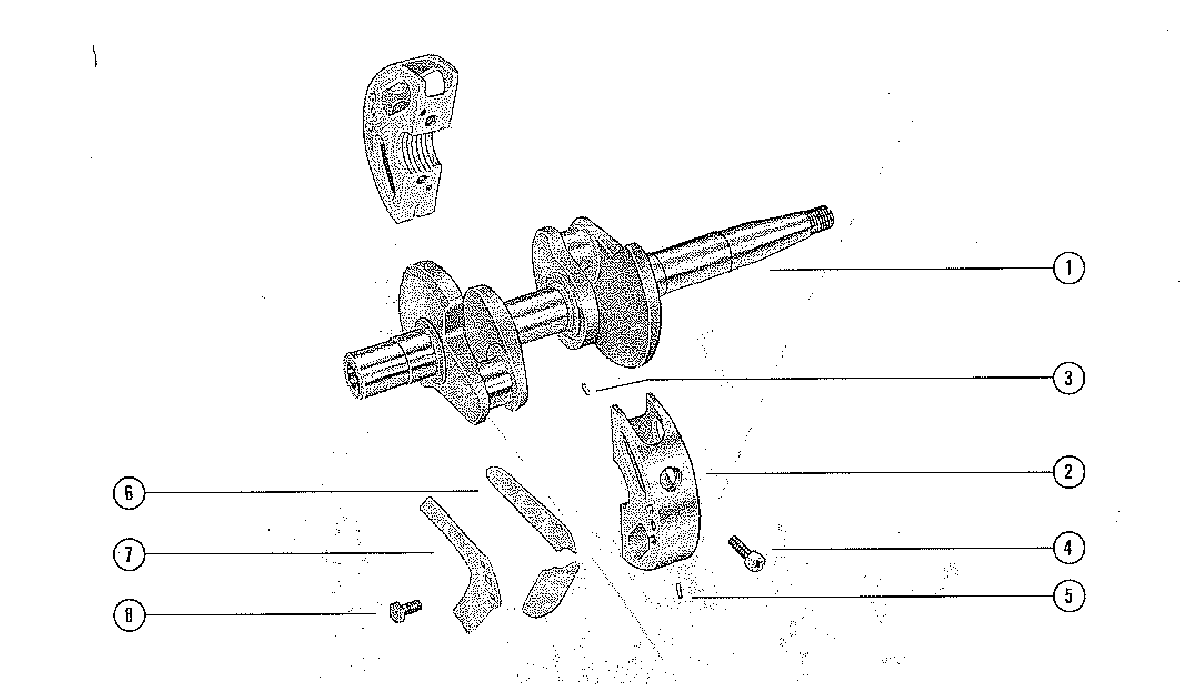

CRANKSHAFT AND MAIN BEARING ASSEMBLY для Mercury - 110 2798057 THRU 3263262
-
№АртикулНазвание
-
1421-2224 CRANKSHAFTCRANKSHAFT
-
2550-8122A5 MAIN BEARING ASSEMBLY (VALVE TYPE)MAIN BEARING ASSEMBLY (VALVE TYPE)
-
317-20032 PIN, DOWEL - MAIN BEARINGPIN, DOWEL - MAIN BEARING
-
317-65855 PIN, DOWEL - MAIN BEARINGPIN, DOWEL - MAIN BEARING
-
410-56781 SCREW, MAIN BEARING CLAMPINGSCREW, MAIN BEARING CLAMPING
-
517-20032 PIN, DOWEL - MAIN BEARING TO BLOCKPIN, DOWEL - MAIN BEARING TO BLOCK
-
634-31942A1 REED SET, MATCHED - MAIN BEARINGREED SET, MATCHED - MAIN BEARING
-
734-20053 REED STOP, MAIN BEARING REED VALVESREED STOP, MAIN BEARING REED VALVES
-
810-27304 SCREW, REED STOP MOUNTINGSCREW, REED STOP MOUNTING
Все узлы модели:
- BOTTOM COWL AND ADAPTOR PLATE
- CARBURETOR ASSEMBLY
- CARBURETOR CHOKE LINKAGE
- CLAMP AND SWIVEL BRACKET ASSEMBLY
- • CRANKSHAFT AND MAIN BEARING ASSEMBLY
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY
- FLYWHEEL, STATOR AND IGNITION COIL
- FUEL PUMP ASSEMBLY
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1)
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2)
- MISCELLANEOUS PARTS/ACCESSORIES
- PISTON AND CONNECTING ROD ASSEMBLY
- SHIFT CONTROL LINKAGE
- STEERING HANDLE ASSEMBLY
- THROTTLE CONTROL LINKAGE
- TOP COWL AND STARTER ASSEMBLY
