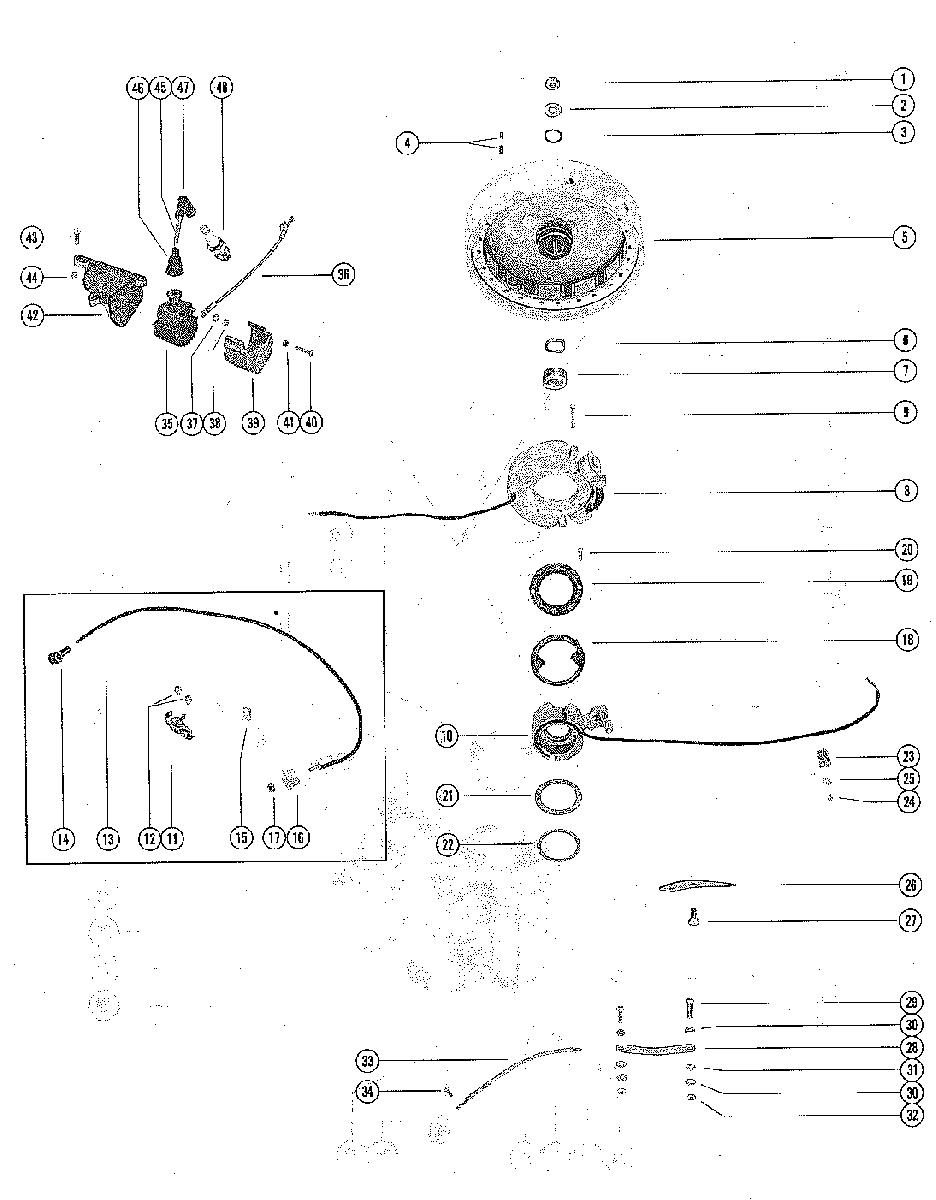

FLYWHEEL, STATOR AND IGNITION COIL для Mercury - 110 2798057 THRU 3263262

  • №
    Артикул
    Название
  • 1
    11-20696 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 2
    12-36245 WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 3
    25-62701 "0" RING, FLYWHEEL NUT
    "0" RING, FLYWHEEL NUT
  • 4
    28-20094 KEY, FLYWHEEL DRIVE
    KEY, FLYWHEEL DRIVE
  • 5
    239-4174A1 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • 6
    13-35629 WASHER, WAVE - CAM TENSION
    WASHER, WAVE - CAM TENSION
  • 7
    336-3928 CAM, BREAKER
    CAM, BREAKER
  • 8
    336-3996A7 STATOR ASSEMBLY
    SERIAL #2798057-02938830
    STATOR ASSEMBLY
    SERIAL #2798057-02938830
  • 8
    336-3996A7 STATOR ASSEMBLY
    SERIAL #3002814-09999999
    STATOR ASSEMBLY
    SERIAL #3002814-09999999
  • 9
    10-69560 SCREW, STATOR TO END CAP (1 1/4")
    SCREW, STATOR TO END CAP (1 1/4")
  • 10
    336-3979A1 HOUSING ASSEMBLY, CONTACT
    HOUSING ASSEMBLY, CONTACT
  • 11
    336-4318A2 BREAKER ASSEMBLY, CONTACT HOUSING
    BREAKER ASSEMBLY, CONTACT HOUSING
  • 12
    10-56266 SCREW, BREAKER TO CONTACT HOUSING (3/8")
    SCREW, BREAKER TO CONTACT HOUSING (3/8")
  • 13
    56316A2 CABLE ASSEMBLY, CONTACT HOUSING (WHITE - 17")
    CABLE ASSEMBLY, CONTACT HOUSING (WHITE - 17")
  • 13
    56317A1 CABLE ASSEMBLY, CONTACT HOUSING (BROWN - 17 3/4")
    CABLE ASSEMBLY, CONTACT HOUSING (BROWN - 17 3/4")
  • 14
    38938 BOOT, CABLE
    BOOT, CABLE
  • 15
    336-3989 WICK, CAM WIPER - CONTACT HOUSING
    WICK, CAM WIPER - CONTACT HOUSING
  • 16
    336-3981 INSULATOR, CABLE TO CONTACT HOUSING
    INSULATOR, CABLE TO CONTACT HOUSING
  • 17
    11-56325 NUT, CABLE INSULATOR
    NUT, CABLE INSULATOR
  • 18
    336-4429 HOLDER, CONTACT HOUSING
    SERIAL #2798057-02938830
    HOLDER, CONTACT HOUSING
    SERIAL #2798057-02938830
  • 18
    336-4429 HOLDER, CONTACT HOUSING
    SERIAL #2798057-09999999
    HOLDER, CONTACT HOUSING
    SERIAL #2798057-09999999
  • 19
    336-3988A1 COVER ASSEMBLY, CONTACT HOUSING
    COVER ASSEMBLY, CONTACT HOUSING
  • 20
    10-56336 SCREW, COVER TO CONTACT HOUSING (1/2")
    SCREW, COVER TO CONTACT HOUSING (1/2")
  • 21
    12-56077 WASHER, WEAR - CONTACT HOUSING TO UPPER BEARING HSG.
    WASHER, WEAR - CONTACT HOUSING TO UPPER BEARING HSG.
  • 22
    13-59145 WASHER, WAVE - CONTACT HOUSING TO UPPER BEARING HSG.
    SERIAL 02798057-29388830
    WASHER, WAVE - CONTACT HOUSING TO UPPER BEARING HSG.
    SERIAL 02798057-29388830
  • 22
    13-59145 WASHER, WAVE - CONTACT HOUSING TO UPPER BEARING HSG.
    SERIAL 03002814-09999999
    WASHER, WAVE - CONTACT HOUSING TO UPPER BEARING HSG.
    SERIAL 03002814-09999999
  • 23
    54-26550 CLIP, CONTACT HOUSING AND STATOR LEADS
    CLIP, CONTACT HOUSING AND STATOR LEADS
  • 24
    10-62568 SCREW, CONTACT HOUSING AND STATOR LEADS CLIP ATTACHING
    SCREW, CONTACT HOUSING AND STATOR LEADS CLIP ATTACHING
  • 25
    8M0084613 "D" WASHER, CLIP SCREW
    "D" WASHER, CLIP SCREW
  • 26
    36000 CAM, THROTTLE
    CAM, THROTTLE
  • 27
    10-28707 SCREW, THROTTLE CAM TO CONTACT HOUSING (1/2")
    SCREW, THROTTLE CAM TO CONTACT HOUSING (1/2")
  • 28
    34361 LINK, THROTTLE
    LINK, THROTTLE
  • 29
    10-34696 SCREW, THROTTLE LINK TO THROTTLE LEVER AND CONTACT HOUSING
    SCREW, THROTTLE LINK TO THROTTLE LEVER AND CONTACT HOUSING
  • 30
    12-34392 WASHER, THROTTLE LINK SCREW
    WASHER, THROTTLE LINK SCREW
  • 31
    13-29720 WASHER, WAVE - THROTTLE LINK SCREW
    WASHER, WAVE - THROTTLE LINK SCREW
  • 32
    11-28656 NUT, THROTTLE LINK SCREW
    NUT, THROTTLE LINK SCREW
  • 33
    56757A1 JUMPER WIRE ASSEMBLY, STATOR TO THROTTLE LINK
    JUMPER WIRE ASSEMBLY, STATOR TO THROTTLE LINK
  • 34
    10-8M0113176 SCREW, JUMPER WIRE ATTACHING (5/16")
    SCREW, JUMPER WIRE ATTACHING (5/16")
  • 35
    336-4409A4 COIL ASSEMBLY, IGNITION (SERIAL #2798057 THRU 2938830)
    COIL ASSEMBLY, IGNITION (SERIAL #2798057 THRU 2938830)
  • 35
    336-4409A4 COIL ASSEMBLY, IGNITION (SERIAL #3002814 AND UP)
    COIL ASSEMBLY, IGNITION (SERIAL #3002814 AND UP)
  • 36
    56318A4 JUMPER WIRE ASSEMBLY, COIL TO COIL (8")
    JUMPER WIRE ASSEMBLY, COIL TO COIL (8")
  • 37
    13-26996 LOCKWASHER, IGNITION COIL TERMINAL
    LOCKWASHER, IGNITION COIL TERMINAL
  • 38
    11-45076 NUT, IGNITION COIL TERMINAL
    NUT, IGNITION COIL TERMINAL
  • 39
    56188 COVER, IGNITION COIL
    COVER, IGNITION COIL
  • 40
    10-56543 SCREW, COIL COVER TO COIL MOUNTIN BRACKER (2 1/8")
    SCREW, COIL COVER TO COIL MOUNTIN BRACKER (2 1/8")
  • 41
    11-27164 NUT, COIL COVER SCREW
    NUT, COIL COVER SCREW
  • 42
    56352 BRACKET, COIL SUPPORT
    BRACKET, COIL SUPPORT
  • 43
    10-64278 SCREW, BRACKER TO CYLINDER BLOCK (1")
    SCREW, BRACKER TO CYLINDER BLOCK (1")
  • 44
    11-20184 NUT, BRACKER SCREW
    NUT, BRACKER SCREW
  • 45
    84-813715A1 LEAD ASSEMBLY, HIGH TENSION
    LEAD ASSEMBLY, HIGH TENSION
  • 46
    332-2854T01 NIPPLE, IGNITION COIL
    NIPPLE, IGNITION COIL
  • 47
    85-63709A1 PROTECTOR ASSEMBLY, SPARK PLUG
    PROTECTOR ASSEMBLY, SPARK PLUG
  • 48
    33-97182Q SPARK PLUG (AC #V10FFK)
    SPARK PLUG (AC #V10FFK)
