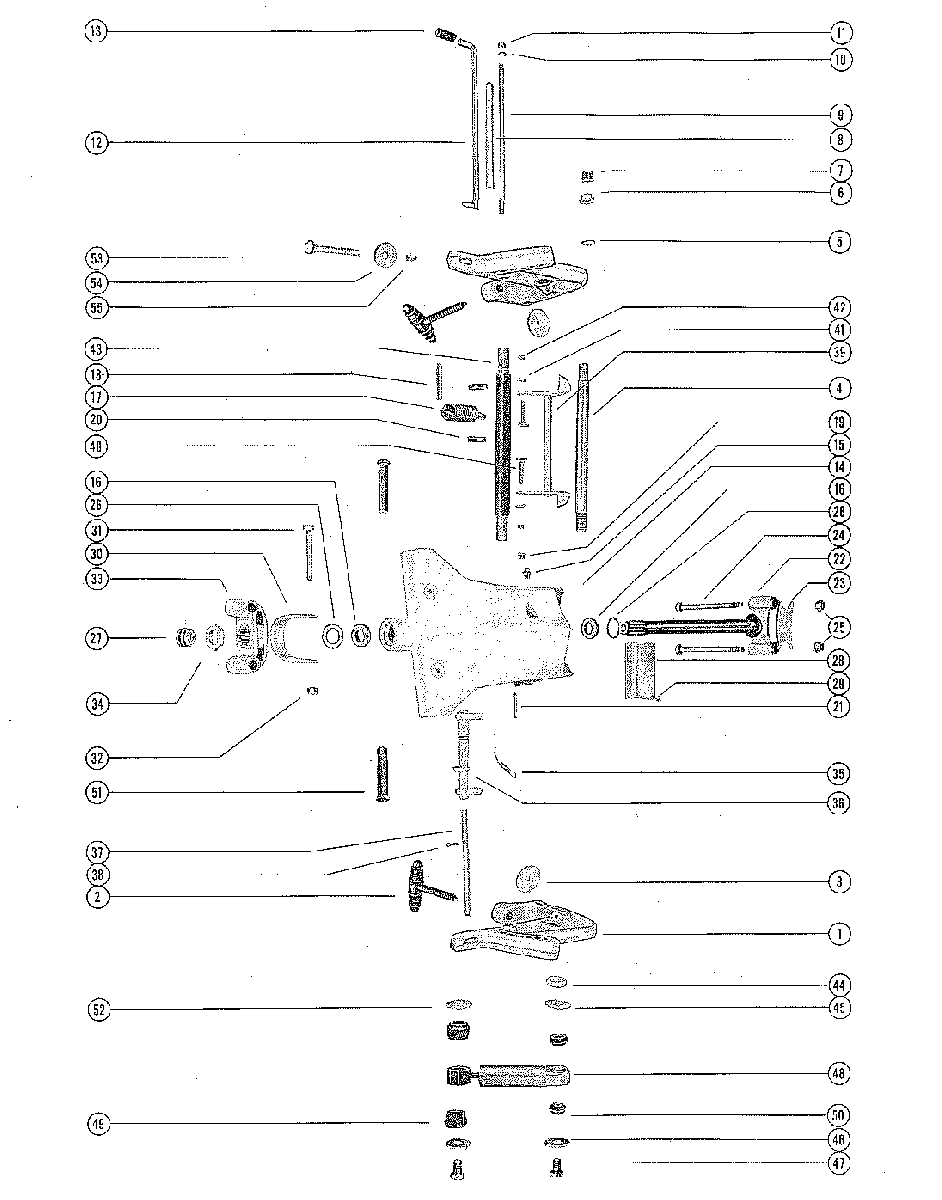

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 1000 1464949 THRU 1768403
-
№АртикулНазвание
-
11440-3296A1 CLAMP BRACKET ASSEMBLYCLAMP BRACKET ASSEMBLY
-
228403A3 THUMB SCREW ASSEMBLYTHUMB SCREW ASSEMBLY
-
312-28404 WASHER, THUMB SCREWWASHER, THUMB SCREW
-
48M0041936 TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKETTUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
-
512-52864 SHIM, CLAMP BRACKET TILT TUBESHIM, CLAMP BRACKET TILT TUBE
-
611-858869 NUT, TILT TUBE FASTENINGNUT, TILT TUBE FASTENING
-
753078 CAP, PLASTIC - TILT TUBECAP, PLASTIC - TILT TUBE
-
823-59624 SPACER, CLAMP BRACKET STUDSPACER, CLAMP BRACKET STUD
-
916-59625 STUD, CLAMP BRACKETSTUD, CLAMP BRACKET
-
1013-26993 LOCKWASHER, CLAMP BRACKET STUDLOCKWASHER, CLAMP BRACKET STUD
-
1111-22053 NUT, CLAMP BRACKET STUDNUT, CLAMP BRACKET STUD
-
1217-8M0026068 TILT LOCK PIN ASSEMBLYTILT LOCK PIN ASSEMBLY
-
1332-28052 SLEEVE, RUBBER - TILT LOCK PIN BUMPERSLEEVE, RUBBER - TILT LOCK PIN BUMPER
-
141453-2688A1 SWIVEL BRACKET ASSEMBLYSWIVEL BRACKET ASSEMBLY
-
1522-69059 FITTING, GREASEFITTING, GREASE
-
1626-31783 OIL SEALOIL SEAL
-
1724-94891 SPRING, COIL - SWIVEL BRACKETSPRING, COIL - SWIVEL BRACKET
-
1817-28658 PIN, COIL SPRING MOUNTINGPIN, COIL SPRING MOUNTING
-
1919-77633Q LUBRICAP, SWIVEL BRACKET GREASE FITTINGLUBRICAP, SWIVEL BRACKET GREASE FITTING
-
2023-28688 SPACER, RUBBER - COIL SPRING POSITIONINGSPACER, RUBBER - COIL SPRING POSITIONING
-
2117-25598 PIN, REVERSE LOCK SPRING ATTACHINGPIN, REVERSE LOCK SPRING ATTACHING
-
2217-31772A1 SWIVEL PIN AND TOP YOKE ASSEMBLYSWIVEL PIN AND TOP YOKE ASSEMBLY
-
2328203 BUMPER, TOP YOKEBUMPER, TOP YOKE
-
2410-49554 BOLT, TOP YOKE TO UPPER MOUNTBOLT, TOP YOKE TO UPPER MOUNT
-
2511-34933 NUT, TOP YOKE BOLT FASTENINGNUT, TOP YOKE BOLT FASTENING
-
2612-31815 WASHER, SWIVEL PIN - LOWER (TOP WASHER OPTIONAL)WASHER, SWIVEL PIN - LOWER (TOP WASHER OPTIONAL)
-
2731234 BOOT, RUBBER - UPPER SHIFT SHAFTBOOT, RUBBER - UPPER SHIFT SHAFT
-
2838-56267 SERIAL PLATESERIAL PLATE
-
2910-25612 SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKETSCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
-
3028205T STRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKETSTRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKET
-
3110-28200 SCREW, STRAP STOP TO DRIVE SHAFT HOUSINGSCREW, STRAP STOP TO DRIVE SHAFT HOUSING
-
3211-25269 NUT, STRAP STOP FASTENING SCREWNUT, STRAP STOP FASTENING SCREW
-
3331775 YOKE, BOTTOMYOKE, BOTTOM
-
3411-71956 NUT, SWIVEL PIN RETAININGNUT, SWIVEL PIN RETAINING
-
3524-29821 SPRING, REVERSE LOCK TENSIONSPRING, REVERSE LOCK TENSION
-
3626903A4 REVERSE LOCK ASSEMBLYREVERSE LOCK ASSEMBLY
-
3756349 SHAFT, REVERSE LOCK PIVOTSHAFT, REVERSE LOCK PIVOT
-
3818-45882 COTTER PIN, REVERSE LOCK TO SHAFTCOTTER PIN, REVERSE LOCK TO SHAFT
-
3930126A1 TILT STOP LEVER ASSEMBLYTILT STOP LEVER ASSEMBLY
-
4010-30128 SCREW, TILT STOP LEVER ANCHORSCREW, TILT STOP LEVER ANCHOR
-
4113-31030 WASHER, WAVE - LEVER ANCHOR SCREWWASHER, WAVE - LEVER ANCHOR SCREW
-
4211-29250 NUT, LEVER ANCHOR SCREWNUT, LEVER ANCHOR SCREW
-
4355-28416 PIN, UPPER SHOCK MOUNTINGPIN, UPPER SHOCK MOUNTING
-
4423-28199 SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKETSPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET
-
4512-28196 WASHER, UPPER BUSHING RETAINING (INNER)WASHER, UPPER BUSHING RETAINING (INNER)
-
4612-28421 WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)
-
4710-28450 SCREW, NYLOCK - UPPER AND LOWER SHOCK MOUNTING PINSCREW, NYLOCK - UPPER AND LOWER SHOCK MOUNTING PIN
-
4855-58780A7 SHOCK ABSORBERSHOCK ABSORBER
-
4923-28198 BUSHING, RUBBER - SHOCK ABSORBER (LOWER)BUSHING, RUBBER - SHOCK ABSORBER (LOWER)
-
5023-32171 BUSHING, RUBBER - SHOCK ABSORBER (UPPER)BUSHING, RUBBER - SHOCK ABSORBER (UPPER)
-
5155-696531 PIN, LOWER SHOCK MOUNTINGPIN, LOWER SHOCK MOUNTING
-
5212-840400 WASHER, LOWER BUSHING RETAINER (INNER)WASHER, LOWER BUSHING RETAINER (INNER)
-
5310-68298 BOLT, CLAMP BRACKET TO BOAT TRANSOMBOLT, CLAMP BRACKET TO BOAT TRANSOM
-
5412-46765 WASHER, CLAMP BRACKET BOLTWASHER, CLAMP BRACKET BOLT
-
5511-82670912 NUT, CLAMP BRACKET BOLTNUT, CLAMP BRACKET BOLT
