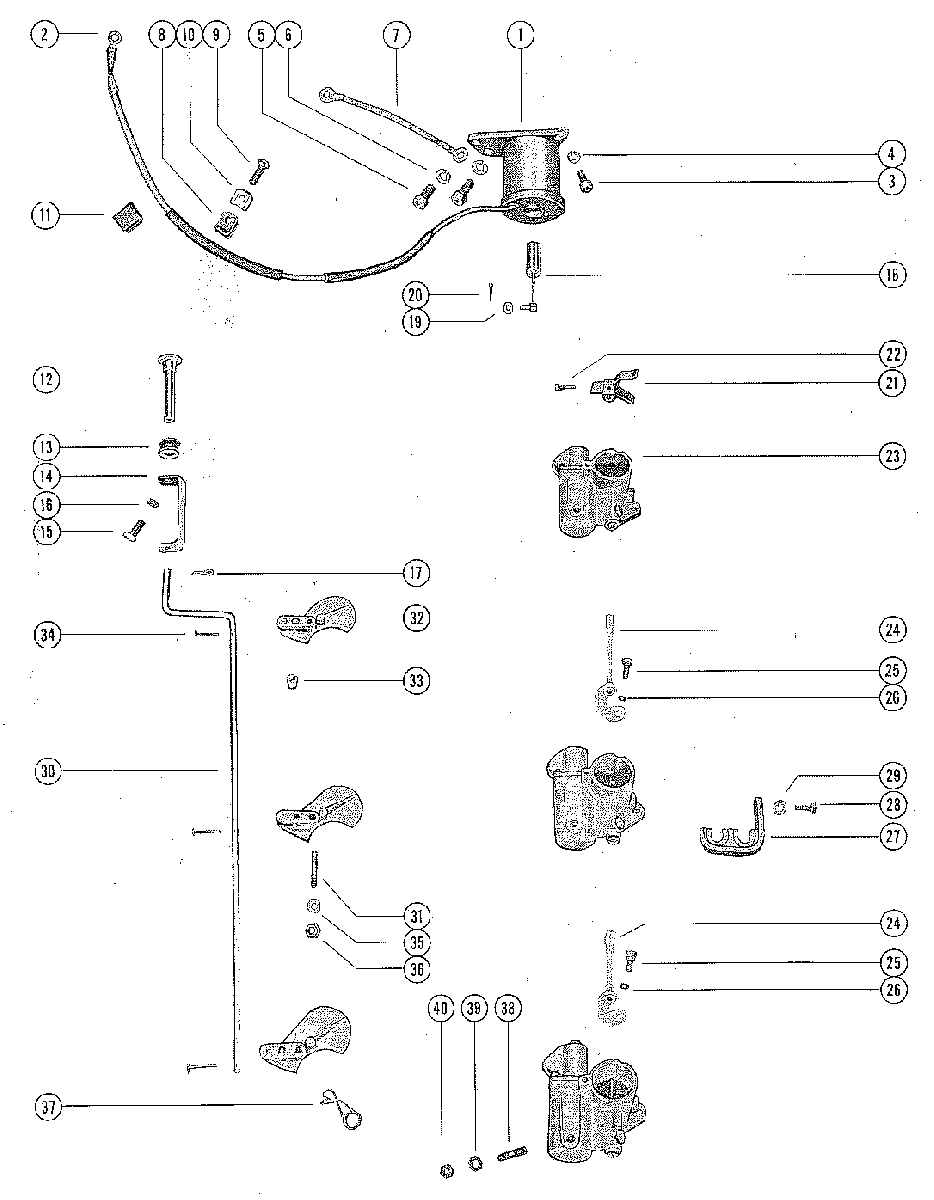

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 1000 1464949 THRU 1768403

№

Артикул

Название
1

29690 CHOKE SOLENOID, TOP COWL

CHOKE SOLENOID, TOP COWL

0 ₽
2

30050 TERMINAL, CHOKE SOLENOID LEAD

TERMINAL, CHOKE SOLENOID LEAD

0 ₽
3

10-24773 SCREW, CHOKE SOLENOID TO TOP COWL

SCREW, CHOKE SOLENOID TO TOP COWL

0 ₽
4

13-26991 LOCKWASHER, CHOKE SOLENOID SCREW

LOCKWASHER, CHOKE SOLENOID SCREW

0 ₽
5

10-20540 SCREW, CHOKE SOLENOID TO TOP COWL

SCREW, CHOKE SOLENOID TO TOP COWL

0 ₽
6

13-26992 LOCKWASHER, CHOKE SOLENOID SCREW

LOCKWASHER, CHOKE SOLENOID SCREW

70 ₽
7

397-421A2 GROUND STRAP ASSEMBLY, CHOKE SOLENOID TO ADAPTOR

GROUND STRAP ASSEMBLY, CHOKE SOLENOID TO ADAPTOR

0 ₽
8

54-648552 CLIP, CHOKE SOLENOID WIRE

CLIP, CHOKE SOLENOID WIRE

330 ₽
9

10-24239 SCREW, WIRE CLIP TO TOP COWL

SCREW, WIRE CLIP TO TOP COWL

0 ₽
10

8M0084613 "D" WASHER, WIRE CLIP FASTENING SCREW

"D" WASHER, WIRE CLIP FASTENING SCREW

100 ₽
11

54-22783 "S" CLIP, CHOKE SOLENOID WIRE TO TOP COWL

"S" CLIP, CHOKE SOLENOID WIRE TO TOP COWL

0 ₽
12

90242A1 KNOB, CHOKE ROD

KNOB, CHOKE ROD

0 ₽
13

25-20116 GROMMET, CHOKE ROD

GROMMET, CHOKE ROD

280 ₽
14

22462 "U" LINK, CHOKE KNOB TO CHOKE ROD

"U" LINK, CHOKE KNOB TO CHOKE ROD

0 ₽
15

10-69022 SCREW, "U" LINK TO CHOKE KNOB

SCREW, "U" LINK TO CHOKE KNOB

100 ₽
16

13-26996 LOCKWASHER, "U" LINK SCREW

LOCKWASHER, "U" LINK SCREW

60 ₽
17

18-26953 COTTER PIN, "U" LINK TO CHOKE ROD

COTTER PIN, "U" LINK TO CHOKE ROD

320 ₽
18

48315A4 PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID

PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID

0 ₽
19

12-30164 WASHER, PLUNGER AND LINK

WASHER, PLUNGER AND LINK

130 ₽
20

18-26953 COTTER PIN, LINK TO UPPER CHOKE LEVER

COTTER PIN, LINK TO UPPER CHOKE LEVER

320 ₽
21

27977 CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)

CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)

0 ₽
22

1395-6027 SCREW, CLUSTER TO THROTTLE LEVER

SCREW, CLUSTER TO THROTTLE LEVER

250 ₽
23

1335-1983 CARBURETOR ASSEMBLY, COMPLETE

CARBURETOR ASSEMBLY, COMPLETE

0 ₽
24

53649A2 THROTTLE PICK-UP BRACKET ASSEMBLY

THROTTLE PICK-UP BRACKET ASSEMBLY

0 ₽
25

10-29239 SCREW, THROTTLE BRACKET MOUNTING

SCREW, THROTTLE BRACKET MOUNTING

0 ₽
26

12-30164 WASHER, CLAMP FASTENING SCREW

WASHER, CLAMP FASTENING SCREW

130 ₽
27

26977 BRACKET, COIL LEAD RETAINER

BRACKET, COIL LEAD RETAINER

0 ₽
28

10-98253 SCREW, RETAINER BRACKET TO CENTER CARBURETOR

SCREW, RETAINER BRACKET TO CENTER CARBURETOR

100 ₽
29

13-21272 LOCKWASHER, BRACKET FASTENING SCREW

LOCKWASHER, BRACKET FASTENING SCREW

70 ₽
30

32043 ROD, CHOKE

ROD, CHOKE

0 ₽
31

16-30172 STUD, CARBURETOR - CHOKE SHUTTER PIVOT

STUD, CARBURETOR - CHOKE SHUTTER PIVOT

4 000 ₽
32

47804 SHUTTER, CHOKE - CARBURETOR

SHUTTER, CHOKE - CARBURETOR

0 ₽
33

23-30438 BUSHING, NYLON - UPPER CHOKE SHUTTER

BUSHING, NYLON - UPPER CHOKE SHUTTER

0 ₽
34

17-25391 RIVET, CHOKE SHUTTER TO CHOKE ROD

RIVET, CHOKE SHUTTER TO CHOKE ROD

0 ₽
35

12-30164 WASHER, CHOKE SHUTTER CARBURETOR STUD

WASHER, CHOKE SHUTTER CARBURETOR STUD

130 ₽
36

11-20110 NUT, CHOKE SHUTTER TO CARBURETOR STUD

NUT, CHOKE SHUTTER TO CARBURETOR STUD

120 ₽
37

24-32428 SPRING, CHOKE ROD TENSION

SPRING, CHOKE ROD TENSION

0 ₽
37

24-32428 SPRING, CHOKE ROD TENSION

SPRING, CHOKE ROD TENSION

0 ₽
38

10-657461 STUD, CHOKE ROD SPRING TO CARBURETOR

STUD, CHOKE ROD SPRING TO CARBURETOR

130 ₽
39

12-20583 WASHER, CHOKE ROD SPRING STUD

WASHER, CHOKE ROD SPRING STUD

70 ₽
39

23-32427 SPACER, CHOKE ROD SPRING STUD

SPACER, CHOKE ROD SPRING STUD

0 ₽
40

11-20184 NUT, CHOKE ROD SPRING TO CARBURETOR STUD

NUT, CHOKE ROD SPRING TO CARBURETOR STUD

120 ₽
