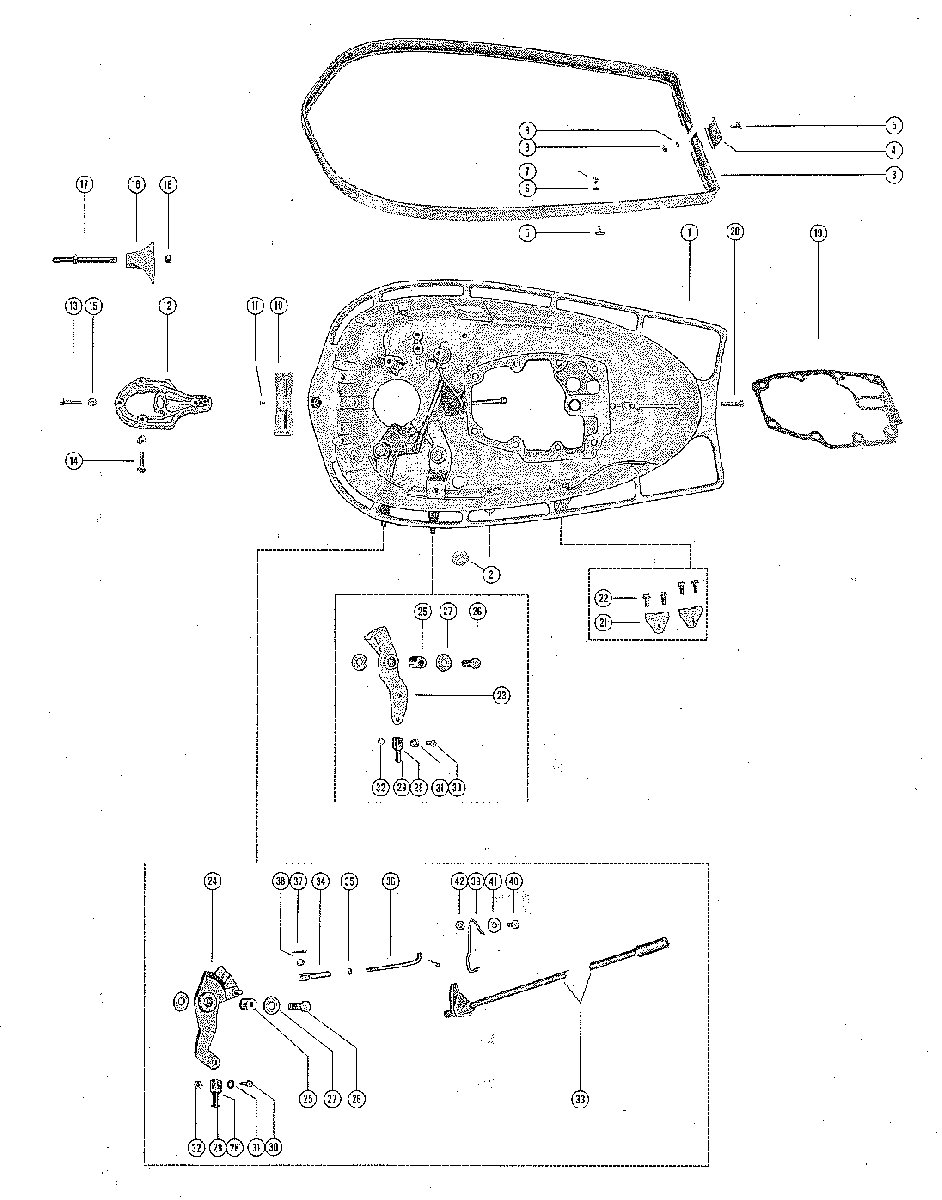

BOTTOM COWL ASSEMBLY для Mercury - 1000 1464949 THRU 1768403
-
№АртикулНазвание
-
1186-1781A2 BOTTOM COWL ASSEMBLYBOTTOM COWL ASSEMBLY
-
219-824928001 PLUG, HOLE - BOTTOM COWL (TO PLUG 3/4" HOLE IN BOTTOM COWL)PLUG, HOLE - BOTTOM COWL (TO PLUG 3/4" HOLE IN BOTTOM COWL)
-
329997A1 TRIM MOULDING ASSEMBLYTRIM MOULDING ASSEMBLY
-
429998 SPLICER, TRIM MOULDING - REARSPLICER, TRIM MOULDING - REAR
-
510-29226 SCREW, DECORATIVE - MOULDING TO BOTTOM COWLSCREW, DECORATIVE - MOULDING TO BOTTOM COWL
-
612-24671 WASHER, FIBER - MOULDING FASTENING SCREWWASHER, FIBER - MOULDING FASTENING SCREW
-
711-29225 NUT, NYLON CAP - MOULDING FASTENING SCREWNUT, NYLON CAP - MOULDING FASTENING SCREW
-
813-26995 LOCKWASHER, MOULDING FASTENING SCREWLOCKWASHER, MOULDING FASTENING SCREW
-
911-26419 NUT, BRASS - MOULDING FASTENING SCREWNUT, BRASS - MOULDING FASTENING SCREW
-
10228-3005 BAFFLE, BOTTOM COWLBAFFLE, BOTTOM COWL
-
1110-21106 SCREW, BAFFLE TO BOTTOM COWLSCREW, BAFFLE TO BOTTOM COWL
-
1230768 BRACKET, RECTIFIER MOUNTINGBRACKET, RECTIFIER MOUNTING
-
1310-21091 SCREW, BRACKET TO BOTTOM COWL (1 1/8")SCREW, BRACKET TO BOTTOM COWL (1 1/8")
-
1410-56500 SCREW, BRACKET TO BOTTOM COWL (1 1/4")SCREW, BRACKET TO BOTTOM COWL (1 1/4")
-
1511-20184 NUT, RECTIFIER BRACKET MOUNTING SCREWNUT, RECTIFIER BRACKET MOUNTING SCREW
-
1630003 BRACKET, PIVOT PIN TO BOTTOM COWLBRACKET, PIVOT PIN TO BOTTOM COWL
-
1717-30004 PIN, PIVOT - BOTTOM COWLPIN, PIVOT - BOTTOM COWL
-
1811-20696 NUT, PIVOT PIN FASTENINGNUT, PIVOT PIN FASTENING
-
1927-29914 GASKET, POWERHEAD TO BOTTOM COWLGASKET, POWERHEAD TO BOTTOM COWL
-
2010-76621 SCREW, BOTTOM COWL TO DRIVE SHAFT HOUSINGSCREW, BOTTOM COWL TO DRIVE SHAFT HOUSING
-
2120557 BRACKET, CABLE END ANCHORBRACKET, CABLE END ANCHOR
-
2210-29200 SCREW, ANCHOR BRACKET TO BOTTOM COWLSCREW, ANCHOR BRACKET TO BOTTOM COWL
-
2329532 LEVER, THROTTLE CONTROLLEVER, THROTTLE CONTROL
-
2430612 LEVER, SHIFT CONTROLLEVER, SHIFT CONTROL
-
2523-29529 BUSHING, THROTTLE AND SHIFT LEVERBUSHING, THROTTLE AND SHIFT LEVER
-
2610-47273 SCREW, THROTTLE AND SHIFT LEVER FASTENINGSCREW, THROTTLE AND SHIFT LEVER FASTENING
-
2712-8M0042641 WASHER, THROTTLE AND SHIFT LEVER FASTENING SCREWWASHER, THROTTLE AND SHIFT LEVER FASTENING SCREW
-
2817-30978A1 PIN ASSEMBLY, CLEVIS YOKEPIN ASSEMBLY, CLEVIS YOKE
-
2917-239281 ROLL PIN, CLEVIS YOKE PINROLL PIN, CLEVIS YOKE PIN
-
3010-20584 SCREW, CLEVIS PIN FASTENINGSCREW, CLEVIS PIN FASTENING
-
3113-29402 WASHER, WAVE - PIN FASTENING SCREWWASHER, WAVE - PIN FASTENING SCREW
-
3211-826709106 NUT, PIN FASTENING SCREWNUT, PIN FASTENING SCREW
-
3330789A1 SHIFT SHAFT ASSEMBLY, UPPERSHIFT SHAFT ASSEMBLY, UPPER
-
3427714 ROD (SLEEVE), SHIFT CONTROL ENDROD (SLEEVE), SHIFT CONTROL END
-
3511-25168 NUT, SHIFT SHAFT END ADJUSTINGNUT, SHIFT SHAFT END ADJUSTING
-
3630630 ROD, LINK - SHIFT SHAFT ENDROD, LINK - SHIFT SHAFT END
-
3718-25191 COTTER PIN, LINK ROD TO SHIFT SHAFTCOTTER PIN, LINK ROD TO SHIFT SHAFT
-
3812-20583 WASHER, LINK RODWASHER, LINK ROD
-
3924-30621 SPRING, DETENTSPRING, DETENT
-
4010-98256 SCREW, DETENT SPRING TO BOTTOM COWLSCREW, DETENT SPRING TO BOTTOM COWL
-
4112-69057 WASHER, DETENT SPRING SCREWWASHER, DETENT SPRING SCREW
-
4211-20184 NUT, DETENT SPRING SCREWNUT, DETENT SPRING SCREW
