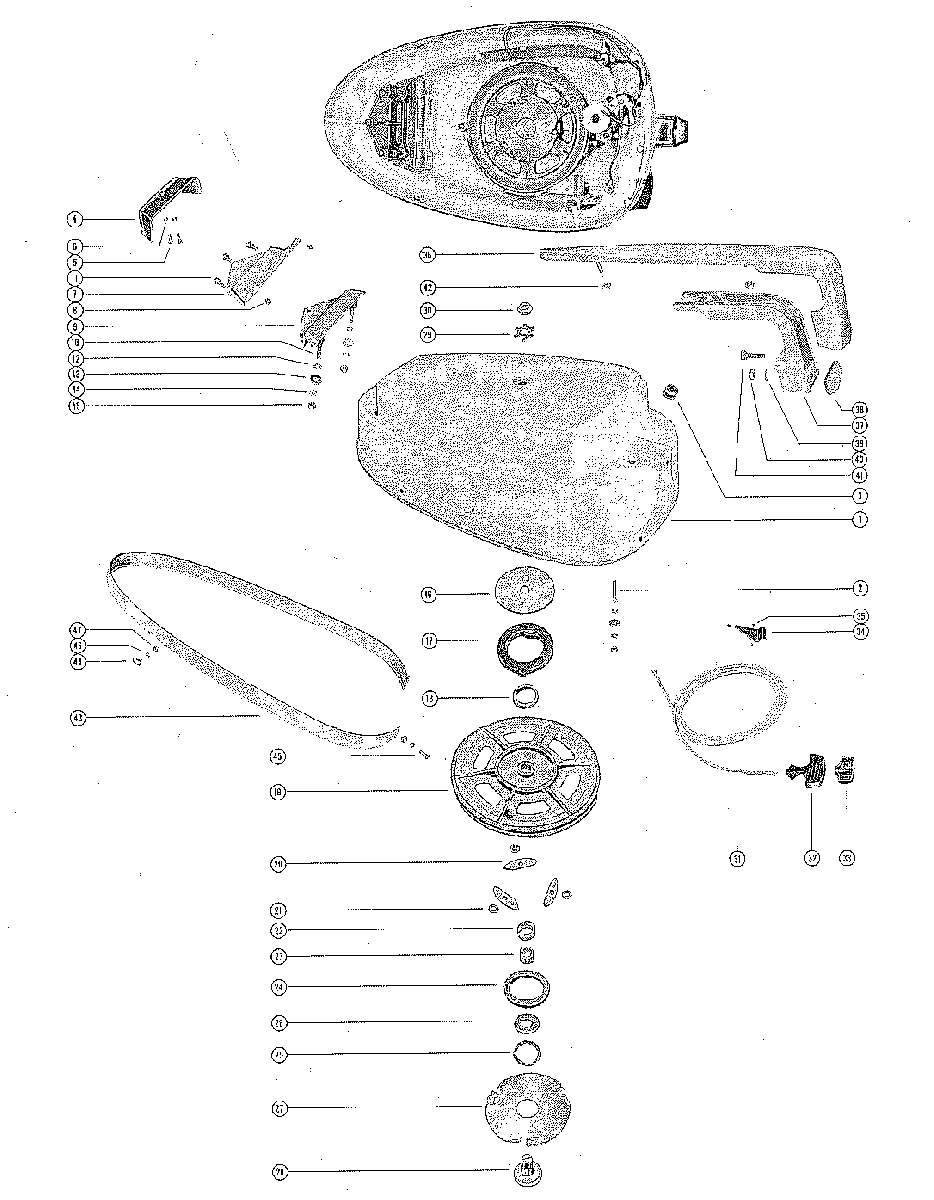

TOP COWL AND STARTER ASSEMBLY для Mercury - 1000 1464949 THRU 1768403
-
№АртикулНазвание
-
1182-1895A2 TOP COWL ASSEMBLYTOP COWL ASSEMBLY
-
216-20353 STUD, FRONT - TOP COWL TO CRANKCASESTUD, FRONT - TOP COWL TO CRANKCASE
-
325-20116 GROMMET, CHOKE KNOBGROMMET, CHOKE KNOB
-
431476 REVEAL, AIR INTAKEREVEAL, AIR INTAKE
-
510-37370 SCREW, REVEAL TO TOP COWLSCREW, REVEAL TO TOP COWL
-
613-26996 LOCKWASHER, REVEAL TO TOP COWL FASTENING SCREWLOCKWASHER, REVEAL TO TOP COWL FASTENING SCREW
-
731475 SCREEN, VENT - TOP COWLSCREEN, VENT - TOP COWL
-
810-26668 SCREW, VENT SCREEN TO TOP COWLSCREW, VENT SCREEN TO TOP COWL
-
931298A1 PLATE ASSEMBLY, COWL MOUNTINGPLATE ASSEMBLY, COWL MOUNTING
-
1016-20353 STUD, REAR - TOP COWL TO COVERSTUD, REAR - TOP COWL TO COVER
-
1110-28668 SCREW, PLATE ASSEMBLY TO TOP COWLSCREW, PLATE ASSEMBLY TO TOP COWL
-
1212-20028 WASHER, TOP COWL STUD (1/16")WASHER, TOP COWL STUD (1/16")
-
1312-69057 WASHER, TOP COWL STUD (3/4" OD)WASHER, TOP COWL STUD (3/4" OD)
-
1412-20583 WASHER, TOP COWL STUD (1/32")WASHER, TOP COWL STUD (1/32")
-
1511-8267089 NUT, TOP COWL FASTENINGNUT, TOP COWL FASTENING
-
1630755 RETAINER, STARTER SPRINGRETAINER, STARTER SPRING
-
1724-30753 SPRING, STARTER REWINDSPRING, STARTER REWIND
-
1823-30754 BUSHING, SPRING GUIDEBUSHING, SPRING GUIDE
-
1950-30749 SHEAVE ASSEMBLYSHEAVE ASSEMBLY
-
2020162 PAWL, STARTERPAWL, STARTER
-
2113-29402 WASHER, WAVE - STARTER PAWLWASHER, WAVE - STARTER PAWL
-
2223-30752 BUSHING, NYLON - SHEAVE SHAFT SPACERBUSHING, NYLON - SHEAVE SHAFT SPACER
-
2323-30759 SPACER, SHEAVE SHAFTSPACER, SHEAVE SHAFT
-
2412-26180 WASHER, SHEAVE SHAFT TO STARTER SHEAVEWASHER, SHEAVE SHAFT TO STARTER SHEAVE
-
2513-20160 WASHER, WAVE - WASHER TENSIONWASHER, WAVE - WASHER TENSION
-
2612-30758 WASHER, EQUALIZING RING - STARTER SHEAVEWASHER, EQUALIZING RING - STARTER SHEAVE
-
2730757 PLATE, RETAINER - STARTER PAWLPLATE, RETAINER - STARTER PAWL
-
2830756 SHAFT, SHEAVESHAFT, SHEAVE
-
2914-20165 TAB WASHER, SHEAVE SHAFT NUTTAB WASHER, SHEAVE SHAFT NUT
-
3011-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)NUT, SHEAVE SHAFT (LEFT HAND THREAD)
-
3150-12066Q10 STARTER CABLE ASSEMBLYSTARTER CABLE ASSEMBLY
-
3228747 HANDLE, STARTER CABLEHANDLE, STARTER CABLE
-
3379470A1 RETAINER, STARTER CABLE AND HANDLERETAINER, STARTER CABLE AND HANDLE
-
3430045 PLATE, ROPE GUIDE- SEE NOTE BELOWPLATE, ROPE GUIDE- SEE NOTE BELOW
-
3510-32063 SCREW, DRIVE - PLATE TO TOP COWL (#3-48) - SEE NOTE BELOWSCREW, DRIVE - PLATE TO TOP COWL (#3-48) - SEE NOTE BELOW
-
3435880 PLATE, ROPE GUIDE - SEE NOTE BELOWPLATE, ROPE GUIDE - SEE NOTE BELOW
-
3510-358811 SCREW, DRIVE - PLATE TO TOP COWL (#6-32) - SEE NOTE BELOWSCREW, DRIVE - PLATE TO TOP COWL (#6-32) - SEE NOTE BELOW
-
3631463 HANDLE, CHROME - TOP COWLHANDLE, CHROME - TOP COWL
-
3731487 HANDLE ASSEMBLY, INSIDE - TOP COWLHANDLE ASSEMBLY, INSIDE - TOP COWL
-
3835496 PAD, BUMPER - TOP COWL HANDLEPAD, BUMPER - TOP COWL HANDLE
-
3912-20533 WASHER, CHROME HANDLE TO INSIDE HANDLE STUDWASHER, CHROME HANDLE TO INSIDE HANDLE STUD
-
4011-826709109 NUT, CHROME HANDLE TO INSIDE HANDLE FASTENINGNUT, CHROME HANDLE TO INSIDE HANDLE FASTENING
-
4110-29199 SCREW, FRONT - HANDLE TO TOP COWL (1")SCREW, FRONT - HANDLE TO TOP COWL (1")
-
--12-20533 WASHER, FRONT SCREW - HANDLE TO TOP COWLWASHER, FRONT SCREW - HANDLE TO TOP COWL
-
4211-826709109 NUT, HANDLE TO TOP COWL STUDNUT, HANDLE TO TOP COWL STUD
-
4329980A1 TRIM MOULDING ASSEMBLY, TOP COWLTRIM MOULDING ASSEMBLY, TOP COWL
-
4410-29226 SCREW, DECORATIVE - MOULDING TO TOP COWLSCREW, DECORATIVE - MOULDING TO TOP COWL
-
4510-29227 SCREW, BRASS - MOULDING TO TOP COWLSCREW, BRASS - MOULDING TO TOP COWL
-
4613-26995 LOCKWASHER, MOULDING FASTENING SCREWLOCKWASHER, MOULDING FASTENING SCREW
-
4711-26419 NUT, MOULDING FASTENING SCREWNUT, MOULDING FASTENING SCREW
