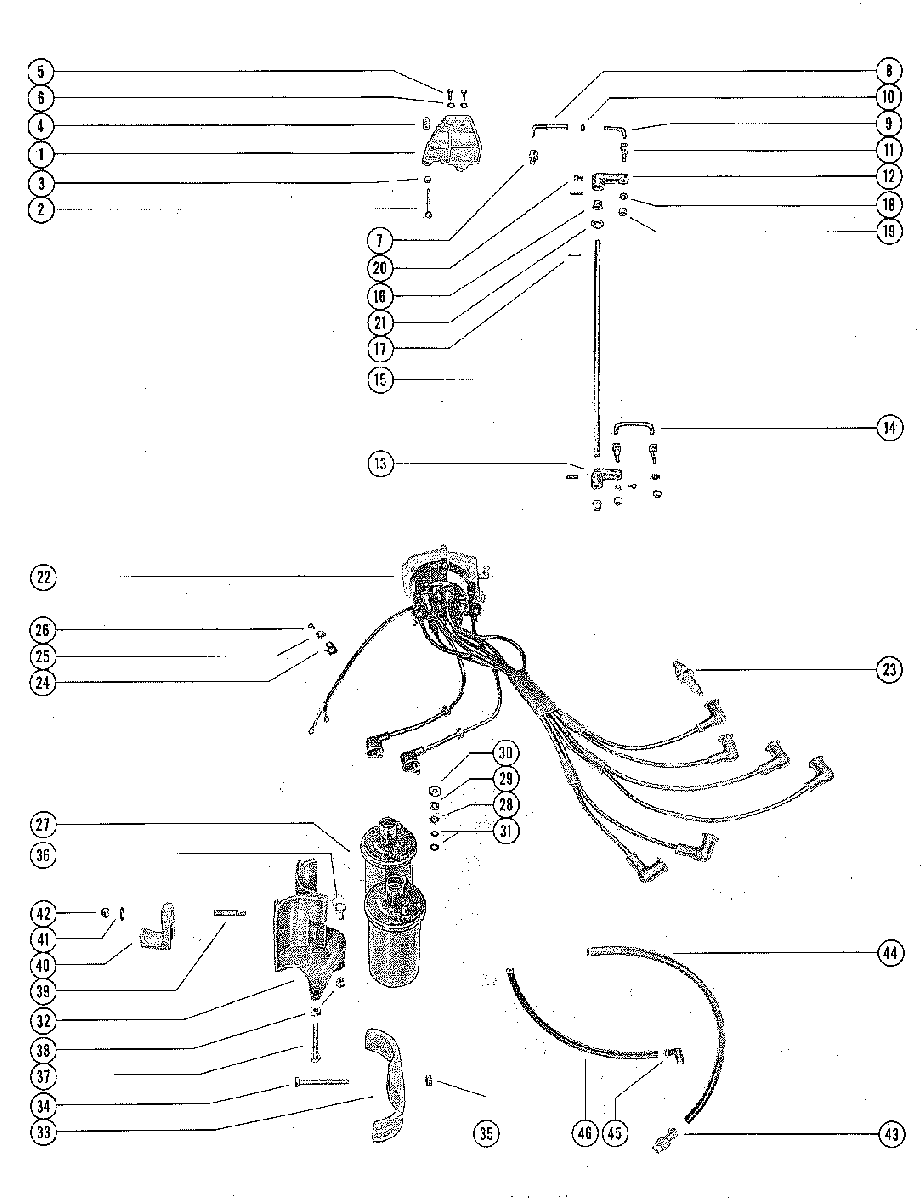

DISTRIBUTOR VERTICAL LINKAGE AND IGNITION COILS для Mercury - 1000 1464949 THRU 1768403
-
№АртикулНазвание
-
155805 BRACKET, STOPBRACKET, STOP
-
210-24228 SCREW, STOP BRACKET ADJUSTINGSCREW, STOP BRACKET ADJUSTING
-
311-20890 NUT, STOP BRACKET ADJUSTING SCREWNUT, STOP BRACKET ADJUSTING SCREW
-
426852 CAP, NYLON - ADJUSTING SCREWCAP, NYLON - ADJUSTING SCREW
-
510-28636 SCREW, STOP BRACKET TO DISTRIBUTOR ADAPTORSCREW, STOP BRACKET TO DISTRIBUTOR ADAPTOR
-
612-20533 WASHER, STOP BRACKET FASTENING SCREWWASHER, STOP BRACKET FASTENING SCREW
-
727947 SWIVEL, LINKAGE - ECONOMIZER COLLARSWIVEL, LINKAGE - ECONOMIZER COLLAR
-
825996A1 SWIVEL AND LINK ROD ASSEMBLYSWIVEL AND LINK ROD ASSEMBLY
-
927949 ROD, LINK - UPPERROD, LINK - UPPER
-
1011-25168 NUT, UPPER LINK ROD ADJUSTINGNUT, UPPER LINK ROD ADJUSTING
-
1127948 SWIVEL, UPPER AND LOWER LINK RODSSWIVEL, UPPER AND LOWER LINK RODS
-
1230582 LEVER, LINKAGE - UPPERLEVER, LINKAGE - UPPER
-
1330619 LEVER, LINKAGE - LOWERLEVER, LINKAGE - LOWER
-
1430623 ROD, LINK - LOWERROD, LINK - LOWER
-
1530629 SHAFT, VERTICALSHAFT, VERTICAL
-
1623-26954 BUSHING, NYLON - VERTICAL SHAFTBUSHING, NYLON - VERTICAL SHAFT
-
1717-25319 ROLL PIN, VERTICAL SHAFT AND LINKAGE LEVERSROLL PIN, VERTICAL SHAFT AND LINKAGE LEVERS
-
1812-29245 WASHER, UPPER AND LOWER SWIVELWASHER, UPPER AND LOWER SWIVEL
-
1911-8267089 NUT, UPPER AND LOWER SWIVEL TO LEVER AND BRACKETNUT, UPPER AND LOWER SWIVEL TO LEVER AND BRACKET
-
2010-25781 SCREW, SET - LINKAGE LEVERSCREW, SET - LINKAGE LEVER
-
2112-20553 WASHER, VERTICAL SHAFT - CENTERWASHER, VERTICAL SHAFT - CENTER
-
22393-1282A17 DISTRIBUTOR ASSEMBLY, COMPLETEDISTRIBUTOR ASSEMBLY, COMPLETE
-
2333-813413 SPARK PLUG (CHAMPION - J4J)SPARK PLUG (CHAMPION - J4J)
-
2333-31390 SPARK PLUG (AC -K421)SPARK PLUG (AC -K421)
-
2454-24836 CLIP, DISTRIBUTOR PRIMARY GROUND LEAD (1/4-6)CLIP, DISTRIBUTOR PRIMARY GROUND LEAD (1/4-6)
-
258M0084613 "D" WASHER, GROUND LEAD CLIP SCREW"D" WASHER, GROUND LEAD CLIP SCREW
-
2610-8M0113176 SCREW, DISTRIBUTOR GROUND LEAD CLIP TO CRANKCASESCREW, DISTRIBUTOR GROUND LEAD CLIP TO CRANKCASE
-
27898253T24 COIL, IGNITIONCOIL, IGNITION
-
2813-20554 LOCKWASHER, IGNITION COIL TERMINALSLOCKWASHER, IGNITION COIL TERMINALS
-
2913-26996 LOCKWASHER, IGNITION COIL TERMINALSLOCKWASHER, IGNITION COIL TERMINALS
-
3011-68219 NUT, IGNITION COIL TERMINALSNUT, IGNITION COIL TERMINALS
-
3125-26543 "O" RING, IGNITION COIL"O" RING, IGNITION COIL
-
3226514 BRACKET, COIL FASTENINGBRACKET, COIL FASTENING
-
3332229 CLAMP. COIL BRACKETCLAMP. COIL BRACKET
-
3410-26889 SCREW, COIL CLAMP TO BRACKETSCREW, COIL CLAMP TO BRACKET
-
3511-20184 NUT, COIL CLAMP SCREWNUT, COIL CLAMP SCREW
-
3610-20784 SCREW, COIL BRACKET TO BOTTOM COWL (1 1/2")SCREW, COIL BRACKET TO BOTTOM COWL (1 1/2")
-
3710-26889 SCREW, COIL BRACKET TO BOTTOM COWL (2 1/4")SCREW, COIL BRACKET TO BOTTOM COWL (2 1/4")
-
3811-20184 NUT, COIL BRACKET SCREWNUT, COIL BRACKET SCREW
-
3916-20077 STUD, COIL BRACKET TO SUPPORTSTUD, COIL BRACKET TO SUPPORT
-
4030238 SUPPORT, EXTERNAL WIRING HARNESSSUPPORT, EXTERNAL WIRING HARNESS
-
4112-20084 WASHER, COIL BRACKET STUDWASHER, COIL BRACKET STUD
-
4211-862902 NUT, COIL BRACKET STUDNUT, COIL BRACKET STUD
-
4322-291112 CONNECTOR, DISTRIBUTOR VENT TUBECONNECTOR, DISTRIBUTOR VENT TUBE
-
4432-8M0108355 HOSE, VENT - DISTRIBUTOR TO CONNECTOR (13")HOSE, VENT - DISTRIBUTOR TO CONNECTOR (13")
-
4522-996642 ELBOW, DISTRIBUTOR VENT TUBEELBOW, DISTRIBUTOR VENT TUBE
-
4632-8M0108355 HOSE, VENT - DISTRIBUTOR TO ELBOW (16")HOSE, VENT - DISTRIBUTOR TO ELBOW (16")
