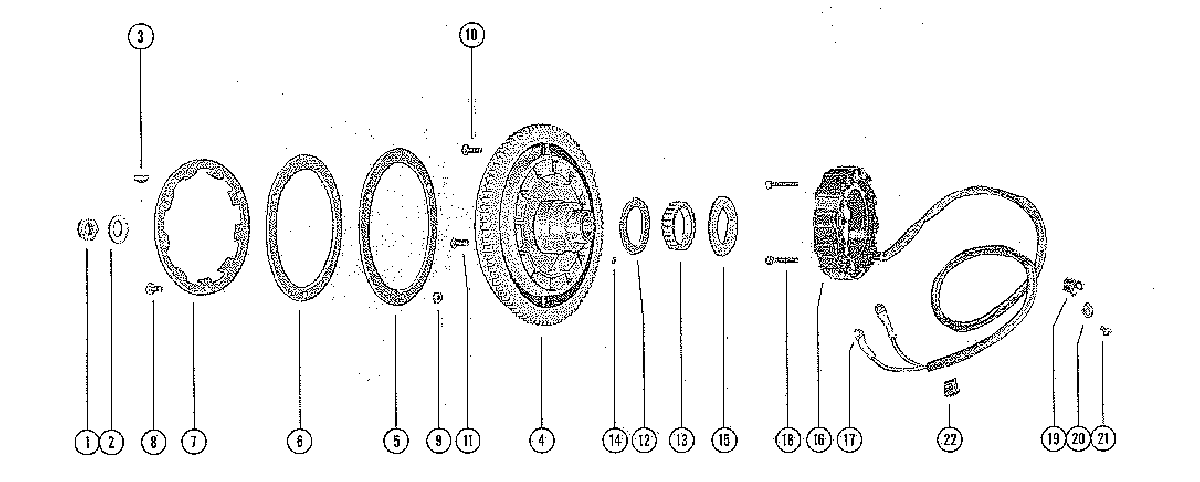

FLYWHEEL ASSEMBLY AND STATOR для Mercury - 1000 1464949 THRU 1768403

  • №
    Артикул
    Название
  • 1
    11-22339 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 2
    12-33001 WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 3
    28-45554 KEY, FLYWHEEL DRIVE
    KEY, FLYWHEEL DRIVE
  • 4
    225-2494A4 FLYWHEEL ASSEMBLY, COMPLETE SEE NOTE BELOW
    FLYWHEEL ASSEMBLY, COMPLETE SEE NOTE BELOW
  • 4
    225-2494A3 FLYWHEEL ASSEMBLY, COMPLETE SEE NOTE BELOW
    FLYWHEEL ASSEMBLY, COMPLETE SEE NOTE BELOW
  • 5
    23-32157 SPACER, LOWER - FLEXIBLE PLATE
    SPACER, LOWER - FLEXIBLE PLATE
  • 6
    23174 SPACER, UPPER - FLEXIBLE PLATE
    SPACER, UPPER - FLEXIBLE PLATE
  • 7
    50-30745 RATCHET, FLYWHEEL
    RATCHET, FLYWHEEL
  • 8
    10-32156 SCREW, SPACERS AND RATCHET TO FLEXIBLE PLATE
    SCREW, SPACERS AND RATCHET TO FLEXIBLE PLATE
  • 9
    11-20184 NUT, SPACER AND RATCHET FASTENING SCREW
    NUT, SPACER AND RATCHET FASTENING SCREW
  • 10
    10-32156 SCREW, FLEXIBLE PLATE TO FLYWHEEL
    SCREW, FLEXIBLE PLATE TO FLYWHEEL
  • 11
    10-32417 SCREW, PLATE AND HUB TO FLEXIBLE PLATE
    SCREW, PLATE AND HUB TO FLEXIBLE PLATE
  • 11
    10-32417 SCREW, PLATE AND HUB TO FLEXIBLE PLATE
    SCREW, PLATE AND HUB TO FLEXIBLE PLATE
  • 12
    29788 FLANGE, FLYWHEEL PULLEY
    FLANGE, FLYWHEEL PULLEY
  • 13
    30306 PULLEY, FLYWHEEL
    PULLEY, FLYWHEEL
  • 14
    17-26618 PIN, DOWEL - PULLEY TO FLYWHEEL
    PIN, DOWEL - PULLEY TO FLYWHEEL
  • 15
    29787 HUB, FLYWHEEL PULLEY
    HUB, FLYWHEEL PULLEY
  • 16
    398-2035 STATOR, ALTERNATOR SEE NOTE BELOW
    STATOR, ALTERNATOR SEE NOTE BELOW
  • 16
    398-2188 STATOR, ALTERNATOR SEE NOTE BELOW
    STATOR, ALTERNATOR SEE NOTE BELOW
  • 17
    30050 TERMINAL, STATOR LEAD WIRE
    TERMINAL, STATOR LEAD WIRE
  • 18
    10-29283 SCREW, STATOR TO UPPER END CAP SEE NOTE BELOW
    SCREW, STATOR TO UPPER END CAP SEE NOTE BELOW
  • 18
    10-57021 SCREW, STATOR TO UPPER END CAP SEE NOTE BELOW
    SCREW, STATOR TO UPPER END CAP SEE NOTE BELOW
  • 19
    54-24836 CLIP, STATOR LEAD TO EXHAUST COVER
    CLIP, STATOR LEAD TO EXHAUST COVER
  • 20
    8M0084613 "D" WASHER, CLIP FASTENING SCREW
    "D" WASHER, CLIP FASTENING SCREW
  • 21
    10-8M0113176 SCREW, STATOR LEAD CLIP FASTENING
    SCREW, STATOR LEAD CLIP FASTENING
  • 22
    54-22783 "S" CLIP, STATOR LEADS TO BOTTOM COWL
    "S" CLIP, STATOR LEADS TO BOTTOM COWL
