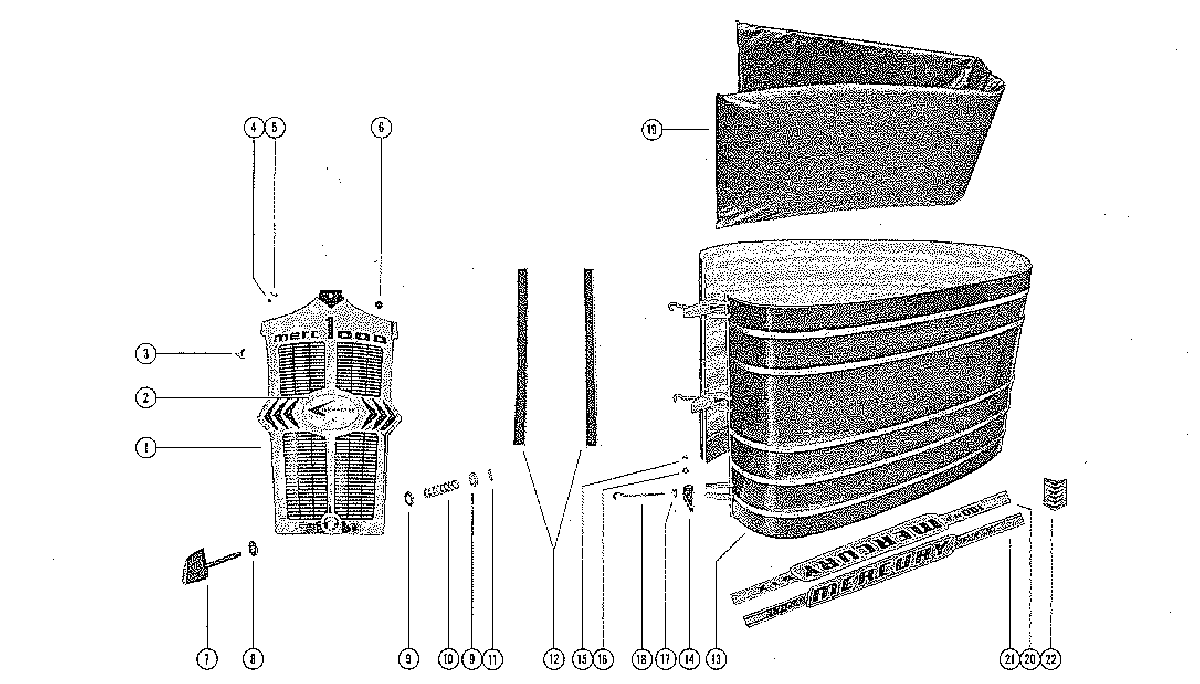

COWLING AND FRONT COVER для Mercury - 1000 1464949 THRU 1768403

  • №
    Артикул
    Название
  • 1
    184-2043A3 COWL FRONT COVER ASSEMBLY
    COWL FRONT COVER ASSEMBLY
  • 2
    26183A5 EMBLEM, FRONT COVER
    EMBLEM, FRONT COVER
  • 3
    10-29226 SCREW, BRACKET TO FRONT COVER
    SCREW, BRACKET TO FRONT COVER
  • 4
    13-26995 LOCKWASHER, BRACKET FASTENING SCREW
    LOCKWASHER, BRACKET FASTENING SCREW
  • 5
    11-26419 NUT, BRACKET FASTENING SCREW
    NUT, BRACKET FASTENING SCREW
  • 6
    29345 BUMPER, RUBBER - FRONT COVER BRACKET
    BUMPER, RUBBER - FRONT COVER BRACKET
  • 7
    56849 KNOB, COWL FRONT COVER FASTENING
    KNOB, COWL FRONT COVER FASTENING
  • 7
    56849 KNOB, COWL FRONT COVER FASTENING
    KNOB, COWL FRONT COVER FASTENING
  • 8
    12-30771 WASHER, COVER FASTENING KNOB (RUBBER)
    WASHER, COVER FASTENING KNOB (RUBBER)
  • 9
    12-26825 WASHER, COVER FASTENING KNOB (STEEL)
    WASHER, COVER FASTENING KNOB (STEEL)
  • 10
    24-30772 SPRING, TENSION - FASTENING KNOB
    SPRING, TENSION - FASTENING KNOB
  • 11
    17-29077 ROLL PIN, TENSION SPRING TO KNOB
    ROLL PIN, TENSION SPRING TO KNOB
  • 12
    31089 STRIP, SOUND ABSORBING
    STRIP, SOUND ABSORBING
  • 13
    2120-2509A5 WRAP AROUND COWL ASSEMBLY
    WRAP AROUND COWL ASSEMBLY
  • 14
    46785A1 HANDLE, COWL LATCH
    HANDLE, COWL LATCH
  • 15
    53-21058 "E" RING, COWL LATCH HANDLE
    "E" RING, COWL LATCH HANDLE
  • 16
    17-21057 PIN, HINGE - COWL LATCH HANDLE
    PIN, HINGE - COWL LATCH HANDLE
  • 17
    46785A1 SWIVE, COWL LATCH
    SWIVE, COWL LATCH
  • 18
    30413 HOOK, COWL LATCH FASTENING
    HOOK, COWL LATCH FASTENING
  • 19
    30021 BLANKET, SOUND ABSORBING - WRAP AROUND COWL
    BLANKET, SOUND ABSORBING - WRAP AROUND COWL
  • 20
    37-32159 DECAL, WRAP AROUND COWL - PORT
    DECAL, WRAP AROUND COWL - PORT
  • 21
    37-32158 DECAL, WRAP AROUND COWL - STARBOARD
    DECAL, WRAP AROUND COWL - STARBOARD
  • 22
    37-32160 DECAL, WRAP AROUND COWL - REAR
    DECAL, WRAP AROUND COWL - REAR
  • --
    92-86166Q1 GLUE, ADHESIVE - BLANKET FASTENING
    GLUE, ADHESIVE - BLANKET FASTENING
  • --
    92-271091 ADHESIVE COMPOUND (3 1/2 OUNCE KIT) EMBLEM FASTENING
    ADHESIVE COMPOUND (3 1/2 OUNCE KIT) EMBLEM FASTENING
