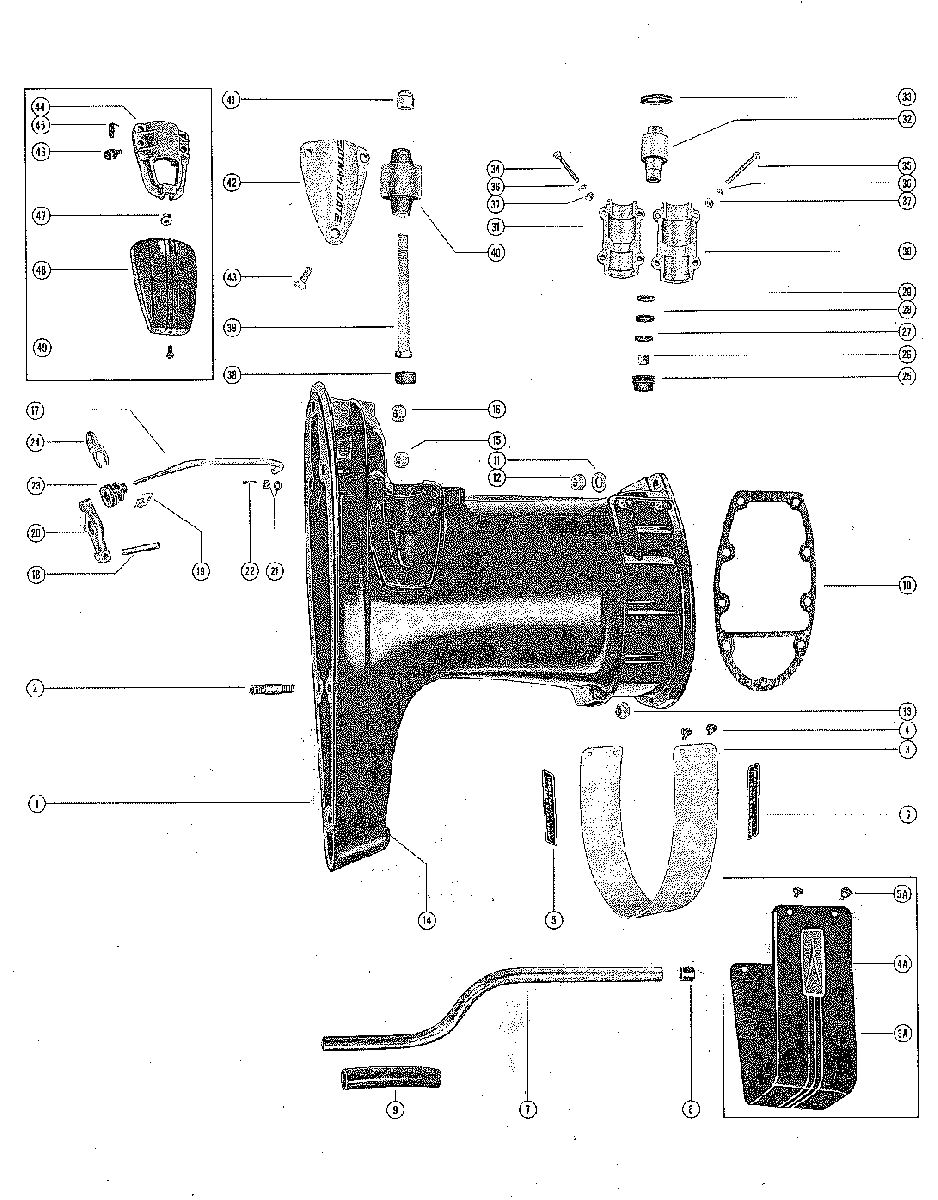

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 1000 1464949 THRU 1768403

  • №
    Артикул
    Название
  • 1
    1540-2384A2 DRIVE SHAFT HOUSING ASSEMBLY - USE THRU SERIAL #1621144
    SERIAL 00000000-01621144
    DRIVE SHAFT HOUSING ASSEMBLY - USE THRU SERIAL #1621144
    SERIAL 00000000-01621144
  • 2
    16-56295 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
    SERIAL 00000000-01621144
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
    SERIAL 00000000-01621144
  • 3
    35638A1 COVER, TRIM - DRIVE SHAFT HOUSING
    SERIAL 00000000-01621144
    COVER, TRIM - DRIVE SHAFT HOUSING
    SERIAL 00000000-01621144
  • 4
    10-30742 SCREW, TRIM COVER TO DRIVE SHAFT HOUSING
    SERIAL 00000000-01621144
    SCREW, TRIM COVER TO DRIVE SHAFT HOUSING
    SERIAL 00000000-01621144
  • 5
    37-31924 DECAL, "FULL GEAR SHIFT" - STARBOARD
    SERIAL 00000000-01621144
    DECAL, "FULL GEAR SHIFT" - STARBOARD
    SERIAL 00000000-01621144
  • 6
    37-31925 DECAL, "FULL GEAR SHIFT" - PORT
    SERIAL 00000000-01621144
    DECAL, "FULL GEAR SHIFT" - PORT
    SERIAL 00000000-01621144
  • 1
    1540-2384A2 DRIVE SHAFT HOUSING ASSEMBLY - STARTED WITH SERIAL #1668658
    SERIAL 01668658-09999999
    DRIVE SHAFT HOUSING ASSEMBLY - STARTED WITH SERIAL #1668658
    SERIAL 01668658-09999999
  • 2
    16-56295 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
    SERIAL 01668658-09999999
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
    SERIAL 01668658-09999999
  • 3A
    35638A1 TRIM COVER ASSEMBLY, DRIVE SHAFT HOUSING
    SERIAL 01668658-09999999
    TRIM COVER ASSEMBLY, DRIVE SHAFT HOUSING
    SERIAL 01668658-09999999
  • 4A
    37-35393 DECAL, TRIM COVER - PORT AND STARBOARD
    SERIAL 01668658-09999999
    DECAL, TRIM COVER - PORT AND STARBOARD
    SERIAL 01668658-09999999
  • 5A
    10-30742 SCREW, TRIM COVER TO DRIVE SHAFT HOUSING
    SERIAL 01668658-09999999
    SCREW, TRIM COVER TO DRIVE SHAFT HOUSING
    SERIAL 01668658-09999999
  • 7
    32-30722 TUBE, WATER INLET
    TUBE, WATER INLET
  • 8
    26-26207 SEAL, RUBBER - WATER INLET TUBE
    SEAL, RUBBER - WATER INLET TUBE
  • 9
    23-29591 SLEEVE, RUBBER - WATER INLET TUBE
    SLEEVE, RUBBER - WATER INLET TUBE
  • 10
    27-26198 GASKET, DRIVE SHAFT HOUSING TO BOTTOM COWL
    GASKET, DRIVE SHAFT HOUSING TO BOTTOM COWL
  • 11
    12-20086 WASHER, POWERHEAD STUDS
    WASHER, POWERHEAD STUDS
  • 12
    11-8M0042636 NUT, POWERHEAD STUDS
    NUT, POWERHEAD STUDS
  • 13
    11-23161 NUT, POWERHEAD STUDS
    NUT, POWERHEAD STUDS
  • 14
    19-32298 PLUG, PLASTIC - TRIM TAB SCREW HOLE
    PLUG, PLASTIC - TRIM TAB SCREW HOLE
  • 15
    11-34933 NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
    NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
  • 16
    11-29489 NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
    NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
  • 17
    30721 ROD, PUSH - REVERSE LOCK
    ROD, PUSH - REVERSE LOCK
  • 18
    17-30615 PIN, REVERSE LOCK LEVER
    PIN, REVERSE LOCK LEVER
  • 19
    24-30618 SPRING, TENSION - PUSH ROD
    SPRING, TENSION - PUSH ROD
  • 20
    52920 LEVER, REVERSE LOCK
    LEVER, REVERSE LOCK
  • 21
    12-20546 WASHER, PUSH ROD
    WASHER, PUSH ROD
  • 22
    18-25191 COTER PIN, PUSH ROD TO REVERSE LOCK
    COTER PIN, PUSH ROD TO REVERSE LOCK
  • 23
    30614 BOOT, RUBBER - PUSH ROD
    BOOT, RUBBER - PUSH ROD
  • 24
    31039 RETAINER, PUSH ROD RUBBER BOLT
    RETAINER, PUSH ROD RUBBER BOLT
  • 25
    31264 CAP, UPPER - UPPER MOUNT BOLT NUT
    CAP, UPPER - UPPER MOUNT BOLT NUT
  • 26
    11-34933 NUT, UPPER MOUNT BOLT
    NUT, UPPER MOUNT BOLT
  • 27
    12-31263 WASHER, UPPER MOUNT BOLT
    WASHER, UPPER MOUNT BOLT
  • 28
    12-31261 WASHER, RUBBER - UPPER MOUNT BOLT
    WASHER, RUBBER - UPPER MOUNT BOLT
  • 29
    12-31262 WASHER, UPPER MOUNT BOLT
    WASHER, UPPER MOUNT BOLT
  • 30
    31260 COVER, UPPER MOUNT - OUTSIDE HALF
    COVER, UPPER MOUNT - OUTSIDE HALF
  • 31
    53141 COVER, UPPER MOUNT - INSIDE HALF
    COVER, UPPER MOUNT - INSIDE HALF
  • 32
    75296 MOUNT, RUBBER - UPPER
    MOUNT, RUBBER - UPPER
  • 33
    24929 PACKING, "U" CUP
    PACKING, "U" CUP
  • 34
    10-20012 SCREW, UPPER MOUNT COVER (1 5/8")
    SCREW, UPPER MOUNT COVER (1 5/8")
  • 35
    10-28775 SCREW, UPPER MOUNT COVER (2 1/8")
    SCREW, UPPER MOUNT COVER (2 1/8")
  • 36
    12-29245 WASHER, UPPER MOUNT COVER SCREWS
    WASHER, UPPER MOUNT COVER SCREWS
  • 37
    11-35888 NUT, UPPER MOUNT COVER SCREWS
    NUT, UPPER MOUNT COVER SCREWS
  • 38
    25067 BUMPER, RUBBER - MOUNTING SCREW
    BUMPER, RUBBER - MOUNTING SCREW
  • 39
    10-75284 SCREW, UPPER MOUNT (5 1/2")
    SCREW, UPPER MOUNT (5 1/2")
  • 40
    37399 MOUNT, RUBBER - LOWER
    MOUNT, RUBBER - LOWER
  • 41
    11-25096 NUT, MOUNTING SCREW
    NUT, MOUNTING SCREW
  • 42
    26336 COVER, LOWER MOUNT - PORT SIDE
    SERIAL 00000000-01621144
    COVER, LOWER MOUNT - PORT SIDE
    SERIAL 00000000-01621144
  • 42
    26337 COVER, LOWER MOUNT - STARBOARD SIDE
    SERIAL 00000000-01621144
    COVER, LOWER MOUNT - STARBOARD SIDE
    SERIAL 00000000-01621144
  • 43
    10-29256 SCREW, LOWER MOUNT COVER FASTENING
    SERIAL 00000000-01621144
    SCREW, LOWER MOUNT COVER FASTENING
    SERIAL 00000000-01621144
  • 44
    35608 CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
    SERIAL 01668658-09999999
    CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
    SERIAL 01668658-09999999
  • 45
    24-35522 SPRING, TENSION - LOWER MOUNT CLAMP
    SERIAL 01668658-09999999
    SPRING, TENSION - LOWER MOUNT CLAMP
    SERIAL 01668658-09999999
  • 46
    10-29256 SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING
    SERIAL 01668658-09999999
    SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING
    SERIAL 01668658-09999999
  • 47
    11-35521 NUT, LOWER MOUNT CLAMP COVER
    SERIAL 01668658-09999999
    NUT, LOWER MOUNT CLAMP COVER
    SERIAL 01668658-09999999
  • 48
    35474T COVER, LOWER MOUNT CLAMP
    SERIAL 01668658-09999999
    COVER, LOWER MOUNT CLAMP
    SERIAL 01668658-09999999
  • 49
    10-29722 SCREW, COVER TO LOWER MOUNT CLAMP
    SERIAL 01668658-09999999
    SCREW, COVER TO LOWER MOUNT CLAMP
    SERIAL 01668658-09999999
