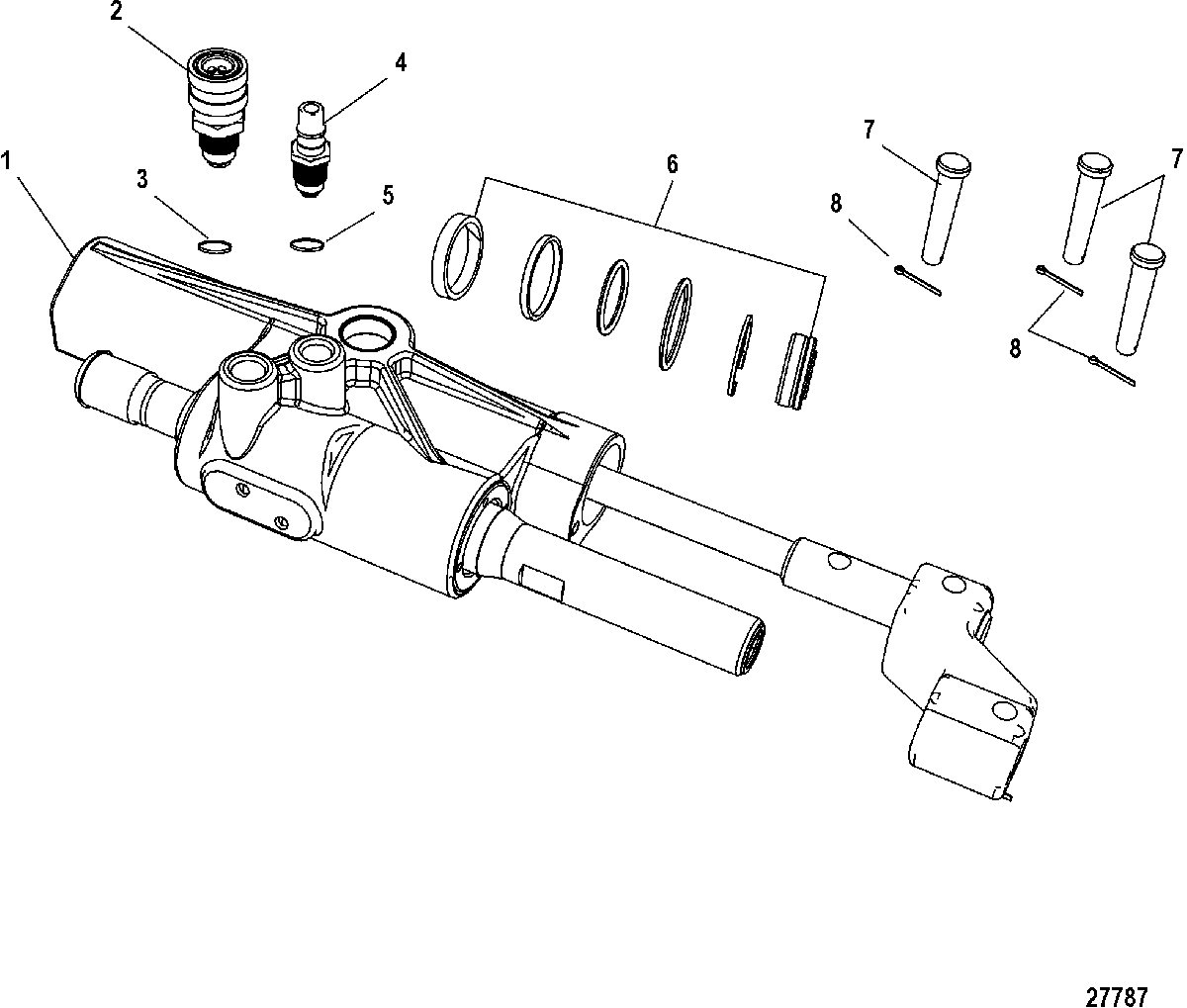

Steering Cylinder, Power Assisted для Mercruiser - VAZER TRANSOM 0W755000 & Up
-
№АртикулНазвание
-
1866439A01 POWER STEERING ASSEMBLYPOWER STEERING ASSEMBLY
-
222-865415 FITTINGFITTING
-
325-89879 O-RING, (.301 x .064)O-RING, (.301 x .064)
-
422-865414001 FITTINGFITTING
-
525-806232 O-RING, (.239 x .064)O-RING, (.239 x .064)
-
6866439A10 SEAL KITSEAL KIT
-
717-866679 PIN, ClevisPIN, Clevis
-
818-46950 COTTER PINCOTTER PIN
