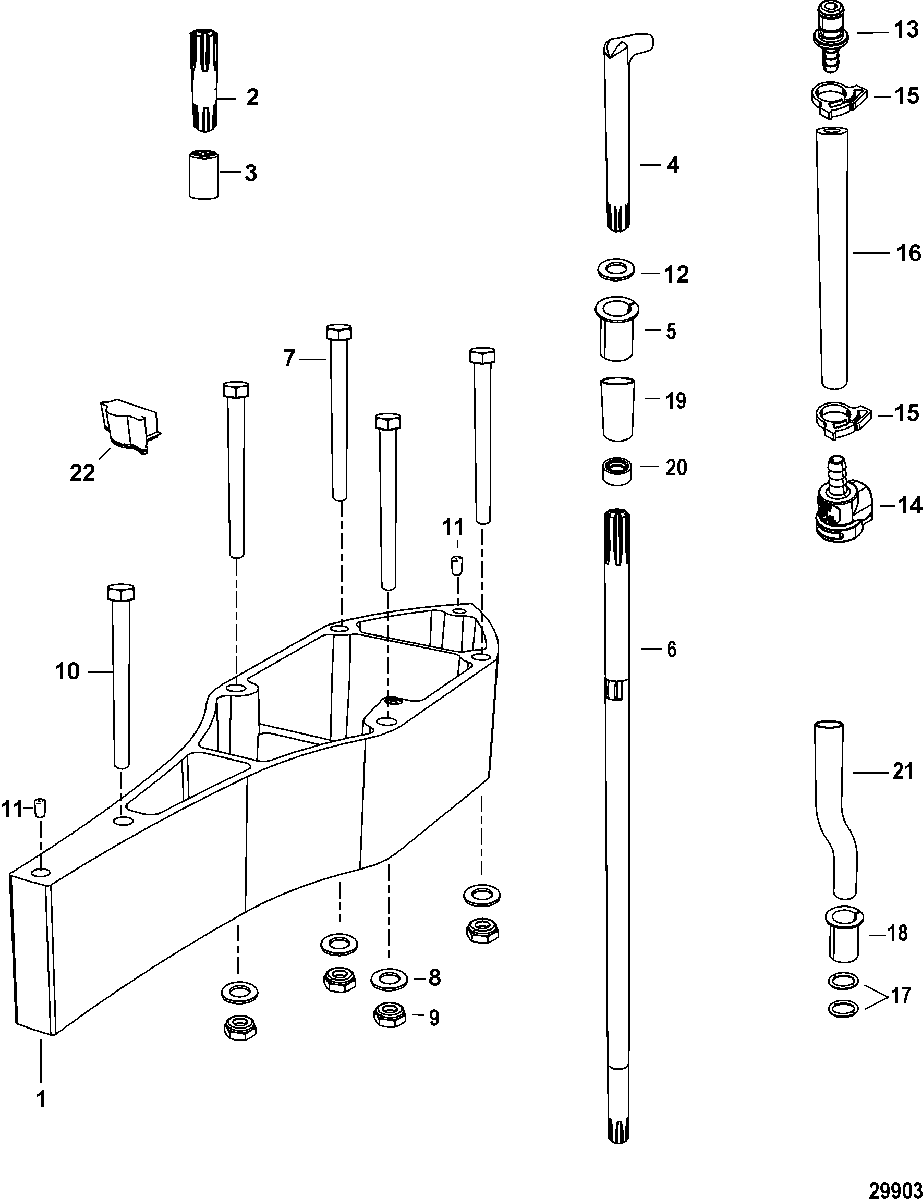

Spacer Kit, Gear Case для Mercruiser - VAZER TRANSOM 0W755000 & Up

  • №
    Артикул
    Название
  • -
    879150A18 SPACER KIT, (3.531 Inches)
    SPACER KIT, (3.531 Inches)
  • 1
    8M2001284 DRIVE SPACER, (3.531 Inches)
    DRIVE SPACER, (3.531 Inches)
  • 2
    45-8M2001307 DRIVESHAFT, Extension
    DRIVESHAFT, Extension
  • 3
    823902 COUPLING
    COUPLING
  • 4
    8M2001287 EXTENSION, Shift Shaft
    EXTENSION, Shift Shaft
  • 5
    43585 COUPLING
    COUPLING
  • 6
    824145 SHIFT SHAFT
    SHIFT SHAFT
  • 7
    10-8M2001323 SCREW, (.437-20 x 5.060)
    SCREW, (.437-20 x 5.060)
  • 8
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    WASHER, (.453 x .812 x .105) Stainless Steel
  • 9
    11-859135 NUT, (.437-20) Brass/Nickel Plated
    NUT, (.437-20) Brass/Nickel Plated
  • 10
    10-8M2001319 SCREW, (.375-16 x 4.500) Stainless Steel
    SCREW, (.375-16 x 4.500) Stainless Steel
  • 11
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 12
    26-455771 SEAL
    SEAL
  • 13
    22-865191 FITTING, Male
    FITTING, Male
  • 14
    22-865379 FITTING, Female
    FITTING, Female
  • 15
    54-415825 CLAMP, Nylon
    CLAMP, Nylon
  • 16
    194098 HOSE, Lock On (.250 Inside Diameter - 2.75 length)
    HOSE, Lock On (.250 Inside Diameter - 2.75 length)
  • 17
    25-21836 O-RING, (.796 x .139)
    O-RING, (.796 x .139)
  • 18
    816597 COUPLING, Water Pump
    COUPLING, Water Pump
  • 19
    23-816583 SLEEVE
    SLEEVE
  • 20
    26-88397 SEAL
    SEAL
  • 21
    32-8M2004416 TUBE, Water
    TUBE, Water
  • 22
    821526001 FILLER BLOCK
    FILLER BLOCK
