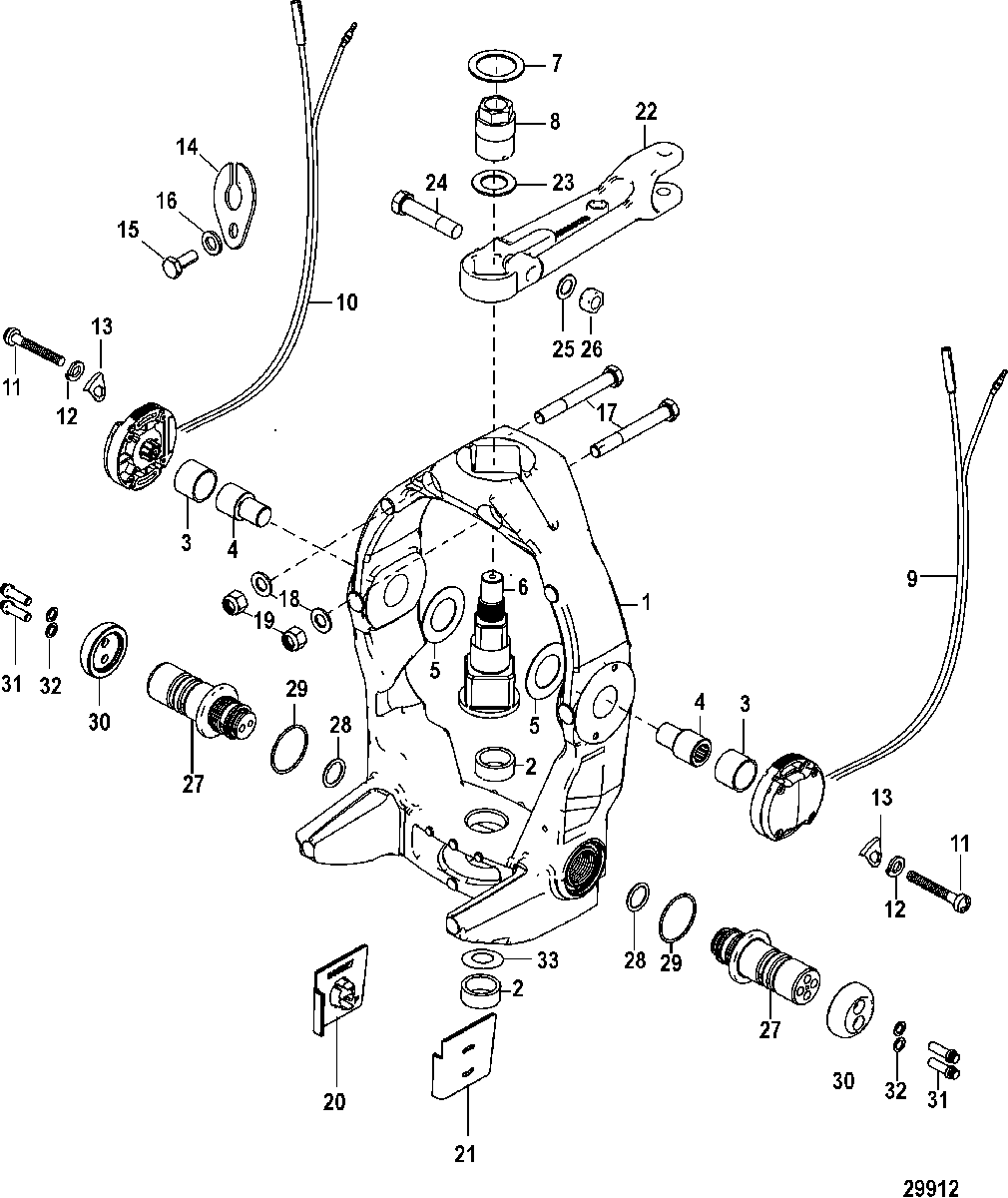

Gimbal Ring and Steering Lever для Mercruiser - VAZER TRANSOM 0W755000 & Up
-
№АртикулНазвание
-
1865328A02 GIMBAL RING ASSEMBLYGIMBAL RING ASSEMBLY
-
223-866529 BEARINGBEARING
-
323-847637 BUSHINGBUSHING
-
410-86801 SCREW, Hinge PinSCREW, Hinge Pin
-
512-41721 WASHERWASHER
-
698230A1 SHAFT ASSEMBLYSHAFT ASSEMBLY
-
712-85344 WASHER, (.750 Inside Diameter)WASHER, (.750 Inside Diameter)
-
88M2001215 RETAINERRETAINER
-
9866779T SENDER ASSEMBLY, TrimSENDER ASSEMBLY, Trim
-
10866778T SWITCH ASSEMBLY, Trim LimitSWITCH ASSEMBLY, Trim Limit
-
1110-37978 SCREW, (#10-32 x .750) Stainless SteelSCREW, (#10-32 x .750) Stainless Steel
-
1213-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1357008 RETAINERRETAINER
-
1454-12078 CLAMPCLAMP
-
1510-28635 SCREW, (.250-20 x .620) Stainless SteelSCREW, (.250-20 x .620) Stainless Steel
-
1612-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1710-866536 SCREW, (.375-24 x 3.00)SCREW, (.375-24 x 3.00)
-
1812-34931 WASHER, (.406 x .734 x .063) Stainless SteelWASHER, (.406 x .734 x .063) Stainless Steel
-
1911-862903 NUT, (.375-24)NUT, (.375-24)
-
20866527A01 WEAR PAD KITWEAR PAD KIT
-
21NSS NOT SOLD SEPARATE, Wear Pad - StarboardNOT SOLD SEPARATE, Wear Pad - Starboard
-
2298262T LEVER, SteeringLEVER, Steering
-
2312-98548 WASHER, (1.125 )WASHER, (1.125 )
-
2410-807204 SCREW, (.437-20 x 2.00)SCREW, (.437-20 x 2.00)
-
2512-861854 WASHER, (.453 x .750 x .032) Stainless SteelWASHER, (.453 x .750 x .032) Stainless Steel
-
2611-8M2008293 NUT, (.437-20)NUT, (.437-20)
-
27889246A82 PIN ASSEMBLY, PortPIN ASSEMBLY, Port
-
27889246A83 PIN ASSEMBLY, StarboardPIN ASSEMBLY, Starboard
-
2825-889246A85 O-RING KITO-RING KIT
-
29NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
308M8000504 CAPCAP
-
3110-840907 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
3212-35950 WASHER, (.273 x .437 x .031) Stainless SteelWASHER, (.273 x .437 x .031) Stainless Steel
-
3312-32518 WASHERWASHER
