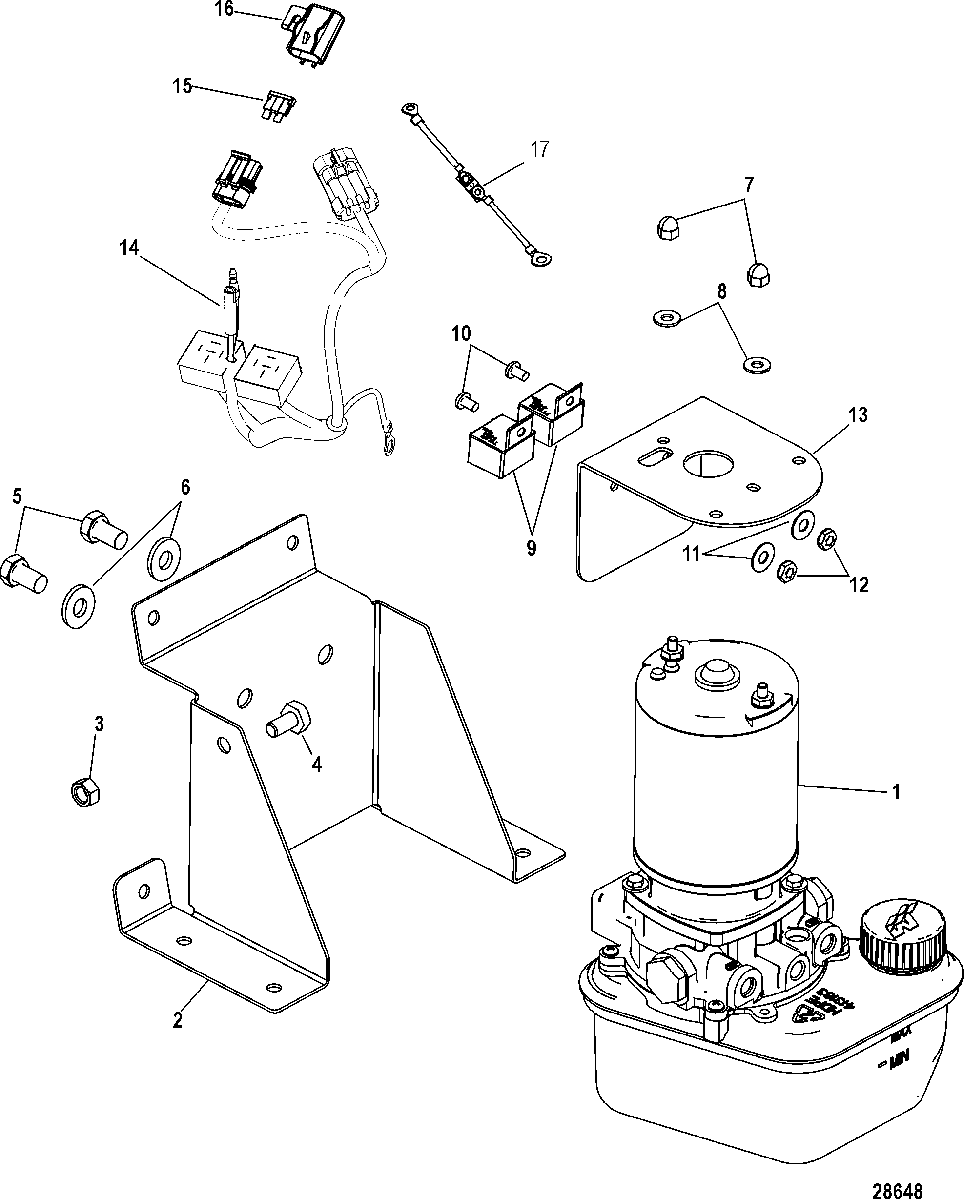

Trim Pump Assembly(Complete) для Mercruiser - VAZER TRANSOM 0W755000 & Up

  • №
    Артикул
    Название
  • -
    866565T02 PUMP ASSEMBLY, Complete
    PUMP ASSEMBLY, Complete
  • 1
    866565T PUMP/MOTOR ASSEMBLY, Trim - 12 Volt
    PUMP/MOTOR ASSEMBLY, Trim - 12 Volt
  • 2
    866521T BRACKET
    BRACKET
  • 3
    11-68292 NUT, (.312-18)
    NUT, (.312-18)
  • 4
    10-90285 SCREW, (.312-18 x .625)
    SCREW, (.312-18 x .625)
  • 5
    10-98260 SCREW, (.375-16 x .620)
    SCREW, (.375-16 x .620)
  • 6
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 7
    11-866591 NUT, Acorn (12-24)
    NUT, Acorn (12-24)
  • 8
    12-8M2000021 WASHER, (12-24)
    WASHER, (12-24)
  • 9
    8M2001129 RELAY, Trim Pump
    RELAY, Trim Pump
  • 10
    10-42813 SCREW, (#10-32 X .380)
    SCREW, (#10-32 X .380)
  • 11
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 12
    11-27164 NUT AND LOCKWASHER, (#10-32)
    NUT AND LOCKWASHER, (#10-32)
  • 13
    866522T BRACKET
    BRACKET
  • 14
    84-866566T01 HARNESS ASSEMBLY, Trim Pump Assembly
    HARNESS ASSEMBLY, Trim Pump Assembly
  • 15
    88-832969T20 FUSE, Mini - Yellow - 20 Ampere
    FUSE, Mini - Yellow - 20 Ampere
  • 16
    866065 COVER
    COVER
  • 17
    84-866730T01 FUSABLE LINK, 80 Ampere
    FUSABLE LINK, 80 Ampere
