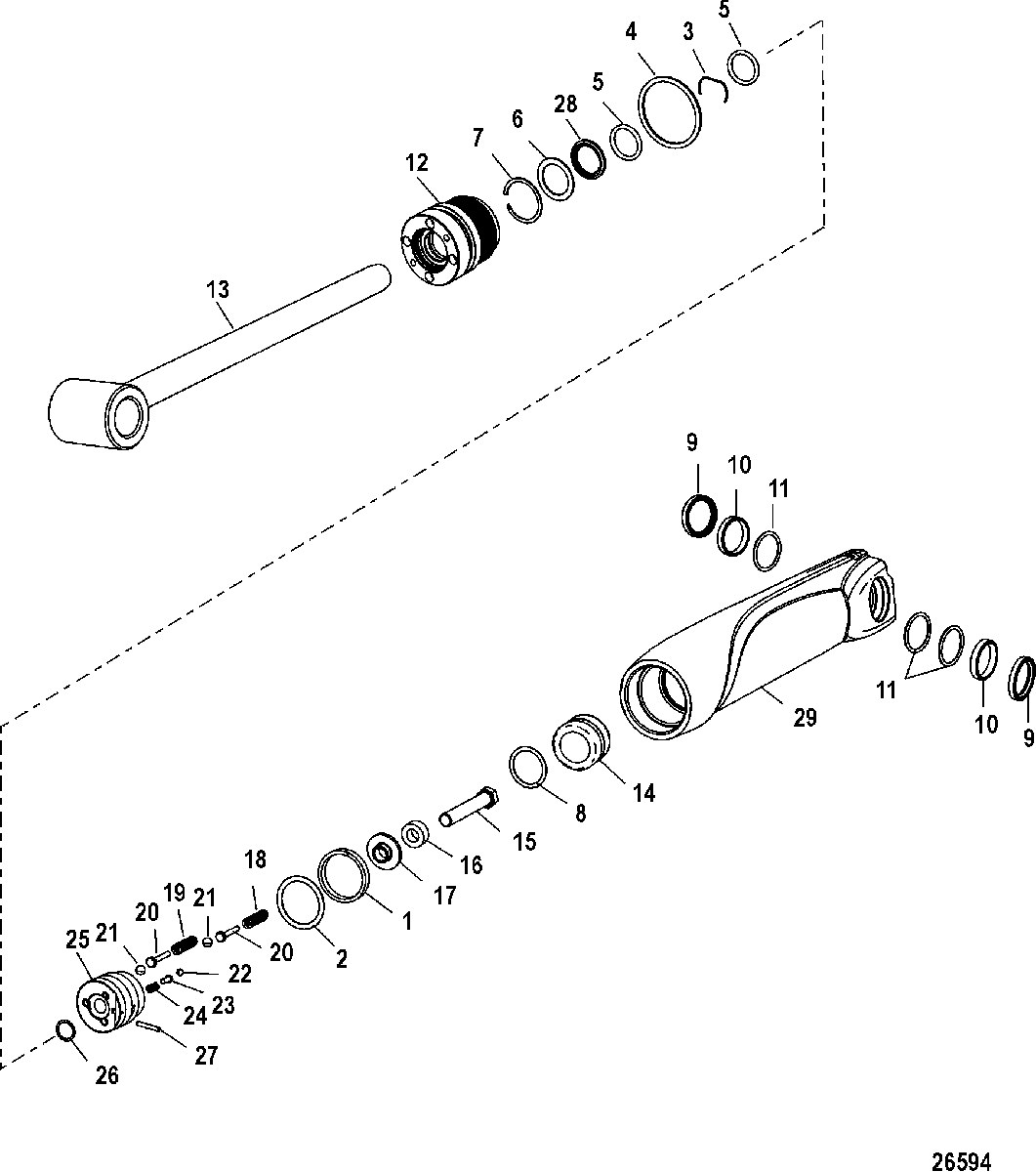

Power Trim Cylinder Repair Kits для Mercruiser - VAZER TRANSOM 0W755000 & Up
-
№АртикулНазвание
-
-866524A01 TRIM CYLINDER ASSEMBLYTRIM CYLINDER ASSEMBLY
-
-866524A11 OVERHAUL KIT, Trim CylinderOVERHAUL KIT, Trim Cylinder
-
1NSS NOT SOLD SEPARATE, Wear RingNOT SOLD SEPARATE, Wear Ring
-
2NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
3NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
4NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
5NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
6NSS NOT SOLD SEPARATE, WasherNOT SOLD SEPARATE, Washer
-
7NSS NOT SOLD SEPARATE, Retaining RingNOT SOLD SEPARATE, Retaining Ring
-
8NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
-866524A10 SEAL KIT, Trim Cylinder, Seal KitSEAL KIT, Trim Cylinder, Seal Kit
-
9NSS NOT SOLD SEPARATE, SealNOT SOLD SEPARATE, Seal
-
10NSS NOT SOLD SEPARATE, BushingNOT SOLD SEPARATE, Bushing
-
11NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
12NSS NOT SOLD SEPARATE, Cap-Rod EndNOT SOLD SEPARATE, Cap-Rod End
-
13NSS NOT SOLD SEPARATE, Piston RodNOT SOLD SEPARATE, Piston Rod
-
14NSS NOT SOLD SEPARATE, Trim PistonNOT SOLD SEPARATE, Trim Piston
-
15NSS NOT SOLD SEPARATE, BoltNOT SOLD SEPARATE, Bolt
-
16NSS NOT SOLD SEPARATE, SpacerNOT SOLD SEPARATE, Spacer
-
17NSS NOT SOLD SEPARATE, SeatNOT SOLD SEPARATE, Seat
-
18NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
19NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
20NSS NOT SOLD SEPARATE, SeatNOT SOLD SEPARATE, Seat
-
21NSS NOT SOLD SEPARATE, BallNOT SOLD SEPARATE, Ball
-
22NSS NOT SOLD SEPARATE, BallNOT SOLD SEPARATE, Ball
-
23NSS NOT SOLD SEPARATE, Eyelet-Ball CheckNOT SOLD SEPARATE, Eyelet-Ball Check
-
24NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
25NSS NOT SOLD SEPARATE, Shock PistonNOT SOLD SEPARATE, Shock Piston
-
26NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
27NSS NOT SOLD SEPARATE, PinNOT SOLD SEPARATE, Pin
-
28NSS NOT SOLD SEPARATE, Scraper RodNOT SOLD SEPARATE, Scraper Rod
-
29NSS NOT SOLD SEPARATE, Trim CylinderNOT SOLD SEPARATE, Trim Cylinder
