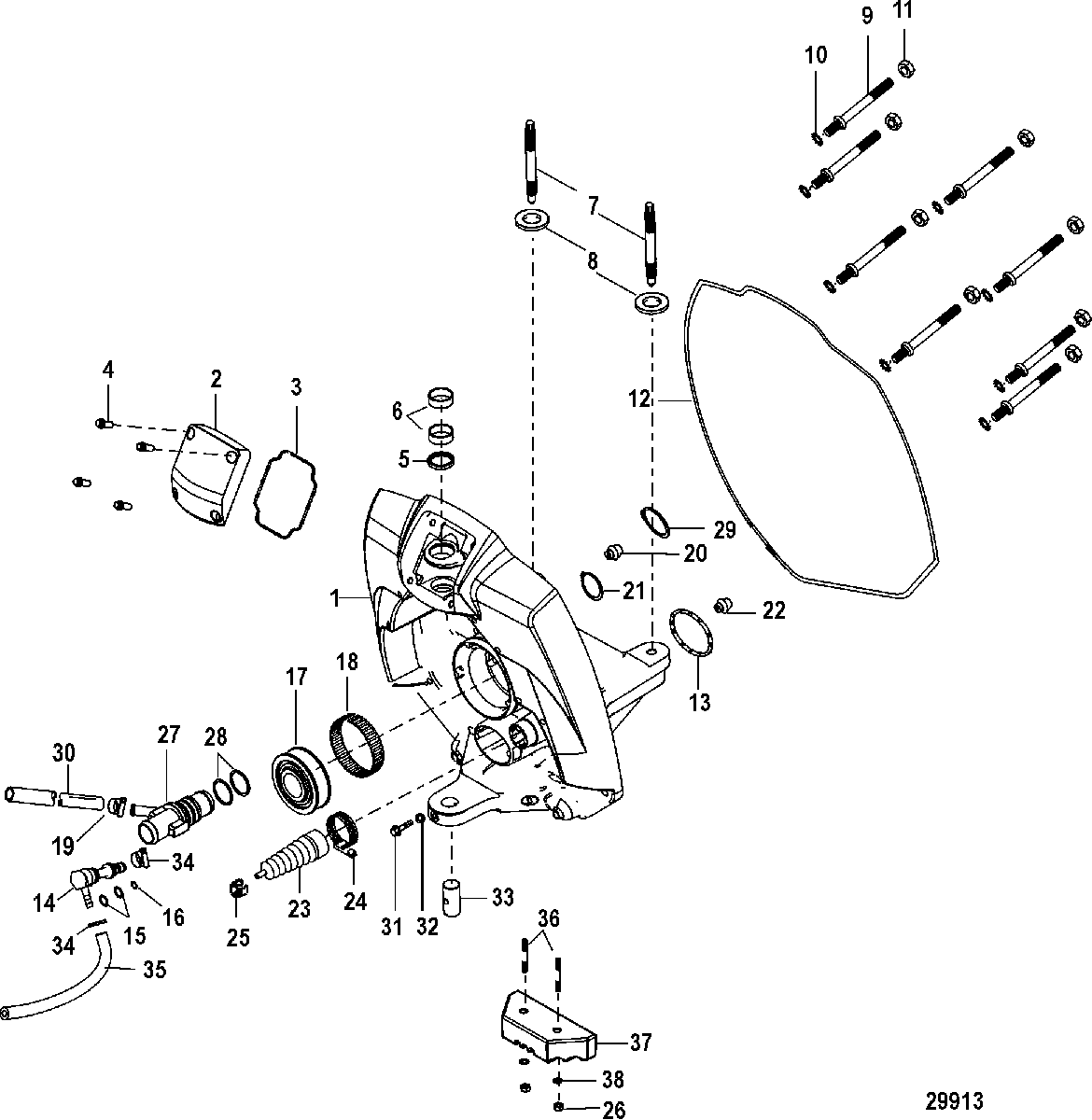

Gimbal Housing для Mercruiser - VAZER TRANSOM 0W755000 & Up
-
№АртикулНазвание
-
143881A21 GIMBAL HOUSING ASSEMBLYGIMBAL HOUSING ASSEMBLY
-
2889246T77 COVERCOVER
-
38M2000820 SEALSEAL
-
410-846498 SCREW, (.312-18 x .750) Stainless SteelSCREW, (.312-18 x .750) Stainless Steel
-
526-8M2005029 SEALSEAL
-
623-983571 BUSHINGBUSHING
-
716-866823 STUDSTUD
-
812-32834 WASHERWASHER
-
916-56296 STUD, (.437-20 x 4.750)STUD, (.437-20 x 4.750)
-
1012-34567 WASHERWASHER
-
1111-82670815 NUT, (.437-20)NUT, (.437-20)
-
1225-8M2001195 SEALSEAL
-
1326-866450 SEAL, Bull HornSEAL, Bull Horn
-
1422-861150T02 FITTING ASSEMBLYFITTING ASSEMBLY
-
1525-201951 O-RING, (.487 x .103)O-RING, (.487 x .103)
-
1625-627021 O-RING, (.301 x .070)O-RING, (.301 x .070)
-
1730-879194A01 BEARING ASSEMBLYBEARING ASSEMBLY
-
1861075 TOLERANCE RINGTOLERANCE RING
-
1954-815504206 CLAMP, Worm GearCLAMP, Worm Gear
-
2025-8M2000843 GROMMET, RubberGROMMET, Rubber
-
2153-866827 RING, SnapRING, Snap
-
2225-866782 GROMMETGROMMET
-
2374639A2 BELLOWS ASSEMBLYBELLOWS ASSEMBLY
-
2454-815504320 CLAMP, Worm GearCLAMP, Worm Gear
-
2554-8M0090424 CLAMPCLAMP
-
2611-29598 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
278M2000818 FITTING ASSEMBLYFITTING ASSEMBLY
-
2825-35480 O-RING, (1.24 x .103 Inches)O-RING, (1.24 x .103 Inches)
-
2953-866526 RING, RetainingRING, Retaining
-
3032-865355067 HOSE, (42.00 Inches)HOSE, (42.00 Inches)
-
3110-19923225 SCREW, (.250-20 x 2.25)SCREW, (.250-20 x 2.25)
-
3212-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
3317-8M2003645 PIN, Lower SwivelPIN, Lower Swivel
-
3454-415825 CLAMP, NylonCLAMP, Nylon
-
3532-8M0040618 HOSE, (54.00 Inches Bulk) (Cut to 9.5 inches)HOSE, (54.00 Inches Bulk) (Cut to 9.5 inches)
-
3616-814682 STUD, (.250 x .812)STUD, (.250 x .812)
-
3797-866698 ANODEANODE
-
3813-78968 LOCKWASHER, Internal (.250)LOCKWASHER, Internal (.250)
