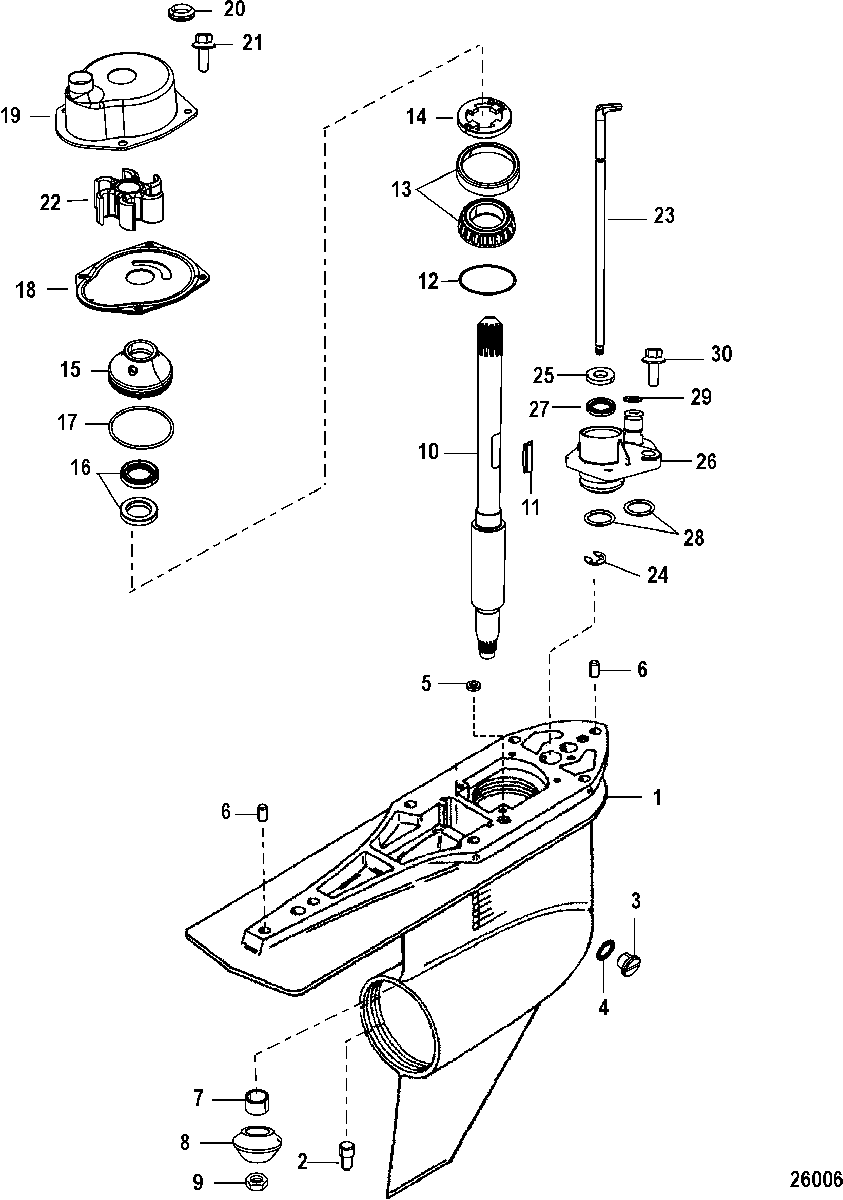

Gear Housing(Driveshaft) для Mercruiser - VAZER TRANSOM 0W755000 & Up
-
№АртикулНазвание
-
-1623-815822V03 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
11623-815822V01 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
217-379721 PINPIN
-
322-8M0058389 PLUG KIT, Drain - MagneticPLUG KIT, Drain - Magnetic
-
426-830749 SEALSEAL
-
526-455771 SEALSEAL
-
617-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
731-35934A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
8NSS NOT SOLD SEPARATE, Pinion Gear (Part of 43-898440A03)NOT SOLD SEPARATE, Pinion Gear (Part of 43-898440A03)
-
911-87364 NUTNUT
-
1045-898488 DRIVESHAFTDRIVESHAFT
-
1128-8M0032833 KEYKEY
-
1215-8M0063267 SHIM SETSHIM SET
-
1331-33138A1 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
14853651 RETAINERRETAINER
-
15807929A1 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
1626-66302 SEAL, OilSEAL, Oil
-
1725-896523 O-RING, (2.175 x .103)O-RING, (2.175 x .103)
-
18866233001 FACEPLATEFACEPLATE
-
19817275Q05 REBUILD KIT, Water PumpREBUILD KIT, Water Pump
-
2026-816575A2 SEAL KITSEAL KIT
-
2110-816928 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
2247-43026T2 IMPELLERIMPELLER
-
23866531A01 SHIFT SHAFT ASSEMBLY, LowerSHIFT SHAFT ASSEMBLY, Lower
-
2453-29641 E RINGE RING
-
2512-77674 WASHERWASHER
-
2623-866535A02 BUSHING ASSEMBLY, Shift ShaftBUSHING ASSEMBLY, Shift Shaft
-
2726-892361 SEAL, OilSEAL, Oil
-
2825-36318 O-RING, (.799)O-RING, (.799)
-
2925-627021 O-RING, (.301 x .070)O-RING, (.301 x .070)
-
3010-816928 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
-817275Q05 REBUILD KIT, Water PumpREBUILD KIT, Water Pump
-
-26-816575A07 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
-
-26-88397A02 SEAL KIT, Driveshaft HousingSEAL KIT, Driveshaft Housing
