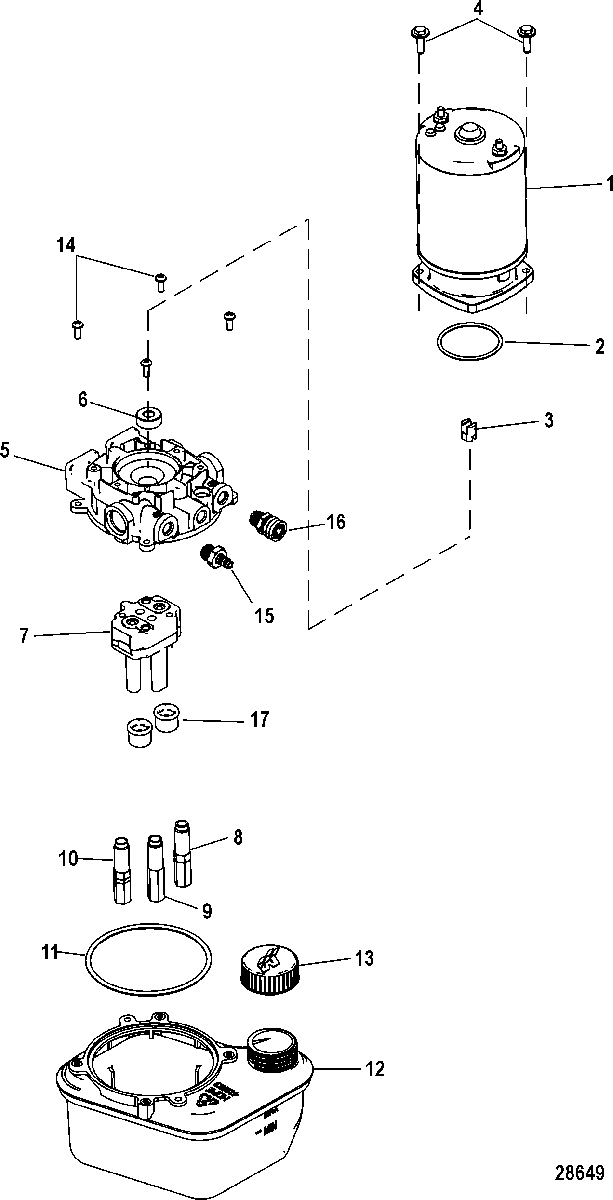

Trim Pump and Motor Components для Mercruiser - VAZER TRANSOM 0W755000 & Up
-
№АртикулНазвание
-
-866565T PUMP/MOTOR ASSEMBLY, Trim - 12 VoltPUMP/MOTOR ASSEMBLY, Trim - 12 Volt
-
1866565A12 MOTOR ASSEMBLYMOTOR ASSEMBLY
-
2NSS NOT SOLD SEPARATE, O-RINGNOT SOLD SEPARATE, O-RING
-
3NSS NOT SOLD SEPARATE, CouplerNOT SOLD SEPARATE, Coupler
-
410-8M2001132 SCREW, (.188 x .687)SCREW, (.188 x .687)
-
5879150A20 ADAPTOR ASSEMBLYADAPTOR ASSEMBLY
-
6NSS NOT SOLD SEPARATE, SealNOT SOLD SEPARATE, Seal
-
7866565A11 PUMP ASSEMBLYPUMP ASSEMBLY
-
8812499A1 VALVE KIT, Relief, DownVALVE KIT, Relief, Down
-
98M2001045 VALVE KIT, Relief, UpVALVE KIT, Relief, Up
-
1095353A1 VALVE KIT, Relief, ThermalVALVE KIT, Relief, Thermal
-
11NSS NOT SOLD SEPARATE, GasketNOT SOLD SEPARATE, Gasket
-
12879150A21 RESERVOIR ASSEMBLYRESERVOIR ASSEMBLY
-
1336-865448A01 CAP, Oil ReservoirCAP, Oil Reservoir
-
1410-8M2001133 SCREW, (Set of 4)(.164-32 x .44)SCREW, (Set of 4)(.164-32 x .44)
-
1522-865412001 FITTING, Stainless SteelFITTING, Stainless Steel
-
1622-865413002 FITTING, Stainless SteelFITTING, Stainless Steel
-
1735-89496 FILTERFILTER
-
-866565A10 SEAL KITSEAL KIT
