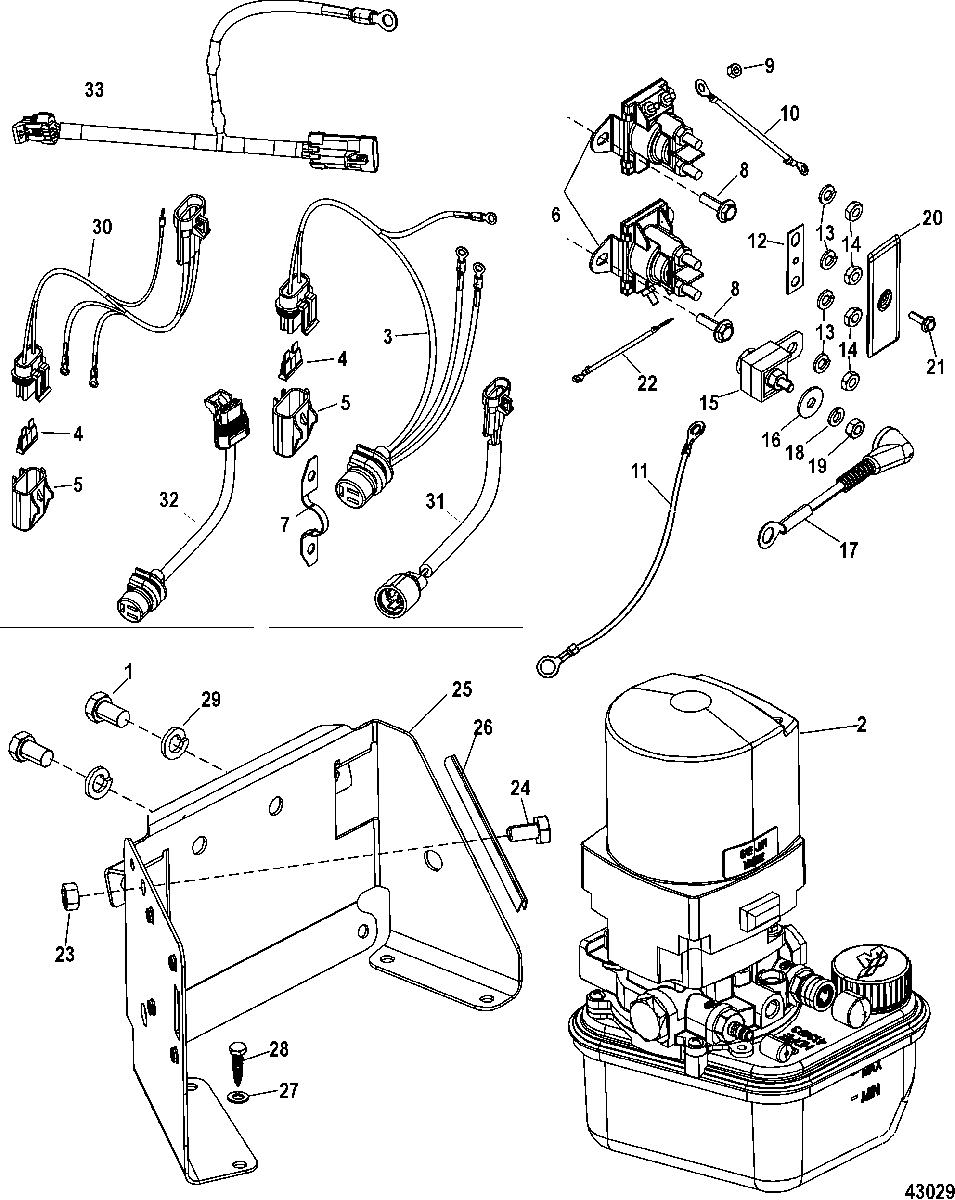

Trim Pump Assembly(Complete) для Mercruiser - BRAVO XR THREE 0W240000 & Up

  • №
    Артикул
    Название
  • -
    865380A25 PUMP ASSEMBLY, Trim - Complete
    PUMP ASSEMBLY, Trim - Complete
  • 1
    10-98260 SCREW, (.375-16 x .620)
    SCREW, (.375-16 x .620)
  • 2
    865380A13 PUMP/MOTOR ASSEMBLY, Trim - 12 Volt
    PUMP/MOTOR ASSEMBLY, Trim - 12 Volt
  • 3
    84-79147A08 HARNESS ASSEMBLY, With Molded Connector
    HARNESS ASSEMBLY, With Molded Connector
  • 4
    88-812619 FUSE, Yellow - 20 Ampere
    FUSE, Yellow - 20 Ampere
  • 5
    828054 COVER, Fuse
    COVER, Fuse
  • 6
    89-96158T SOLENOID
    SOLENOID
  • 7
    88075 RETAINER
    RETAINER
  • 8
    10-41508 SCREW, (.250-20 x .500) Stainless Steel
    SCREW, (.250-20 x .500) Stainless Steel
  • 9
    11-26419 NUT, (#8-32) Brass
    NUT, (#8-32) Brass
  • 10
    84-86322A24 CABLE ASSEMBLY, (4.00 Inches)
    CABLE ASSEMBLY, (4.00 Inches)
  • 11
    84-79138A9 CABLE ASSEMBLY, (6.00 Feet) Black-Negative, Negative - Battery
    CABLE ASSEMBLY, (6.00 Feet) Black-Negative, Negative - Battery
  • 12
    94275 LINK, Connector
    LINK, Connector
  • 13
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 14
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 15
    88-79023T10 FUSE ASSEMBLY, 110 Ampere
    FUSE ASSEMBLY, 110 Ampere
  • 16
    12-25908 WASHER, (.265 x .812 x .0625)
    WASHER, (.265 x .812 x .0625)
  • 17
    84-79139A12 CABLE ASSEMBLY, Red-Positive, Positive - Battery
    CABLE ASSEMBLY, Red-Positive, Positive - Battery
  • 18
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 19
    11-21825 NUT, (.250-28)
    NUT, (.250-28)
  • 20
    85-861680 INSULATOR
    INSULATOR
  • 21
    10-48409 SCREW, (#10-16 x .625) Stainless Steel
    SCREW, (#10-16 x .625) Stainless Steel
  • 22
    84-86322A15 CABLE ASSEMBLY, (5.50 Inches) Black
    CABLE ASSEMBLY, (5.50 Inches) Black
  • 23
    11-68292 NUT, (.312-18)
    NUT, (.312-18)
  • 24
    10-90285 SCREW, (.312-18 x .625)
    SCREW, (.312-18 x .625)
  • 25
    862548A1 BRACKET KIT
    (Floor or Transom Mounted)
    BRACKET KIT
    (Floor or Transom Mounted)
  • 26
    58491 CHANNEL, Rubber (4.00 Inches)
    CHANNEL, Rubber (4.00 Inches)
  • 27
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 28
    10-59784 SCREW, (.250-10 x 1.00)
    SCREW, (.250-10 x 1.00)
  • 29
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 30
    84-79147A09 HARNESS ASSEMBLY, With Packard Connector
    (Includes Fuse and Cover)
    HARNESS ASSEMBLY, With Packard Connector
    (Includes Fuse and Cover)
  • 31
    84-865770A02 HARNESS ASSEMBLY, Adaptor - Molded 3 Pin Female To Packard 3 Pin Female
    HARNESS ASSEMBLY, Adaptor - Molded 3 Pin Female To Packard 3 Pin Female
  • 32
    84-865771A02 HARNESS ASSEMBLY, Adaptor - Molded 3 Pin Male To Packard 3 Pin Male
    HARNESS ASSEMBLY, Adaptor - Molded 3 Pin Male To Packard 3 Pin Male
  • 33
    8M8025133 ADAPTOR KIT, Transient Voltage Suppressor
    ADAPTOR KIT, Transient Voltage Suppressor
