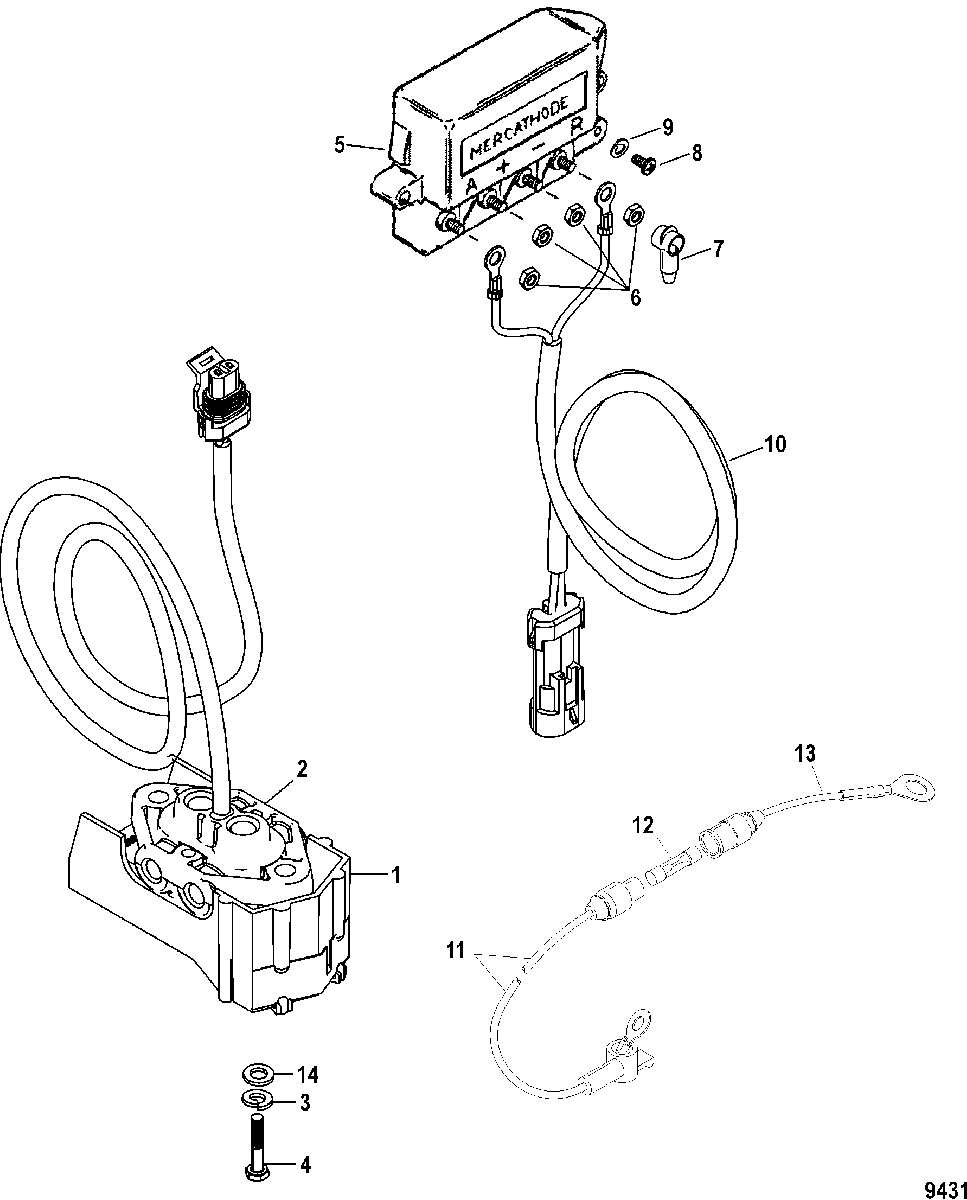

Mercathode Kit(Integrated Transom) для Mercruiser - BRAVO XR THREE 0W240000 & Up

  • №
    Артикул
    Название
  • 1
    8M0085692 ELECTRODE ASSEMBLY
    ELECTRODE ASSEMBLY
  • 2
    98825A13 COVER KIT
    COVER KIT
  • 3
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 4
    10-45862 SCREW, (#10-32 x .875)
    SCREW, (#10-32 x .875)
  • 5
    42600A09 CONTROLLER ASSEMBLY
    CONTROLLER ASSEMBLY
  • 6
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 7
    85-65208 BOOT, Insulator - Black, Insulator
    BOOT, Insulator - Black, Insulator
  • 8
    10-62568 SCREW, (#10-16 x .375)
    SCREW, (#10-16 x .375)
  • 9
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 10
    84-865181T01 HARNESS ASSEMBLY, Mercathode
    HARNESS ASSEMBLY, Mercathode
  • 11
    84-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
    CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
  • 12
    88-79091 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 13
    84-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red
    CABLE ASSEMBLY, (5.00 Inches) Red
  • 14
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
