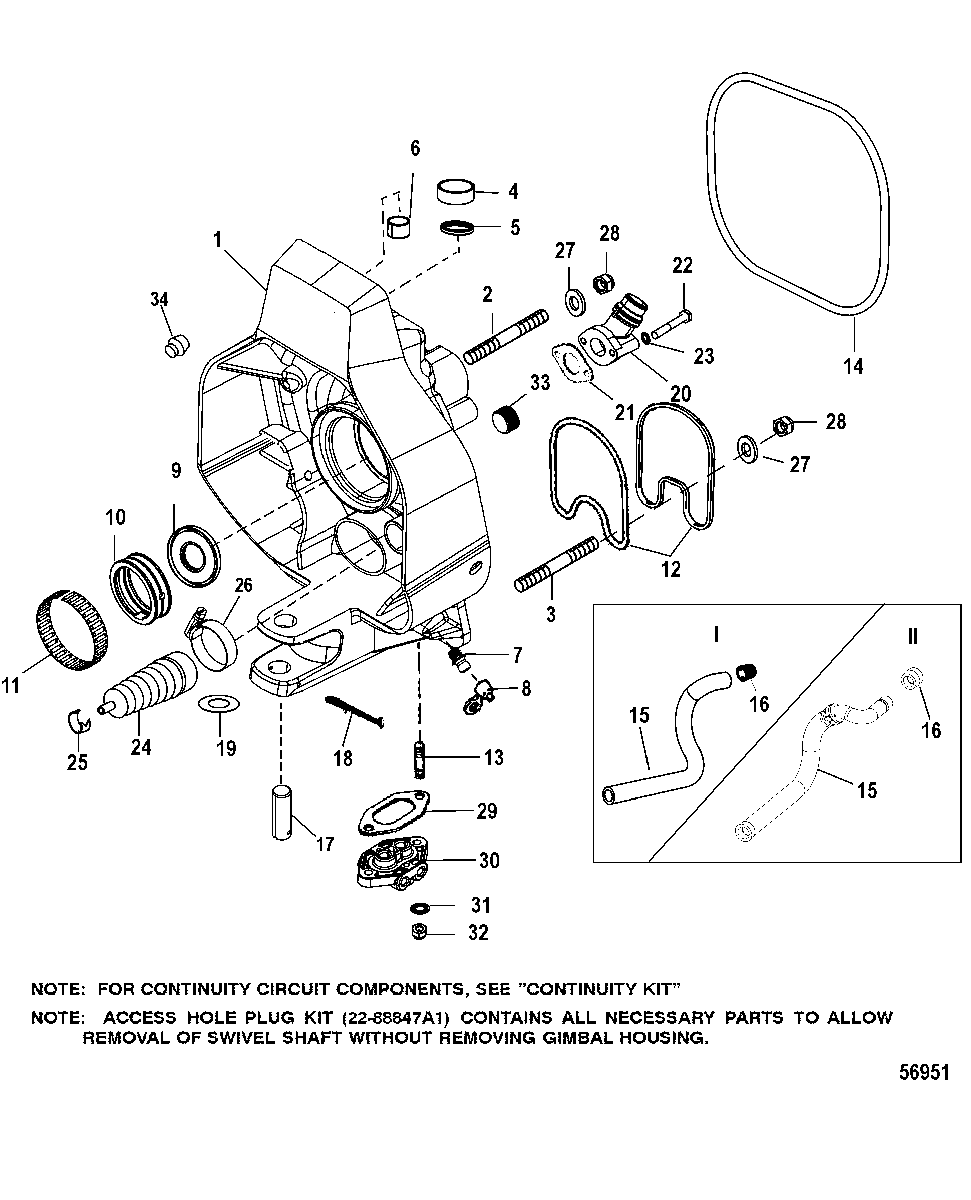

Gimbal Housing для Mercruiser - BRAVO XR THREE 0W240000 & Up

  • №
    Артикул
    Название
  • 1
    8M0096216 GIMBAL HOUSING ASSEMBLY
    GIMBAL HOUSING ASSEMBLY
  • 1
    8M0096217 GIMBAL HOUSING ASSEMBLY
    (SEACORE)
    GIMBAL HOUSING ASSEMBLY
    (SEACORE)
  • 2
    16-56296 STUD, (.437-20 x 4.750)
    STUD, (.437-20 x 4.750)
  • 2
    16-866562 STUD, (.437-20 x 4.750) Stainless Steel
    (SEACORE)
    STUD, (.437-20 x 4.750) Stainless Steel
    (SEACORE)
  • 3
    16-818834 STUD, (.437-20 x 4.250)
    STUD, (.437-20 x 4.250)
  • 3
    16-866563 STUD, (.437-20 x 4.250) Stainless Steel
    (SEACORE)
    STUD, (.437-20 x 4.250) Stainless Steel
    (SEACORE)
  • 4
    23-983571 BUSHING, Lower
    BUSHING, Lower
  • 5
    26-8M2005029 SEAL, Oil
    SEAL, Oil
  • 5
    12-866451 SEAL
    SEAL
  • 6
    23-98356 BUSHING, Upper
    BUSHING, Upper
  • 7
    22-74036 FITTING, Grease
    (Use with greased bearing)
    FITTING, Grease
    (Use with greased bearing)
  • 7
    10-8M2015913 PLUG, (.250-28 x .320)
    (Use with non-greased bearing)
    PLUG, (.250-28 x .320)
    (Use with non-greased bearing)
  • 8
    19-77633Q LUBRICAP
    LUBRICAP
  • 9
    26-88416 SEAL, Oil
    SEAL, Oil
  • 10
    30-879194A01 BEARING ASSEMBLY
    BEARING ASSEMBLY
  • 11
    61075 TOLERANCE RING
    TOLERANCE RING
  • 12
    41802 SEAL, Rubber, Without Tabs
    SEAL, Rubber, Without Tabs
  • 12
    NSS NOT SOLD SEPARATE, Seal With Tabs
    NOT SOLD SEPARATE, Seal With Tabs
  • 13
    16-56766 STUD, (.250-20/.250-28 x 1.380)
    STUD, (.250-20/.250-28 x 1.380)
  • 14
    43713 SEAL
    SEAL
  • 15
    32-8M0090859 HOSE, Water
    Design I
    HOSE, Water
    Design I
  • 15
    8M0062102 HOSE, Water
    Design II
    HOSE, Water
    Design II
  • 16
    41674T INSERT
    Design I
    INSERT
    Design I
  • 16
    23-8M0057042 INSERT
    Design II
    INSERT
    Design II
  • 17
    17-8M0073409 SWIVEL PIN, Lower
    SWIVEL PIN, Lower
  • 18
    18-54929 COTTER PIN
    COTTER PIN
  • 19
    12-32518 WASHER
    WASHER
  • 20
    865470 HOUSING, Inlet, Male Quick Connect
    HOUSING, Inlet, Male Quick Connect
  • 21
    27-8M0109475 GASKET
    GASKET
  • 22
    10-78038 SCREW, (.250-20 x 1.75)
    SCREW, (.250-20 x 1.75)
  • 22
    10-73015 SCREW, (.250-20 x 1.75)
    SCREW, (.250-20 x 1.75)
  • 23
    13-21272 LOCKWASHER, (.250)
    LOCKWASHER, (.250)
  • 23
    13-78968 LOCKWASHER, Internal (.250)
    LOCKWASHER, Internal (.250)
  • 24
    74639A2 BELLOWS ASSEMBLY, Shift Cable
    BELLOWS ASSEMBLY, Shift Cable
  • 25
    54-8M0090424 CLAMP
    CLAMP
  • 26
    54-815504320 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 27
    12-34567 WASHER
    WASHER
  • 27
    12-35935 WASHER, (.435 x .875 x .105) Stainless Steel
    WASHER, (.435 x .875 x .105) Stainless Steel
  • 28
    11-82670815 NUT, (.437-20)
    NUT, (.437-20)
  • 29
    27-988231 GASKET
    GASKET
  • 30
    8M0137703 MANIFOLD ASSEMBLY
    MANIFOLD ASSEMBLY
  • 31
    13-78968 LOCKWASHER, Internal (.250)
    LOCKWASHER, Internal (.250)
  • 32
    11-8267119 NUT, (.250-28)
    NUT, (.250-28)
  • 33
    22-428611 FITTING, Pipe - Brass (.750-14)
    FITTING, Pipe - Brass (.750-14)
  • 34
    19-861492 PLUG, Trim Switch Wires
    PLUG, Trim Switch Wires
  • -
    22-88847A1 PLUG KIT, Access Hole
    (Access Hole Plug Kit contains all necessary parts to allow removal of swivel shaft without removing Gimbal Housing)
    PLUG KIT, Access Hole
    (Access Hole Plug Kit contains all necessary parts to allow removal of swivel shaft without removing Gimbal Housing)
