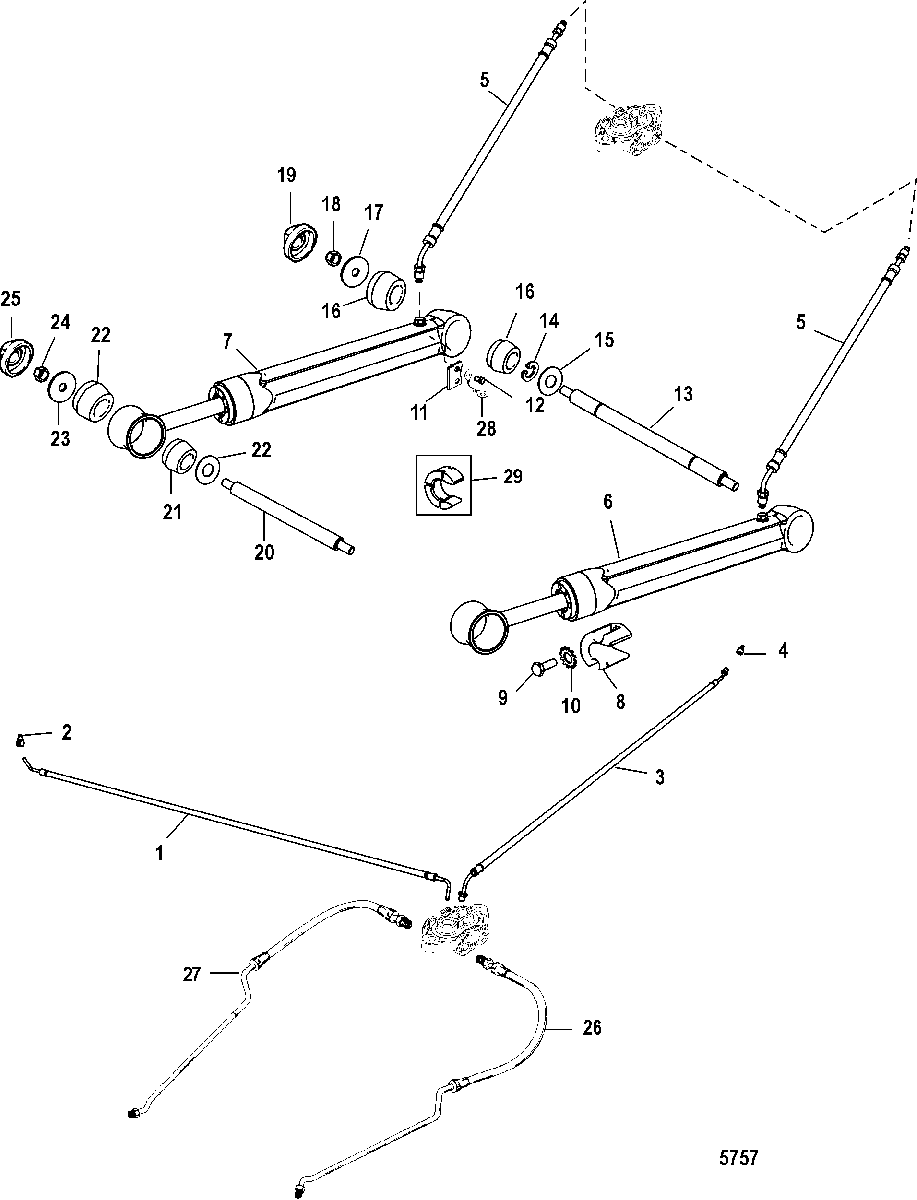

Trim Cylinders and Hydraulic Hoses(Standard Transoms) для Mercruiser - BRAVO XR THREE 0W240000 & Up

  • №
    Артикул
    Название
  • 1
    32-865384001 HOSE, Black, Hydraulic Manifold to Pump
    HOSE, Black, Hydraulic Manifold to Pump
  • 2
    22-865410001 FITTING, Female Quick Connect
    FITTING, Female Quick Connect
  • 3
    32-865385001 HOSE, Gray, Hydraulic Manifold to Pump
    HOSE, Gray, Hydraulic Manifold to Pump
  • 4
    22-865411001 FITTING, Male Quick Connect
    FITTING, Male Quick Connect
  • 5
    32-99904Q HOSE, Trim Cylinder To Connector
    HOSE, Trim Cylinder To Connector
  • 6
    8M0132610 TRIM CYLINDER ASSEMBLY, Starboard
    (See Power Trim Cylinder Repair Kits For Breakdown)
    TRIM CYLINDER ASSEMBLY, Starboard
    (See Power Trim Cylinder Repair Kits For Breakdown)
  • 6
    8M0128693 TRIM CYLINDER ASSEMBLY, Starboard
    (SEACORE)(See Power Trim Cylinder Repair Kits For Breakdown)
    TRIM CYLINDER ASSEMBLY, Starboard
    (SEACORE)(See Power Trim Cylinder Repair Kits For Breakdown)
  • 7
    8M0132609 TRIM CYLINDER ASSEMBLY, Port
    (See Power Trim Cylinder Repair Kits For Breakdown)
    TRIM CYLINDER ASSEMBLY, Port
    (See Power Trim Cylinder Repair Kits For Breakdown)
  • 7
    8M0128692 TRIM CYLINDER ASSEMBLY, Port
    (SEACORE)(See Power Trim Cylinder Repair Kits For Breakdown)
    TRIM CYLINDER ASSEMBLY, Port
    (SEACORE)(See Power Trim Cylinder Repair Kits For Breakdown)
  • NS
    87399A2 OVERHAUL KIT
    OVERHAUL KIT
  • NS
    25-87400A2 SEAL KIT
    SEAL KIT
  • 8
    97-806190Q1 ANODE ASSEMBLY
    ANODE ASSEMBLY
  • 9
    10-806290 SCREW, (#10-32 x .625)
    SCREW, (#10-32 x .625)
  • 10
    13-69432 LOCKWASHER, External (#10)
    LOCKWASHER, External (#10)
  • 11
    85060 PLATE
    PLATE
  • 12
    10-85486 SCREW, (.250-20 x .380) Stainless Steel
    SCREW, (.250-20 x .380) Stainless Steel
  • 13
    17-44167A1 PIN, Front Anchor
    PIN, Front Anchor
  • 14
    53-805272 RING, Retaining
    RING, Retaining
  • 15
    12-44164 WASHER
    WASHER
  • 16
    23-807073 BUSHING
    BUSHING
  • 17
    12-44163 WASHER, (.450 x 1.75 x .12)
    WASHER, (.450 x 1.75 x .12)
  • 18
    11-34933 NUT, (.437-20) Stainless Steel
    NUT, (.437-20) Stainless Steel
  • 19
    19-14842 CAP
    CAP
  • 20
    17-44166 PIN, Rear Anchor
    PIN, Rear Anchor
  • 21
    12-44164 WASHER
    WASHER
  • 22
    23-807073 BUSHING
    BUSHING
  • 23
    12-44163 WASHER, (.450 x 1.75 x .12)
    WASHER, (.450 x 1.75 x .12)
  • 24
    11-34933 NUT, (.437-20) Stainless Steel
    NUT, (.437-20) Stainless Steel
  • 25
    19-14842 CAP
    CAP
  • 26
    32-864589 HOSE, Trim Cylinder
    (Starboard)
    HOSE, Trim Cylinder
    (Starboard)
  • 27
    32-864588 HOSE, Trim Cylinder
    (Port)
    HOSE, Trim Cylinder
    (Port)
  • 28
    88238A13 CABLE ASSEMBLY, Ground
    CABLE ASSEMBLY, Ground
  • 29
    15768A3 SPACER KIT, TILT
    SPACER KIT, TILT
