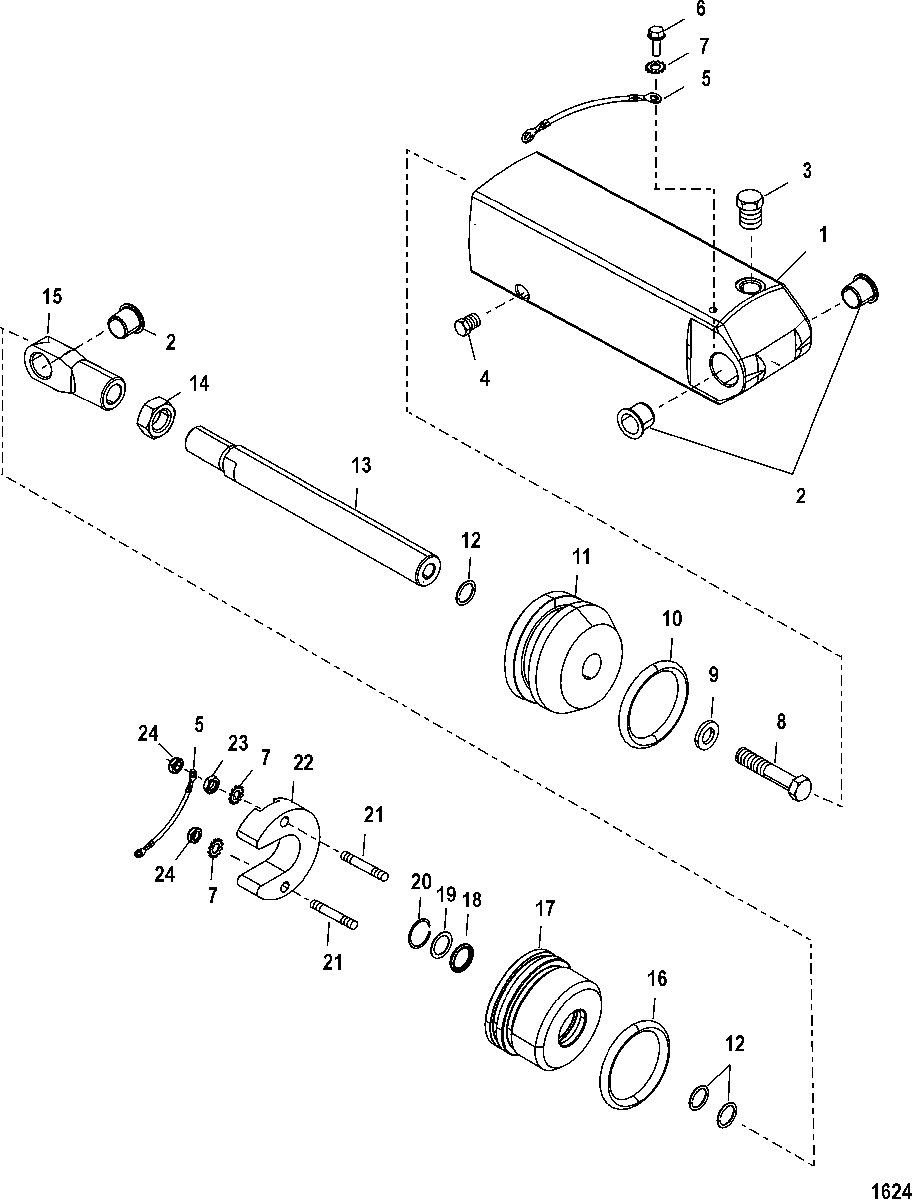

Power Steering Actuator(Integrated Transom) для Mercruiser - BRAVO XR THREE 0W240000 & Up

  • №
    Артикул
    Название
  • 1
    845760T3 CYLINDER ASSEMBLY, Steering, Starboard
    CYLINDER ASSEMBLY, Steering, Starboard
  • 1
    845760T6 CYLINDER ASSEMBLY, Steering, Port
    CYLINDER ASSEMBLY, Steering, Port
  • 2
    23-8159501 BUSHING
    BUSHING
  • 3
    NSS NOT SOLD SEPARATE, PLUG
    NOT SOLD SEPARATE, PLUG
  • 4
    NSS NOT SOLD SEPARATE, PLUG
    NOT SOLD SEPARATE, PLUG
  • 5
    847062A1 BONDING KIT
    BONDING KIT
  • 6
    10-68513 SCREW, (#10-32 x .375) Stainless Steel
    SCREW, (#10-32 x .375) Stainless Steel
  • 7
    13-69432 LOCKWASHER, External (#10)
    LOCKWASHER, External (#10)
  • 8
    10-35871 SCREW, (.375-24 x 1.500)
    SCREW, (.375-24 x 1.500)
  • 9
    12-27880 WASHER
    WASHER
  • 10
    NSS NOT SOLD SEPARATE, O-RING-(Component of Seal Kit)
    NOT SOLD SEPARATE, O-RING-(Component of Seal Kit)
  • 11
    NSS NOT SOLD SEPARATE, PISTON
    NOT SOLD SEPARATE, PISTON
  • 12
    NSS NOT SOLD SEPARATE, O-RING-(Component of Seal Kit)
    NOT SOLD SEPARATE, O-RING-(Component of Seal Kit)
  • 13
    NSS NOT SOLD SEPARATE, PISTON ROD
    NOT SOLD SEPARATE, PISTON ROD
  • 14
    11-845997 NUT, (.625-18)
    NUT, (.625-18)
  • 15
    NSS NOT SOLD SEPARATE, ROD END
    NOT SOLD SEPARATE, ROD END
  • 16
    NSS NOT SOLD SEPARATE, O RING-(Component of Seal Kit)
    NOT SOLD SEPARATE, O RING-(Component of Seal Kit)
  • 17
    8M0050236 END CAP
    END CAP
  • 18
    NSS NOT SOLD SEPARATE, ROD SCRAPER-(Component of Seal Kit)
    NOT SOLD SEPARATE, ROD SCRAPER-(Component of Seal Kit)
  • 19
    NSS NOT SOLD SEPARATE, WASHER-(Component of Seal Kit)
    NOT SOLD SEPARATE, WASHER-(Component of Seal Kit)
  • 20
    NSS NOT SOLD SEPARATE, RING-Retaining-(Component of Seal Kit)
    NOT SOLD SEPARATE, RING-Retaining-(Component of Seal Kit)
  • 21
    16-840854 STUD, (#10-32 x 1.22)
    STUD, (#10-32 x 1.22)
  • 22
    97-806189Q1 ANODE
    ANODE
  • 23
    11-840853 NUT, (#10-32) Stainless Steel (Reduced Hex Jam)
    NUT, (#10-32) Stainless Steel (Reduced Hex Jam)
  • 24
    11-859124 NUT, (#10-32) Stainless Steel, Nylon Insert
    NUT, (#10-32) Stainless Steel, Nylon Insert
  • NS
    25-87298A1 SEAL KIT, Steering Cylinder
    SEAL KIT, Steering Cylinder
