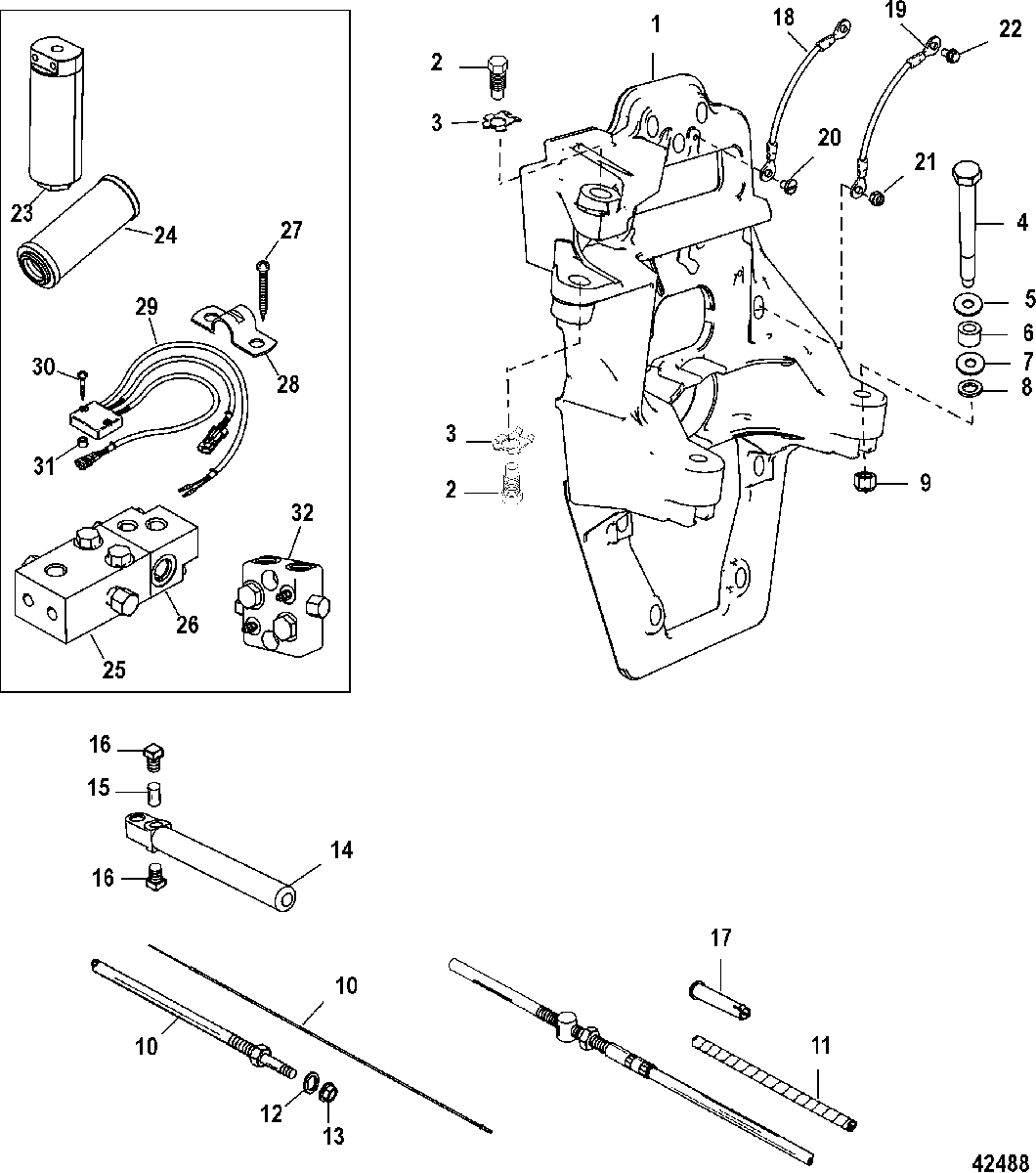

Transom Plate and Shift Cable для Mercruiser - BRAVO XR THREE 0W240000 & Up

  • №
    Артикул
    Название
  • 1
    8M0138839 PLATE ASSEMBLY, Transom
    PLATE ASSEMBLY, Transom
  • 1
    44117A12 PLATE ASSEMBLY, Transom, X-Haust Compatible
    - Integrated Transom SN# 0M962900 & Up
    PLATE ASSEMBLY, Transom, X-Haust Compatible
    - Integrated Transom SN# 0M962900 & Up
  • 2
    10-8M0113173 BOLT, Pivot
    BOLT, Pivot
  • 3
    14-42254 WASHER, Tab
    WASHER, Tab
  • 4
    10-97934 SCREW, (.500-20 x 5.370) Special
    SCREW, (.500-20 x 5.370) Special
  • 5
    12-35777 WASHER, (.5156 x 1.375 x .125) Aluminum
    WASHER, (.5156 x 1.375 x .125) Aluminum
  • 6
    23-99299 SPACER, (.520 x .870 x .630)
    SPACER, (.520 x .870 x .630)
  • 7
    12-32834 WASHER, (.9375 x 1.750 x .172)
    WASHER, (.9375 x 1.750 x .172)
  • 8
    12-54012 WASHER, (.530 x .870 x .105) Stainless Steel
    WASHER, (.530 x .870 x .105) Stainless Steel
  • 9
    11-863332 NUT, (.500-20) Aluminum
    NUT, (.500-20) Aluminum
  • 10
    865437A02 CABLE KIT, Shift
    CABLE KIT, Shift
  • 11
    90412 WRAPPING, (1.16 Feet Bulk), Cut As Required
    WRAPPING, (1.16 Feet Bulk), Cut As Required
  • 12
    12-815472 WASHER, Sealing
    WASHER, Sealing
  • 13
    11-49910 NUT, (.375-24)
    NUT, (.375-24)
  • -
    43433A01 GUIDE KIT
    GUIDE KIT
  • 14
    43433 GUIDE
    GUIDE
  • 15
    43436 ANCHOR
    ANCHOR
  • 16
    10-20518 SET SCREW, (#8-32)
    SET SCREW, (#8-32)
  • 17
    861632T INSERT
    INSERT
  • 18
    NSS NOT SOLD SEPARATE, Grounding Cable Assembly
    NOT SOLD SEPARATE, Grounding Cable Assembly
  • 19
    NSS NOT SOLD SEPARATE, Grounding Cable Assembly
    NOT SOLD SEPARATE, Grounding Cable Assembly
  • 20
    10-24231 SCREW, (#10-32 x .250)
    SCREW, (#10-32 x .250)
  • 21
    11-34933 NUT, (.437-20) Stainless Steel
    NUT, (.437-20) Stainless Steel
  • 22
    10-41508 SCREW, (.250-20 x .500) Stainless Steel
    SCREW, (.250-20 x .500) Stainless Steel
  • 23
    35-841067T1 FILTER ASSEMBLY, Power Steering
    - Integrated Transom
    FILTER ASSEMBLY, Power Steering
    - Integrated Transom
  • 24
    35-841076 ELEMENT, Power Steering Filter
    - Integrated Transom
    ELEMENT, Power Steering Filter
    - Integrated Transom
  • 25
    840690T VALVE BLOCK ASSEMBLY
    - Intergrated Transom
    VALVE BLOCK ASSEMBLY
    - Intergrated Transom
  • 26
    8M8021152 BLOCK ASSEMBLY, Adaptor - With Check Valves
    - Intergrated Transom SN# 0M962899 & Below
    BLOCK ASSEMBLY, Adaptor - With Check Valves
    - Intergrated Transom SN# 0M962899 & Below
  • 27
    10-57807 SCREW, (#10-16 x .750) Stainless Steel
    - Integrated Transom
    SCREW, (#10-16 x .750) Stainless Steel
    - Integrated Transom
  • 28
    54-828370 BRACKET
    - Integrated Transom
    BRACKET
    - Integrated Transom
  • 29
    884359T1 MODULE ASSEMBLY, Gauge Driver
    - Integrated Transom
    MODULE ASSEMBLY, Gauge Driver
    - Integrated Transom
  • 30
    10-818224 SCREW, (#12-11 x 1.750)
    - Integrated Transom
    SCREW, (#12-11 x 1.750)
    - Integrated Transom
  • 31
    23-849083 SPACER
    - Integrated Transom
    SPACER
    - Integrated Transom
  • 32
    844399T01 VALVE BLOCK ASSEMBLY
    SN# 0M962900 & Up
    VALVE BLOCK ASSEMBLY
    SN# 0M962900 & Up
