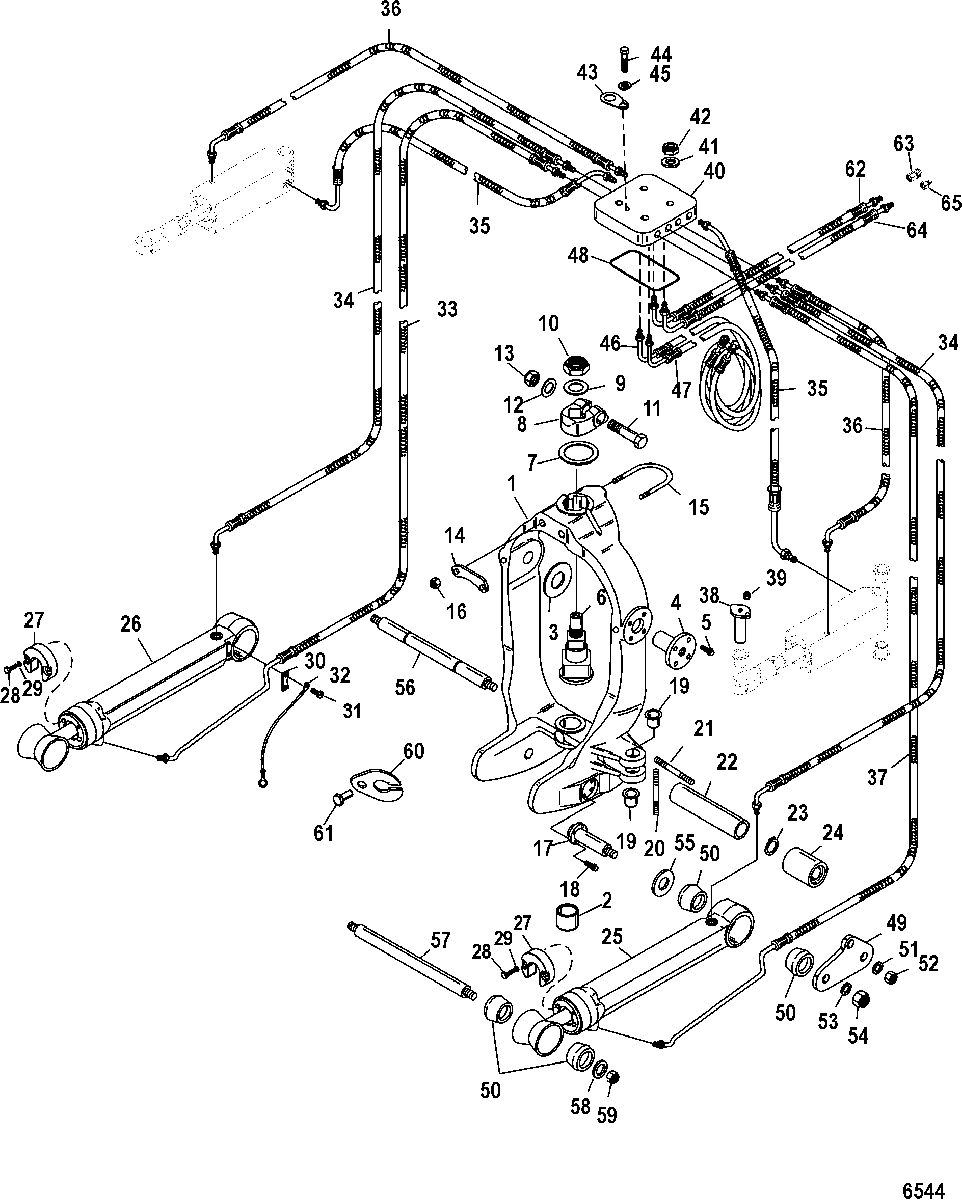

Gimbal Ring(Integrated Transom) для Mercruiser - BRAVO XR THREE 0W240000 & Up

  • №
    Артикул
    Название
  • 1
    840532A02 GIMBAL RING ASSEMBLY
    GIMBAL RING ASSEMBLY
  • 2
    23-847638 BUSHING
    BUSHING
  • 3
    12-41721 WASHER
    WASHER
  • 4
    8219971 PIN, Hinge, 4 Bolt Design
    PIN, Hinge, 4 Bolt Design
  • 5
    10-840907 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 6
    98230A1 SHAFT ASSEMBLY, Swivel
    SHAFT ASSEMBLY, Swivel
  • 6
    866718A01 SHAFT ASSEMBLY, Swivel, Anodized
    SHAFT ASSEMBLY, Swivel, Anodized
  • 7
    12-98548 WASHER, (1.125 )
    WASHER, (1.125 )
  • 8
    866322T01 CLAMP, Top Pin
    CLAMP, Top Pin
  • 9
    12-85344 WASHER, (.750 Inside Diameter)
    WASHER, (.750 Inside Diameter)
  • 10
    11-8M2014641 NUT, (.750-16)
    NUT, (.750-16)
  • 11
    10-807204 SCREW, (.437-20 x 2.00)
    SCREW, (.437-20 x 2.00)
  • 12
    12-861854 WASHER, (.453 x .750 x .032) Stainless Steel
    WASHER, (.453 x .750 x .032) Stainless Steel
  • 13
    11-8M2008293 NUT, (.437-20)
    NUT, (.437-20)
  • 14
    816510T BRACKET
    BRACKET
  • 15
    10-805164 U BOLT
    U BOLT
  • 16
    11-862903 NUT, (.375-24)
    NUT, (.375-24)
  • 17
    840728 PIN, Mounting, Trim Cylinder
    PIN, Mounting, Trim Cylinder
  • 18
    10-840907 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 19
    23-8159501 BUSHING
    BUSHING
  • 20
    16-8M0034435 STUD, (#10-32 x 1.00)
    STUD, (#10-32 x 1.00)
  • 21
    16-8M0041668 STUD, (.437-14/.437-20 x 1.875)
    STUD, (.437-14/.437-20 x 1.875)
  • 22
    23-840803 SPACER
    SPACER
  • 23
    53-805272 RING, Retaining
    RING, Retaining
  • 24
    23-840802 SPACER
    SPACER
  • 25
    8M0108286 TRIM CYLINDER ASSEMBLY, Starboard
    (See Power Trim Cylinder Repair Kits for Breakdown)
    TRIM CYLINDER ASSEMBLY, Starboard
    (See Power Trim Cylinder Repair Kits for Breakdown)
  • 26
    8M0108285 TRIM CYLINDER ASSEMBLY, Port
    (See Power Trim Cylinder Repair Kits for Breakdown)
    TRIM CYLINDER ASSEMBLY, Port
    (See Power Trim Cylinder Repair Kits for Breakdown)
  • 27
    97-806189T1 ANODE ASSEMBLY
    ANODE ASSEMBLY
  • 28
    10-806290 SCREW, (#10-32 x .625)
    SCREW, (#10-32 x .625)
  • 29
    13-69432 LOCKWASHER, External (#10)
    LOCKWASHER, External (#10)
  • NS
    87399A2 OVERHAUL KIT
    OVERHAUL KIT
  • NS
    25-87400A2 SEAL KIT
    SEAL KIT
  • 30
    85060 PLATE
    PLATE
  • 31
    10-85486 SCREW, (.250-20 x .380) Stainless Steel
    SCREW, (.250-20 x .380) Stainless Steel
  • 32
    88238A13 CABLE ASSEMBLY, Ground
    CABLE ASSEMBLY, Ground
  • 33
    32-840557 HOSE, Trim Cylinder, Port
    HOSE, Trim Cylinder, Port
  • 34
    32-840555 HOSE, Hydraulic
    HOSE, Hydraulic
  • 35
    32-840552 HOSE, Hydraulic
    HOSE, Hydraulic
  • 36
    32-840554 HOSE, Hydraulic
    HOSE, Hydraulic
  • 37
    32-840556 HOSE, Trim Cylinder, Starboard
    HOSE, Trim Cylinder, Starboard
  • 38
    840832 PIN
    PIN
  • 39
    11-8267096 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 40
    840691 BLOCK
    BLOCK
  • 41
    12-846673 WASHER, (.265 x .500 x .060) Stainless Steel
    WASHER, (.265 x .500 x .060) Stainless Steel
  • 42
    11-826709109 NUT, (.250-28) Stainless Steel
    NUT, (.250-28) Stainless Steel
  • 43
    847022 PLATE
    PLATE
  • 44
    10-68513 SCREW, (#10-32 x .375) Stainless Steel
    SCREW, (#10-32 x .375) Stainless Steel
  • 45
    13-69432 LOCKWASHER, External (#10)
    LOCKWASHER, External (#10)
  • 46
    32-840657 HOSE ASSEMBLY, Black, Hydraulic
    HOSE ASSEMBLY, Black, Hydraulic
  • 47
    32-840692 HOSE ASSEMBLY, Gray, Hydraulic
    HOSE ASSEMBLY, Gray, Hydraulic
  • 48
    25-805732 O-RING, (2.612 x .103)
    O-RING, (2.612 x .103)
  • 49
    840744 PLATE
    PLATE
  • 50
    23-807073 BUSHING
    BUSHING
  • 51
    12-842922 WASHER, (.450 x .750 x .060) Stainless Steel
    WASHER, (.450 x .750 x .060) Stainless Steel
  • 52
    11-34933 NUT, (.437-20) Stainless Steel
    NUT, (.437-20) Stainless Steel
  • 53
    12-49339 WASHER, (.8125)
    WASHER, (.8125)
  • 54
    11-35000 NUT, (.500-20) Stainless Steel
    NUT, (.500-20) Stainless Steel
  • 55
    12-44164 WASHER
    WASHER
  • 56
    17-44167A1 PIN
    PIN
  • 57
    17-44166 PIN
    PIN
  • 58
    12-44163 WASHER, (.450 x 1.75 x .12)
    WASHER, (.450 x 1.75 x .12)
  • 59
    11-859116 NUT, (.437-20)
    NUT, (.437-20)
  • 60
    54-12078 CLAMP
    CLAMP
  • 61
    10-28635 SCREW, (.250-20 x .620) Stainless Steel
    SCREW, (.250-20 x .620) Stainless Steel
  • 62
    32-840656 HOSE, Hydraulic
    SN# 0M962899 & Below
    HOSE, Hydraulic
    SN# 0M962899 & Below
  • 62
    32-8M0041852 HOSE, Hydraulic
    SN# 0M962900 & Up
    HOSE, Hydraulic
    SN# 0M962900 & Up
  • 63
    22-865410001 FITTING, Female Quick Connect
    SN# 0M962899 & Below
    FITTING, Female Quick Connect
    SN# 0M962899 & Below
  • 63
    8M0042488 FITTING
    SN# 0M962900 & Up
    FITTING
    SN# 0M962900 & Up
  • 64
    32-840656 HOSE, Hydraulic
    SN# 0M962899 & Below
    HOSE, Hydraulic
    SN# 0M962899 & Below
  • 64
    32-8M0041852 HOSE, Hydraulic
    SN# 0M962900 & Up
    HOSE, Hydraulic
    SN# 0M962900 & Up
  • 65
    22-865411001 FITTING, Male Quick Connect
    SN# 0M962899 & Below
    FITTING, Male Quick Connect
    SN# 0M962899 & Below
  • 65
    8M0042488 FITTING
    SN# 0M962900 & Up
    FITTING
    SN# 0M962900 & Up
